1. Introduktion
This manual provides essential information for the safe installation, operation, and maintenance of your Amantii WM-55-XS 55-inch Extra Slim Electric Fireplace. Please read all instructions carefully before installation and use to ensure proper function and safety.
The Amantii WM-55-XS is an indoor-only, wall-mount electric fireplace designed to provide supplemental heat and aesthetic ambiance. It features a black steel surround and multi-color LED flame options.
Image 1.1: The Amantii WM-55-XS electric fireplace integrated into a living room setting, showcasing its slim design and flame effect.
2. Vigtige sikkerhedsoplysninger
ADVARSEL: Read and understand all instructions before installing or operating this heater. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.
- Dette apparat er varmt, når det er i brug. For at undgå forbrændinger, lad ikke bar hud berøre varme overflader.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 m) from the front of the heater.
- Ekstrem forsigtighed er nødvendig, når et varmeapparat bruges af eller i nærheden af børn eller handicappede, og når varmeapparatet efterlades i drift og uden opsyn.
- Brug ikke varmeapparater med en beskadiget ledning eller stik, eller efter at varmeapparatet ikke fungerer korrekt, er blevet tabt eller beskadiget på nogen måde.
- Do not use outdoors. This fireplace is for indoor use only.
- Før ikke ledningen under gulvtæpper. Dæk ikke ledningen med tæpper, løbere eller lignende belægninger. Anbring ledningen væk fra trafikområdet, og hvor den ikke vil blive snublet over.
- For at afbryde varmeapparatet skal du slukke for knapperne og derefter tage stikket ud af stikkontakten.
- Indsæt eller lad ikke fremmedlegemer trænge ind i ventilations- eller udsugningsåbninger, da dette kan forårsage elektrisk stød eller brand eller beskadige varmeren.
- Brug altid korrekt jordede, smeltede og polariserede stikkontakter.
3. Pakkens indhold
Verify that all components are present before beginning installation. If any parts are missing or damaged, do not attempt to assemble or operate the fireplace. Contact customer support for assistance.
- Amantii WM-55-XS Electric Fireplace Unit
- Black Steel Surround (pre-installed or separate, depending on model variant)
- Multifunktions fjernbetjening
- Decorative Media (e.g., LED light, quartz burner type)
- Installation Hardware (screws, anchors, etc. - typically included for wall mounting)
- Brugervejledning (dette dokument)
4. Opsætning og installation
The Amantii WM-55-XS is designed for wall-mount installation. It can be hard-wired or plugged into a standard electrical outlet. Professional installation is recommended for hard-wiring.
4.1 Valg af sted
- Choose a location that is not exposed to direct sunlight or moisture.
- Ensure the wall structure can support the weight of the fireplace (approximately 65.7 lbs).
- Maintain clearances from combustible materials as specified in Section 2.
4.2 Elektriske krav
This unit operates on 120V, 60Hz, 12.5 Amps. It requires a dedicated, properly grounded circuit. The unit is both thermostat and electrical hard-wire ready.
4.3 Vægmontering
- Tag forsigtigt pejsen ud af emballagen.
- Determine the desired mounting height. Mark the wall for the mounting bracket.
- Secure the mounting bracket to the wall studs using appropriate hardware. If studs are not available, use wall anchors suitable for the fireplace's weight.
- Lift the fireplace unit and carefully hang it onto the mounting bracket. Ensure it is securely seated.
- Connect the power cord to a grounded outlet or complete the hard-wire connection by a qualified electrician.

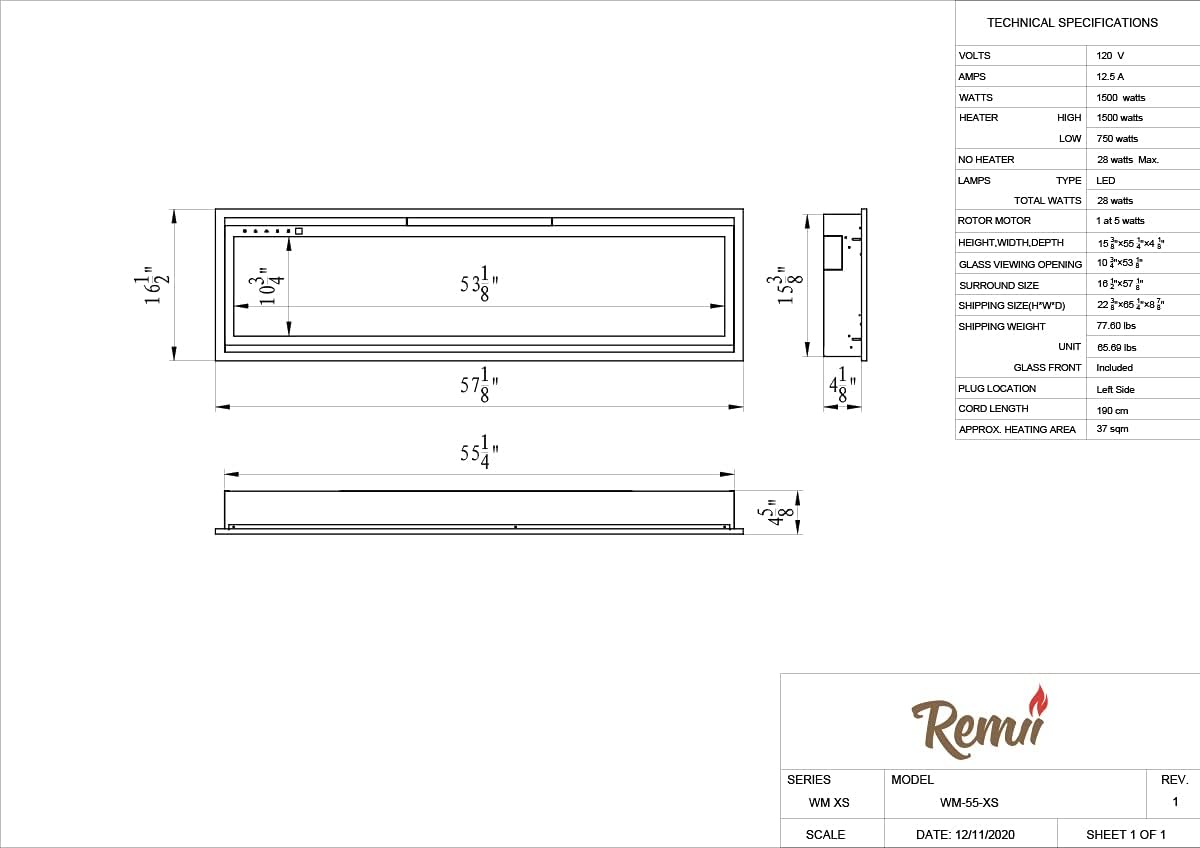

Image 4.1: Technical drawing showing the dimensions and electrical specifications for the WM-55-XS model, useful for installation planning.
5. Betjeningsvejledning
The Amantii WM-55-XS can be operated using the included multi-function remote control.
5.1 Fjernbetjeningsfunktioner
- Power knap: Tænder eller slukker pejsen.
- Flammefarveknap: Cycles through various flame color options (blue, rose, violet, yellow, orange).
- Flame Brightness Button: Justerer flammeeffektens intensitet.
- Varmeknap: Activates or deactivates the heating function. The heater can operate independently from the flame display.
- Temperaturkontrol: Adjusts the desired heat output.
5.2 Flame Presentation (FIRE & ICE)
The FIRE & ICE flame presentation system allows for multiple color combinations. Use the flame color button on the remote to select your preferred ambiance.

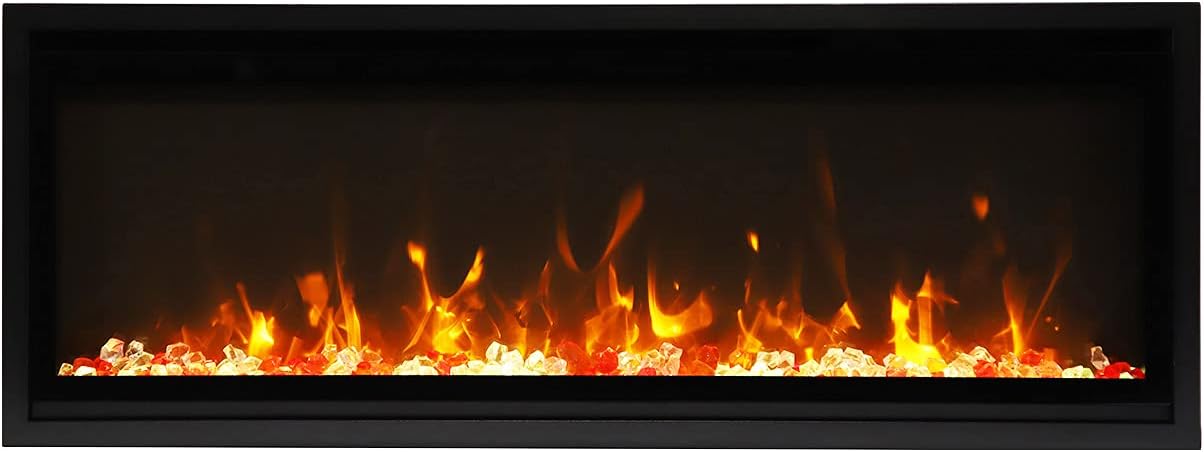

Image 5.1: Fireplace with warm orange and yellow flame effects.

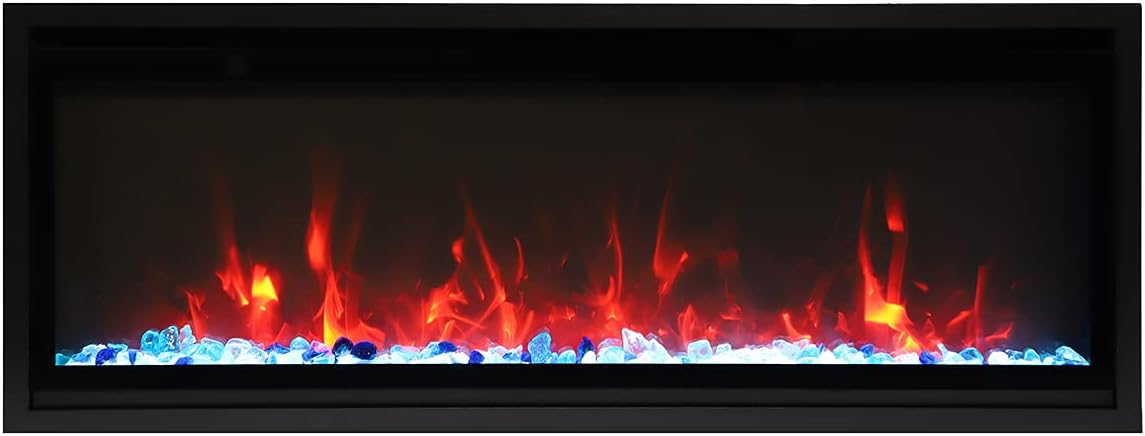

Image 5.2: Fireplace with cool red and blue flame effects.
Image 5.3: Fireplace with a mix of orange and blue flame effects.
Image 5.4: Fireplace with a blend of orange and green flame effects.
5.3 Varmefunktion
The heater provides supplemental heat for areas up to 400 square feet, producing up to 4096 BTUs. The heating element can be operated independently of the flame display. Use the heater button and temperature controls on the remote to adjust the heat output.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din elektriske pejs' lange levetid og optimale ydeevne.
- Rensning: Afbryd altid strømmen før rengøring. Brug en blød, tøramp klud til at rengøre de udvendige overflader. Brug ikke slibende rengøringsmidler eller spray.
- Glaspanel: Clean the glass panel with a soft cloth and glass cleaner. Do not scratch the surface.
- Ventilationsåbninger: Keep the ventilation openings clear of dust and debris to ensure proper airflow for the heater.
- Pærer: The LED lights are designed for long life and typically do not require replacement. If an issue occurs, contact customer support.
7. Fejlfinding
If you experience issues with your Amantii WM-55-XS fireplace, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pejsen tænder ikke. | No power, remote control battery low, power switch off. | Check power connection, replace remote batteries, ensure main power switch is ON. |
| Varmeapparatet producerer ikke varme. | Heater function off, thermostat set too low, air intake/output blocked. | Activate heater via remote, increase thermostat setting, clear any obstructions from vents. |
| Flammeeffekten virker ikke. | Flame function off, LED lights malfunction. | Activate flame effect via remote. If issue persists, contact customer support. |
| Fjernbetjeningen reagerer ikke. | Low battery, obstruction, out of range. | Replace batteries, ensure clear line of sight to fireplace sensor, operate within recommended range. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | WM-55-XS |
| Mærke | kærlighed |
| Produktmål (D x B x H) | 4.12" D x 55.25" B x 15.37" H |
| Varens vægt | 65.7 pund |
| Strømkilde | Elektrisk med ledning |
| Voltage | 120V |
| Ampslette | 12.5 Amps |
| Varmeoutput | 4096 britiske termiske enheder (BTU) |
| Varmedækning | Op til 400 kvadratmeter |
| Installationstype | Vægmontering |
| Materiale | Metal (Steel finish) |
| Speciel funktion | Adjustable Flame, Remote Control |
| Ventilationstype | Vent fri |
| Brænder type | Kvarts |
9. Garanti og support
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Amantii webwebsted. Gem din købsbevis til garantikrav.
If you require technical assistance or have questions not covered in this manual, please contact Amantii customer service.
