1. Vigtige sikkerhedsoplysninger
Læs venligst alle instruktioner omhyggeligt inden montering og brug. Gem denne manual til senere brug.
- Assembly may require proper anchoring techniques to prevent accidents. Ensure the awning is securely anchored to a stable surface.
- Be cautious of moving parts when opening and retracting the awning to avoid injury. Keep hands and clothing clear of the folding arms.
- Do not use the awning in strong winds, heavy rain, or snow. Retract the awning completely during adverse weather conditions to prevent damage.
- Undersøg regelmæssigt alle komponenter for slid, skader eller løse forbindelser. Udskift beskadigede dele med det samme.
- Hold børn og kæledyr væk fra markisen under drift.
2. Produktet er slutview
The vidaXL Freestanding Manual Retractable Awning provides adjustable shade for outdoor spaces. It features a rust-resistant powder-coated aluminum frame and a high-density polyester fabric with PU coating, offering UV and water resistance. The awning is manually operated via a hand crank, allowing for smooth extension and retraction. Its sturdy base can rotate 360 degrees for optimal positioning.
Image 1: The vidaXL Freestanding Manual Retractable Awning in its fully extended position, showcasing its black fabric and white frame.
Image 2: The awning installed on a patio, providing shade over outdoor furniture, demonstrating its practical application.
3. Komponentliste
Before assembly, ensure all parts are present and undamaged. Refer to the following list and images for identification:
- Awning Fabric Roll (with integrated frame)
- Folding Support Arms
- Vertical Support Posts
- Bundplade(r)
- Håndsving
- Mounting Brackets and Anchors (for securing the base)
- Samlebeslag (bolte, møtrikker, skiver)
Image 3: Close-up of the mounting brackets and anchor bolts, essential for securing the awning's base.
Image 4: Illustration of the main frame structure, showing the horizontal bar and vertical support post.
4. Opsætning og montering
Assembly of the vidaXL Freestanding Manual Retractable Awning requires careful attention to detail and proper anchoring. It is recommended that two people perform the assembly.
Trin for generalforsamling:
- Udpak og identificer: Carefully unpack all components and verify against the components list.
- Saml rammen: Connect the horizontal bar to the vertical support posts using the provided hardware. Ensure all connections are tight and secure.
- Fastgør markisestof: Secure the awning fabric roll to the assembled frame according to the specific instructions provided in the packaging.
- Install Folding Arms: Attach the folding support arms to the main frame and the front bar of the awning.
- Fastgør basen: Position the base plate(s) in the desired location. Use appropriate anchoring techniques (e.g., concrete anchors for concrete patios, ground stakes for soft ground) to firmly secure the base. Proper anchoring is crucial for stability and safety.
- Attach Hand Crank: Connect the hand crank to the designated mechanism for operation.
- Indledende test: Slowly extend and retract the awning manually to ensure smooth operation and proper alignment.
Warning: Always ensure the awning is properly anchored to prevent tipping or collapse, especially in windy conditions.
5. Betjeningsvejledning
The vidaXL Freestanding Manual Retractable Awning is designed for simple manual operation.
Udvidelse af markisen:
- Insert the hand crank into the designated loop or hook on the awning mechanism.
- Rotate the hand crank clockwise to extend the awning. Continue rotating until the desired extension is reached.
- Do not force the awning beyond its maximum extension limit.
Indtrækning af markisen:
- Sæt håndsvinget ind i den dertil beregnede løkke eller krog.
- Rotate the hand crank counter-clockwise to retract the awning. Continue rotating until the awning is fully closed.
- Sørg for, at markisen er helt trukket ind i stærk vind eller når den ikke er i brug i længere perioder.
Justering af vinkel og højde:
The awning's angle and height can be adjusted to suit your specific needs. Refer to the assembly instructions for detailed steps on how to loosen and tighten the adjustment points on the support posts and folding arms. The base can also be rotated 360 degrees for optimal positioning.
Image 5: The hand crank mechanism used to manually extend and retract the awning.
6. Vedligeholdelse og pleje
Proper maintenance ensures the longevity and optimal performance of your awning.
- Rengøring af stoffet: Clean the polyester fabric with a soft brush or cloth, mild soap, and lukewarm water. Rinse thoroughly with clean water and allow it to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
- Vedligeholdelse af ramme: Periodically inspect the aluminum frame for any signs of rust, corrosion, or damage. Clean the frame with a damp cloth. If necessary, touch up any scratches with rust-inhibiting paint.
- Bevægelige dele: Lubricate moving parts, such as the folding arms and crank mechanism, annually with a silicone-based spray to ensure smooth operation.
- Hardwarekontrol: Regularly check all bolts, nuts, and anchoring points to ensure they remain tight and secure. Tighten any loose hardware.
- Vejrbeskyttelse: Træk altid markisen ind under stærk vind, kraftig regn eller sne for at forhindre beskadigelse af stof og stel.
7. Fejlfinding
Hvis du støder på problemer med din markise, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Markisen kører ikke jævnt ud eller ind. | Obstruction in the mechanism or arms; lack of lubrication; bent arm. | Check for any obstructions and remove them. Apply silicone lubricant to moving parts. Inspect arms for damage and replace if necessary. |
| Awning feels unstable or wobbly. | Improper or loose anchoring; damaged base plate or support post. | Verify that the base is securely anchored to the ground. Tighten all bolts and connections. Inspect base and posts for damage. |
| Stoffet synker eller samler vand. | Insufficient tension; incorrect angle adjustment. | Ensure the awning is fully extended and the fabric is taut. Adjust the angle of the awning to allow for proper water runoff. |
8. Produktspecifikationer
Detailed specifications for the vidaXL Freestanding Manual Retractable Awning, Model 3069579:
| Feature | Detalje |
|---|---|
| Modelnummer | 3069579 |
| Mærke | vidaXL |
| Farve | Black (Anthracite) |
| Materiale | Powder-coated aluminum frame, 100% polyester fabric with PU coating |
| Samlet størrelse (B x H) | 196.9 tommer x 118.1 tommer (500 cm x 300 cm) |
| Post Size (W x H) | 177.2 tommer x 96.5 tommer (450 cm x 245 cm) |
| Varens vægt | 149.8 pund (68.08 kg) |
| Driftstilstand | Manuel (håndsving) |
| Montering påkrævet | Ja |
| UV- og vandafvisende | Ja |

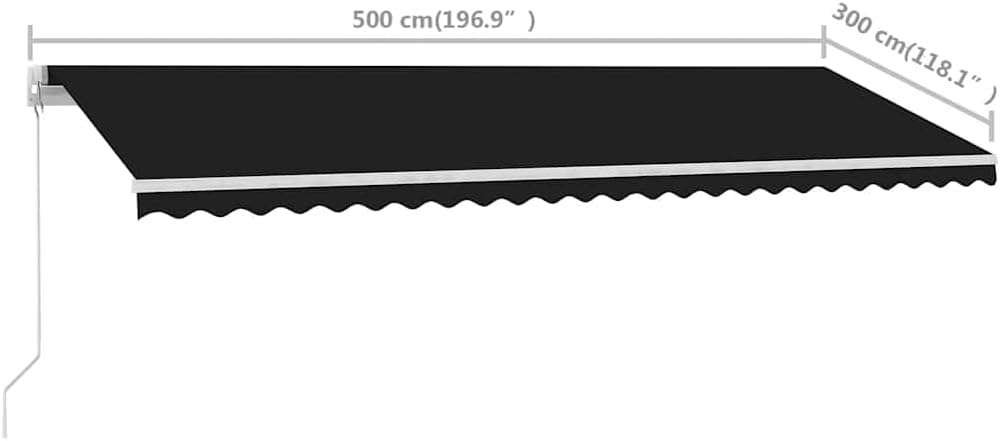

Image 6: Dimensional diagram of the awning, indicating its width (500 cm / 196.9 inches) and projection (300 cm / 118.1 inches).
9. Garanti og support
For warranty information, product support, or to purchase replacement parts, please contact vidaXL customer service or visit the official vidaXL store.
Du kan finde mere information og kontaktoplysninger på vidaXL-butik på Amazon.
