Dripex 120cm LED Gaming Desk Instruction Manual

1. Introduktion

The Dripex 120cm LED Gaming Desk, Model Desk-110, is designed to enhance your gaming and work experience. This ergonomic desk features a durable carbon fiber surface, integrated LED lighting, and convenient accessories such as a cup holder, headphone hook, and controller stand. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal use of your new desk.

Billede 1.1: Overview of the Dripex 120cm LED Gaming Desk with accessories.

2. Sikkerhedsoplysninger

• Læs alle instruktioner omhyggeligt før montering og brug.
• Hold små dele væk fra børn for at undgå kvælningsfare.
• Ensure all screws and fasteners are securely tightened before using the desk.
• Do not overload the desk; the maximum weight capacity is 150 kg (330 lbs).
• Avoid placing hot items directly on the desktop without adequate protection.
• Stå eller sid ikke på skrivebordet.
• Use only the provided components and tools for assembly.
• Hvis nogen dele mangler eller er beskadiget, skal du straks kontakte kundesupport.

3. Pakkens indhold

Please verify that all components listed below are present in your package. If any items are missing or damaged, please contact Dripex customer support.

• Desktop (Carbon Fiber Surface)
• Desk Legs (Steel Frame)
• Tværstænger/støttebjælker
• LED Lighting Strips (may be pre-installed)
• LED Control Box and Power Cable
• Kopholder
• Høretelefonkrog
• Controllerstativ
• Large Mouse Pad (80 x 30 cm)
• Cable Management Grommets/Holes
• Justerbare fødder
• Samlebeslag (skruer, bolte, unbrakonøgle)
• Instruktionsmanual

Image 3.1: Included large mouse pad.

4. Opsætnings- og monteringsvejledning

Follow these steps carefully to assemble your Dripex Gaming Desk.

1. Pak komponenter ud: Carefully remove all parts from the packaging. Place them on a soft, clean surface to prevent scratches. Verify all parts against the package contents list.
2. Saml rammen: Attach the crossbars to the desk legs using the provided screws. Ensure all connections are firm but do not fully tighten yet.
3. Attach Legs to Desktop: Carefully place the desktop upside down on a protected surface. Align the assembled frame with the pre-drilled holes on the underside of the desktop. Secure the frame to the desktop with the appropriate screws.
4. Install Adjustable Feet: Screw the adjustable feet into the bottom of the desk legs. These can be adjusted later to level the desk on uneven surfaces.
5. Installer tilbehør: Attach the cup holder, headphone hook, and controller stand to their designated positions on the desk.
6. Kabelstyring: Utilize the integrated cable management holes to route and organize your device cables.
7. Endelig stramning: Once all components are in place and aligned, fully tighten all screws.
8. Position the Desk: Carefully flip the desk upright and place it in its desired location. Adjust the feet as needed to ensure stability.
9. Connect LED Power: Connect the LED lighting power cable to a suitable power source.

Image 4.1: Desk layout with cable management features.

Image 4.2: Adjustable leveling foot for stability.

5. Betjeningsvejledning

This section details how to operate the integrated features of your Dripex Gaming Desk.

5.1 LED-lysstyring

The desk features integrated LED lighting with multiple colors and modes. Locate the LED control buttons, typically on the side or front edge of the desk.

• Trykke Knap C (Color Change Key) to cycle through 6 optional colors.
• Trykke Knap M (Mode Control Key) once for RGB light-up mode. Press Button C to change colors within this mode.
• Trykke Knap M twice for a special volume control mode (functionality may vary).
• Trykke Knap M three times to switch off the LED lights.

Image 5.1: LED control buttons (Button C and Button M).

5.2 Brug af tilbehør

• Kopholder: Use the integrated cup holder to securely hold beverages, preventing spills and keeping your drink within reach.
• Høretelefonkrog: Hang your headphones on the dedicated hook for easy access and to keep your desk tidy and organized.
• Controllerstativ: Place your gaming controllers on the stand for organized storage and quick access during gameplay.
• Kabelstyring: Route power and data cables through the desk's grommets to maintain a clean and organized workspace, reducing clutter.

Image 5.2: Integrated cup holder and headphone hook.

6. Vedligeholdelse

Proper maintenance will ensure the longevity and appearance of your gaming desk.

• Cleaning the Desktop: The carbon fiber surface is waterproof and wear-resistant. Wipe the desktop regularly with a soft, damp cloth. For stubborn stains, use a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the finish.
• Rammepleje: Clean the steel frame with a damp cloth. Avoid abrasive cleaners that could scratch the paint.
• Tæthedskontrol: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary to maintain desk stability and prevent wobbling.
• LED pleje: Keep the LED strips and control box free from dust. Do not attempt to disassemble or modify the LED components.

Image 6.1: Steel frame structure and waterproof desktop.

7. Fejlfinding

If you encounter any issues with your Dripex Gaming Desk, refer to the following troubleshooting guide:

• Desk is Unstable or Wobbly:
  • Sørg for, at alle monteringsskruer er helt spændt.
  • Adjust the leveling feet at the bottom of the desk legs to compensate for uneven floor surfaces.
• LED-lys virker ikke:
  • Check if the LED power cable is securely connected to both the desk and the power source.
  • Sørg for, at stikkontakten fungerer.
  • Press Button M multiple times to cycle through modes and ensure it's not in an "off" state.
  • Kontakt kundesupport, hvis problemet fortsætter.
• Manglende dele eller beskadigede komponenter:
  • Review the package contents list. If any parts are missing or damaged upon arrival, do not proceed with assembly. Contact customer support immediately for replacements.

8. Specifikationer

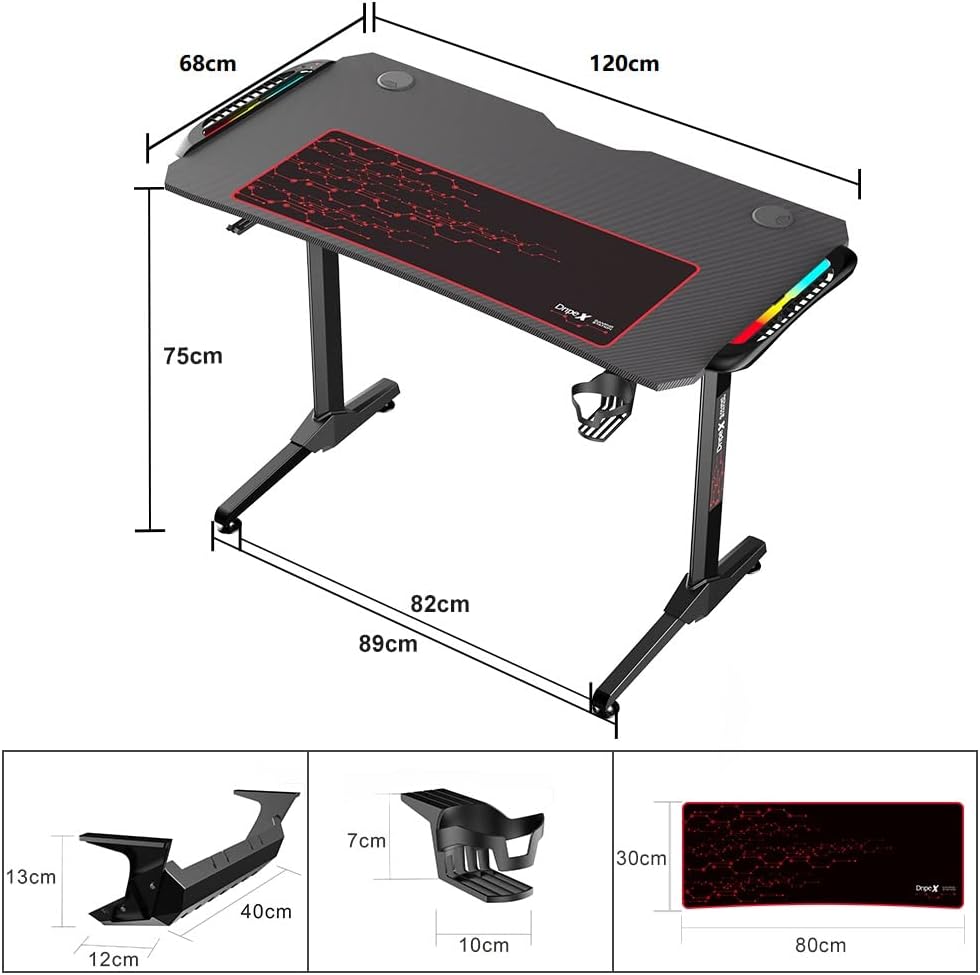

Image 8.1: Desk dimensions.

9. Garanti og support

Specific warranty details are not provided in the product information. For warranty claims, technical support, or replacement parts, please contact Dripex customer service directly. Refer to the contact information provided with your product packaging or visit the official Dripex webwebstedet for de mest opdaterede supportoplysninger.
