Fostex RM-3DT Aktiv Monitorhøjttaler Brugermanual

Indledning

The Fostex RM-3DT is a compact, high-quality active monitor speaker designed for professional audio environments, particularly for rack-mount installations. It features both Dante and balanced analog inputs, making it versatile for various studio and broadcast applications. This manual provides essential information for the proper setup, operation, and maintenance of your RM-3DT unit.

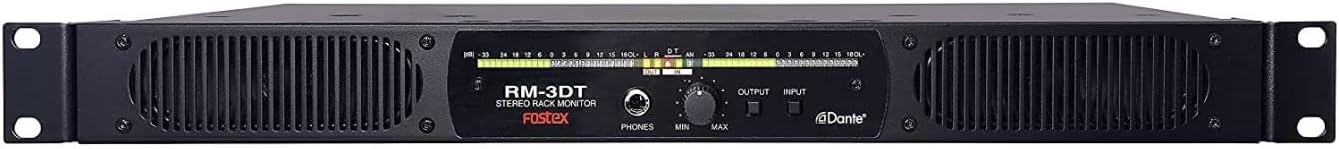

Figur 1: Forside view of the Fostex RM-3DT Active Monitor Speaker, showing the LED meter, headphone jack, and volume knob.

Nøglefunktioner

• Accepts both Dante and Balanced Analog Inputs for flexible connectivity.
• Outputs either or both of any 2-channel digital signals extracted from the Dante network.
• Power-saving design incorporating a digital amplifier and switching power supply.
• 26-dot LED meter with selectable display modes: VU, VU+PEAK, VU+PEAK HOLD, PEAK+PEAK HOLD.
• Adjustable display brightness with four levels.

Hvad er der i æsken

Upon unpacking your Fostex RM-3DT, please ensure all the following items are present:

• Fostex RM-3DT Rack-Mount Active Stereo Monitor Speaker with Dante
• Strømledning
• Brugervejledning (dette dokument)

Opsætning

1. Fysisk installation

The RM-3DT is designed for standard 19-inch rack mounting. Ensure adequate ventilation around the unit to prevent overheating. Secure the unit firmly using appropriate rack screws.

2. Forbindelser

The RM-3DT offers both Dante network connectivity and traditional balanced analog inputs/outputs.

Figure 2: Rear panel of the Fostex RM-3DT, illustrating Dante IN, Analog Input (XLR), and Analog Thru Out (XLR) ports.

• Dante input: Connect an Ethernet cable from your Dante network to the "Dante IN" port. The RM-3DT will appear as a device on your Dante Controller software.
• Analog input: Use balanced XLR cables to connect your analog audio sources to the "ANALOG INPUT" (L/R) ports.
• Analog Thru Out: The "ANALOG THRU OUT" (L/R) ports provide a pass-through of the analog input signals, allowing you to route them to other equipment.

3. Strømtilslutning

Connect the supplied power cord to the AC IN receptacle on the rear panel of the RM-3DT and then to a standard AC power outlet. Ensure the power switch is in the "OFF" position before connecting.

Betjeningsvejledning

1. Tænd/sluk

To power on the unit, flip the power switch on the rear panel to the "ON" position. To power off, flip the switch to "OFF".

2. Kontroller på frontpanelet

Figure 3: Close-up of the front panel, highlighting the headphone jack, volume knob, and input/output selection buttons.

• TELEFON Jack: Connect stereo headphones to this 1/4-inch (6.35mm) jack for private monitoring.
• VOLUME knap: Adjusts the output level of the built-in speakers and the headphone output.
• INPUT knap: Toggles between Dante and Analog input sources. The selected input will be indicated by an LED.
• OUTPUT Button: Selects whether the monitor outputs the Dante signal, Analog signal, or a mix of both.

3. LED Meter Display

The 26-dot LED meter provides visual feedback on audio levels. You can configure its display mode and brightness using the DIP switches on the rear panel.

• Skærmtilstande:
  • VU: Standard Volume Unit meter.
  • VU+PEAK: Displays VU level with peak hold.
  • VU+PEAK HOLD: Displays VU level with a longer peak hold.
  • PEAK+PEAK HOLD: Displays peak level with peak hold.
• Justering af lysstyrke: The display brightness can be set to one of four levels via DIP switch settings.

4. Rear Panel DIP Switches

A set of DIP switches on the rear panel allows for advanced configuration of the RM-3DT's behavior. Refer to the labels next to the switches for specific functions.

Figure 4: Close-up of the rear panel, showing the DIP switches for various settings like Dimmer, Meter type, Mute, and Peak VU.

• DIMMER: Adjusts the brightness of the LED meter.
• MÅLER: Selects the LED meter display mode (VU, VU+PEAK, etc.).
• STUM: Aktiverer eller deaktiverer mute-funktionen.
• PEAK VU: Configures specific peak VU settings.

Consult the detailed diagram on the unit's rear panel for precise DIP switch configurations.

Opretholdelse

• Rensning: Brug en blød, tør klud til at rengøre enhedens yderside. Brug ikke flydende rengøringsmidler eller slibende materialer.
• Ventilation: Ensure that the ventilation grilles are not obstructed to allow for proper airflow and prevent overheating.
• Opbevaring: Hvis enheden opbevares i længere tid, skal den afbrydes fra strømmen og opbevares et køligt og tørt sted.

Fejlfinding

Specifikationer

Garanti og support

The Fostex RM-3DT comes with a limited warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Fostex website. For technical support, service, or further inquiries, please contact Fostex customer service through their official channels.

Du kan finde flere oplysninger og supportressourcer på Fostex Store on Amazon.
