1. Introduktion
This manual provides detailed instructions for the operation and maintenance of your Fuzion Digital Pocket Scale, Model FU-200. Designed for high precision, this scale offers accurate measurements for various small items. Please read this manual thoroughly before use to ensure proper functionality and longevity of your device.
Figure 1: Fuzion Digital Pocket Scale with accessories.
2. Opsætning
2.1 Batteriinstallation
- Åbn batteridækslet, der er placeret på undersiden af vægten.
- Insert the two AAA batteries (included) according to the polarity indicators (+/-).
- Luk batterirummets dæksel forsvarligt.
2.2 Indledende placering
Place the scale on a flat, stable, and vibration-free surface. Ensure it is away from strong electromagnetic fields or extreme temperature changes for optimal performance.
3. Betjeningsvejledning
3.1 Tænd/sluk
- Tryk på "ON/OFF"-knappen for at tænde for vægten.
- Press and hold the “ON/OFF” button for a few seconds to turn the scale off.
3.2 Enhedskonvertering
The scale supports 6 different units of measurement. Press the “MODE” button to cycle through the available units: g (grams), oz (ounces), gn (grains), ozt (troy ounces), dwt (pennyweights), and ct (carats).
Figure 2: Displaying the 6 unit conversion options.
3.3 Tara funktion
The Tare function allows you to subtract the weight of a container, providing only the net weight of the contents.
- Placer en tom beholder på vejeplatformen.
- Press the “TARE” button. The display will reset to zero.
- Add items into the container; the display will show the net weight of the items.
Figure 3: Visual guide for the Tare function.
3.4 Kalibreringsfunktion
Regular calibration ensures the accuracy of your scale. A 50g calibration weight is included.
- Turn the scale on and wait for the display to show “0.00”.
- Press and hold the “MODE” button until the display shows “CAL” then flashes “50.00”.
- Place the 50g calibration weight on the center of the platform.
- The display will show “PASS” and then return to normal weighing mode, indicating successful calibration.
Figure 4: Visual guide for the Calibration function.
3.5 Vejning af genstande
Place the item(s) gently on the center of the stainless steel weighing platform. The weight will be displayed on the LCD screen.

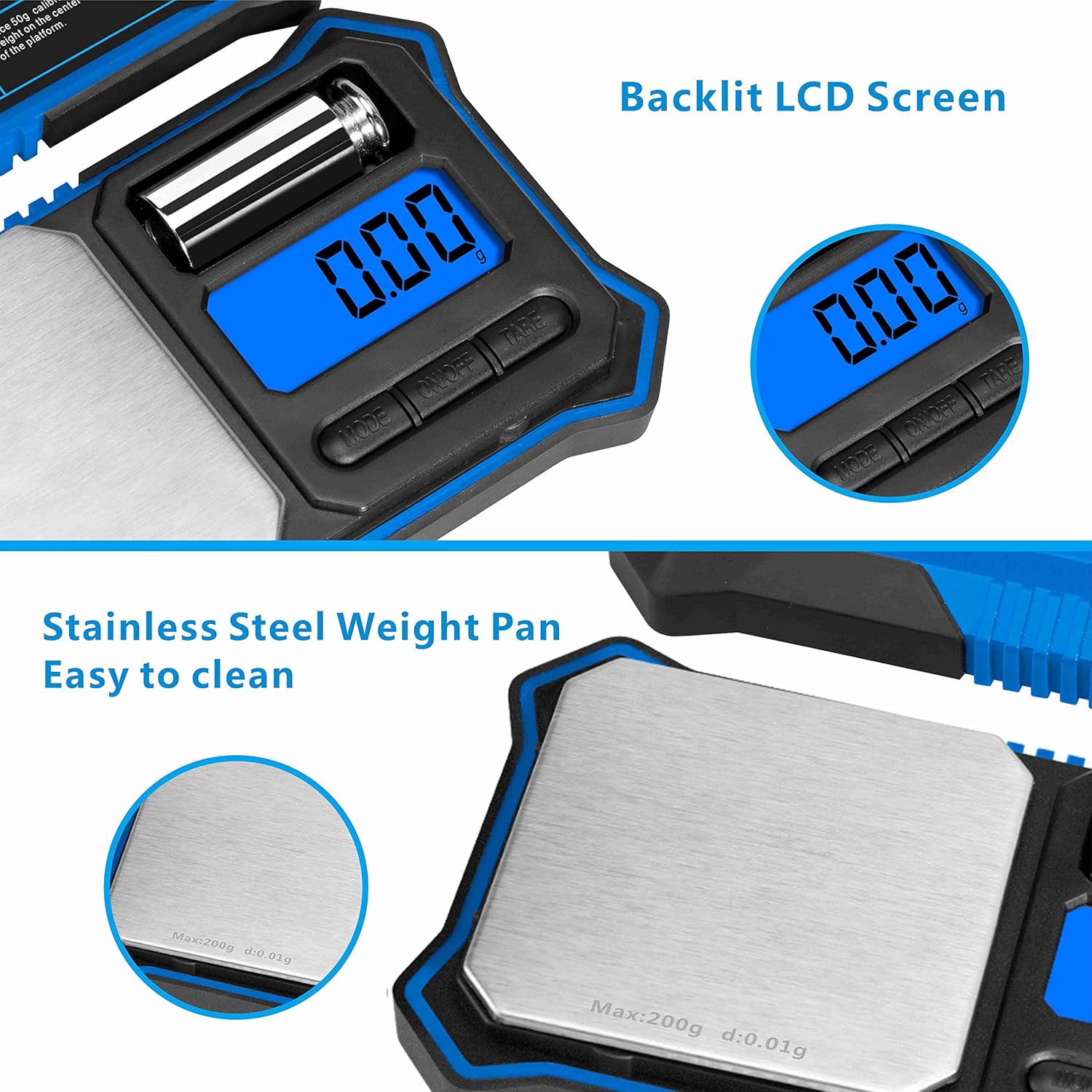

Figure 5: Backlit LCD screen and stainless steel weighing pan.
Video 1: Demonstration of the Fuzion Digital Pocket Scale's weighing capabilities for various items, including coffee beans, jewelry, and coins. This video also shows unit conversion and tare function.
4. Funktioner
- Høj nøjagtighed: Built with a high precision sensor system, offering a maximum capacity of 200g and readabilities of 0.01g.
- Tare & Calibration Function: Easily subtract container weight and re-calibrate with the included 50g weight.
- 6 Different Units: Quickly convert between g, oz, gn, ozt, dwt, and ct.
- Praktiske funktioner: LCD backlit display for easy reading in all light conditions. Smooth, easy-to-clean surface.
- Gennemtænkt design: High-quality ABS shell, compact and strong. Separated magnetic cover protects the weighing surface and can serve as a container. Silicone edging on four sides provides anti-slip and damage protection.

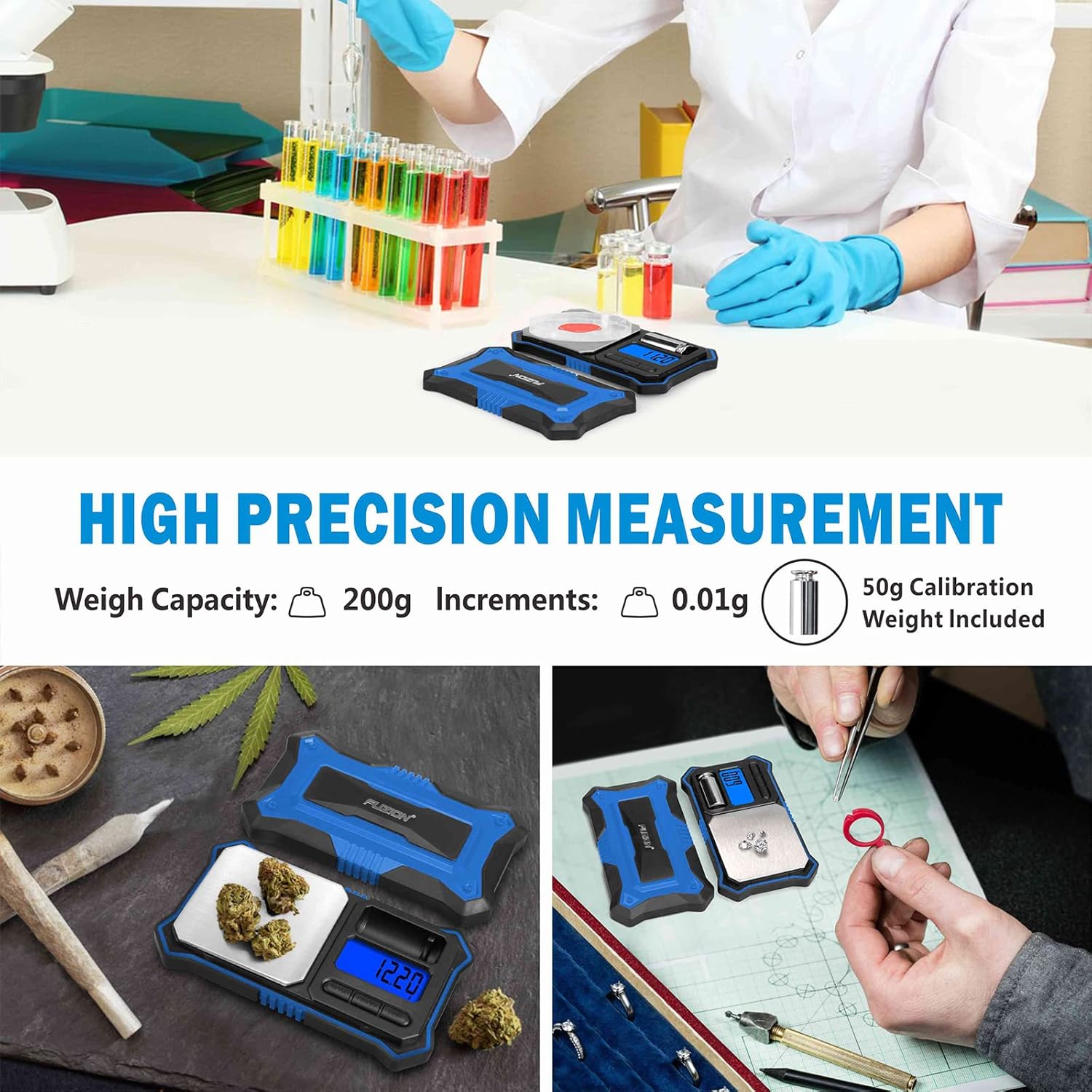

Figure 6: High precision measurement and wide range of applications.
5. Specifikationer
| Feature | Detalje |
|---|---|
| Produktdimensioner | 5.5 x 3.3 x 0.9 tommer; 7.05 ounce |
| Varemodelnummer | FU-200 |
| Batterier | 2 AAA-batterier påkrævet (medfølger) |
| Fabrikant | Fuzion |
| Anbefalede anvendelser | Jewellery, Coins, Medicine, Gemstones, Food, Powder, Gold |
| Særlige funktioner | Calibration Function, Tare Function, LCD Backlit Screen, 6 Measurement Units, Detachable Lid |
| Display Type | LCD |
6. Hvad er der i æsken
- Fuzion Digital Pocket Scale
- 50 g kalibreringsvægt
- 2 x AAA batterier
- Carrying Pouch (color may vary)
Figur 7: Pakkens indhold.
7. Vedligeholdelse
- Clean the weighing platform with a soft, damp klæde. Brug ikke slibende rengøringsmidler.
- Avoid exposing the scale to extreme temperatures or humidity.
- Store the scale in a dry, safe place when not in use, preferably in its protective pouch.
- Fjern batterierne, hvis vægten ikke skal bruges i længere tid, for at forhindre lækage.
8. Fejlfinding
- Upræcise læsninger: Ensure the scale is on a flat, stable surface. Re-calibrate the scale using the 50g weight. Check battery level.
- Skærmen tændes ikke: Kontroller, om batterierne er isat korrekt, og at de er tilstrækkeligt opladede. Udskift batterierne om nødvendigt.
- Fluktuerende aflæsninger: Ensure no air currents (e.g., from fans or open windows) are affecting the scale. Avoid placing the scale near vibrating equipment.
9. Garanti og support
For any questions, technical support, or warranty claims, please contact Fuzion customer service. Refer to the product packaging or the official Fuzion webwebsted for kontaktoplysninger.
