Indledning
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your Commercial Electric LED Wall Pack. Please read these instructions thoroughly before beginning installation and retain them for future reference.
Vigtige sikkerhedsoplysninger
ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen ved sikringen eller afbryderen før installation eller service.
ADVARSEL: Brandfare. Brug kun med den angivne mængde.tage og wattage.
- Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
- Sørg for, at alle ledningsforbindelser er sikre og korrekt isolerede.
- This fixture is designed for outdoor, wet locations. Ensure all seals are properly seated to prevent water intrusion.
Pakkens indhold
- LED Wall Pack Fixture
- Monteringsudstyr (skruer, trådmøtrikker)
- Instruktionsmanual
Specifikationer
| Mærke | Kommerciel elektrisk |
| Modelnummer | a4527dc3-d84f-4a8e-881a-1d8aefad35d7 |
| Lyskilde | Integreret LED |
| Wattage | 28 watt |
| Lumen output | 3000 lumen |
| Farvetemperatur | 4000K (lyse hvid) |
| Voltage | 120 volt |
| Kontrolmetode | Dusk-to-Dawn Photocell, Manual Switch Compatible |
| Materiale | Die-cast Aluminum Housing |
| Slutte | Mørk bronze pulverlakering |
| Indendørs/Udendørs brug | Udendørs (klassificeret til våde omgivelser) |
| Estimeret levetid | 50,000+ timer |
| Dimensioner | Cirka 11.61 x 7.48 x 4.8 cm (pakkemål) |
| Vægt | 3.59 pund |
| UPC | 810061320289 |
Installationsvejledning
Nødvendige værktøjer (ikke inkluderet):
- Skruetrækker
- Trådstrippere
- Tang
- Drill (if mounting to new location)
- Sealant (silicone, for weatherproofing)
Monteringssted:
Select a suitable outdoor location, ideally 8 ft. to 20 ft. high, on a wall, post, or column. Ensure the mounting surface is structurally sound.
Ledningstrin:
- Sluk for strømmen: Find afbryderen eller sikringsboksen, og sluk for strømmen til det område, hvor du skal installere armaturet. Kontroller, at strømmen er afbrudt, ved hjælp af en lydstyrkemåler.tage tester.
- Forbered monteringsoverfladen: If using a junction box, ensure it is securely installed. The fixture includes a universal junction box mounting knockout.
- Tilslut ledninger: The fixture has 4 conduit entries for flexible wiring. Connect the fixture's wires to your supply wires according to local electrical codes:
- Tilslut sort armaturledning til sort (varm) forsyningsledning.
- Tilslut hvid armaturledning til hvid (neutral) forsyningsledning.
- Tilslut grøn eller bar kobberarmaturledning til grøn eller bar kobberforsyningsledning (jord).
- Monteringsbeslag: Align the fixture with the mounting surface or junction box. Secure it using the provided mounting hardware. Ensure a tight seal against the mounting surface to prevent water intrusion. Apply silicone sealant around the edges if necessary.
- Gendan strøm: Når armaturet er sikkert monteret og tilsluttet, skal strømmen genoprettes ved afbryderen.

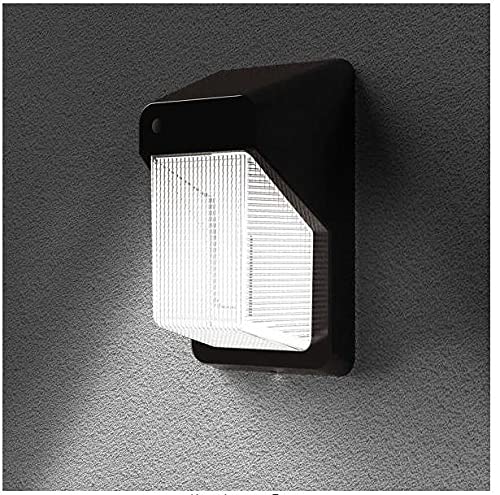

This image shows the Commercial Electric LED Wall Pack, a dark bronze fixture with a clear, ribbed lens, mounted on a textured dark gray wall. The light is illuminated, casting a bright glow downwards and outwards.
Operation
This LED Wall Pack features dual-control dusk-to-dawn photocell technology. The integrated photocell automatically turns the light ON at dusk and OFF at dawn, providing energy-efficient operation.
The fixture is also compatible with a manual switch for overriding the photocell function if desired.
Opretholdelse
The Commercial Electric LED Wall Pack is designed for 100% maintenance-free operation for over 50,000 hours (approximately 23 years based on 6 hours of daily use).
Rengør linsen regelmæssigt med en blød kludamp cloth to ensure optimal light output. Do not use abrasive cleaners.
Fejlfinding
Lyset tændes ikke:
- Ensure power is supplied to the fixture. Check the circuit breaker.
- Kontroller, at alle ledningsforbindelser er sikre.
- If using the photocell, ensure it is not obstructed by debris or artificial light sources during daylight hours.
Light Flickers or Turns On/Off Randomly:
- Tjek for løse ledningsforbindelser.
- Ensure the photocell is not exposed to intermittent light sources (e.g., car headlights, other outdoor lights).
- Verify the fixture is receiving stable voltage.
Uneven Gap After Installation:
- Ensure the mounting surface is flat and even.
- Verify that the mounting hardware is tightened evenly.
- Consider using weather-resistant shims or additional sealant to fill any gaps and ensure a watertight seal.
Garanti og support
For warranty information or technical assistance, please contact Commercial Electric customer service. Refer to your purchase receipt for specific warranty terms.
Note: Uautoriserede reparationer eller ændringer kan ugyldiggøre produktgarantien.
