Nitecore NC-BP001 kamerabatteri brugsanvisning
Model: NC-BP001 | Brand: Nitecore
Indledning
The Nitecore NC-BP001 is a high-performance camera battery designed as a direct replacement for the Sony NP-FW50 battery. It is compatible with various Sony mirrorless APS-C, Cyber-shot RX10 series, and entry-level a7 cameras. This manual provides essential information for the safe and effective use of your NC-BP001 battery.
Produkt overview
The Nitecore NC-BP001 camera battery, showcasing dens kompakte design og mærkning.
Visual representation of the Nitecore NC-BP001 battery and a list of compatible Sony camera models.
Image highlighting the 1030mAh high capacity of the Nitecore NC-BP001 battery.
Diagram illustrating the multiple safety features of the Nitecore NC-BP001 battery, including overcharge, over-discharge, overcurrent, overvoltage, og kortslutningsbeskyttelse.

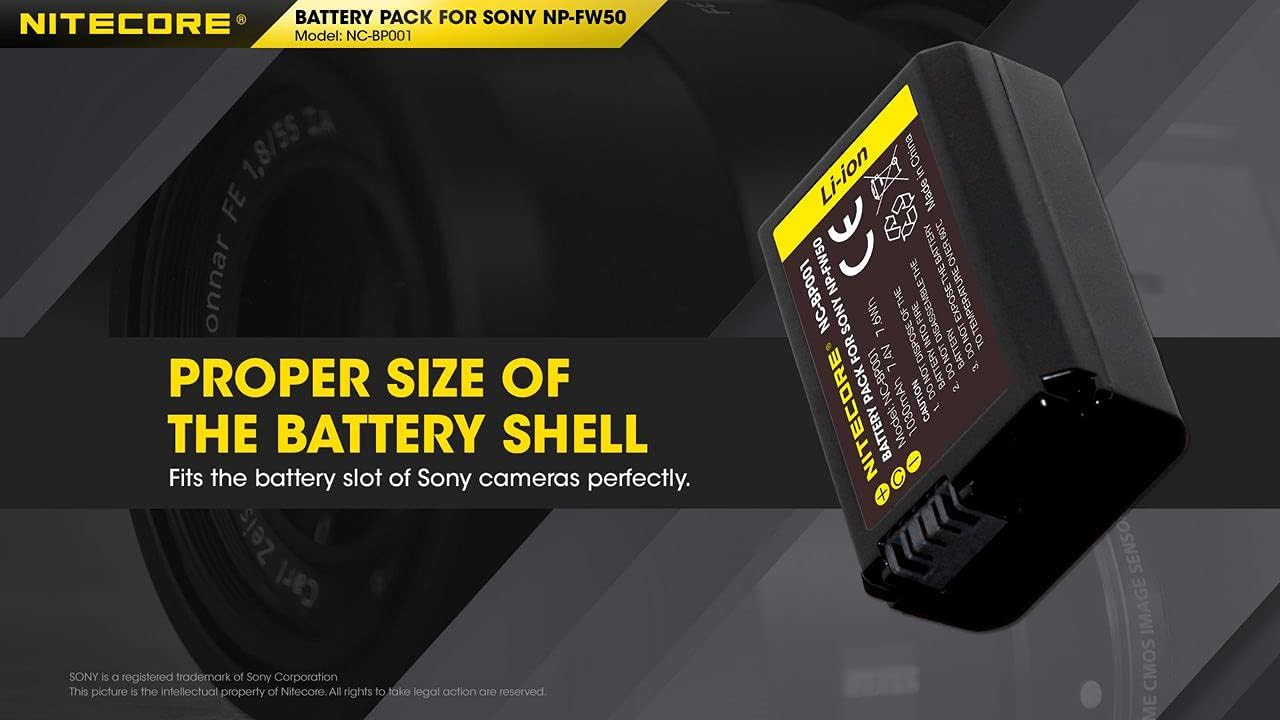

Image demonstrating the precise fit of the Nitecore NC-BP001 battery within a camera's battery slot.
Opsætning
Indledende opladning
Before first use, it is recommended to fully charge your Nitecore NC-BP001 battery. Use a compatible Sony NP-FW50 charger or a Nitecore charger designed for this battery type. Ensure the battery is correctly oriented in the charger.
- Tilslut opladeren til en strømkilde.
- Insert the NC-BP001 battery into the charger.
- Monitor the charging indicator on your charger. Charging time may vary based on the charger and remaining battery level.
- Når det er fuldt opladet, skal du fjerne batteriet fra opladeren.
Betjeningsvejledning
Isætning af batteriet
- Ensure your camera is powered off before inserting or removing the battery.
- Locate the battery compartment on your camera (typically on the bottom).
- Åbn batterirummets dæksel.
- Align the Nitecore NC-BP001 battery with the battery slot, ensuring the contacts match.
- Skub forsigtigt batteriet ind i batterirummet, indtil det klikker på plads.
- Luk batterirummets dæksel forsvarligt.
Fjernelse af batteriet
- Power off your camera.
- Åbn batterirummets dæksel.
- Press the battery release lever (if present) and gently pull the battery out of the compartment.
- Luk batterirummets dæksel.
Kompatible kameramodeller
The Nitecore NC-BP001 battery is compatible with the following Sony camera models:
- Sony a5000, a5100, a6000, a6100, a6300, a6400, a6500
- Sony a7, a7 II, a7R II, a7s, a7s II
- Sony dsc-rx10, dsc-rx10 II, dsc-rx10 III, dsc-rx10 iv
- Sony ilce-qx1, ilce-qx1l
Please refer to your camera's original battery compatibility for more models.
Opretholdelse
Batteripleje og opbevaring
- Opbevar batteriet på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Ved langtidsopbevaring skal batteriet oplades til cirka 50% kapacitet.
- Undgå at aflade batteriet helt ofte, da dette kan reducere dets levetid.
- Clean the battery contacts periodically with a dry, soft cloth to ensure good connection.
- Do not expose the battery to water or high humidity.
Fejlfinding
Fælles problemer og løsninger
- Batteri oplades ikke: Ensure the charger is properly connected to a power source and the battery is correctly inserted. Check for any debris on the battery contacts or charger terminals. Try a different power outlet or charger if available.
- Battery Not Powering Camera: Verify the battery is fully charged and correctly inserted into the camera. Check if the camera's battery compartment is securely closed. If the issue persists, try another compatible battery to rule out a camera problem.
- Kort batterilevetid: Battery life can be affected by usage patterns, camera settings (e.g., continuous shooting, video recording, LCD brightness), and operating temperature. Ensure the battery is fully charged before use. Over time, all rechargeable batteries will experience a decrease in capacity.
Specifikationer
| Feature | Specifikation |
|---|---|
| Model | NC-BP001 |
| Batteritype | Genopladeligt Li-ion batteri |
| Voltage | 7.4V |
| Kapacitet | 1030mAh |
| Energi | 7.6Wh |
| Vægt | 1.57 ounce (44.5 g) |
| Driftstemperatur (opladning) | 0°C til 45°C (32°F til 113°F) |
| Driftstemperatur (afladning) | -10°C til 45°C (14°F til 113°F) |
| Sikkerhedsfunktioner | Overcharge, Over-discharge, Overcurrent, Overvoltage, Short-circuit Protection |
Detailed specifications of the Nitecore NC-BP001 battery, including voltage, capacity, and operating temperatures.
Sikkerhedsoplysninger
The Nitecore NC-BP001 battery is equipped with multiple safety safeguards. However, it is crucial to follow these guidelines for safe operation:
- Do not dispose of the battery into fire.
- Skil ikke batteriet ad.
- Udsæt ikke batteriet for temperaturer over 60°C (140°F).
- Use only chargers specifically designed for Sony NP-FW50 compatible batteries.
- Opbevares utilgængeligt for børn.
- Hvis batteriet viser tegn på skade, hævelse eller lækage, skal brugen straks ophøre og bortskaffes korrekt.
Officiel produktvideo
Denne video giver en detaljeret oversigtview of the Nitecore NC-BP001 camera battery, including its features, specifications, and compatible camera models. It highlights the battery's capacity and multiple built-in safety mechanisms.
Garanti og support
For warranty information and technical support, please refer to the official Nitecore website or contact your authorized Nitecore dealer. Keep your purchase receipt as proof of purchase for warranty claims.
