Brydge 12.9 MAX+ Wireless Keyboard with Trackpad User Manual

Indledning

This manual provides instructions for the Brydge 12.9 MAX+ Wireless Keyboard with Trackpad, designed for the iPad Pro 12.9-inch. It covers setup, operation, maintenance, and troubleshooting to ensure optimal use of your device. The Brydge 12.9 MAX+ transforms your iPad Pro into a versatile laptop-like experience with a multi-touch trackpad and backlit keys.

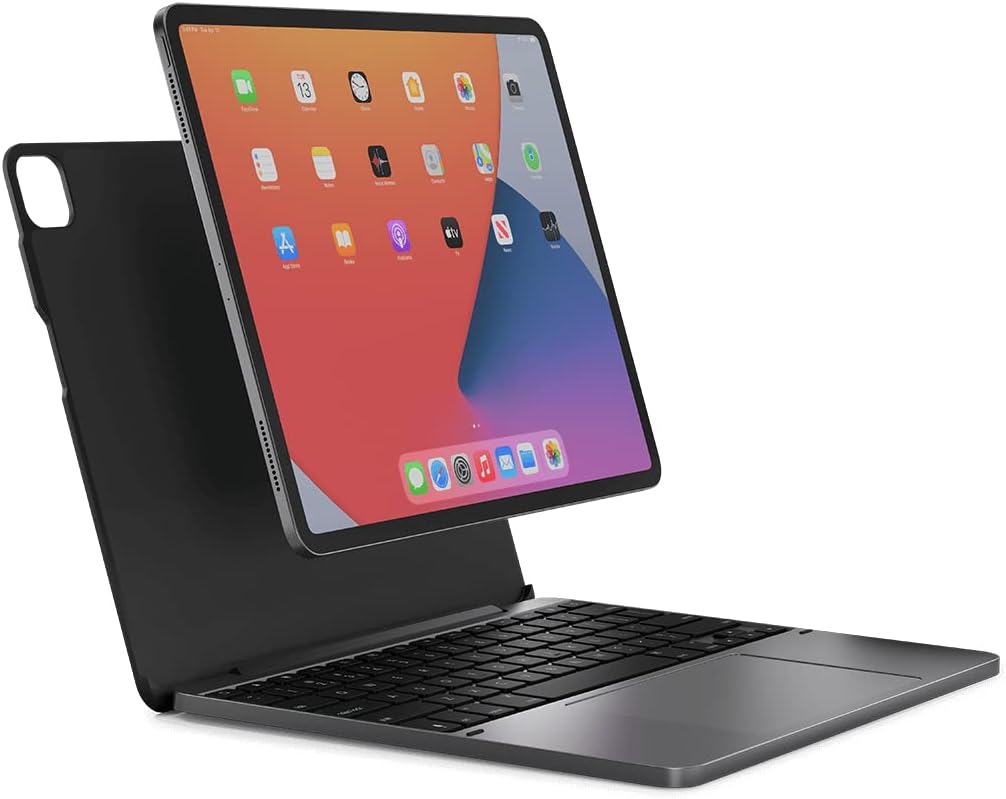

Image: The Brydge 12.9 MAX+ keyboard with an iPad Pro 12.9-inch securely attached, displaying the iPadOS home screen. The keyboard is open, presenting a laptop-like setup.

Opsætning

1. Tilslutning af din iPad Pro

The Brydge 12.9 MAX+ features a SnapFit Case for secure attachment. Align your iPad Pro with the case and gently press it into place. The magnetic design ensures a firm connection while allowing for easy removal when needed.

Image: A hand gently guiding an iPad Pro into the Brydge keyboard case, demonstrating the attachment process.

2. Opladning af tastaturet

Before initial use, fully charge the keyboard. Connect the provided USB-C charging cable to the keyboard's charging port and to a power source. A full charge provides up to 3 months of battery life, depending on usage.

3. Bluetooth-parring

1. Ensure your Brydge keyboard is charged.
2. Tænd for tastaturet ved hjælp af afbryderknappen.
3. På din iPad skal du gå til Indstillinger > Bluetooth og sørg for, at Bluetooth er aktiveret.
4. The keyboard will appear in the 'Other Devices' list as 'Brydge 12.9 MAX+'. Tap to connect.
5. A pairing request may appear on your iPad. Confirm the connection.

The Brydge 12.9 MAX+ utilizes Bluetooth 5.0 with Instant-On Connectivity, allowing for quick reconnection to your iPad after initial pairing.

Image: A visual comparison showing two iPad setups, one with a Smart Connector keyboard and another with the Brydge Bluetooth keyboard, highlighting the seamless connectivity of both.

Betjeningsvejledning

Tastatur funktioner

• Baggrundsbelyste taster: The keyboard features adjustable backlighting. Use the dedicated backlight key (often found in the function row) to cycle through brightness levels or turn off the backlight.
• Function Row: The top row of keys provides quick access to iPadOS functions such as screen brightness, volume control, media playback, and search.

Billede: Et nærbillede view of the Brydge keyboard, showcasing the key layout and the integrated trackpad.

Brug af pegefeltet

The large multi-touch trackpad supports various iPadOS gestures for navigation and interaction. Refer to your iPad's iPadOS settings for a complete list of supported gestures.

• Tryk med en enkelt finger: Vælg elementer.
• To-finger rulning: Scroll through content.
• Knib for at zoome: Zoom ind eller ud på indhold.
• Three Finger Swipe: Switch between open applications or access the App Switcher.

Image: A user's hand operating the multi-touch trackpad on the Brydge keyboard, demonstrating precise control for iPadOS navigation.

Justerbar Viewi vinkler

The keyboard allows for up to 135° of screen rotation, enabling comfortable viewing and typing in various environments, whether on a desk or your lap.

Image: A person using the Brydge keyboard with an iPad Pro while seated on a bench, illustrating the portability and adjustable viewing angles for comfortable use in various settings.

Opretholdelse

Rensning

To clean your Brydge keyboard, use a soft, lint-free cloth. For stubborn marks, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid excessive moisture and harsh chemicals. Ensure the keyboard is powered off before cleaning.

Batteripleje

To maximize battery life, avoid fully discharging the keyboard frequently. Charge the keyboard regularly, especially if it will be stored for an extended period. The keyboard can be charged while in use.

Fejlfinding

• Tastatur forbinder ikke:
  • Sørg for, at tastaturet er opladet og tændt.
  • Kontroller, at Bluetooth er aktiveret på din iPad.
  • Forget the device in iPad Bluetooth settings and re-pair.
  • Genstart både iPad'en og tastaturet.
• Trackpad Lag or Freezing:
  • This can sometimes be resolved by turning the keyboard off and on.
  • Sørg for, at din iPadOS er opdateret til den nyeste version.
  • Check for any available firmware updates for the Brydge keyboard via the Brydge Connect app (if applicable).
• Hinge Issues:
  • Avoid excessive force when opening or closing the keyboard.
  • Do not 'overclose' the case without the iPad inside, as this can stress the hinges.
  • If hinges become loose or show signs of cracking, contact Brydge customer support for assistance.
• Firmwareopdateringer:
  • Periodically check for firmware updates through the official Brydge website or a dedicated Brydge app, if available. Updates can improve performance and address known issues.

Specifikationer

Garanti og support

For warranty information, technical support, or to inquire about replacement parts, please visit the official Brydge webwebstedet eller kontakt deres kundeservice direkte. Gem din købsbevis til garantikrav.
