TECKNET Wireless Bluetooth Keyboard and Mouse Combo (TK-KM033) User Manual

Indledning

This manual provides detailed instructions for setting up, operating, and maintaining your TECKNET Wireless Bluetooth Keyboard and Mouse Combo (Model TK-KM033). This combo offers versatile connectivity options, including 2.4G USB and dual Bluetooth modes, allowing seamless switching between multiple devices. Please read this manual thoroughly to ensure optimal performance and longevity of your product.

Image: The TECKNET Wireless Bluetooth Keyboard and Mouse Combo, featuring a full-size keyboard, a compact mouse, and a 2.4G USB receiver.

Pakkens indhold

Før du fortsætter med opsætningen, skal du kontrollere, at alle dele er til stede i pakken:

TECKNET Wireless Keyboard
TECKNET Wireless Mouse
2.4G USB Receiver (typically stored in the mouse battery compartment)
USB-C opladningskabel (0.5 meter)
Brugervejledning (dette dokument)

Opsætningsinstruktioner

1. Opladning af enhederne

Both the keyboard and mouse are equipped with rechargeable lithium-ion batteries. Before first use, it is recommended to fully charge both devices.

Connect the supplied USB-C charging cable to the charging port on the keyboard and mouse.
Plug the other end of the cable into a USB power source (e.g., computer USB port, USB wall adapter).
Opladningsindikatorlampen lyser under opladning og slukker, når den er fuldt opladet. En fuld opladning tager typisk cirka 2 timer.

TECKNET Keyboard and Mouse charging via USB-C

Image: The TECKNET keyboard and mouse connected to a power source via USB-C cables, illustrating the charging process. The image highlights a 2-hour charging time for 45 days of use.

2. Tilslutning via 2.4G USB-modtager

This method provides a stable wireless connection using the included USB receiver.

Locate the 2.4G USB receiver, usually stored in the mouse's battery compartment.
Sæt USB-modtageren i en ledig USB-A-port på din computer eller enhed.
Tænd tastaturet og musen ved hjælp af deres respektive tænd/sluk-knapper.
The devices should automatically connect to your computer.

3. Connecting via Bluetooth (BT1 & BT2)

The combo supports two independent Bluetooth connections, allowing you to pair with two different Bluetooth-enabled devices.

Bluetooth-parring af tastatur:
1. Tænd for tastaturet.
2. Tryk på Fn + Q keys simultaneously for BT1 or Fn + W for BT2. The corresponding indicator light (BT1 or BT2) will flash rapidly, indicating pairing mode.
3. On your device (e.g., laptop, tablet, smartphone), go to Bluetooth settings and search for new devices.
4. Select "TECKNET Keyboard" from the list of available devices.
5. Follow any on-screen prompts to complete the pairing. The indicator light will stop flashing once connected.
Bluetooth-parring af mus:
1. Tænd for musen.
2. Press the Bluetooth mode switch button on the bottom of the mouse to select BT1 or BT2. The corresponding indicator light will flash rapidly.
3. Gå til Bluetooth-indstillingerne på din enhed, og søg efter nye enheder.
4. Select "TECKNET Mouse" from the list.
5. Complete the pairing. The indicator light will stop flashing once connected.

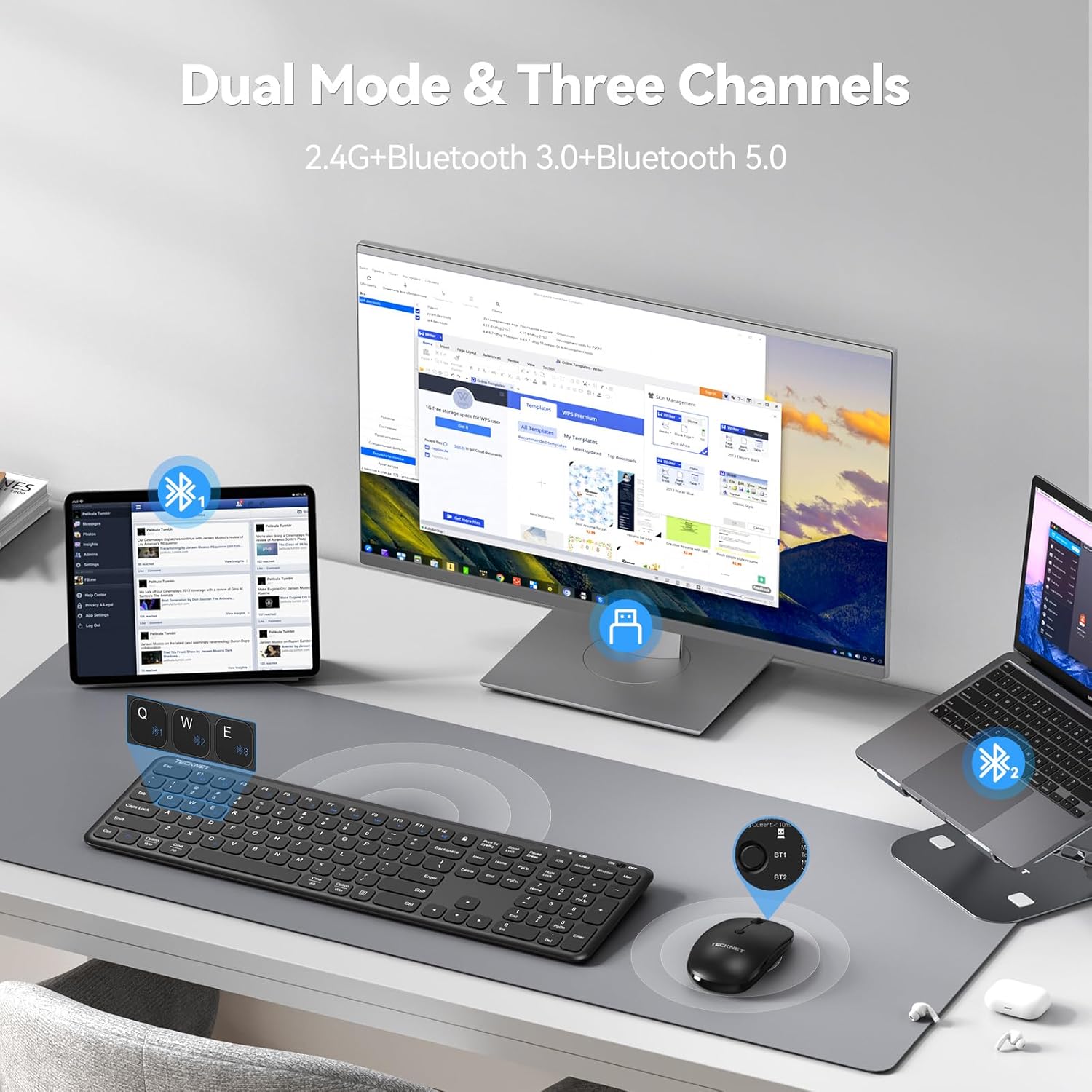

TECKNET Keyboard and Mouse connected to multiple devices

Image: The TECKNET keyboard and mouse connected to a desktop monitor via 2.4G USB, a tablet via Bluetooth 1, and a laptop via Bluetooth 2, demonstrating multi-device connectivity.

4. Skift mellem tilsluttede enheder

To switch between devices connected via 2.4G USB and Bluetooth:

Tastatur: Trykke Fn + E for 2.4G USB, Fn + Q for Bluetooth 1, or Fn + W for Bluetooth 2. The corresponding indicator light will show the active connection.
Mus: Press the mode switch button on the bottom of the mouse to cycle between 2.4G USB, Bluetooth 1, and Bluetooth 2. The indicator light will show the active connection.

Betjeningsvejledning

1. Tastaturfunktioner

The keyboard features a full-size layout with a numeric keypad and multimedia shortcut keys.

Multimedienøgler: Brug Fn key in combination with the F1-F12 keys for various functions such as play/pause, volume control, and email access. Refer to the key legends for specific functions.
Operating System Mode Switch: The keyboard supports Windows, Android, iOS, and macOS. Use the dedicated keys (e.g., Fn + Android, Fn + iOS, Fn + Windows, Fn + Mac) to optimize key functions for your operating system.
Scissor-Switch Mechanism: The keys utilize a scissor-switch mechanism designed for quiet operation and tactile feedback.

Close-up of TECKNET keyboard showing scissor-switch key mechanism

Billede: Et nærbillede view of the TECKNET keyboard, highlighting the internal scissor-switch key mechanism for quiet and precise keystrokes.

2. Musefunktioner

The mouse is designed for ergonomic comfort and adjustable sensitivity.

DPI-justering: The mouse offers three adjustable DPI settings (800/1200/1600). Press the DPI button located on the top of the mouse to cycle through these settings and adjust cursor speed.
Symmetrical Design: The mouse features a symmetrical design, suitable for both right-handed and left-handed users.

TECKNET mouse with adjustable DPI settings

Image: The TECKNET wireless mouse, illustrating its ultra-slim design and the three adjustable DPI settings (800, 1200, 1600) for customized cursor sensitivity.

3. Strømstyring

Both devices are equipped with energy-saving features to extend battery life.

Automatisk dvaletilstand: If inactive for more than 10 minutes (keyboard) or 30 minutes (mouse), the devices will enter sleep mode to conserve power.
Waking Up: To wake the devices, simply click any button on the mouse or press any key on the keyboard.
Strømafbrydere: Use the ON/OFF switches on both the keyboard and mouse to manually power them down when not in use for extended periods.

Opretholdelse

1. Rensning

To maintain the appearance and functionality of your devices:

Ensure both devices are powered off before cleaning.
Brug en blød, fnugfri klud lidt dampafsluttes med vand eller en mild rengøringsopløsning.
Undgå at bruge skrappe kemikalier, slibende rengøringsmidler eller opløsningsmidler.
Brug trykluft til at fjerne snavs mellem tasterne på tastaturet.

2. Batteripleje

Proper battery care helps prolong the lifespan of the built-in rechargeable batteries:

Undgå at aflade batterierne helt ofte.
Store the devices in a cool, dry place when not in use for extended periods.
If storing for a long time, charge the devices to about 50% capacity.

Fejlfinding

If you encounter issues with your TECKNET Wireless Bluetooth Keyboard and Mouse Combo, refer to the following common solutions:

Problem	Mulig løsning
Devices not connecting (2.4G USB)	Sørg for, at USB-modtageren er korrekt tilsluttet en fungerende USB-port. Check if the keyboard and mouse are powered on. Prøv at tilslutte receiveren til en anden USB-port. Re-pair the devices by turning them off and on, then re-inserting the USB receiver.
Devices not connecting (Bluetooth)	Sørg for, at Bluetooth er aktiveret på din enhed. Make sure the keyboard/mouse is in pairing mode (indicator light flashing). Glem enheden i din enheds Bluetooth-indstillinger, og forsøg at parre den igen. Ensure the correct Bluetooth channel (BT1 or BT2) is selected on the keyboard/mouse.
Lag eller intermitterende forbindelse	Move the devices closer to the receiver/Bluetooth-enabled device. Ensure there are no strong interference sources (e.g., Wi-Fi routers, other wireless devices) nearby. Check battery levels and recharge if low.
Keyboard keys or mouse buttons unresponsive	Check battery levels and recharge. Power cycle the device (turn off, then on). Ensure the correct connection mode (2.4G, BT1, BT2) is selected.
Musemarkøren bevæger sig uregelmæssigt	Clean the mouse sensor. Brug musen på en ren, ikke-reflekterende overflade. Juster DPI-indstillingen til en lavere værdi, hvis markøren er for følsom.

Specifikationer

Key technical specifications for the TECKNET Wireless Bluetooth Keyboard and Mouse Combo (Model TK-KM033):

Model: TK-KM033
Forbindelse teknologi: 2.4G RF (USB Receiver), Bluetooth 3.0, Bluetooth 5.0
Tastatur layout: Full-size QWERTY with numeric keypad
Tastatur batteri: 280mAh litium-ion (genopladelig)
Mouse Battery: 300mAh litium-ion (genopladelig)
Opladningsport: USB-C
Mouse DPI Settings: 800/1200/1600
Kompatible enheder: PC, Laptop, iPad, Desktop (Windows, macOS, iOS, Android)
Materiale: ABS plast
Farve: Sort
Varens vægt: Cirka 1.72 pund (kombineret)
Pakkedimensioner: 17.68 x 8.43 x 1.65 tommer

Image: The TECKNET keyboard and mouse with measurements indicating their full-size and ultra-slim design, including the USB receiver and charging cable.

Garanti og support

TECKNET products are designed for reliability and performance. This product is backed by a reliable 36-month warranty (registration may be required).

For warranty claims or technical assistance, please contact TECKNET customer support.
Contact information can typically be found on the TECKNET official webwebsted eller via din købsplatform.

Our professional customer support team is available to assist you with any questions or issues you may encounter.
