ThruNite Catapult Mini LED Flashlight Instruction Manual

Produkt overview

The ThruNite Catapult Mini is a compact yet powerful LED flashlight designed for long-distance illumination. It features a rechargeable battery, multiple brightness levels, and a durable, waterproof aluminum alloy body, making it suitable for various outdoor and emergency applications.

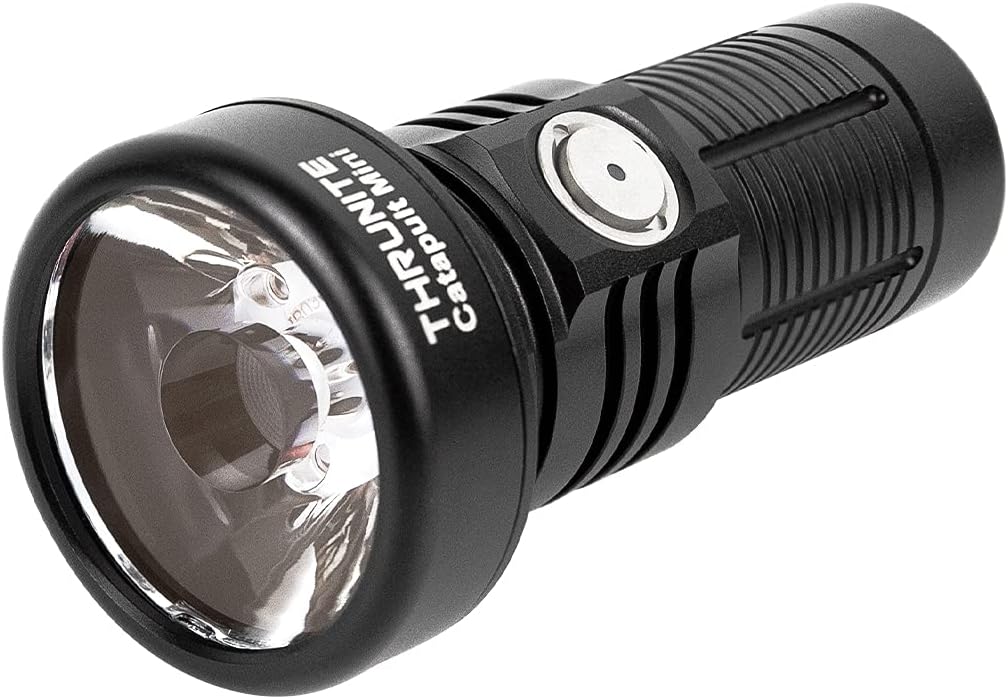

Image: The ThruNite Catapult Mini flashlight, showcasing its compact design and main body.

Hvad er der i æsken

• Catapult Mini flashlight *1
• Battery *1 (pre-installed)
• USB-C Charging Cord *1
• Snor *1
• Spare O-ring *1

Image: All components included in the ThruNite Catapult Mini package: flashlight, lanyard, USB-C charging cable, and spare O-rings.

Produktkomponenter

Billede: En eksploderet view diagram of the flashlight, showing its internal components including the rechargeable battery, switch, aluminum alloy body, OSRAM LED, PMMA TIR lens, and waterproof O-ring.

• Genopladeligt batteri: Provides power for extended runtime.
• Skifte: Multi-function side switch for operation and mode selection.
• Aluminiumslegering krop: Durable and lightweight construction.
• OSRAM LED: High-performance light source.
• PMMA TIR Lens: Designed for optimal light throw and beam intensity.
• Waterproof O-ring: Ensures IPX8 water resistance.
• USB-C opladningsport: Integrated port for convenient recharging.
• Batteriindikator: Viser det aktuelle batteriniveau.

Opsætning

1. Indledende opkrævning: Before first use, fully charge the flashlight. Ensure the light head and tail cap are screwed down tightly before charging.


   Image: Diagram showing arrows indicating to screw down the light head and tail cap tightly for proper operation and charging.

2. Opladning: Connect the included USB-C charging cord to the flashlight's USB-C port and a power source. The battery indicator will show charging status.


   Billede: Nærbillede views of the USB-C charging port and the battery indicator light on the flashlight's side switch.

Betjeningsvejledning

The ThruNite Catapult Mini features a single side switch for all operations.

Image: A hand holding the ThruNite Catapult Mini, demonstrating its ergonomic design and easy access to the side switch.

Grundlæggende betjening:

• Tænd/sluk: Klik enkelt på sidekontakten for at tænde/slukke lyset.
• Skift tilstande: When the light is ON, press and hold the side switch to cycle through Low, Medium, and High modes. Release the switch to select the desired mode.
• Firefly Mode: When the light is OFF, press and hold the side switch for 1 second to activate Firefly mode (0.5 lumens).
• Turbo tilstand: Double click the side switch from any mode (except lock-out) to activate Turbo mode (680 lumens).
• Strobetilstand: Triple click the side switch from any mode to activate Strobe mode. Single click to return to the previous mode.
• Lock-out/Unlock: When the light is OFF, press and hold the side switch for 3 seconds to enter lock-out mode. The light will flash once to indicate lock-out. To unlock, press and hold the side switch for 3 seconds. The light will turn on in Firefly mode.

Batteriindikator:

The indicator light on the side switch provides real-time battery status:

• Blå: Batteriniveau > 21 %
• Lilla: Batteriniveau 11-20 %
• Rød: Batteriniveau < 10 %

Opretholdelse

• Rengør gevind og O-ringe regelmæssigt med en ren klud.
• Lubricate the O-rings periodically with silicone grease to maintain water resistance.
• If the flashlight is not used for an extended period, remove the battery to prevent leakage.
• Keep the lens clean to ensure optimal light output.

Image: The ThruNite Catapult Mini flashlight being exposed to water, illustrating its IPX8 waterproof rating.

Fejlfinding

Almindelige problemer og løsninger:

• Lyset tænder ikke:
  • Check if the battery is inserted correctly with the positive (+) end facing the head of the flashlight.
  • Ensure the light head and tail cap are screwed on tightly.
  • The flashlight might be in lock-out mode. Press and hold the side switch for 3 seconds to unlock.
  • The battery might be depleted. Recharge the battery.
• Light flickers or modes change unexpectedly:
  • Clean the contact points of the battery and the flashlight with an alcohol swab.
  • Ensure the O-rings are properly lubricated and not damaged.
  • Tighten the light head and tail cap.
• Opladningsproblem:
  • Verify the USB-C cable is securely connected to both the flashlight and the power source.
  • Prøv et andet USB-C-kabel eller strømadapter.
  • Ensure the light head and tail cap are screwed down tightly.

Specifikationer

Performance Table (General Mode):

Garanti & Support

ThruNite products are designed for durability and performance. For warranty information, product support, or service inquiries, please visit the official ThruNite webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.

For mere information, besøg ThruNite Store on Amazon.
