1. Introduktion
The GT Power X4 400W AC/DC Charger is a versatile and powerful multi-chemistry battery charger designed for RC enthusiasts. It features four independent 100W channels, allowing for simultaneous charging or discharging of up to four batteries. With a total charging power of 400W, it can efficiently charge various battery types including LiPo, LiHV, LiIon, LiFe, NiCd, NiMH, and Pb. The charger supports both AC mains input and 19-26V DC input, making it suitable for both home and field use. Its backlit LCD screen provides clear visibility for setting parameters and monitoring battery status.
2. Sikkerhedsforanstaltninger
Please read and understand all safety instructions before using the charger. Improper use can lead to fire, electric shock, or injury.
- Always use the charger in a well-ventilated area, away from flammable materials.
- Do not charge batteries unattended.
- Ensure the battery type and cell count match the charger settings.
- Never attempt to charge damaged or swollen batteries.
- Hold opladeren væk fra vand, fugt og ekstreme temperaturer.
- Use only the original power cables and accessories provided or approved by GT Power.
- Afbryd opladeren fra strømkilden, når den ikke er i brug.
3. Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- GT Power X4 400W AC/DC Charger
- AC strømledning
- DC indgangskabel
- Instruktionsmanual
- Various Charging Cables (e.g., XT60, T-Plug)
4. Produktet er slutview
Front view of the GT Power X4 charger, showcasing the main display, channel indicators, and control buttons (SELECT, STOP, DEC, INC, START, ENTER). The top features a cooling fan.
Vinklet view of the GT Power X4 charger, highlighting the multiple charging ports and balance ports on the side, along with the main display and controls.

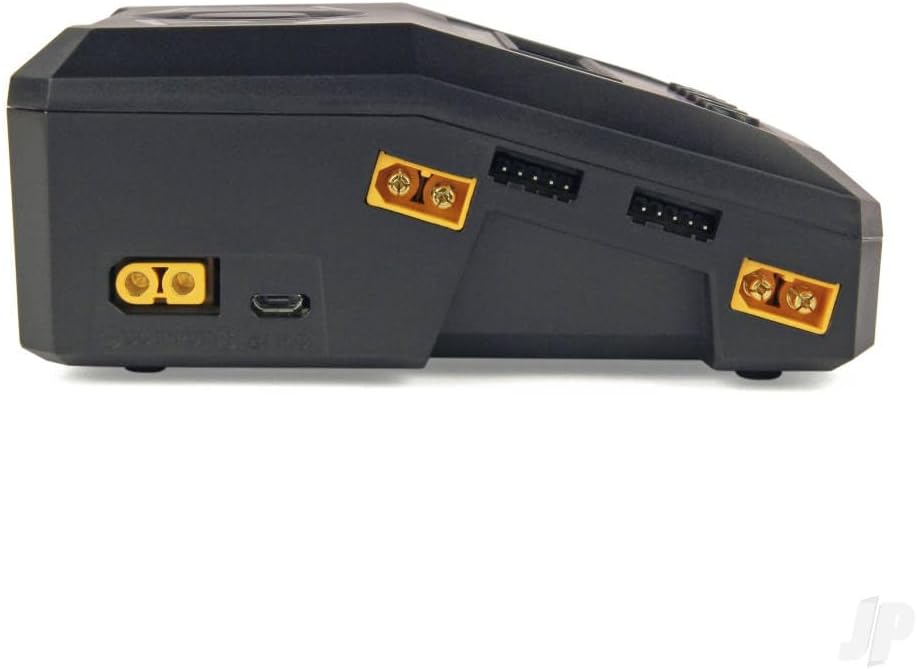

Venstre side view of the GT Power X4 charger, showing the XT60 input/output port and a USB port, along with balance ports.
Højre side view of the GT Power X4 charger, displaying the AC power input socket and additional charging/balance ports.
The GT Power X4 charger shown with its power cable and the included instruction manual, providing a complete view of the product and its accessories.
5. Opsætning
- Strømtilslutning:
- For AC input: Connect the supplied AC power cord to the charger's AC input port and then to a wall outlet.
- For DC input (19-26V): Connect the DC input cable to the charger's DC input port and to a suitable DC power source (e.g., car battery, power supply).
- Batteriforbindelse: Connect your battery to one of the charger's output ports. For LiPo/LiHV/LiIon/LiFe batteries, also connect the balance lead to the corresponding balance port on the charger.
- Tænd: The charger will power on automatically once connected to a power source. The LCD screen will illuminate.
6. Betjeningsvejledning
The GT Power X4 charger features four independent channels. Each channel can be operated separately.
- Vælg kanal: Tryk på KANAL button to select the desired charging channel (1-4).
- Vælg program: Tryk på TYPE/STATUS button to cycle through battery types (LiPo, LiHV, LiIon, LiFe, NiCd, NiMH, Pb) and charging modes (Charge, Balance Charge, Fast Charge, Storage, Discharge, Cycle).
- Juster parametre: Brug INC (Forøg) og DEC (Decrease) buttons to adjust charging current, voltage, and other settings according to your battery's specifications.
- Bekræft indstillinger: Tryk på ENTER knappen for at bekræfte dine valg.
- Start opladning: Once settings are confirmed, press and hold the STARTE button for a few seconds to begin the charging process. The charger will perform a battery check before starting.
- Overvåg fremskridt: The LCD screen will display real-time charging status, including current, voltage, charged capacity, and time elapsed.
- Stop opladning: Tryk på STOP button at any time to end the charging process.
7. Vedligeholdelse
- Hold opladeren ren og fri for støv. Brug en blød, tør klud til rengøring.
- Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Ensure proper ventilation by keeping the cooling fan clear of obstructions.
- Opbevar opladeren på et køligt, tørt sted, når den ikke er i brug.
- Regularly inspect cables and connectors for any signs of damage.
8. Fejlfinding
- Opladeren tænder ikke:
- Check power connections (AC or DC input).
- Sørg for, at strømkilden er aktiv og leverer den korrekte lydstyrke.tage.
- Charging error message:
- Verify battery type and cell count settings match the connected battery.
- Check battery and balance lead connections for proper contact.
- Inspect the battery for damage or swelling.
- Langsom opladning:
- Ensure the charging current is set appropriately for your battery's capacity.
- Check the input power source for sufficient current delivery.
9. Specifikationer
| Mærke | GT Power |
| Modelnummer | GTP0169 |
| Input bindtage | AC 100-240V / DC 19-26V |
| Oplad strøm | 400W (4 x 100W independent channels) |
| Opladningsaktuelt område | 0.1-10.0A per channel |
| Afladningsstrømområde | 0.1-2.0A per channel |
| Balancestrøm | Max 500mA/cell |
| Understøttede batterityper | LiPo/LiHV/LiIon/LiFe (1-6S), NiCd/NiMH (1-15S), Pb (2-20V) |
| Vise | Baggrundsbelyst LCD |
10. Garanti og support
GT Power products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official GT Power website. For technical support, troubleshooting assistance, or spare parts, please contact GT Power customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
