HASWING elektrisk trollingmotor brugermanual
Model: Protruar 2.0 50745
Indledning
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your HASWING Electric Trolling Motor, Model Protruar 2.0 50745. Please read this manual thoroughly before using the motor to ensure proper function and longevity.
Billede: Overview of the HASWING Electric Trolling Motor.
Opsætning og installation
Udpakning
Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present and undamaged. If any parts are missing or damaged, contact your dealer immediately.
Montering af motoren
The Protruar motor is designed for transom mounting. Ensure the transom is sturdy enough to support the motor's weight and thrust. Securely attach the transom mount bracket to the boat's transom using appropriate hardware. Tighten all fasteners to prevent movement during operation.
Image: The trolling motor properly mounted on a boat's transom.
Shaft Length Adjustment
Adjust the shaft length so that the propeller is submerged at an adequate depth to prevent cavitation and ensure efficient thrust. The depth collar allows for precise adjustment.
Batteriforbindelse
Connect the motor to a 24V deep cycle battery system. Ensure correct polarity: positive (+) to positive and negative (-) to negative. Use appropriate gauge wiring and secure connections to prevent power loss or electrical hazards.
Betjeningsvejledning
Trinløs hastighedskontrol
The motor features digital technology for stepless forward and reverse speed control, accessible directly from the handle. Rotate the handle grip to increase or decrease speed smoothly.
Image: Close-up of the stepless speed control on the motor handle.
Folding and Tilting Handle
The trolling handle can fold at an angle of 180 degrees for compact storage and transport. It also features an expanding handle extension of 400mm for comfortable operation. The motor offers 10 or 7 levels of tilting positions, allowing you to adjust the motor's angle relative to the water surface.
Image: Illustration of the folding and expanding handle functions.
Image: Diagram showing the motor's tilting positions.
Power Display (Battery Meter)
A power display located on top of the motor shows three levels of battery power, allowing you to monitor the status of your deep cycle battery conveniently.
Image: Close-up of the battery power display on the motor head.
Brushless Motor and Propeller
The motor features a durable brushless design for efficient and quiet operation. It includes an anti-impact prop-clutch ability that disengages the running propeller if it encounters an obstruction, preventing damage to the prop.

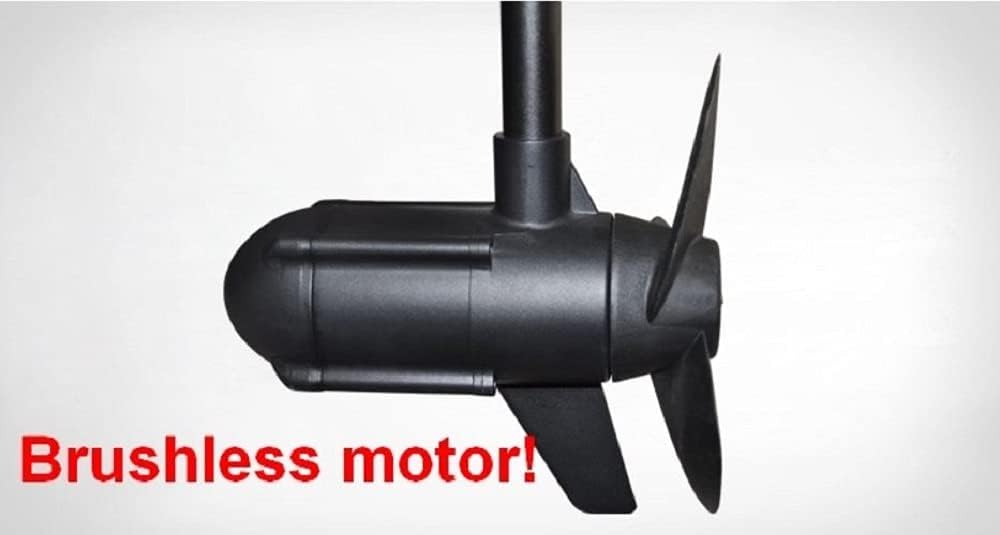

Billede: View of the brushless motor and propeller assembly.
Opretholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden på din trollingmotor.
- Efter hver brug: Rinse the motor, especially the propeller and shaft, with fresh water if used in saltwater. Wipe down all surfaces to remove salt residue and dirt.
- Propelinspektion: Regularly check the propeller for fishing line, weeds, or other debris that may be wrapped around the shaft or propeller hub. Remove any obstructions. Inspect for chips, cracks, or bends.
- Elektriske forbindelser: Periodically inspect all electrical connections for corrosion or looseness. Clean and tighten as necessary. Apply dielectric grease to terminals to prevent corrosion.
- Aksel og montering: Check the shaft for any signs of bending or damage. Ensure the transom mount is securely fastened and free from cracks.
- Opbevaring: When not in use, store the motor in a dry, protected area. Disconnect the battery for long-term storage.
Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på med din trollingmotor.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Motor does not start or has no power. | Low battery charge; Loose or corroded battery connections; Blown fuse/circuit breaker. | Check battery charge and recharge if necessary; Clean and tighten all battery connections; Check and replace fuse/reset circuit breaker. |
| Reduceret trykkraft eller usædvanlig støj. | Propeller fouled with debris; Damaged propeller; Motor cavitation. | Clear propeller of debris; Replace damaged propeller; Adjust motor depth to ensure propeller is fully submerged. |
| Motoren kører intermitterende. | Loose wiring connections; Overheating. | Inspect and secure all wiring connections; Allow motor to cool down if it has been running continuously at high power. |
Specifikationer
Detailed technical specifications for the HASWING Protruar 2.0 50745 Electric Trolling Motor.
Image: Visual representation of the motor specifications.
| Feature | Detalje |
|---|---|
| Model | Protruar 2.0 50745 |
| Akselkraft | 2 HK |
| Peak Thrust | 85 lbs |
| Maks. Voltage | DC 24V |
| Effekt - Maks. | 960W |
| Amp - Maks | 50A |
| Dybdejustering | Dybde krave |
| Rekvisittype/-størrelse | 3 Blade Prop / 9.3 In. Diam |
| Propelhastighed ved fuld effekt | Maks. 1350 o/min under vand |
| Batteritype | 2 x 105 AH Deep Cycle |
| Styringsforhold | 360 graders kontrol |
| Decibelniveau (db) | ≤55db |
| Vægt | 6.9 kg / 15.2 lb |
| Skaft type | Støbt aluminium |
| Skaftlængde | 900 mm / 35.4 tomme |
| Maks. bådlængde og last | 6.5m / 21.3ft |
Garanti og support
For specific warranty information and support, please refer to the documentation provided with your purchase or contact the seller/manufacturer directly. Keep your proof of purchase for warranty claims.
For technical assistance or spare parts, please contact HASWING customer service through their official channels.
