Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your XKGLOW 2pc 60" Running Board Light Kit. Designed to enhance both the style and safety of your vehicle, these dual-color LED light bars offer versatile illumination for various driving conditions.

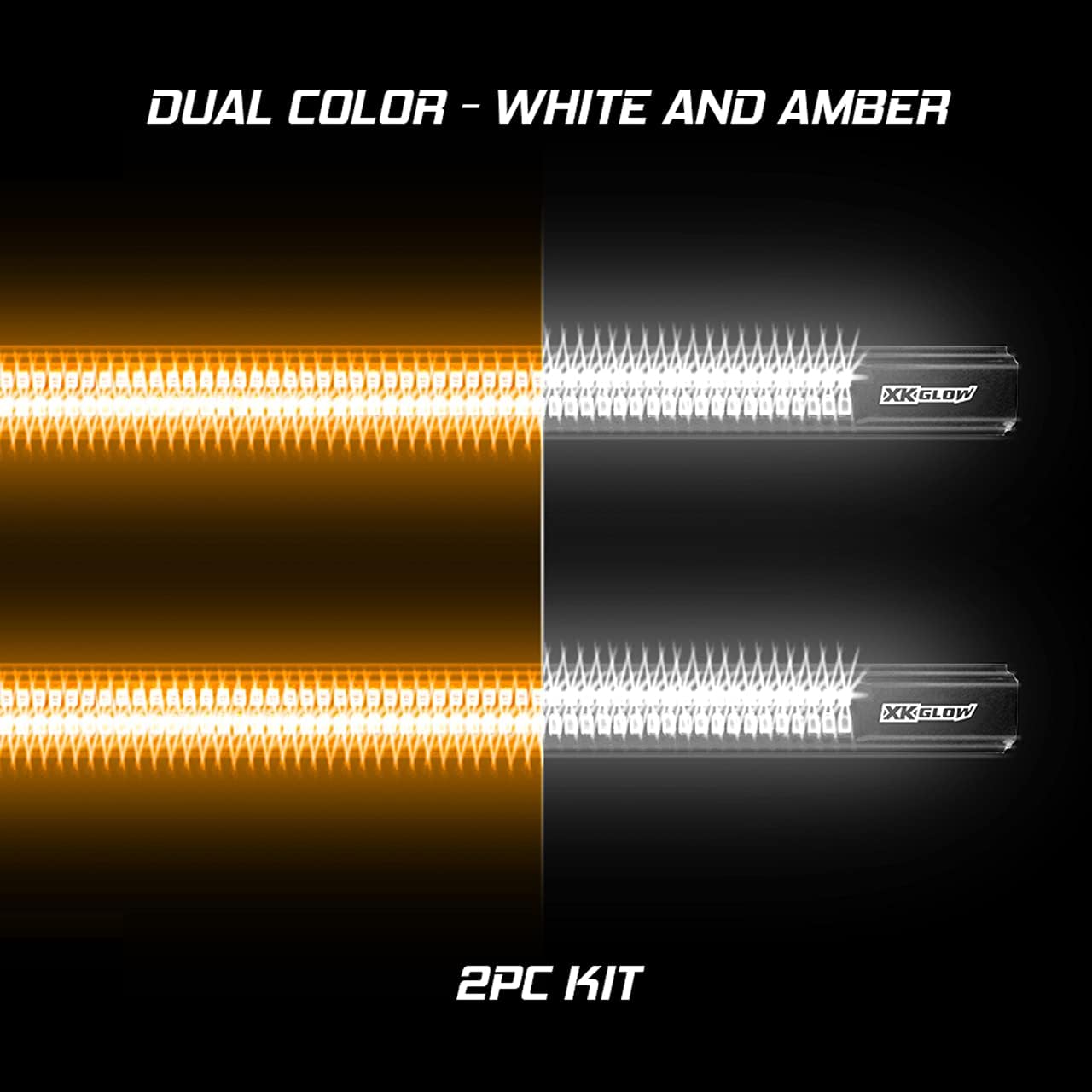

The kit features vibrant amber lighting for running lights and turn signals, and a bright white courtesy light that activates upon opening your vehicle's doors. An advanced strobe hazard mode is also included for maximum visibility when needed.
Produkt overview
Opsætning og installation
Professional installation is highly recommended for this product to ensure proper functionality and safety. Incorrect wiring can lead to damage to the product or vehicle electrical system.
Komponenter Tjekliste:
- 2 x 60" Running Board Light Bars
- Wiring Harness (typically included, verify contents)
- Mounting Hardware (typically included, verify contents)
Generelle installationstrin:
- Forberedelse: Ensure the vehicle's power is off and the battery is disconnected before beginning installation. Identify suitable mounting locations along the running boards that allow for secure attachment and clear light projection.
- Montering: Securely attach the light bars to the underside of the running boards using the provided mounting hardware. Ensure they are positioned to illuminate the ground and side of the vehicle effectively.
- Ledningsforbindelser:
- Tilslut positiv (+) wire to a fused 12-15V DC power source.
- Tilslut negativ (-) wire to a suitable vehicle ground point.
- Tilslut amber running light wire to your vehicle's running light circuit. This will provide semi-bright amber illumination when running lights are active.
- Tilslut amber turn signal wire to your vehicle's turn signal circuit. This will provide full-bright amber illumination when the turn signal is activated.
- Tilslut white courtesy light wire to a door trigger switch or dome light circuit. This will activate the white light when the door is opened.
- For strobe hazard mode, connect the designated wire to your vehicle's hazard light circuit.
- Kabelstyring: Route all wiring safely, away from moving parts and heat sources. Use zip ties or cable clips to secure the wiring and prevent chafing.
- Test: Reconnect the vehicle battery and test all light functions (running, turn signal, courtesy, hazard) to ensure correct operation before finalizing the installation.
Betjeningsvejledning
The XKGLOW Running Board Light Kit operates automatically based on your vehicle's electrical signals:
- Amber Running Light: When your vehicle's running lights are on, the running board lights will illuminate in a semi-bright amber color, enhancing side visibility.
- Amber Turn Signal: Activating your vehicle's turn signal will cause the corresponding running board light to flash in full-bright amber, providing a clear indication of your intended turn.
- White Courtesy Light: Opening any of your vehicle's doors will trigger the white courtesy light, illuminating the running board and the ground area for safe entry and exit.
- Strobe Hazard Mode: When your vehicle's hazard lights are activated, the running board lights will enter an intense alternating amber and white strobe mode, maximizing visibility in emergency situations.
Opretholdelse
To ensure the longevity and optimal performance of your XKGLOW Running Board Light Kit, follow these maintenance guidelines:
- Rensning: Clean the light bars periodically with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the polycarbonate material. Rinse thoroughly with clean water.
- Inspektion: Regularly inspect the light bars and wiring for any signs of damage, loose connections, or corrosion. Although the product has an IP67 waterproof rating, ensuring all connections are secure will prevent potential issues.
- Vandtæthed: The light bars are rated IP67 waterproof, meaning they are protected from dust and can withstand immersion in water up to 1 meter for 30 minutes. However, avoid high-pressure washing directly on the lights or connections.
Fejlfinding
If you encounter issues with your XKGLOW Running Board Light Kit, refer to the following troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lysene tænder ikke. | Ingen strøm, løs forbindelse, sprunget sikring, forkert ledningsføring. | Check all wiring connections for tightness. Verify power supply and ground. Inspect vehicle fuses related to the connected circuits. Ensure correct polarity. |
| Incorrect color or function. | Incorrect wiring to vehicle circuits. | Review the wiring diagram and ensure each light function wire is connected to the correct vehicle circuit (running light, turn signal, door trigger, hazard). |
| Moisture inside the light bar. | Seal compromise, extreme temperature changes. | While rated IP67, extreme conditions or physical damage can affect seals. If moisture persists, contact XKGLOW support. Ensure proper installation to prevent water ingress from wiring points. |
| Lysene flimrer eller dæmpes. | Insufficient power, loose connection, faulty wiring. | Tjek voltage at the light bars. Ensure all connections are secure and free of corrosion. Inspect wiring for any damage or shorts. |
Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | XK041021 |
| Varedimensioner (L x B x H) | 62 x 3 x 3 tommer |
| Mærke | XKGLOW |
| Color (LED Output) | Dual Color (White & Amber) |
| Formfaktor | Bar |
| Auto del position | Ydre |
| Materiale | Polycarbonat (PC) |
| Vandmodstandsniveau | IP67 vandtæt |
| Fjernbetjening inkluderet? | Ingen |
| Antal stykker | 2 |
| Automotive Fit Type | Universal Fit |
| Working Voltage | 12-15V DC |
| Max Power (White LEDs) | 15W per bar |
| Max Power (Amber LEDs) | 15W per bar |
| White LED Count | 222 pcs per bar |
| Amber LED Count | 222 pcs per bar |
| Varens vægt | 2.79 pund (i alt for sættet) |
Garantioplysninger
Specific warranty details for the XKGLOW 2pc 60" Running Board Light Kit are typically provided by the manufacturer or seller at the time of purchase. Please refer to your purchase documentation or contact XKGLOW directly for comprehensive warranty terms and conditions.
Kundesupport
For technical assistance, installation questions, or any other inquiries regarding your XKGLOW Running Board Light Kit, please contact XKGLOW customer support through their official website or the seller from whom you purchased the product. Have your model number (XK041021) and purchase details ready for faster service.
