Martin 1 B 36 P Konventionel MST-skive Instruktionsmanual

Indledning

This manual provides essential instructions for the proper installation, operation, and maintenance of the Martin 1 B 36 P Conventional MST Sheave. Adhering to these guidelines will ensure optimal performance and longevity of the product. Please read this manual thoroughly before proceeding with any procedures.

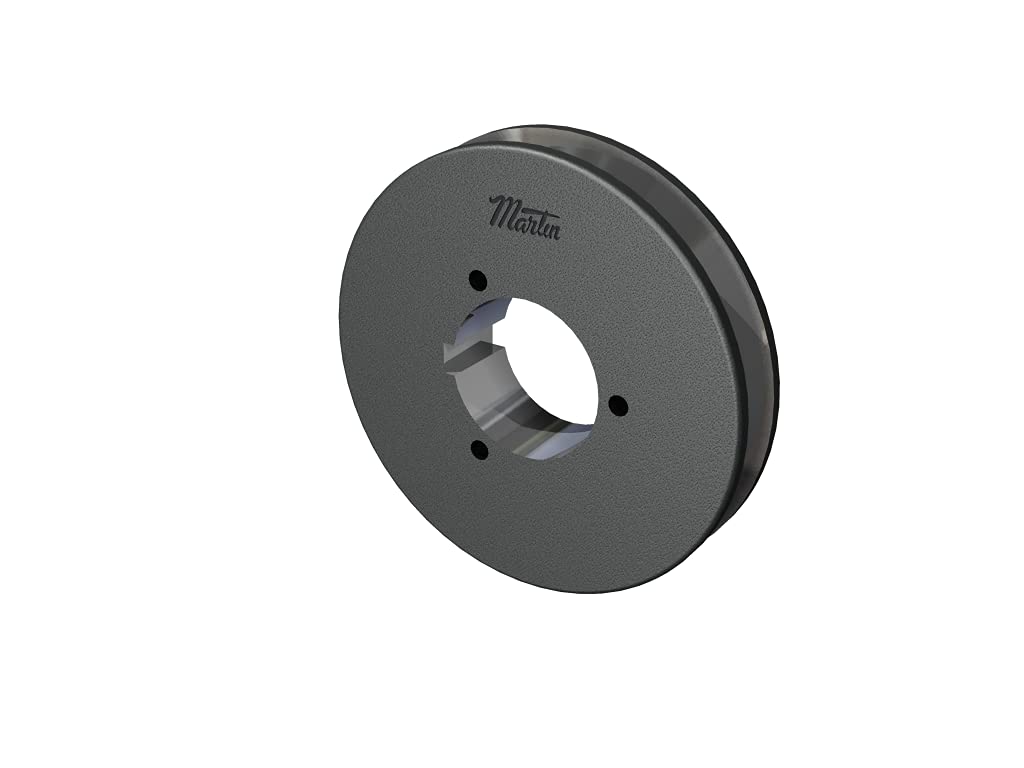

Image: Martin 1 B 36 P Conventional MST Sheave. This image displays the sheave component, which is a grooved wheel used with a belt or rope to transmit power. It features a central bore for shaft mounting and bolt holes for securing a bushing.

Sikkerhedsoplysninger

Always prioritize safety during installation, operation, and maintenance. Failure to follow safety precautions can result in serious injury or equipment damage.

• Ensure all power is disconnected before working on machinery.
• Brug passende personlige værnemidler (PPE), herunder sikkerhedsbriller og handsker.
• Consult with qualified personnel for complex installations or repairs.
• Do not operate equipment with damaged or improperly installed components.

Opsætning og installation

Proper installation is crucial for the efficient and safe operation of the MST Sheave. This sheave is designed for use with a compatible bushing (sold separately) to secure it to a shaft.

Nødvendigt værktøj og materialer:

• Appropriate wrenches or hex keys for bushing bolts.
• Shaft with correct diameter.
• Compatible MST bushing.
• Momentnøgle.
• Cleaning solvent and cloth.

Installationstrin:

1. Rengøring af komponenter: Ensure the sheave bore, bushing, and shaft are clean and free of dirt, grease, or burrs.
2. Install Bushing: Insert the MST bushing into the sheave bore. Align the bolt holes.
3. Mount on Shaft: Slide the sheave and bushing assembly onto the shaft. Position it correctly.
4. Spænd boltene: Insert and hand-tighten the bushing bolts. Then, using a torque wrench, tighten the bolts incrementally and alternately to the manufacturer's specified torque values. This ensures even pressure and proper seating.
5. Bekræft justering: Check for proper alignment with other components in the power transmission system. Misalignment can lead to premature wear.

Driftsvejledninger

Once installed, the Martin 1 B 36 P Conventional MST Sheave operates as part of a larger power transmission system. Ensure all connected components are functioning correctly.

• Indledende kørsel: After installation, perform a short test run to check for unusual noises, vibrations, or excessive heat.
• Belastningsstyring: Do not exceed the sheave's rated load capacity. Refer to system specifications for appropriate load limits.
• Miljøforhold: Operate within specified temperature and environmental conditions to prevent material degradation.

Opretholdelse

Regular maintenance extends the lifespan and ensures the reliability of the Martin 1 B 36 P Conventional MST Sheave.

Rutinetjek:

• Visuel inspektion: Periodically inspect the sheave for signs of wear, cracks, corrosion, or damage to the grooves.
• Bushing Tightness: Check the tightness of the bushing bolts at regular intervals, especially after initial operation. Re-torque if necessary.
• Bæltetilstand: Inspect the V-belt (if applicable) for wear, tension, and proper seating in the sheave grooves.
• Justering: Verify that the sheave remains properly aligned with other components.

Rensning:

Keep the sheave and surrounding area clean to prevent accumulation of debris that could affect performance or cause wear.

Fejlfinding

This section addresses common issues that may arise during the use of the MST Sheave.

• Overdreven vibration:
  • Check for proper sheave and shaft balance.
  • Verify correct alignment of components.
  • Inspect for loose bushing bolts or damaged sheave.
• Usædvanlig støj:
  • Inspect for worn belts or sheave grooves.
  • Check for proper belt tension.
  • Ensure all fasteners are securely tightened.
• Premature Wear:
  • Review alignment of the system.
  • Check for proper belt tension and type.
  • Sørg for, at driftsforholdene er inden for specifikationerne.

If issues persist, consult a qualified technician or contact Martin customer support.

Specifikationer

Garanti og support

For information regarding product warranty, please refer to the official Martin Sprocket & Gear webwebstedet eller kontakt deres kundeserviceafdeling direkte. Gem din købskvittering til garantikrav.

For technical assistance or further inquiries, please contact Martin customer support through their official channels.
