1. Introduktion
Thank you for choosing the Nilight 12AWG 2-Lead LED Light Bar Wiring Harness Kit. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your wiring harness. Please read these instructions carefully before use and retain them for future reference.

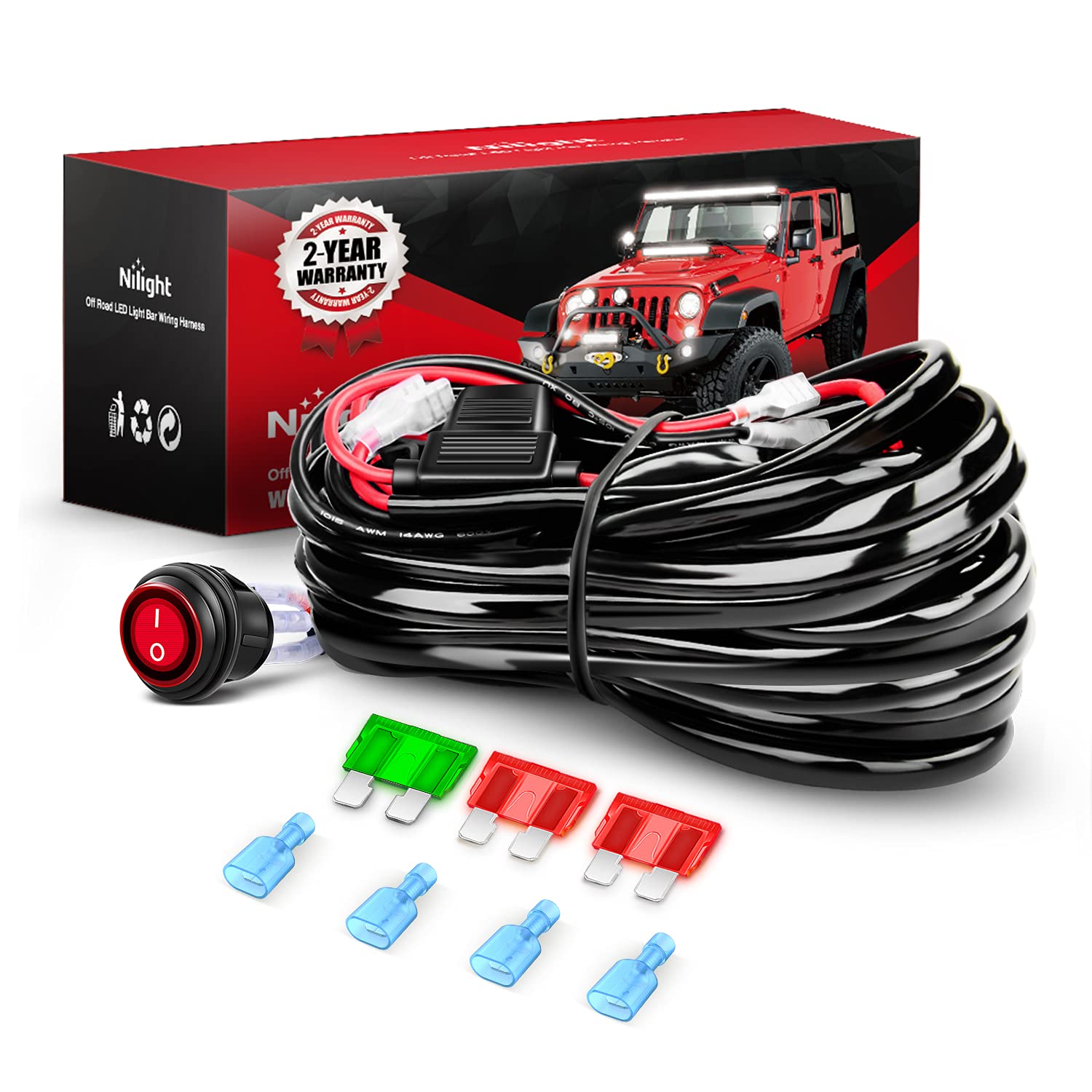

Figure 1: Nilight 12AWG 2-Lead LED Light Bar Wiring Harness Kit components.
2. Produktet er slutview
2.1 Inkluderede komponenter
- 1 x 10-foot Wiring Harness (12AWG)
- 2 x Sets of Light Output Connectors
- 1 x Power Relay (40A)
- 1 x Inline Blade Fuse Holder with Fuse (30A/40A)
- 1 x 3-Pin On/Off Rocker Switch with Red Indicator Light
- 3 x Extra Blade Fuses (for option)
2.2 Nøglefunktioner
- Dual Lead Design: Equipped with two sets of light output connectors, allowing for the connection of two separate lighting fixtures with a combined wattage of less than 450W.
- Robust beskyttelse: Features a power relay and an inline blade fuse to provide primary defense against overcurrent and short circuits, ensuring system safety.
- Oplyst vippekontakt: A 3-pin on/off rocker switch with a red indicator light for clear operational status. Tested for over 5,000 presses for durability.
- Bred kompatibilitet: Suitable for nearly all 12V battery-powered vehicles, including Jeeps, ATVs, UTVs, cars, motorcycles, ships, yachts, and trailers.
- Premium Wiring: Constructed with 12AWG copper wires and high-quality PVC insulation for efficient current transfer and protection against temperature extremes.
Figure 2: Illustration of premium 12AWG copper wires with high-quality PVC insulation.
3. Sikkerhedsoplysninger
WARNING: Improper installation can lead to electrical shock, fire, or damage to your vehicle and the wiring harness. Always follow these safety guidelines.
- Frakobl altid køretøjets batteri, før du påbegynder nogen form for elektrisk installation.
- Sørg for, at alle forbindelser er sikre og korrekt isolerede for at forhindre kortslutninger.
- Overskrid ikke det maksimale wattage rating of 450W for connected lighting fixtures.
- Route wires away from hot surfaces, moving parts, and sharp edges.
- Use appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
- If you are unsure about any part of the installation process, consult a qualified automotive electrician.
4. Opsætning og installation
Follow these steps to install your Nilight LED Light Bar Wiring Harness Kit:
4.1 Installationsdiagram
Figure 3: Detailed wiring diagram for the Nilight 12AWG 2-Lead LED Light Bar Wiring Harness.
4.2 Trin-for-trin installation
- Forbered til installation: Ensure the vehicle's ignition is off and disconnect the negative terminal of the battery to prevent accidental short circuits.
- Tilslut til strømforsyning: Connect the red wire (positive) from the harness to the positive terminal of your vehicle's battery. Connect the black wire (negative) to the negative terminal or a suitable ground point on the vehicle chassis.
Figure 4: Connecting the wiring harness to the vehicle's power supply.
- Mount the Relay: Find a suitable, dry location in the engine bay to mount the power relay. Ensure it is away from excessive heat and moisture. Secure it using appropriate fasteners.
Figure 5: Mounting the power relay securely.
- Installer kontakten: Determine a convenient location for the 3-pin rocker switch inside the vehicle cabin. Drill a 20.8mm (approximately 0.82 inches) hole for the switch. Connect the switch wires to the harness and insert the switch into the drilled hole.
Figure 6: The 3-pin illuminated rocker switch and its dimensions.
Figur 7: Eksample of switch installation in a vehicle interior.
- Connect Lighting Fixtures: Route the two output leads to your LED light bars. Connect the positive and negative wires from each light bar to the corresponding connectors on the harness. Ensure connections are tight and secure.
Figure 8: Connecting two LED light bars to the dual lead wiring harness.
Figur 9: Nærbillede view of light bar connections.
- Sikker ledningsføring: Use cable ties or clips to secure all wiring, preventing it from dangling, rubbing against sharp edges, or interfering with moving parts.
- Tilslut batteriet igen og test: Reconnect the negative terminal of the vehicle's battery. Turn on the ignition and test the functionality of your LED light bars using the installed rocker switch.
5. Betjeningsvejledning
Operating the Nilight LED Light Bar Wiring Harness is straightforward:
- To turn on the connected LED light bars, press the 'I' side of the rocker switch. The red indicator light on the switch will illuminate.
- To turn off the connected LED light bars, press the 'O' side of the rocker switch. The red indicator light will turn off.
Figur 10: Eksamples of the wiring harness in various vehicle applications.
6. Vedligeholdelse
Regular maintenance ensures the longevity and reliable performance of your wiring harness:
- Undersøg forbindelser: Periodically check all electrical connections for tightness and corrosion. Clean any corroded terminals.
- Tjek ledninger: Inspect the wiring for any signs of wear, fraying, or damage. Replace the harness if significant damage is found.
- Sikringsinspektion: The inline blade fuse protects the circuit. If the lights stop working, check the fuse. If blown, replace it with a fuse of the same amperage (30A or 40A). Do not use a fuse with a higher ampaldersvurdering.
Figure 11: The inline blade fuse holder and included spare fuses.
- Hold rent: Keep the relay and fuse holder free from dirt and debris. The fuse holder is water-resistant, but excessive exposure to water should be avoided.
7. Fejlfinding
If you encounter issues with your wiring harness, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lysene tænder ikke. | Sprunget sikring. | Check and replace the inline blade fuse. Ensure the replacement fuse has the correct ampaldersvurdering. |
| Lysene tænder ikke. | Løse eller forkerte ledningsforbindelser. | Verify all connections (battery, relay, switch, lights) are secure and correctly wired according to the diagram. |
| Lysene tænder ikke. | Defekt kontakt eller relæ. | Test the switch and relay for continuity. Replace if found defective. |
| Lysene flimrer eller er svage. | Poor ground connection or insufficient power. | Ensure the ground connection is clean and secure. Check battery voltage. |
| Switch indicator light does not illuminate. | Faulty switch or wiring to the switch. | Check switch wiring and test the switch. |
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | 10044W |
| Selelængde | 10 fod |
| Max Wattage | 450W |
| Wire Gauge | 12 AWG |
| Number of Leads | 2 |
| Sikringstype | Bladsikring (30A/40A) |
| Number of Fuses Included | 4 (1 pre-installed, 3 spare) |
| Switch Type | 3-Pin Rocker Switch |
| Operation Voltage | 12V DC |
| Trådmateriale | Kobber |
| Isoleringsmateriale | PVC |
| Connector Type | Spadestik |
9. Garanti og support
9.1 Garantioplysninger
The Nilight 12AWG 2-Lead LED Light Bar Wiring Harness Kit comes with a 2 års garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, accidents, or unauthorized modifications.
9.2 Kundesupport
For technical assistance, warranty claims, or any questions regarding your Nilight product, please contact Nilight customer service through their official website or the retailer where the product was purchased. Please have your model number (10044W) and proof of purchase ready when contacting support.
