Yaheetech Twin Metal Platform Bed Instruction Manual

1. Produktet er slutview

The Yaheetech Twin Metal Platform Bed is designed with a Victorian style wrought iron headboard and footboard, offering both aesthetic appeal and robust support. This bed frame eliminates the need for a box spring, providing a dependable foundation for your mattress.

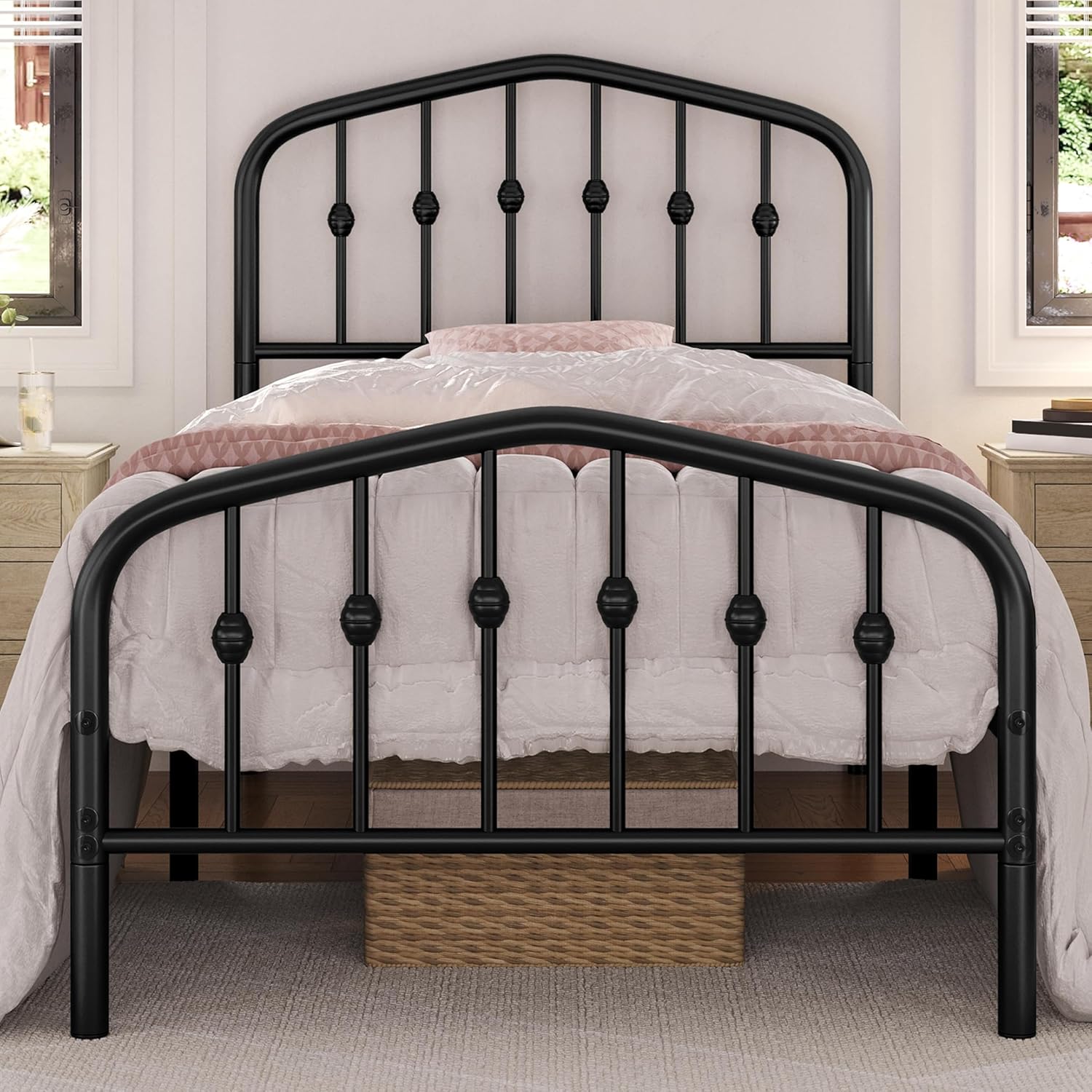

Billede 1.1: Forside view of the assembled Yaheetech Twin Metal Platform Bed in black, featuring a Victorian-style headboard and footboard.

Nøglefunktioner:

• Høj hovedgærde og fodgærde: The 42.5-inch high headboard provides comfortable back support, and both the headboard and footboard are designed to accommodate mattresses of varying thicknesses, with a recommended mattress height of 10 inches.
• Dependable Foundation: Constructed with side rails, 12 metal slats, and 6 support legs, ensuring a high weight capacity of up to 450 lbs.
• Restful Sleep: Heavy-duty iron components and a sturdy design minimize squeaking noises, contributing to an undisturbed sleep environment.
• Standard Twin Size: Overall dimensions are 41 inches wide, 78 inches long, and 42.5 inches high, designed to fit standard US twin mattresses (memory foam, latex, hybrid, or spring type).
• Design-forward: Features a blend of straight lines and gentle curves with stunning spindle accents, allowing it to complement traditional, farmhouse, and other bedroom decor styles.

2. Sikkerhedsoplysninger

Please read and adhere to the following safety guidelines to ensure safe assembly and use of your bed frame:

• Overskrid ikke den maksimale vægtkapacitet på 204.12 kg.
• Exercise caution around sharp edges and metal slats during both assembly and regular use to prevent injury.
• Always follow the assembly instructions carefully and completely. Failure to do so may result in instability or collapse of the bed frame.
• Sørg for, at alle bolte og forbindelser er forsvarligt spændt før brug, og kontrollér dem regelmæssigt for løse dele.

3. Inkluderede komponenter

Before beginning assembly, verify that all the following components are present in your package:

• Sengegavl
• Fodplade
• Sideskinner
• Metallameller
• Støtteben
• Installationsvejledning (dette dokument)
• Assembly Hardware (bolts, nuts, Allen wrench, etc.)

4. Monteringsvejledning

Follow these steps carefully for proper assembly of your Yaheetech Twin Metal Platform Bed. It is recommended to assemble the bed with two people.

Trin-for-trin samling:

1. Udpak og identificer dele: Lay out all components on a clean, soft surface (like a carpet) to prevent scratching. Refer to the parts list in the included installation manual to identify each piece.
2. Fastgør sidehejs til hovedgærde og fodgærde: Connect the side rails to the headboard and footboard using the provided bolts and the L-shaped plates. Ensure all connections are aligned and hand-tighten the bolts initially.

Billede 4.1: Nærbillede view showing how L-shaped plates are used to fasten components, ensuring a stable structure.
3. Installer støtteben: Attach the central support legs to the designated points on the bed frame. These legs provide additional stability and weight distribution.
4. Indsæt metallameller: Begin installing the metal slats into the bed frame. For each slat, aim the iron pipe end into the corresponding notch on the side rail, then press firmly to secure it in place. Ensure each slat is fully seated and locked.


Billede 4.2: Detaljeret view of slat installation, showing how to aim the iron pipe at the notch and press to fix it securely.

5. Endelig stramning: Once all components are in place, use the provided Allen wrench to fully tighten all bolts. Do not overtighten, but ensure all connections are firm and secure.
6. Tjek stabilitet: Gently shake the assembled bed frame to ensure it is stable and all parts are securely connected.

Image 4.3: Diagram illustrating the overall dimensions and key measurements of the bed frame, including height, width, and length.

5. Retningslinjer for brug

To ensure optimal performance and longevity of your bed frame:

• Madrasskompatibilitet: This bed frame is designed for standard US twin mattresses.
• Anbefalet madrashøjde: For best aesthetic and functional results, a mattress height of approximately 10 inches is recommended.
• Vægt kapacitet: Do not exceed the maximum weight capacity of 450 lbs (204.12 kg) to prevent damage to the frame and potential injury.
• Opbevaring under sengen: The bed frame provides approximately 13 inches (32 cm) of ground clearance, offering ample space for under-bed storage solutions.

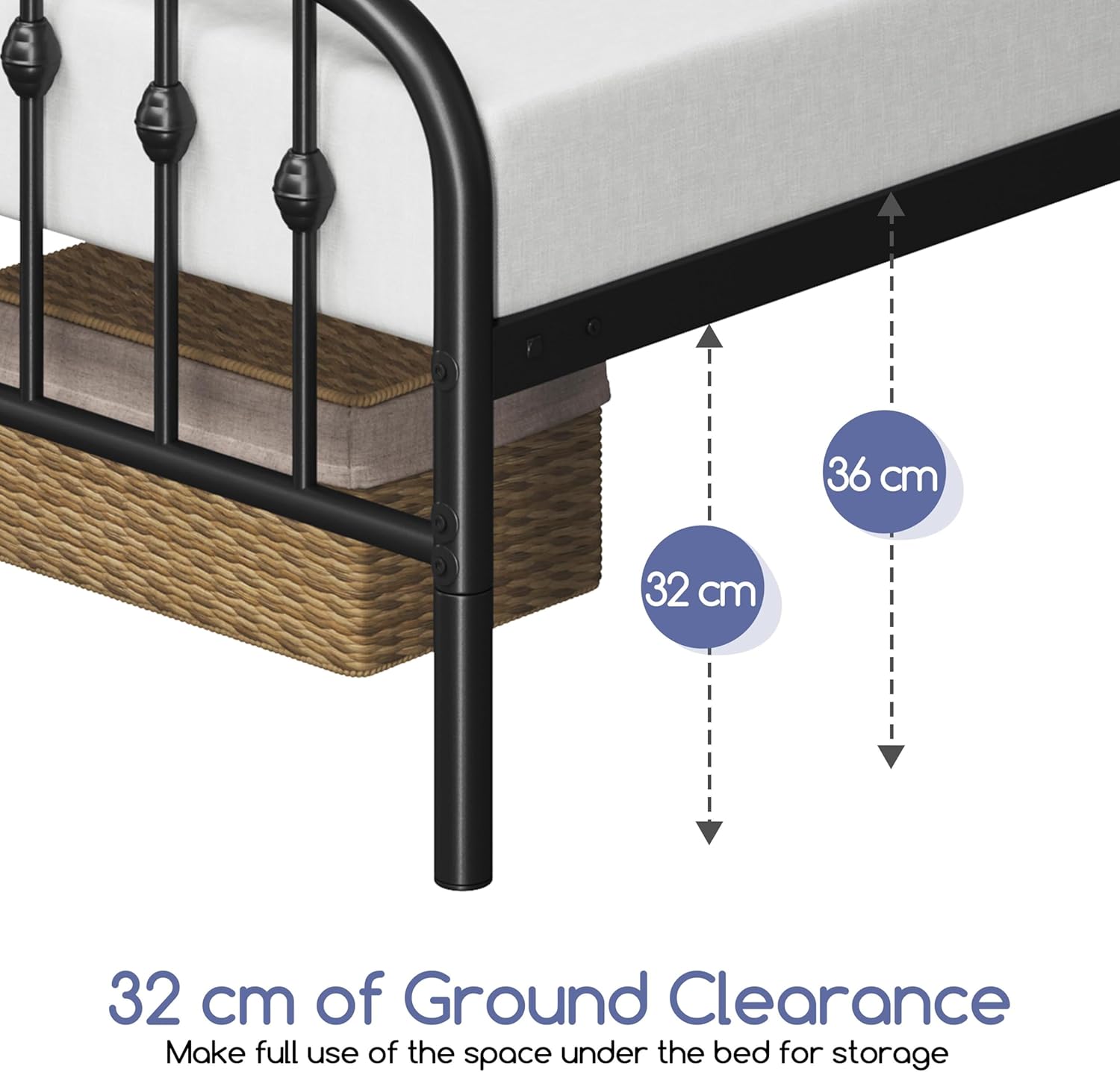

Image 5.1: Visual representation of the 32 cm (approximately 13 inches) ground clearance available for under-bed storage.

6. Pleje og vedligeholdelse

Proper care will help maintain the appearance and structural integrity of your bed frame:

• Rensning: Tør af med en tør klud. Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler, da de kan beskadige den pulverlakerede overflade.
• Regelmæssig kontrol: Kontrollér regelmæssigt alle bolte og forbindelser for at sikre, at de forbliver stramme. Spænd igen, hvis der registreres nogen løshed.
• Gulvbeskyttelse: The bed frame is equipped with bottom rubber caps to protect your flooring from scratches and damage. Ensure these caps remain intact.

Image 6.1: Collage highlighting key features including the classic retro crown design, premium metal tubes for durability, ample under-bed storage, and protective bottom rubber caps.

7. Fejlfinding

Hvis du støder på problemer med din sengeramme, kan du se følgende almindelige problemer og løsninger:

• Knirkende lyde: If the bed frame produces squeaking noises, check all bolts and connections. Tighten any loose hardware. Ensure that the metal slats are properly seated in their notches.
• Ustabilitet/Vinklen: If the bed frame feels unstable, re-verify that all assembly steps have been followed correctly and that all bolts are fully tightened. Ensure the bed is on a flat, level surface.
• Beskadigede dele: If any part is damaged or missing upon arrival, do not proceed with assembly. Contact customer support for assistance.

8. Specifikationer

Image 8.1: The Yaheetech Twin Metal Platform Bed positioned in a bedroom setting, showcasing its design and size within a typical room.

9. Garanti og support

For information regarding product warranty, returns, or technical support, please refer to the purchase documentation or contact Yaheetech customer service directly. Contact details can typically be found on the manufacturer's official webwebstedet eller gennem dit købssted.
