ULTRALOQ UL3 BT 2nd Gen Smart Lock + WiFi Bridge User Manual

Indledning

The ULTRALOQ UL3 BT (2nd Gen) is an advanced smart lever lock offering a 5-in-1 keyless entry solution. This manual provides detailed instructions for the setup, operation, and maintenance of your smart lock, ensuring optimal performance and security. The integrated WiFi Bridge allows for remote access and management, enhancing convenience and control over your property.

ULTRALOQ UL3 BT 2nd Gen Smart Lock with WiFi Bridge, phone, and power adapter

Figure 1: ULTRALOQ UL3 BT 2nd Gen Smart Lock with WiFi Bridge and accessories.

Nøglefunktioner

5-i-1 nøglefri adgang: Fingerprint ID, Code, Knock / Shake to Open, Mechanical Key, and Smartphone App control.
Advanced Fingerprint ID: Second-generation lightning-fast fingerprint recognition with self-learning algorithm.
Anti-peep Touchscreen: Illuminated keypad allows for entering random digits before or after your actual code to prevent code exposure.
Remote Access with WiFi Bridge: Unlock, share temporary eKeys, set codes, and view log records from anywhere via the smartphone app.
Automatisk låsefunktion: Automatically locks the door after a set period for enhanced security.
DIY installation: Designed for easy installation with a screwdriver, fitting standard doors (1-5/16” to 2” thick and 2-1/8” face bore hole).
Stemmestyringsintegration: Compatible with Alexa and Google Home enabled speakers via IFTTT.

ULTRALOQ UL3 BT 2nd Gen Smart Lock highlighting awards

Figure 2: Recognition for ULTRALOQ Smart Locks.

Opsætning og installation

The ULTRALOQ UL3 BT (2nd Gen) is designed for straightforward DIY installation. Ensure your door meets the specified dimensions before beginning.

1. Forbered din dør

Verify your door thickness is between 1-5/16 inches (33mm) and 2 inches (50mm).
Confirm the face bore hole diameter is 2-1/8 inches (54mm).
Ensure the backset (distance from door edge to center of bore hole) is 2-3/8 inches (60mm) or 2-3/4 inches (70mm).
Remove any existing door hardware.

2. Install the Latch and Strike Plate

Insert the latch into the door edge and secure it with screws. Install the strike plate on the door frame, aligning it with the latch bolt.

3. Monter den udvendige enhed

Feed the cable and spindle through the bore hole. Position the exterior assembly flush against the door.

4. Install the Interior Mounting Plate

Attach the interior mounting plate to the exterior assembly using the provided screws, ensuring the cable passes through the plate.

5. Connect the Cable and Install the Interior Assembly

Connect the cable from the exterior assembly to the interior assembly. Secure the interior assembly to the mounting plate with screws. Ensure the handle is oriented correctly for your door's handing.

6. Installer batterier

Insert four AA alkaline batteries into the battery compartment of the interior assembly. Close the battery cover.

ULTRALOQ UL3 BT 2nd Gen Smart Lock installed on a door with a screwdriver

Figure 3: Easy DIY installation process.

Betjeningsvejledning

1. Initial Setup and App Pairing

Download the ULTRALOQ App from the App Store or Google Play.
Opret en konto og log ind.
Follow the in-app instructions to add your UL3 BT (2nd Gen) Smart Lock. This typically involves pressing a button on the interior assembly to put it in pairing mode.

2. Oplåsningsmetoder

Fingeraftryks-ID: Placer din registrerede finger på fingeraftrykssensoren. Låsen låses op, hvis fingeraftrykket genkendes.

Hand using the fingerprint scanner on the ULTRALOQ UL3 BT 2nd Gen Smart Lock

Figure 4: Unlocking with Fingerprint ID.

Kode: Enter your 4-8 digit code on the illuminated touchscreen keypad, followed by the enter key. Utilize the anti-peep function by adding random digits before or after your actual code.
Knock / Shake to Open: With the app running in the background, knock on your phone or shake it (depending on settings) to unlock the door when within Bluetooth range.
Mekanisk nøgle: In case of battery failure or emergency, use the provided backup mechanical key to unlock the door. The keyhole is located at the bottom of the exterior handle.
Smartphone app: Open the ULTRALOQ App and tap the unlock icon.

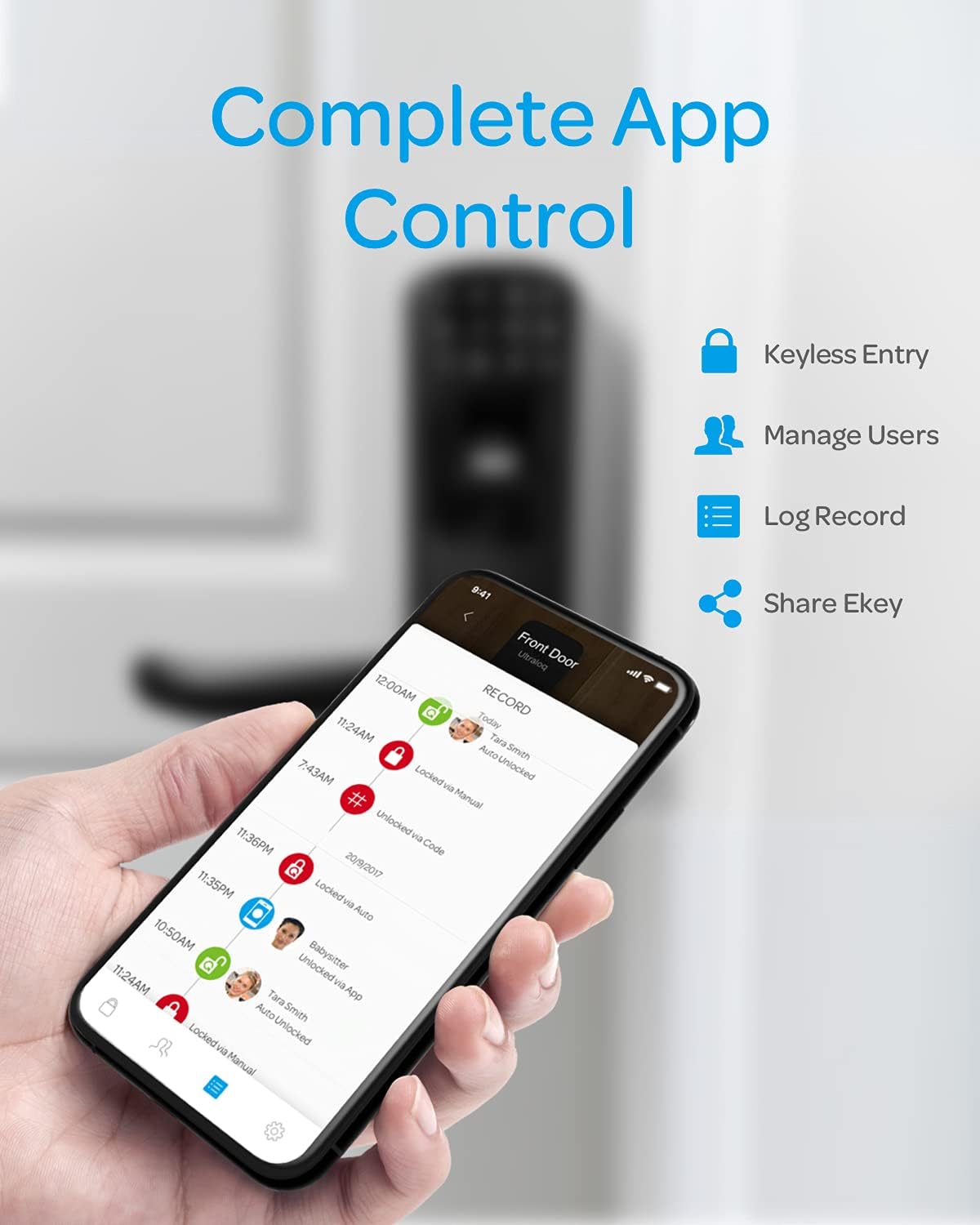

Smartphone displaying the ULTRALOQ app with keyless entry, user management, log record, and eKey sharing features

Figure 5: App control for your smart lock.

3. Locking Methods

Autolås: Enable this feature in the app to automatically lock the door after a customizable delay (e.g., 10-900 seconds).
Manuel lås: Press any key on the keypad for 2 seconds to lock the door from the outside. From the inside, simply lift the handle.

4. User Management and Remote Access (with WiFi Bridge)

The included WiFi Bridge allows for advanced remote functionalities:

Add/Delete Users: Manage fingerprints and codes for family members, guests, or service providers directly from the app.
Share eKeys: Grant temporary or permanent access to others via eKeys sent through the app.
View Logposter: Monitor who entered and at what time from anywhere.
Fjernoplåsning/låsning: Control your lock remotely via the app.
Stemmestyring: Integrate with Amazon Alexa or Google Home for voice commands (e.g., “Alexa, unlock my side door”).

ULTRALOQ WiFi Bridge plugged into a wall outlet, showing compatibility with Alexa, IFTTT, and Google Assistant

Figure 6: ULTRALOQ WiFi Bridge for remote access and smart home integration.

Opretholdelse

1. Udskiftning af batteri

The ULTRALOQ UL3 BT (2nd Gen) uses four AA alkaline batteries. The lock will provide low battery warnings through the app and on the touchscreen. Replace all four batteries simultaneously with new, high-quality alkaline batteries when prompted.

2. Rensning

Rengør låsens yderside med en blød, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or electronic components. Regularly wipe the fingerprint sensor and touchscreen to ensure optimal performance.

3. Mechanical Components

Periodically check the screws and ensure they are tightened. Lubricate the latch bolt and deadlatch with a silicone-based lubricant if they become stiff.

Fejlfinding

Problem	Mulig årsag	Løsning
Låsen reagerer ikke / Ingen strøm.	Døde batterier.	Replace all four AA alkaline batteries. Use the backup mechanical key if necessary.
Fingeraftryk ikke genkendt.	Finger dirty/wet, sensor dirty, unregistered fingerprint, improper placement.	Ensure finger and sensor are clean and dry. Re-register fingerprint if issues persist. Try different finger angles.
Tastaturet reagerer ikke.	Low battery, temporary glitch.	Replace batteries. Try pressing any key to wake the keypad.
Fjernadgang virker ikke.	WiFi Bridge disconnected, internet issue, lock out of range of bridge.	Check WiFi Bridge connection and internet. Ensure bridge is within effective range of the lock.
Lock does not auto-lock.	Auto-lock feature disabled or incorrect settings.	Verify auto-lock settings in the ULTRALOQ App.

Specifikationer

Model: UL3 BT (2nd Gen) Smart Lock
Mærke: ULTRALOQ
Låsetype: Smart Lock
Materiale: Zink
Farve: Sort
Dimensioner (L x B x H): 7 x 6.3 x 3.5 tommer
Varens vægt: 6 pund
Strømkilde: 4 x AA Alkaline Batteries (Included)
Forbindelse: Bluetooth, 2.4GHz Wi-Fi (via WiFi Bridge)
Dørtykkelseskompatibilitet: 1-5/16” to 2” (33mm - 50mm)
Face Bore Hole: 2-1/8" (54 mm)
backset: 2-3/8” (60mm) or 2-3/4” (70mm)
Særlige funktioner: Fingerprint, Touchscreen, Smart Lock, WiFi, Auto-Lock
Inkluderede komponenter: Smart Lock, WiFi Bridge, Backup Keys, Latch and Strike, Mounting Plate, Screwdriver
UPC: 850770008528

Garanti

ULTRALOQ provides an 18 måneders elektronisk garanti og en livstids mekanisk garanti for the UL3 BT (2nd Gen) Smart Lock. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official ULTRALOQ webwebsted eller kontakt kundesupport.

Støtte

For further assistance, technical support, or to purchase accessories, please visit the official ULTRALOQ webwebsted eller kontakt deres kundeserviceteam.

Officiel Webwebsted: www.u-tec.com
Brugervejledning (PDF): Download PDF
