Trio Leuchten Carlo 225272007 LED-væglampe brugsanvisning

1. Introduktion

Welcome to your new Trio Leuchten Carlo 225272007 LED Wall Light. This manual provides essential information for the safe installation, operation, and maintenance of your product. Please read these instructions carefully before installation and retain them for future reference.

2. Sikkerhedsinstruktioner

For at sikre sikker drift og forhindre skader, bedes du overholde følgende sikkerhedsretningslinjer:

Always disconnect the main power supply before attempting any installation, maintenance, or cleaning.
Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med lokale el-forskrifter.
Produktet må ikke ændres på nogen måde. Uautoriserede ændringer kan ugyldiggøre garantien og udgøre en sikkerhedsrisiko.
Sørg for, at monteringsfladen er strukturelt solid og i stand til at bære armaturets vægt.
This product is rated IP20, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. It is suitable for indoor use only.
Se ikke direkte ind i LED-lyskilden, når den er tændt.

3. Pakkens indhold

Kontroller venligst, at alle komponenter er til stede og ubeskadigede:

1x Trio Leuchten Carlo 225272007 LED Wall Light
Monteringsudstyr (skruer, vægdyvler)
Instruktionsmanual

4. Opsætning og installation

Follow these steps for proper installation of your wall light:

Forberedelse: Sørg for, at hovedstrømforsyningen til installationsområdet er afbrudt ved afbryderen.
Mærkning: Hold the fixture against the desired mounting location on the wall and mark the drilling points for the mounting bracket.
Boring: Bor huller på de markerede punkter. Sæt de medfølgende rawlplugs i de borede huller.
Ledningsføring: Connect the electrical wires from the wall to the terminal block on the fixture. Ensure correct polarity: Live (L), Neutral (N), and Earth (⚡). Secure all connections firmly.
Montering: Attach the fixture's mounting bracket to the wall using the provided screws. Then, secure the light fixture to the mounting bracket.
Endelig kontrol: Double-check all connections and ensure the fixture is firmly mounted to the wall. Restore power to the circuit.

Technical drawing showing the dimensions of the Trio Leuchten Carlo 225272007 LED Wall Light. — **Figur 1:** Dimensions of the Trio Leuchten Carlo 225272007 LED Wall Light. The fixture measures 50 cm in length, 8 cm in width, and 4.8 cm in depth.

5. Betjeningsvejledning

Your Trio Leuchten Carlo 225272007 LED Wall Light offers adjustable brightness and color temperature to suit your preferences.

5.1. Brightness Adjustment (SWITCH Dimmer)

The integrated SWITCH dimmer allows you to adjust the brightness of the light using a standard wall switch. No external dimmer is required.

100 % lysstyrke: Turn the light ON using your wall switch.
50 % lysstyrke: Turn the light OFF and then ON again within 3 seconds.
25 % lysstyrke: Turn the light OFF and then ON again twice within 3 seconds each time.

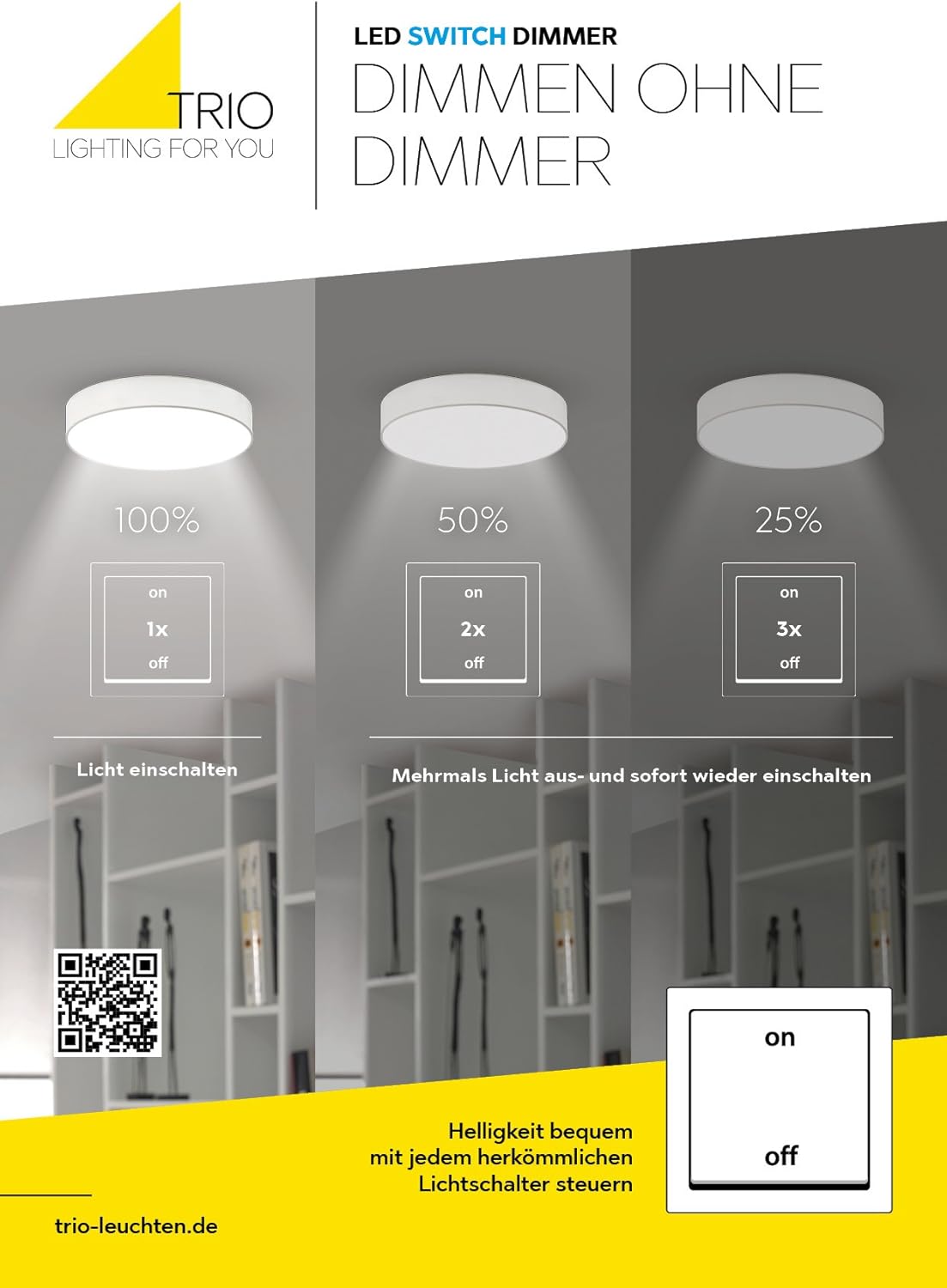

Diagram illustrating the SWITCH dimmer function, showing how to achieve 100%, 50%, and 25% brightness by cycling a standard wall switch. — **Figur 2:** Explanation of the SWITCH dimmer functionality. Cycle the wall switch to select desired brightness levels.

For more information on the SWITCH dimmer technology, please visit: trio-lighting.com/switchdimmer

5.2. Color Temperature Adjustment (Colour SWITCH)

The Colour SWITCH function allows you to select between three distinct color temperatures: Warm White (3000K), Neutral White (4000K), and Cool White (6000K). This feature is controlled by a switch located on the underside of the lamp.

To change the color temperature, locate the small switch on the underside of the fixture.
Cycle through the switch positions to select your desired color temperature: Varm hvid (3000K), Neutral hvid (4000K), eller Cool White (6000K).

The Trio Leuchten Carlo 225272007 LED Wall Light illuminated with warm white light (3000K). — **Figur 3:** Wall light displaying Warm White (3000K).

The Trio Leuchten Carlo 225272007 LED Wall Light illuminated with neutral white light (4000K). — **Figur 4:** Wall light displaying Neutral White (4000K).

The Trio Leuchten Carlo 225272007 LED Wall Light illuminated with cool white light (6000K). — **Figur 5:** Wall light displaying Cool White (6000K).

6. Vedligeholdelse

Proper care will ensure the longevity and appearance of your wall light:

Rensning: Afbryd altid strømmen før rengøring. Tør armaturet af med en blød, tør eller let fugtig klud.amp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen.
lysdioder: The LED light sources in this fixture are integrated and not user-replaceable. Do not attempt to replace them.
Inspektion: Periodically check for any loose connections or signs of damage. If any damage is found, disconnect power and consult a qualified electrician.

7. Fejlfinding

If you encounter any issues with your wall light, please refer to the following table:

Problem	Mulig løsning
Lyset tændes ikke.	Check if the main power supply is connected and switched on. Verify that the wall switch is in the ON position. Inspect wiring connections for looseness or incorrect installation (consult an electrician if unsure).
Lyset flimrer eller dæmpes uventet.	Sørg for en stabil strømforsyning. If using the SWITCH dimmer, ensure you are cycling the switch correctly. If the issue persists, consult an electrician.
Brightness or color temperature adjustment is not working.	For brightness, ensure you are following the correct sequence for the SWITCH dimmer (OFF/ON cycles). For color temperature, ensure you are operating the dedicated switch on the fixture correctly.

8. Specifikationer

Mærke: Trio
Model: 225272007
Magt: 18W LED
Lysstrøm: 1800 lumen
Farvetemperatur: 3000K (varm hvid), 4000K (neutral hvid), 6000K (kold hvid)
Materiale: Metal (Nickel Matt finish)
Dimensioner (L x B x H): 50 cm x 8 cm x 4.8 cm
Vægt: 1.15 kg
IP-vurdering: IP20 (kun indendørs brug)
Gennemsnitlig levetid: 25,000 timer
Energieffektivitetsklasse: A+
Input bindtage: AC (as per local standards)

9. Garanti og support

This product comes with a standard manufacturer's warranty. Please refer to your purchase documentation or the retailer's terms and conditions for specific warranty details and duration.

For technical support, warranty claims, or any questions regarding your Trio Leuchten product, please contact your retailer or visit the official Trio Leuchten webhjemmeside for kundeserviceinformation.
