SonicWall NSa3700 Gen7 Firewall Instruction Manual

1. Introduktion

The SonicWall NSa3700 Gen7 Firewall is an enterprise-class security appliance designed for mid-sized to large organizations requiring high-performance network security. This manual provides essential information for the proper installation, configuration, operation, and maintenance of your NSa3700 firewall.

Key features include multi-gigabit throughput, advanced threat defense, and comprehensive protection against zero-day threats, ransomware, and encrypted attacks.

2. Sikkerhedsoplysninger

Læs og forstå alle sikkerhedsinstruktioner, før du installerer eller bruger enheden. Undladelse af at gøre dette kan medføre personskade eller beskadigelse af udstyret.

• Elektrisk sikkerhed: Ensure the device is connected to a grounded power outlet. Do not overload power strips or extension cords.
• Ventilation: Maintain adequate airflow around the device to prevent overheating. Do not block ventilation openings.
• Placering: Install the device in a stable, dry environment, away from direct sunlight, heat sources, and moisture.
• Service: Overlad al service til kvalificeret servicepersonale. Forsøg ikke selv at åbne eller reparere enheden.

3. Opsætning

This section outlines the basic steps for setting up your SonicWall NSa3700 firewall.

3.1 Udpakning og inspektion

Carefully unpack the firewall and its accessories. Inspect all components for any signs of damage. If any items are missing or damaged, contact your vendor immediately.

3.2 Fysisk installation

The NSa3700 is designed for rack-mounting. Secure the device in a standard 19-inch equipment rack using the provided rack-mount kit. Ensure proper ventilation and cable management.

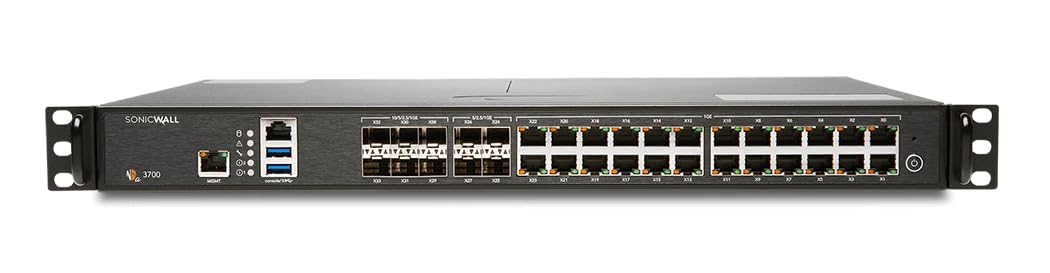

Billede: Forside view of the SonicWall NSa3700 Gen7 Firewall, showing various network ports, USB ports, and status indicators.

3.3 Indledende forbindelser

1. Strømtilslutning: Connect the power cable to the firewall and a grounded power outlet.
2. Administrationsgrænseflade: Connect a computer to the management port (often labeled 'X0' or 'MGMT') using an Ethernet cable for initial configuration.
3. Netværksforbindelser: Connect your WAN (Internet) and LAN (internal network) cables to the appropriate Ethernet or SFP+ interfaces. The NSa3700 features a high port density with a mix of 1 GbE and 10 GbE SFP+ interfaces.

3.4 Indledende konfiguration

Access the firewall's web management interface via a web browser on the connected computer. Follow the on-screen wizard for initial setup, including setting up network zones, basic security policies, and administrative credentials. Refer to the SonicWall documentation portal for detailed configuration guides.

4. Betjeningsvejledning

The SonicWall NSa3700 provides robust security features to protect your network. This section covers general operational aspects.

4.1 Threat Prevention

The firewall actively defends against various cyber threats using:

• Gateway Anti-Virus: Scans incoming and outgoing traffic for malware.
• System til forebyggelse af indtrængen (IPS): Registrerer og blokerer netværksindtrængen og -angreb.
• Capture ATP with RTDMI: Utilizes cloud-based sandboxing and Real-Time Deep Memory Inspection for zero-day threat detection.
• DPI-SSL: Inspects encrypted SSL/TLS traffic for hidden threats.

4.2 Application Control and Content Filtering

Manage and control network application usage and filter web content to enforce organizational policies and enhance productivity.

4.3 Secure Connectivity (VPN)

The NSa3700 supports thousands of VPN tunnels and large pools of SSL VPN users, enabling secure remote access and site-to-site connectivity for distributed enterprises and hybrid workforces.

4.4 Centraliseret styring

For large deployments, NSM (Network Security Manager) integration ensures centralized management, visibility, and compliance reporting across multiple SonicWall devices.

5. Vedligeholdelse

Regular maintenance ensures optimal performance and security of your SonicWall NSa3700 firewall.

• Firmwareopdateringer: Regularly check for and apply the latest firmware updates to ensure your device has the most current security patches and features.
• Konfigurationssikkerhedskopier: Periodically back up your firewall configuration settings.
• Logovervågning: Monitor system logs and security reports for unusual activity or potential threats.
• Fysisk inspektion: Ensure the device's physical environment remains clean, well-ventilated, and free from obstructions.

6. Fejlfinding

Dette afsnit indeholder grundlæggende fejlfindingstrin til almindelige problemer.

• Ingen strøm: Verify the power cable is securely connected and the power outlet is functional. Check the power LED on the device.
• Problemer med netværksforbindelse: Check all Ethernet and SFP+ cable connections. Verify network interface status LEDs. Confirm IP address configurations and routing settings.
• Kan ikke få adgang til administrationsgrænsefladen: Ensure your computer's IP address is in the same subnet as the management interface. Try a different web browser or clear browser cache.
• Ydeevneforringelse: Review system logs for high resource utilization or active attacks. Check network traffic statistics.
• Sikkerhedsadvarsler: Investigate security alerts in the logs. Adjust security policies if legitimate traffic is being blocked.

For advanced troubleshooting, consult the SonicWall support documentation or contact technical support.

7. Specifikationer

8. Garanti og support

The SonicWall NSa3700 typically comes with comprehensive support services, including 24x7 support and firmware updates, often bundled as part of an Essential Protection Service Suite (EPSS).

De SonicWall Secure Upgrade Plus program allows eligible organizations to replace qualifying firewalls with a current Gen7 model and a service subscription. Proof of ownership of a valid device is required for participation.

For detailed warranty information, service agreements, and technical support, please refer to the official SonicWall website or contact your authorized SonicWall partner.

Online ressourcer: SonicWall Support Portal
