SYMA Foldbar HD Kamera Drone Z3 Brugermanual

Indledning

Tak for købetasing the SYMA Foldable HD Camera Drone Z3. This drone combines a convenient foldable design with advanced features such as dual 720P cameras, Optical Flow Positioning, and one-key take-off and landing. This manual will guide you through the setup, operation, and maintenance of your drone to ensure a safe and enjoyable flying experience.

Sikkerhedsforanstaltninger

Please read and understand all safety instructions before operating the drone. Failure to follow these instructions may result in injury or damage to the product.

• Aldersanbefaling: This product is recommended for users aged 12 years and up. Adult supervision is advised for younger users.
• Flyvemiljø: Fly in open, unobstructed areas away from people, animals, buildings, and power lines. Avoid flying in strong winds or adverse weather conditions.
• Batterisikkerhed: Use only the specified battery and charging cable. Do not overcharge or short-circuit batteries. Discontinue use if batteries show signs of damage or swelling.
• Propelsikkerhed: Keep hands, face, and loose clothing away from rotating propellers. Always ensure propeller guards are installed before flight.
• Visuel synslinje: Hold altid synslinjen i forhold til dronen under flyvning.
• Respekter privatlivets fred: Be mindful of privacy laws when using the camera feature.

Image: SYMA Z3 drone with propeller guards. Propeller guards help protect against accidental contact with rotating blades.

Hvad er der i æsken

Bekræft at alle komponenter er til stede ved udpakning:

• SYMA Z3 Foldable HD Camera Drone
• Fjernbetjeningssender
• Genopladeligt dronebatteri
• USB opladningskabel
• Reserve propeller
• Propellerbeskyttere
• Instruktionsmanual

Image: The SYMA Z3 drone and its components as packaged. This includes the drone, remote control, and other accessories.

Opsætning

1. Udfoldning af dronen

1. Gently unfold the four propeller arms until they lock into position.
2. Ensure all arms are fully extended and secure before proceeding.

Image: The SYMA Z3 drone in its compact, folded configuration. The arms must be extended for flight.

2. Batteriinstallation og opladning

• Drone Batteri: Insert the fully charged drone battery into the battery compartment on the drone's underside. Ensure it clicks securely into place.
• Batterier til fjernbetjening: Open the battery cover on the back of the remote control and insert 4x AA batteries (not included), observing correct polarity. Close the cover.
• Opladning: Connect the drone battery to the USB charging cable and plug it into a USB power source (e.g., computer, USB adapter). The indicator light will show charging status and turn off when fully charged. Charging time is approximately 130 minutes for a 16-minute flight time.

3. Propeller Installation (if necessary)

Hvis propeller ikke er forudinstalleret eller skal udskiftes:

1. Match propellerne med de tilsvarende motoraksler (normalt mærket A og B).
2. Press the propellers firmly onto the motor shafts until they are secure.
3. Ensure propeller guards are securely attached to the drone arms.

4. Appinstallation (valgfrit)

For advanced control and live view, download the SYMA app from your mobile device's app store. Søg efter "SYMA FPV" or refer to the QR code in the quick start guide.

Betjeningsvejledning

1. Drone and Remote Control Overview

Billede: Top-down view of the SYMA Z3 drone, showing its main body and propellers. The front camera is visible at the front.

Image: Close-up of the SYMA Z3 remote control, highlighting the joysticks and control buttons. The power button is centrally located.

2. Pairing the Drone with the Remote Control

1. Placer dronen på en flad, plan overflade.
2. Turn on the drone by pressing the power button. The drone's indicator lights will flash.
3. Tænd for fjernbetjeningen.
4. Tryk venstre joystick (gashåndtag) helt op, og derefter helt ned. Dronens indikatorlamper vil holde op med at blinke og lyse konstant, hvilket indikerer vellykket parring.

3. Grundlæggende flyvekontrol

• One-key start/landing: Press the dedicated One-Key Take-Off/Landing button on the remote or in the app. The drone will automatically ascend to a stable hover or descend and land.
• Gashåndtag (venstre joystick op/ned): Styrer højden. Skub op for at stige, træk ned for at stige.
• Drejning (venstre joystick venstre/højre): Controls rotation. Push left to rotate counter-clockwise, right to rotate clockwise.
• Forward/Backward (Right Joystick Up/Down): Styrer bevægelse fremad og bagud.
• Left/Right Sideways Flight (Right Joystick Left/Right): Styrer sidelæns bevægelse.
• Automatisk svævning: The drone will automatically maintain its altitude when the throttle joystick is released.

4. Avancerede funktioner

• Optisk flowpositionering: This feature uses a downward-facing camera to help the drone maintain its position stably, reducing unwanted drift, especially indoors or in low wind conditions.
• Dual 720P Cameras: The Z3 features two 720P cameras (forward and vertical facing). Use the SYMA app to switch between cameras and capture photos or videos.
• Hastighedstilstande: The drone offers multiple speed settings (e.g., 2 speeds) for different skill levels. Refer to the remote control diagram for the speed switch button.
• App Control (Gravity App & Flight Plan): When connected to the SYMA app via Wi-Fi, you can control the drone using your mobile phone's gyroscope (Gravity App) or draw a flight path on the screen for the drone to follow (Flight Plan).

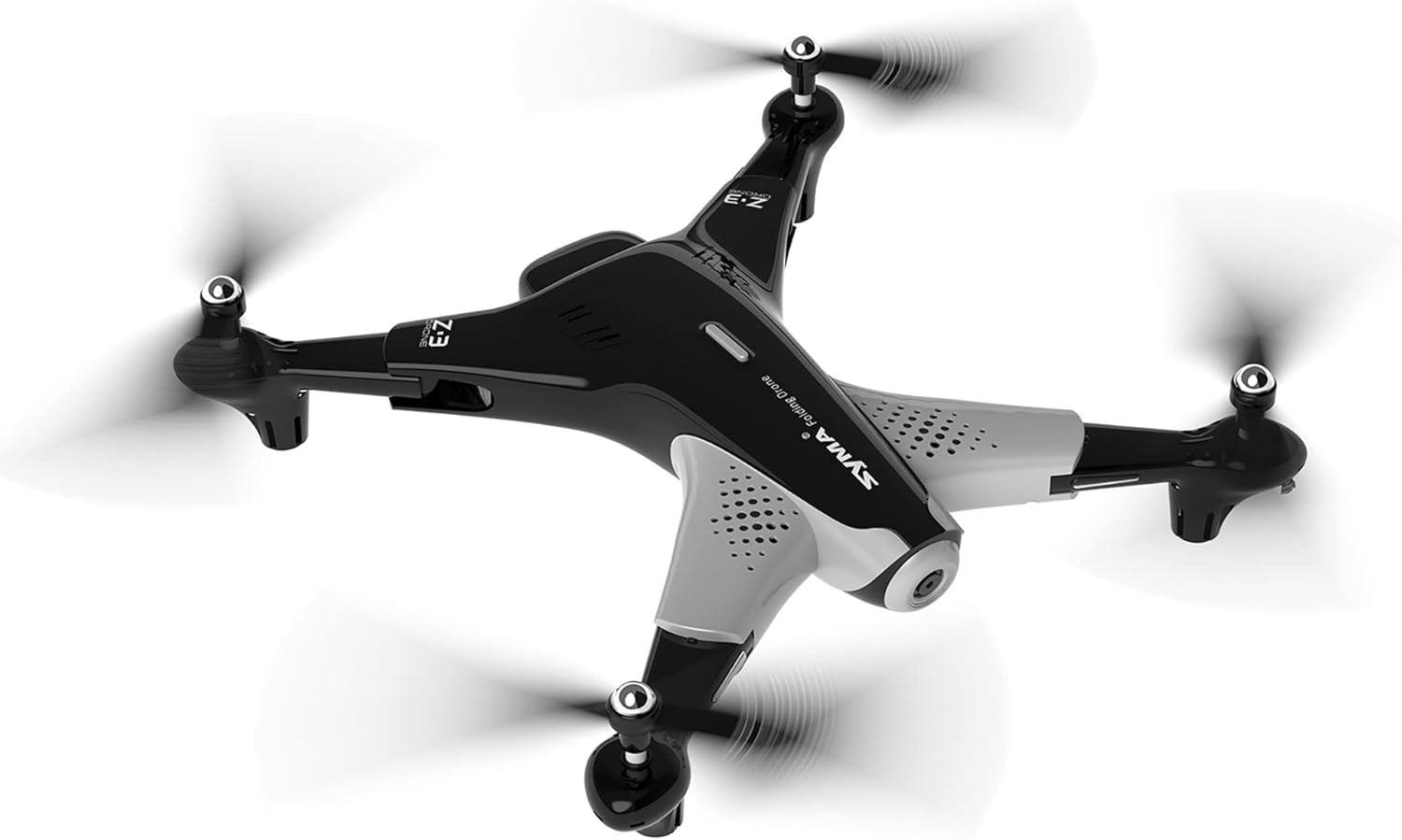

Image: The SYMA Z3 drone in stable flight. Its design allows for both indoor and outdoor operation.

Vedligeholdelse & Pleje

• Rensning: Brug en blød, tør klud til at rengøre dronen og fjernbetjeningen. Undgå at bruge vand eller opløsningsmidler.
• Udskiftning af propel: If propellers are damaged, replace them immediately with genuine SYMA Z3 spare parts. Ensure correct A/B propeller placement.
• Batteripleje: Opbevar batterier et køligt og tørt sted. Opbevar ikke fuldt opladede eller helt afladede batterier i længere perioder. Oplad dem til ca. 50% ved langtidsopbevaring.
• Opbevaring: When not in use, fold the drone for compact storage. Keep the drone and remote control away from direct sunlight and extreme temperatures.

Fejlfinding

Specifikationer

Kundesupport

For further assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact SYMA customer support. Refer to the SYMA official webwebstedet eller produktemballagen for de mest aktuelle kontaktoplysninger.

Online ressourcer: Visit the official SYMA website for FAQs, video tutorials, and updated support information.
