Orvibo Smart Dørlås C1 Brugermanual

1. Introduktion

Thank you for choosing the Orvibo Smart Door Lock C1. This smart lock is designed to provide enhanced security and convenience for your home or office. It integrates multiple unlocking methods, including fingerprint, password, RFID card, and traditional mechanical key, along with smart app control for remote management and monitoring. Please read this manual carefully before installation and operation to ensure proper use and optimal performance.

2. Sikkerhedsoplysninger

• Do not attempt to disassemble or repair the lock yourself. Refer to qualified technicians for service.
• Brug kun den angivne batteritype (4 x AA-batterier). Bland ikke gamle og nye batterier eller forskellige typer batterier.
• Keep the mechanical keys in a safe place outside your home in case of emergency or battery depletion.
• Undgå at udsætte låsen for direkte sollys, regn eller ekstreme temperaturer.
• Ensure the door thickness is within the specified range (35mm ~ 120mm) for proper installation.
• Regularly check the battery level and replace batteries when indicated by the low battery warning.

3. Produktet er slutview

The Orvibo Smart Door Lock C1 consists of an outer panel with a keypad, fingerprint sensor, and card reader, and an inner panel with the battery compartment and manual lock. The design is sleek and modern, suitable for various home aesthetics.

Figur 3.1: Forside og bagside view of the Orvibo Smart Door Lock C1, showcasing its sleek black design and components.

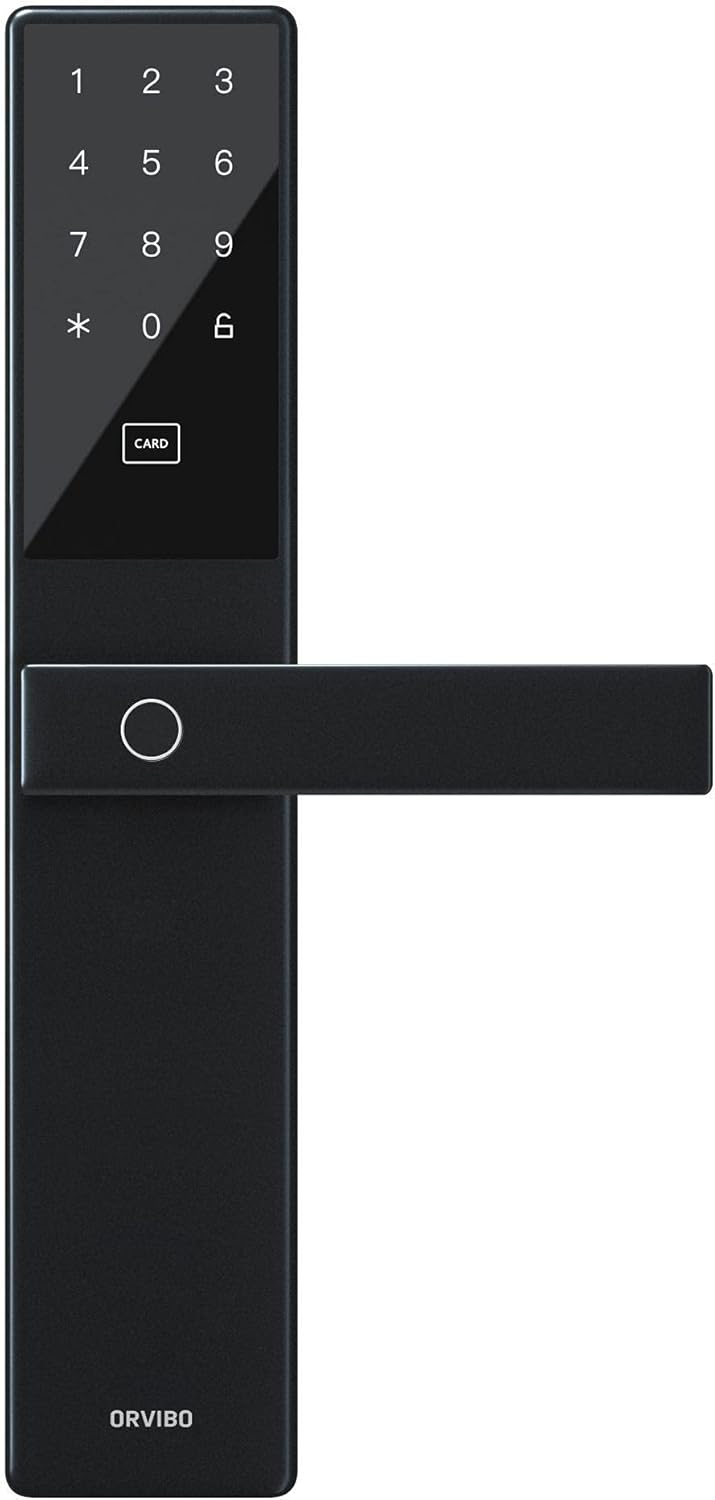

Figur 3.2: Nærbillede view of the exterior panel, highlighting the numeric keypad, card reader area, and fingerprint sensor.

4. Opsætning og installation

Proper installation is crucial for the lock's functionality and security. It is recommended to have the lock installed by a professional if you are unsure about the process.

4.1 Kontrol før installation

• Verify door thickness: 35mm to 120mm.
• Ensure the door frame is sturdy and aligned.
• Check package contents: Smart lock (front and back panels), mortise, strike plate, screws, keys, installation template, user manual.

4.2 Installationstrin

1. Forbered døren: Use the provided template to mark and drill holes on the door.
2. Installer mortise: Insert the mortise into the side of the door and secure it with screws.
3. Install the Outer Panel: Pass the spindle and cables through the mortise. Align the outer panel and secure it.
4. Install the Inner Panel: Connect the cables from the outer panel to the inner panel. Align the inner panel and secure it with screws.
5. Installer låseplade: Install the strike plate on the door frame, ensuring proper alignment with the mortise latch.
6. Indsæt batterier: Open the battery cover on the inner panel and insert 4 AA batteries, observing polarity.
7. Test funktionalitet: Test all unlocking methods (key, fingerprint, card, password) to ensure smooth operation.

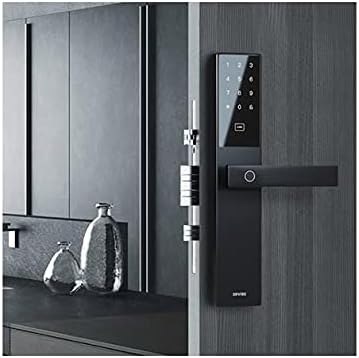

Figure 4.1: The Orvibo Smart Door Lock C1 installed on a wooden door, demonstrating its integrated appearance.

5. Betjeningsvejledning

The Orvibo Smart Door Lock C1 offers multiple convenient ways to unlock your door.

5.1 Oplåsningsmetoder

• Fingeraftryk: Placer din registrerede finger på fingeraftrykssensoren. Låsen låses op, hvis fingeraftrykket genkendes.
• Adgangskode: Indtast din registrerede adgangskode på tastaturet, efterfulgt af '#'-tasten.
• RFID-kort: Present your registered RFID card to the card reader area on the outer panel.
• Mekanisk nøgle: Insert the backup mechanical key into the keyhole and turn to unlock.
• Temporary/One-Time Password: Generate a temporary or one-time password via the smartphone app and provide it to guests.

5.2 Låsning af døren

The lock will automatically engage after the door is closed. You can also manually lock it from the inside using the thumb-turn or by pressing the lock button on the outer panel (if available).

6. App Integration and Smart Features

The Orvibo Smart Door Lock C1 connects to your smartphone via Wi-Fi, offering advanced control and monitoring features.

6.1 Oprettelse af forbindelse til appen

1. Download the Orvibo Smart Home App from your device's app store.
2. Opret en konto eller log ind.
3. Follow the in-app instructions to add the Smart Door Lock C1 to your device list. This typically involves putting the lock in pairing mode and connecting it to your home Wi-Fi network.

6.2 App funktioner

• Fjernoplåsning: Unlock your door from anywhere using the app.
• Brugeradministration: Add, modify, or delete fingerprints, passwords, and RFID cards for up to 25 users.
• Midlertidige adgangskoder: Generate time-limited or one-time passwords for visitors.
• Lås op logs: View a history of all lock and unlock events, including the method used and timestamp.
• Push-meddelelser: Receive real-time alerts on your phone for various events, such as low battery or unauthorized access attempts.
• Batteristatus: Monitor the current battery level of the lock.

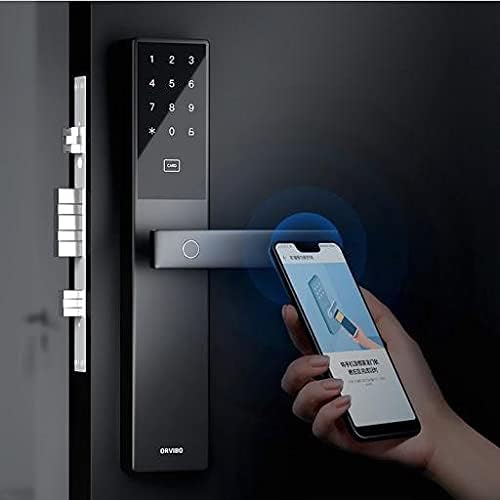

Figure 6.1: A user interacting with the Orvibo Smart Door Lock C1 and its corresponding smartphone application, demonstrating remote control capabilities.

7. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your smart lock.

• Rensning: Wipe the lock surface with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Udskiftning af batteri: When the low battery indicator appears (or approximately every 400 days), replace all four AA batteries simultaneously. Ensure correct polarity.
• Mekanisk kontrol: Periodically check that the door closes smoothly and the latch operates without obstruction.

8. Fejlfinding

If you encounter issues with your Orvibo Smart Door Lock C1, refer to the following common problems and solutions:

9. Specifikationer

10. Garanti og support

Orvibo provides a standard warranty for this product. For detailed warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Orvibo website. If you require technical assistance, troubleshooting, or have any questions regarding your Smart Door Lock C1, please contact Orvibo customer support through their official channels. Please have your product model and purchase information ready when contacting support.
