Brugermanual til REL T/5x aktiv subwoofer

1. Introduktion

The REL T/5x subwoofer is engineered to deliver remarkable bass performance within a compact form factor, designed to seamlessly integrate into various interior styles. It is particularly well-suited for small to medium-sized rooms.

A key design element is its floor-firing capability, which allows bass energy to disperse uniformly throughout the listening space, creating an effect comparable to larger subwoofer models. The T/5x features an 8-inch front-firing long-throw steel chassis driver, complemented by a 10-inch down-firing passive driver. Power is supplied by a robust 200-watt Class A/B amplifier. The enclosure is finished with five hand-polished coats of lacquer, available in High Gloss White or Piano Black, adding a refined aesthetic to its soft, rounded cabinetry.

Image 1.1: The REL T/5x Powered Subwoofer in High Gloss White, showcasing dens kompakte og elegante design.

2. Hvad er der i æsken

Upon unboxing your REL T/5x subwoofer, please ensure all the following components are present:

• REL T/5x Powered Subwoofer Unit
• 10-meter High-Level Cable with Neutrik Connector
• Brugervejledning (dette dokument)
• Strømledning

If any items are missing or damaged, please contact REL Acoustics customer support immediately.

3. Nøglefunktioner

The REL T/5x subwoofer incorporates several design and functional features for enhanced audio performance:

• Alsidige forbindelsesmetoder: Easily integrates into any home theater or stereo system using speaker outputs or a dedicated subwoofer output, ensuring broad compatibility.
• Ideal for Mid-Tier Speakers: Optimized to pair effectively with lower-end 3-way speakers or mid-tier quality bookshelf speakers, providing a balanced and enriched audio experience.
• Suitable for Spaces up to 400 sq ft: Delivers deep, impactful bass down to 33Hz at -6dB. For larger listening spaces exceeding 400 sq ft or a more elevated experience, a stereo pair configuration is recommended.
• Udvidede lydetage and Depth: Enhances the overall soundstage with textural depth, transforming music and movie experiences into immersive, high-quality performances.
• Sealed Subwoofer Design: Features a down-firing 8-inch driver powered by a robust 125-watt Class A/B amplifier, ensuring controlled and impactful bass reproduction.
• Fleksible tilslutningsmuligheder: Supports simultaneous connection for both music and theater applications. For music, utilize the included high-level speaker wire to connect to any amplifier. For movies, connect via a single RCA cable (not included) to your system's subwoofer output.

4. Opsætning

4.1 Placering

Optimal placement of the T/5x subwoofer is crucial for achieving the best sound integration with your main speakers. Generally, corner placement or along a wall can maximize bass output. Experiment with different positions within your room to find the spot that provides the most balanced and natural bass response. Consider the "REL Setup Method" which often involves placing the subwoofer in a corner, angled slightly into the room.

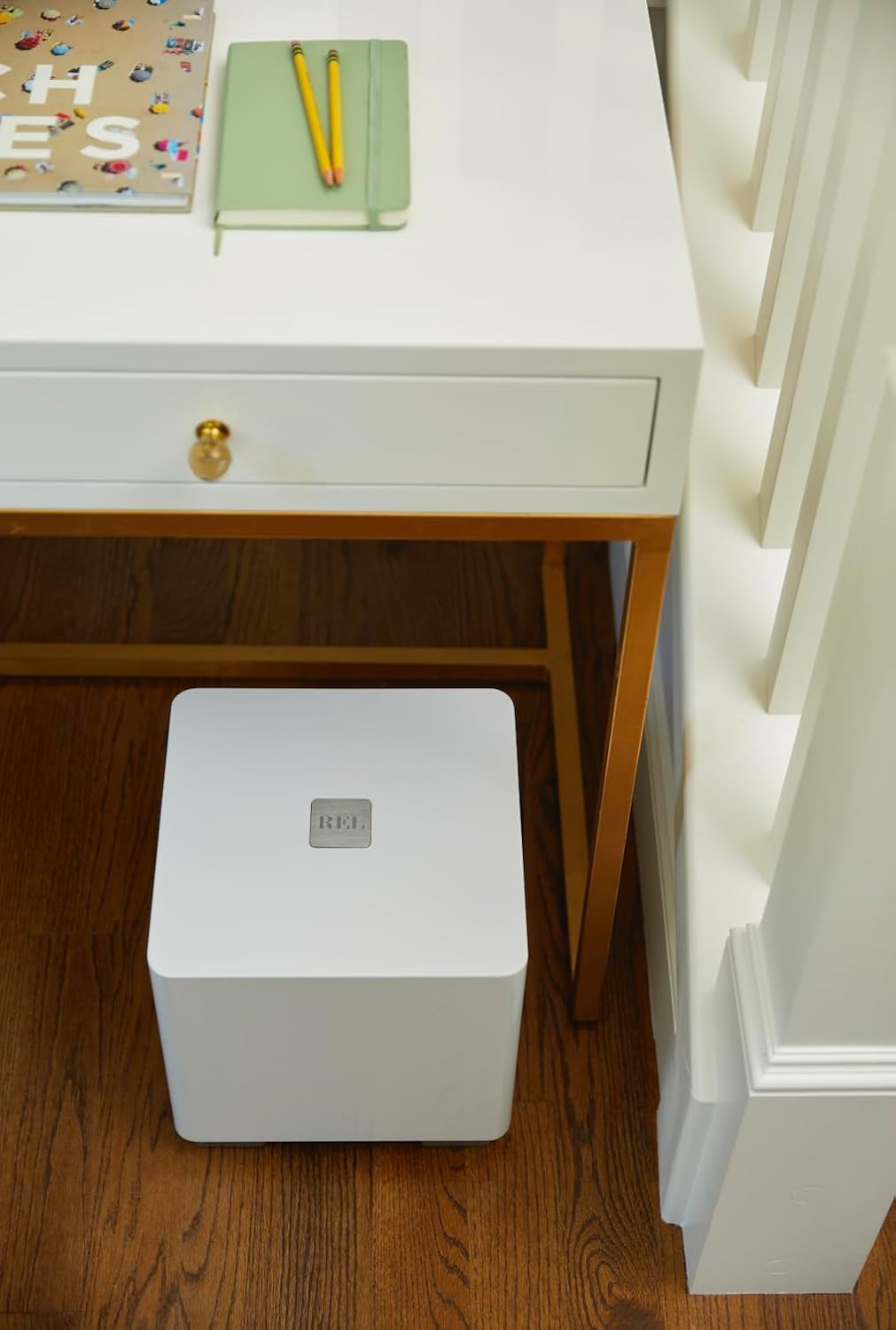

Image 4.1: The REL T/5x Subwoofer integrated into a living space, demonstrating its compact footprint.

4.2 Forbindelser

The T/5x offers flexible connectivity options:

• High-Level Input (Recommended for Music): Use the supplied 10-meter high-level cable with the Neutrik connector. Connect the bare wires to your amplifier's speaker terminals (Red to Right +, Yellow to Left +, Black to common ground). This method ensures the subwoofer receives the same sonic signature as your main speakers, leading to seamless integration.
• Low-Level Input (RCA - for LFE/Home Theater): For home theater systems with a dedicated Subwoofer/LFE output, connect a single RCA cable (not included) from your receiver's LFE output to the LFE input on the T/5x.
• Samtidig forbindelse: The T/5x allows for simultaneous connection of both High-Level and Low-Level inputs, enabling optimal performance for both music and home theater applications without needing to switch cables.

Once connected, plug the power cord into the subwoofer and then into a wall outlet.

5. Betjeningsvejledning

5.1 Tænd/sluk

Locate the power switch on the rear panel of the T/5x. Flip the switch to the "ON" position to power on the subwoofer. The unit will enter standby mode if no audio signal is detected for a period, and will automatically wake up when a signal is present.

5.2 Indledende indstillinger

After powering on, adjust the following controls on the rear panel for optimal performance:

• Gain/Level Control: Start with the gain control set to a low level (e.g., 9 o'clock position). Gradually increase it until the subwoofer's output blends seamlessly with your main speakers. The goal is to extend the bass of your main speakers, not to overpower them.
• Krydsfrekvens: This control determines the highest frequency the subwoofer will reproduce. Set it to blend smoothly with the low-frequency roll-off of your main speakers. A good starting point is often around 60-80Hz, but this will vary based on your main speakers' capabilities.
• Fasestyring: The phase control (0 or 180 degrees) ensures that the subwoofer's output is in sync with your main speakers. Experiment with both settings while listening from your primary listening position. The correct phase setting will result in the most impactful and coherent bass.

Fine-tuning these settings may require some experimentation and listening from various positions in your room. Refer to the REL Acoustics website for detailed setup guides and videos.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your REL T/5x subwoofer, follow these maintenance guidelines:

• Rensning: Use a soft, dry, lint-free cloth to wipe down the cabinet. For high-gloss finishes, a slightly damp cloth followed by a dry one can be used to remove fingerprints or smudges. Avoid abrasive cleaners, solvents, or chemical sprays, as these can damage the finish.
• Ventilation: Ensure adequate airflow around the subwoofer. Do not block the ventilation ports on the rear panel.
• Miljø: Place the subwoofer in a stable location, away from direct sunlight, heat sources, excessive moisture, or extreme temperature changes.
• Strømledning: Kontrollér regelmæssigt strømkablet for tegn på skader. Hvis det er beskadiget, skal det udskiftes med et godkendt kabel.

No user-serviceable parts are inside the subwoofer. Refer all servicing to qualified service personnel.

7. Fejlfinding

If you encounter issues with your REL T/5x subwoofer, consult the following common troubleshooting steps:

For persistent issues or advanced troubleshooting, please contact REL Acoustics customer support.

8. Tekniske specifikationer

9. Garanti og support

The REL T/5x Powered Subwoofer comes with a limited warranty. Please refer to the warranty card included with your product or visit the official REL Acoustics webwebstedet for detaljerede vilkår og betingelser vedrørende garantidækning og varighed.

For technical support, product registration, or further assistance, please visit the official REL Acoustics webwebstedet eller kontakt deres kundeserviceafdeling. Kontaktoplysninger kan typisk findes på producentens webwebsted eller i produktemballagen.

Always purchase from authorized dealers to ensure valid warranty coverage.
