Zokop Commercial Ice Maker Machine Instruction Manual

1. Introduktion

Thank you for choosing the Zokop Commercial Ice Maker Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your ice maker. Please read it thoroughly before use and retain it for future reference.

This freestanding or built-in ice maker is designed for commercial and home use, producing up to 110 lbs of clear ice cubes per day with a 24 lbs storage capacity. Its stainless steel construction ensures durability and hygiene, making it suitable for various environments such as restaurants, bars, cafes, offices, and homes.

Figur 1.1: Forside view of the Zokop Commercial Ice Maker Machine.

2. Sikkerhedsinstruktioner

For at mindske risikoen for brand, elektrisk stød eller personskade, når du bruger din ismaskine, skal du følge disse grundlæggende forholdsregler:

• Læs alle instruktioner før brug af apparatet.
• Tilslut kun til en korrekt jordet stikkontakt.
• Nedsænk ikke netledningen, stikket eller selve apparatet i vand eller andre væsker.
• Tag stikket ud af apparatet, før du rengør eller udfører vedligeholdelse.
• Hold ventilationsåbningerne fri af forhindringer.
• Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Brug kun drikkevand til isproduktion.
• Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Zokop Commercial Ice Maker Machine
• Is Scoop
• Vandtilførselsslange
• Afløbsslange
• Water Filter (optional, may vary by package)
• Instruktionsmanual

Figure 3.1: Ice maker with included accessories.

4. Opsætning

4.1. Placering

• Place the ice maker on a flat, stable surface capable of supporting its weight when full of ice and water.
• Ensure adequate ventilation around the unit. Maintain at least 5 inches (12.7 cm) of space from walls and other objects.
• Undgå direkte sollys eller varmekilder.
• The unit can be used freestanding or built-in under a counter or in a kitchen cabinet, provided proper ventilation is maintained.

4.2. Vandtilslutning

The ice maker requires a continuous water supply and a drain.

1. Connect the provided water inlet hose to a potable water supply line (typically 1/2 inch NPT). Ensure a secure, leak-free connection.
2. Connect the other end of the water inlet hose to the water inlet port on the back of the ice maker.
3. Tilslut afløbsslangen til afløbsudløbet på bagsiden af ​​ismaskinen.
4. Før afløbsslangen til et gulvafløb eller et egnet afløbssystem, og sørg for en kontinuerlig nedadgående hældning for korrekt vandgennemstrømning.

Figure 4.1: Connection diagram for power, water, and drain.

Figur 4.2: Detaljeret view of hose connections.

4.3. Strømtilslutning

Sæt ismaskinen i en jordet stikkontakt. Se specifikationerne for volumen.tage krav.

5. Betjeningsvejledning

5.1. Kontrolpanel

The ice maker features an intuitive control panel with LED indicators for various functions, including water status and ice making.

5.2. Første opstart

1. Ensure all connections (water, drain, power) are secure.
2. Tænd for vandforsyningen.
3. Press the power button on the control panel to start the ice maker.
4. The machine will begin its ice making cycle, which typically takes 11 to 18 minutes per batch.

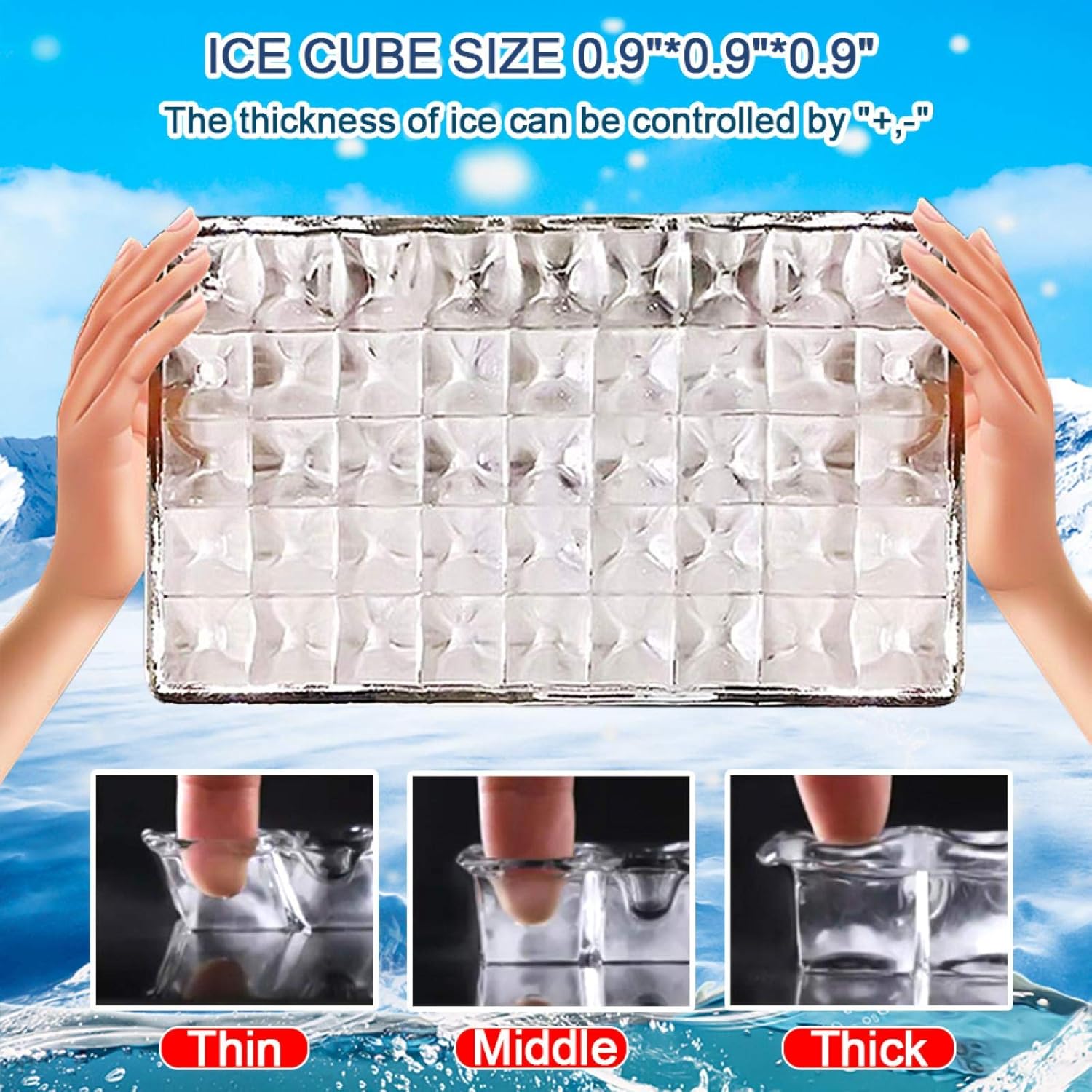

5.3. Adjusting Ice Cube Thickness

The ice cube thickness can be adjusted using the (+) or (-) buttons on the control panel. Thicker ice cubes generally take longer to produce.

Figure 5.1: Ice cube thickness adjustment options.

5.4. Ice Production and Storage

The machine produces clear, hard cube-shaped ice, approximately 0.9'' x 0.9'' x 0.9'' in size. The storage bin can hold up to 24 lbs of ice. Note that the storage bin is insulated but not refrigerated, so ice will slowly melt over time. It is recommended to transfer ice to a freezer for long-term storage.

Figure 5.2: Ice maker producing and storing ice.

6. Vedligeholdelse

Regelmæssig rengøring og vedligeholdelse sikrer optimal ydeevne og levetid for din ismaskine.

6.1. Daglig rengøring

• Tør det udvendige af med en blød, damp klæde.
• Clean the ice scoop after each use.

6.2. Weekly/Bi-weekly Cleaning

• Empty the ice storage bin and clean its interior with a mild detergent and warm water. Rinse thoroughly.
• Clean the water reservoir and ice-making components. Refer to the control panel for any self-cleaning functions if available.

6.3. Descaling (Monthly/Quarterly)

Depending on water hardness, descaling may be required to remove mineral buildup.

1. Turn off and unplug the ice maker.
2. Drain all water from the reservoir.
3. Prepare a descaling solution according to the descaler product instructions (e.g., citric acid solution or commercial ice maker descaler).
4. Hæld opløsningen i vandbeholderen.
5. Run the cleaning cycle (if available) or allow the solution to sit for the recommended time.
6. Drain the solution and rinse the system thoroughly with clean water multiple times to remove all descaler residue.

7. Fejlfinding

Før du kontakter kundesupport, bedes du se følgende tabel for almindelige problemer og løsninger.

8. Specifikationer

Figure 8.1: Approximate dimensions of the ice maker.

9. Garanti og support

For warranty information or technical support, please refer to the warranty card included with your product or contact Zokop customer service. Ensure you have your model number (B091TN69X3) and purchase date available when contacting support.
