1. Introduktion
This manual provides detailed instructions for the proper use and maintenance of your ORDRO AX65 4K Video Camera Camcorder. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity. The ORDRO AX65 is designed for capturing high-quality video and still images, featuring 4K Ultra HD recording, 12x optical zoom, a 3.5-inch IPS touch screen, and Wi-Fi connectivity.
2. Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke. Hvis der mangler eller er beskadigede varer, bedes du kontakte kundesupport.
- 1x ORDRO AX65 4K Video Camera Camcorder
- 1x objektivdæksel
- 2x Rechargeable Lithium-Ion Batteries
- 1x ekstern mikrofon
- 1x Macro Lens
- 1x Wide-Angle Lens
- 1x Lens Hood
- 1x Camera Bracket
- 1 x HDMI kabel
- 1x 1-to-2 Adapter
- 1x fjernbetjening
- 1 x kortlæser
- 1 x USB-kabel
- 1x Brugermanual (dette dokument)
- 1x 64 GB SD -kort

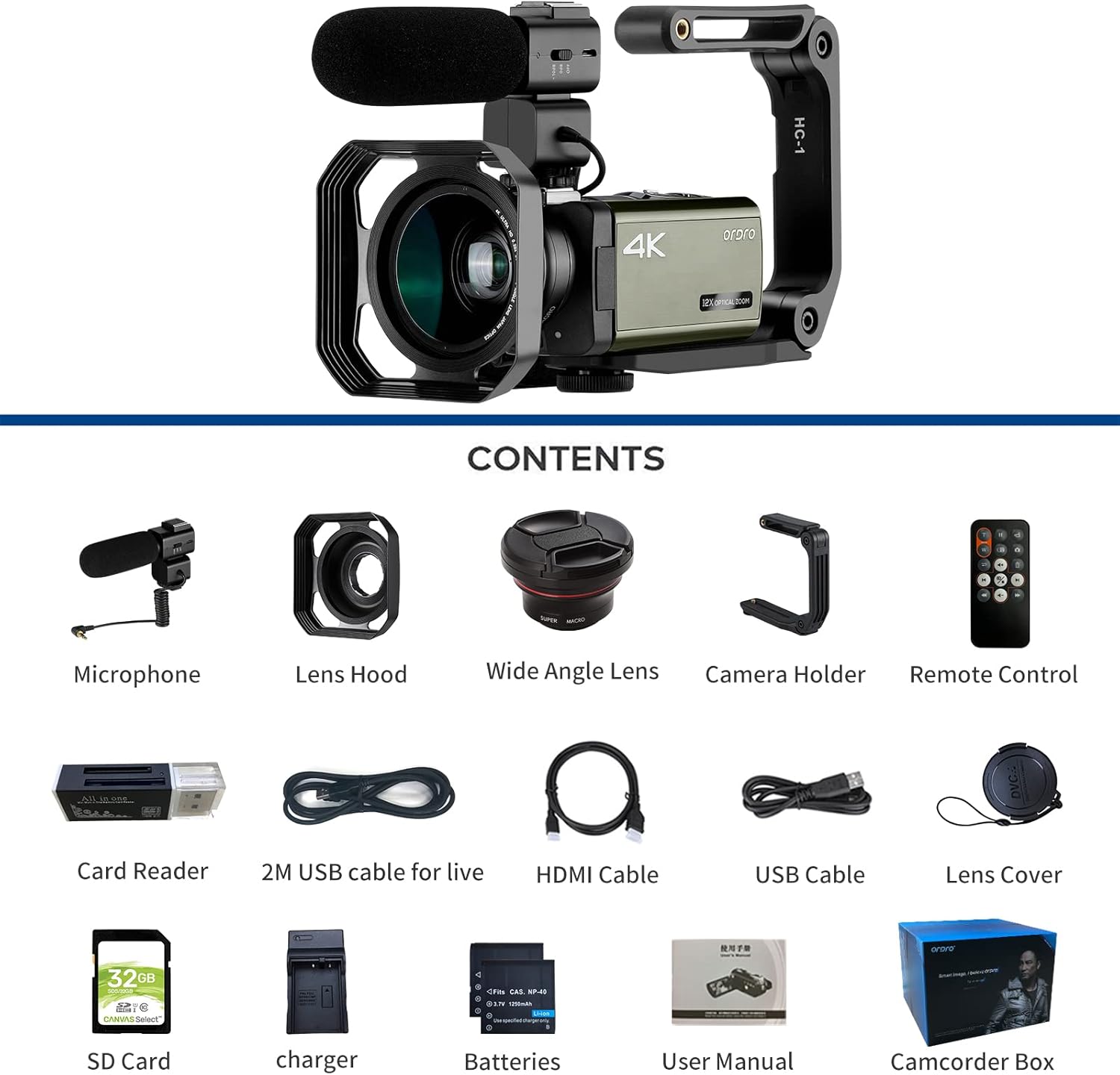

Figure 2.1: ORDRO AX65 Package Contents
3. Opsætning
3.1 Batteriinstallation og opladning
- Open the battery compartment cover located on the bottom of the camcorder.
- Insert a fully charged lithium-ion battery, ensuring the contacts align correctly. Close the cover securely.
- To charge the battery, connect the camcorder to a power source using the provided USB cable and charger. The charging indicator light will illuminate. The camcorder can record video while charging.
3.2 Installation af SD-kort
- Locate the SD card slot on the side of the camcorder.
- Insert the provided 64GB SD card (or another compatible SD card up to 256GB) into the slot until it clicks into place. Ensure the card is inserted in the correct orientation.
- To remove, gently press the SD card until it ejects.
3.3 Montering af tilbehør
- Ekstern mikrofon: Slide the external microphone onto the hot shoe mount on top of the camcorder and connect the audio cable to the MIC input port.
- Wide-Angle/Macro Lens: Screw the wide-angle lens onto the front of the camcorder's main lens. The macro lens component can be detached from the wide-angle lens for close-up videography.
- Modlysblænde: Attach the lens hood to the front of the wide-angle lens to reduce glare.
- Camera Bracket: Attach the camera bracket to the bottom of the camcorder for enhanced stability and handling. The top handle of the bracket includes a built-in Allen key for adjustments.
Figure 3.1: ORDRO AX65 with accessories attached
Figure 3.2: Attaching the Wide-Angle Lens
4. Betjeningsvejledning
4.1 Tænd/sluk
Tryk og hold på MAGT button to turn the camcorder on or off. The 3.5-inch IPS touch screen will activate upon power-on.
4.2 Grundlæggende videooptagelse
- Ensure an SD card is inserted and the battery is charged.
- Tænd videokameraet.
- Select the desired recording mode (e.g., 4K, 1080p) via the touch screen menu.
- Tryk på Video Recording Start/Stop button to begin recording. Press it again to stop.
Figure 4.1: 4K and 2K Video Recording Quality
4.3 Fototagning
Skift til fototilstand ved hjælp af MODE button or touch screen. Press the FOTO button to capture still images. The camcorder supports 30MP still photos.
4.4 Using Optical Zoom
Brug den W/T (Zoom Out/Zoom In) lever to adjust the 12x optical zoom. This allows for close-up shots without compromising image quality.
Figure 4.2: 12x Optical Zoom in action
4.5 Advanced Recording Functions
- Pause funktion: Under videooptagelse skal du trykke på FOTO button to pause the recording. Press it again to resume recording within the same file.
- Time-lapse-optagelse: Access this feature through the menu to capture long sequences of events over a short period. Adjustable intervals from 1 second to 30 minutes are available.
- Loop-optagelse: Enables continuous recording by overwriting the oldest files når hukommelseskortet er fuldt.
- Continuous Photo Taking: Capture a series of photos rapidly.
- Timed Photo Taking: Set a timer for photo capture.
- Selvudløser: Delay the start of recording or photo capture.
- Anti-shake: This feature helps stabilize footage, particularly useful when shooting handheld. For best results, consider using a tripod.
- Ansigtsgenkendelse: Automatically detects and focuses on faces within the frame.
- AF Tracking and AF Locking: AF Tracking maintains focus on a moving subject. AF-L (Auto Focus Lock) allows you to lock focus on a subject, then recompose your shot.
Figure 4.3: Pause Function
Figure 4.4: Various Recording Modes
Figure 4.5: AF Tracking and AF Locking
4.6 Forbindelse
- HDMI TV Output: Connect the camcorder to a TV using the HDMI cable to view dine optagelser på en større skærm.
- Webcam and Livestream: Connect the camcorder to a computer via the USB cable. Select "PC Camera" from the options displayed on the camcorder screen to use it as a webcam for platforms like Facebook, YouTube, Instagram, Skype, or for livestreaming.
- Wi-Fi funktion: Enable Wi-Fi through the camcorder's menu. Use the dedicated app on your Android or iOS device to connect to the camcorder for remote control, photo/video transfer, and sharing.
Figure 4.6: TV & PC Connection / Webcam Funktionalitet

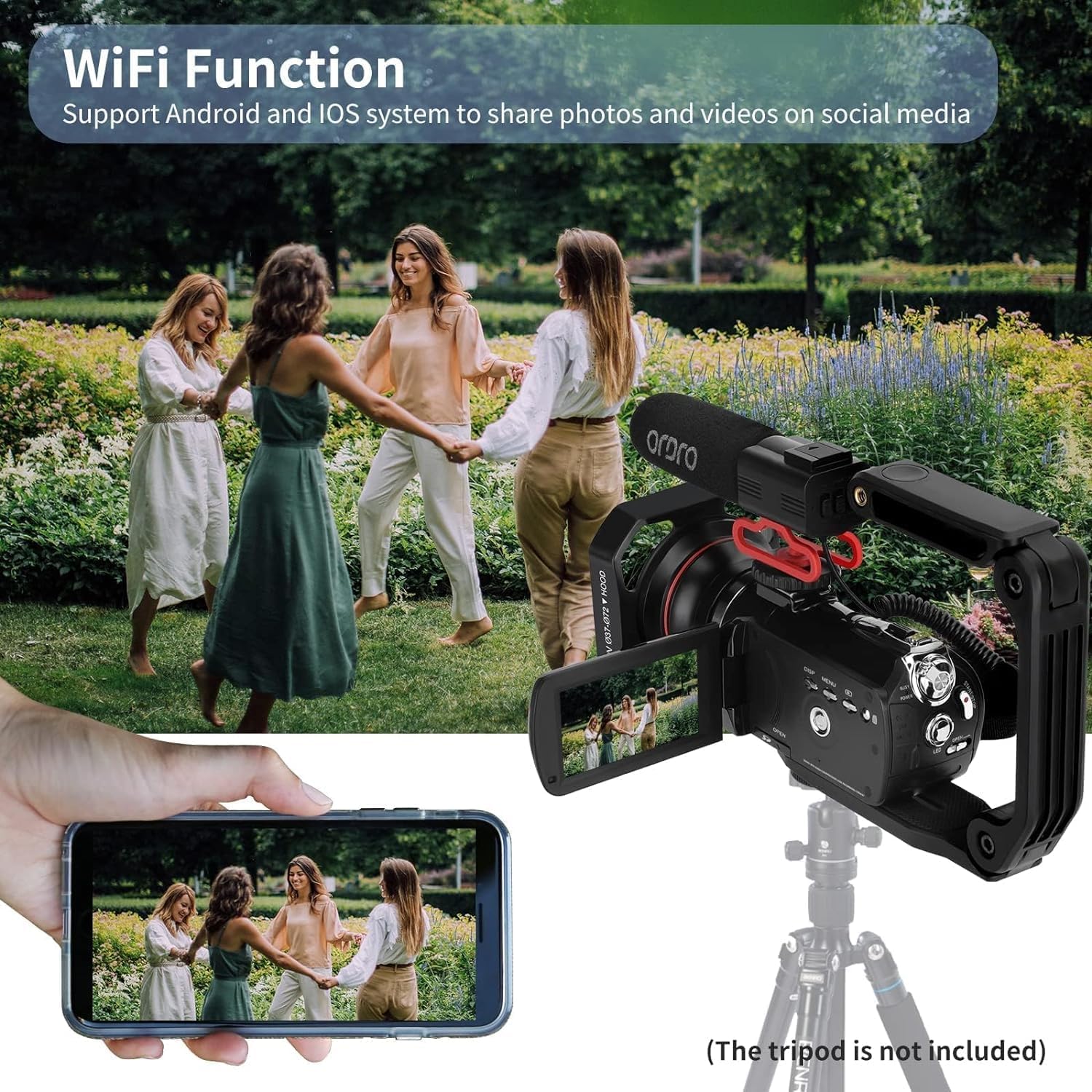

Figure 4.7: Wi-Fi Connectivity with Smartphone
4.7 Low Light Shooting
The camcorder features a built-in LED fill light to assist in dimly lit environments. Activate the LED light through the camcorder's menu or dedicated button. The 1/3-inch Sony CMOS sensor is designed to suppress noise in low-light conditions.
Figure 4.8: Low Light Performance with LED Fill Light
5. Vedligeholdelse
- Rensning: Use a soft, dry cloth to clean the camcorder body. For the lens, use a specialized lens cleaning cloth and solution. Avoid harsh chemicals.
- Batteripleje: Store batteries in a cool, dry place when not in use. Fully charge batteries before extended storage and periodically recharge them to maintain their lifespan.
- Opbevaring: When not in use, store the camcorder in a protective case in a dry, dust-free environment away from extreme temperatures.
- Firmwareopdateringer: Tjek producentens webbesøg webstedet regelmæssigt for at se, om der er tilgængelige firmwareopdateringer, for at sikre optimal ydeevne og adgang til nye funktioner.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Videokameraet tænder ikke. | Batteriet er afladet eller isat forkert. | Ensure battery is fully charged and correctly installed. |
| Optagelsen stopper uventet. | SD card is full or corrupted. | Check SD card capacity, format if necessary, or replace. |
| Dårlig billed-/videokvalitet. | Insufficient lighting, dirty lens, incorrect settings. | Ensure adequate lighting, clean the lens, adjust resolution and exposure settings. Use LED fill light in dark environments. |
| Problemer med Wi-Fi-forbindelse. | Incorrect Wi-Fi settings, app issues, distance from device. | Verify Wi-Fi settings on camcorder and smartphone. Ensure the app is updated. Reduce distance between devices. |
| Ingen lydoptagelse. | External microphone not connected or faulty, internal microphone muted. | Check external microphone connection. Ensure audio recording is enabled in settings. |
| Viewfinder switches off when HDMI cable connected. | This is expected behavior for some camcorders when outputting to an external display. | Use the external display for monitoring. Adjust settings before connecting HDMI if necessary. |
7. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | ORDRO |
| Modelnummer | HDR-AX65 |
| Varens vægt | 11.3 ounce |
| Produktdimensioner | 2.13 x 2.52 x 5 tommer |
| Batterier | 1 Lithium Ion batteri påkrævet (medfølger) |
| Fotosensorteknologi | CMOS (1/3-Inch Sony CMOS Sensor, 5.0MP effective pixels) |
| Videooptagelsesopløsning | 4K: 3840*2160 (24FPS), 2K: 2560x1440 (30FPS), 1080p (60fps) |
| Stillbilledeopløsning | 30 MP |
| Optisk zoom | 12x |
| Skærmstørrelse | 3.5 Inches IPS Touch Screen (270-degree rotatable) |
| Forbindelsesteknologi | USB, Wi-Fi, HDMI |
| Flash-hukommelsestype | SDHC (supports up to 256GB SD card) |
| Videooptagelsesformat | MP4 |
| Understøttet lydformat | AAC, MP3 |
| Særlige funktioner | Anti-Shake, Face Detection, AF-L function, Pause function, Time-lapse, Loop recording, Continuous shooting, Timed photo, Self-timer, HDMI TV output, Webcam Function, Hot shoe mount, External microphone jack, Wide angle lens, Remote Control, LED Fill Light |
8. Garanti og support
For warranty information, technical support, or service inquiries, please refer to the warranty card included in your package or visit the official ORDRO webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.
Kontaktoplysninger: Please refer to the contact details provided on the ORDRO official website or your product packaging for the most up-to-date support channels.
