Indledning
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your VIVOHOME Vanity Set, model VH914-WH. Please read all instructions carefully before assembly and use to ensure safe and proper functionality.
Image: The VIVOHOME Vanity Set, featuring a white dressing table with a large mirror framed by 12 LED light bulbs, a spacious drawer, and a matching stool.
Sikkerhedsoplysninger
- Sørg for, at alle komponenter er forsvarligt fastgjort under monteringen. Løse dele kan forårsage ustabilitet.
- Do not exceed the maximum weight capacity of the stool, which is 264.6 lbs (120 kg).
- Hold små dele og emballagematerialer væk fra børn for at forhindre kvælningsfare.
- Place the vanity on a flat, stable surface to prevent tipping.
- Avoid exposing the vanity to excessive moisture or direct sunlight to prevent damage to the material.
Pakkens indhold
Before beginning assembly, verify that all parts are present and undamaged. Refer to the assembly video for visual identification of components.
- Wooden panels for the table and mirror frame
- Stool components (panels and cushion)
- 12 LED light bulbs with wiring and switch
- Skuffeskinner og hardware
- Samlebeslag (skruer, dyvler, kamlåse osv.)
- Instruktionsmanual (dette dokument)
Opsætning og montering
Follow the steps outlined in the official assembly video for a smooth setup process. A Phillips head screwdriver is required for assembly.
Video: Official VIVOHOME assembly guide for the Vanity Set with Lighted Mirror and Large Drawer. This video demonstrates the step-by-step process of constructing the vanity table and stool, including attaching the mirror and installing the LED lights.
- Saml skamlen: Connect the stool panels using the provided screws and dowels. Attach the cushioned seat securely.
- Assemble the Main Table Structure: Fasten the side panels to the base and top panels using cam locks and screws. Ensure all connections are tight.
- Installer skuffeskinner: Attach the drawer slides to the inner sides of the table frame and to the drawer box itself.
- Saml skuffen: Construct the drawer box using the designated panels and hardware. Insert the assembled drawer into the installed slides.
- Attach the Mirror Frame: Secure the mirror frame to the top of the vanity table using the appropriate hardware.
- Installer LED-pærer: Insert each LED bulb into its designated socket around the mirror frame. Connect the wiring as shown in the video, ensuring all connections are secure.
Betjeningsvejledning
The VIVOHOME Vanity Set features integrated LED lighting for optimal illumination during use.
- LED lys: To turn the 12 LED lights on or off, locate the ON/OFF button on the power cord. Press the button to toggle the lights. Ensure the USB cable is connected to a power source (e.g., a USB wall adapter, not included).
- Skuffe: The large drawer provides storage for cosmetics and accessories. Pull the drawer gently to open and push to close. The mute slide rails ensure smooth and quiet operation.
Image: A hand pressing the ON/OFF button on the power cord for the 12 LED lights, demonstrating how to control the illumination of the vanity mirror.
Opretholdelse
Korrekt pleje vil forlænge levetiden og udseendet af dit badeværelsesmøbelsæt.
- Rensning: Wipe the surfaces with a dry cloth. For more stubborn marks, use a damp cloth and then immediately dry the surface. Avoid abrasive cleaners or harsh chemicals.
- Spejlpleje: Rengør spejlet med en glasrens og en blød, fnugfri klud.
- Pærer: If an LED bulb needs replacement, ensure the power is disconnected before attempting to remove or install a new bulb.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| LED lights do not turn on or flicker. | Loose connection, faulty power source, or damaged wiring/bulbs. | Ensure the USB cable is fully inserted into a working power source. Check all bulb connections. If issues persist, contact customer support. |
| Drawer does not open/close smoothly or is misaligned. | Forkert installerede skuffeskinner eller blokering. | Verify that the drawer slides are correctly aligned and securely fastened. Check for any objects obstructing the drawer's path. |
| Afføringen føles vaklende eller ustabil. | Løst monteringshardware. | Tighten all screws and connections on the stool. Ensure it is placed on a level surface. |
Specifikationer
- Modelnummer: VH914-WH
- Mærke: VIVOHOME
- Rammemateriale: Konstrueret træ
- Produktdimensioner: 31.5 x 15.7 x 55.1 tommer (79.5 x 39.9 x 140 cm)
- Varens vægt: 69.5 pund (31.5 kg)
- Stool Weight Capacity: 264.6 lbs (120 kg)
- Spejltykkelse: 12 mm
- Bordpladetykkelse: 15 mm
- Montering påkrævet: Ja
- Farve: Hollywood-white

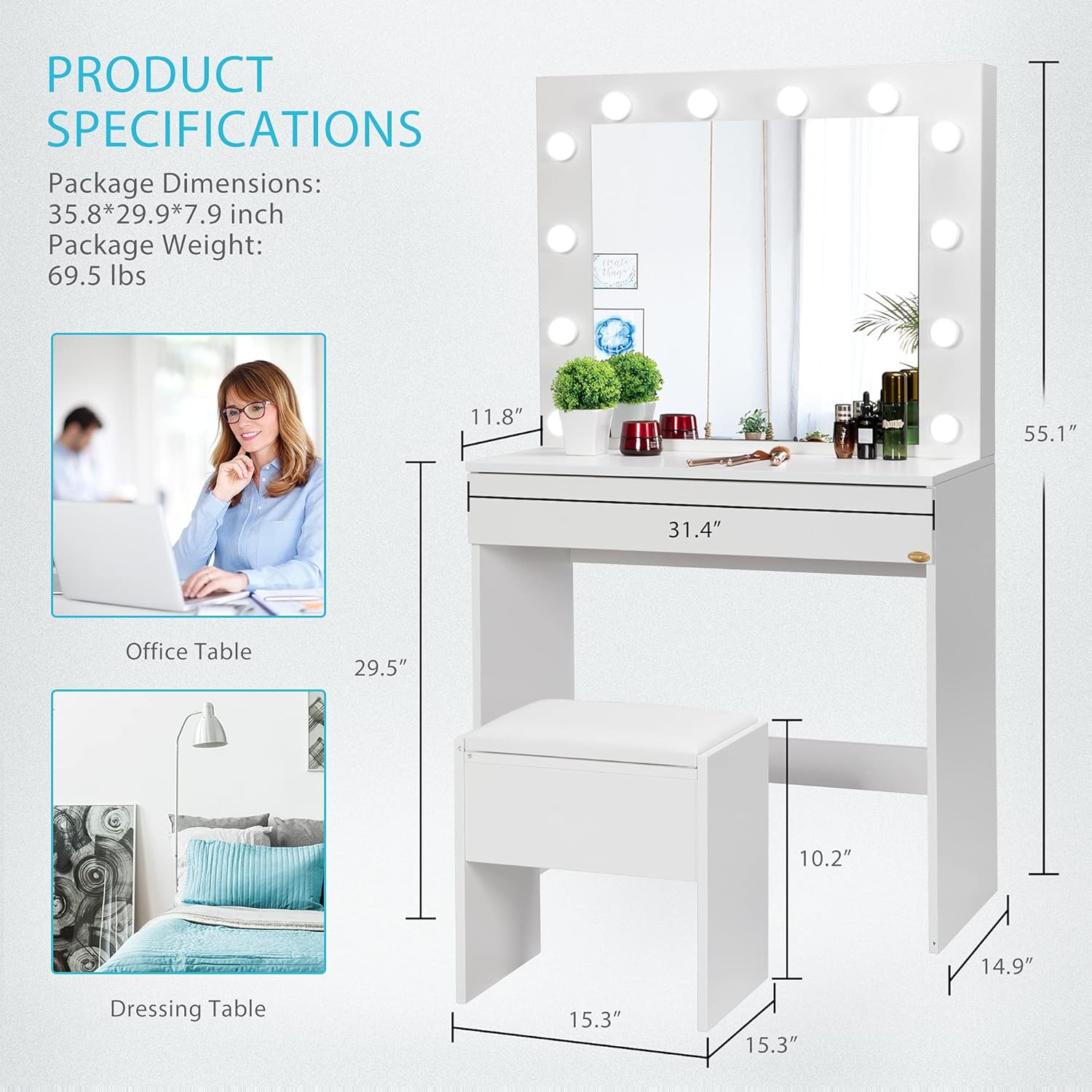

Image: A detailed diagram illustrating the various dimensions of the VIVOHOME Vanity Set, including height, width, and depth of the table and stool.
Garanti og support
For any defects or issues with your VIVOHOME Vanity Set, please contact customer service. Be aware of the weight limits for the stool as outlined in the safety information.
For further assistance, please visit the official VIVOHOME store or contact their customer support directly.
