1. Introduktion
The Cecotec EnergySilence Aero 490 ceiling fan is designed to provide optimal airflow and illumination for your living space. Featuring a powerful 50W motor, a 42-inch (132 cm) diameter, and five aerodynamic blades, it ensures a constant and refreshing airflow throughout the year. This fan also integrates an efficient LED lamp, offering three selectable light color temperatures to create the perfect ambiance.
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Cecotec EnergySilence Aero 490 ceiling fan.
Image: The Cecotec EnergySilence Aero 490 ceiling fan seamlessly integrated into a living room setting, providing both air circulation and lighting.
2. Sikkerhedsinstruktioner
Please read all safety instructions carefully before installing and operating the fan. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Sørg for, at strømforsyningen er afbrudt før installation, rengøring eller vedligeholdelse.
- Installation must be performed by a qualified electrician or a competent person.
- The fan must be mounted to a structure capable of supporting its weight (7 kg).
- Stik ikke genstande ind i ventilatorbladene, mens ventilatoren er i drift.
- Hold børn og kæledyr væk fra ventilatoren under drift.
- Dette apparat er kun til indendørs brug.
- Brug ikke blæseren i damp eller våde steder.
3. Pakkens indhold
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact Cecotec customer support.
- 1 x loftsventilatorenhed
- 1 x brugsanvisning
- Monteringsudstyr (skruer, beslag osv.)
- 5 x Fan Blades
- 1 x LED-lyssæt
Image: Main components of the Cecotec EnergySilence Aero 490 ceiling fan, including the central motor unit, five wooden blades, and the integrated LED light fixture.
4. Installation og opsætning
Follow these steps for proper installation of your ceiling fan. It is recommended to have assistance during the installation process.
- Forbered monteringsstedet: Ensure the electrical box is securely mounted to the ceiling joist and can support the fan's weight. Turn off power at the circuit breaker.
- Monter monteringsbeslaget: Fastgør monteringsbeslaget til el-boksen ved hjælp af de medfølgende skruer.
- Tilslut blæseren: Tilslut ventilatorens elektriske ledninger til husholdningsinstallationerne i henhold til lokale el-forskrifter. Sørg for, at alle forbindelser er sikre.
- Attach the Fan Motor Assembly: Carefully lift the fan motor assembly and hang it on the mounting bracket. Secure it in place.
- Installer ventilatorbladene: Attach each of the five fan blades to the blade holders, then secure the blade holders to the motor housing. Note that the blades are reversible, offering two distinct finishes (light wood and dark wood) to match your decor.
- Installer LED-lyssættet: Connect the wires for the LED light kit and secure the light fixture to the bottom of the fan motor assembly.
- Fastgør baldakinen: Slide the canopy up to the ceiling and secure it to cover the wiring and mounting bracket.
Image: The Cecotec EnergySilence Aero 490 ceiling fan fully installed on a ceiling, ready for operation.

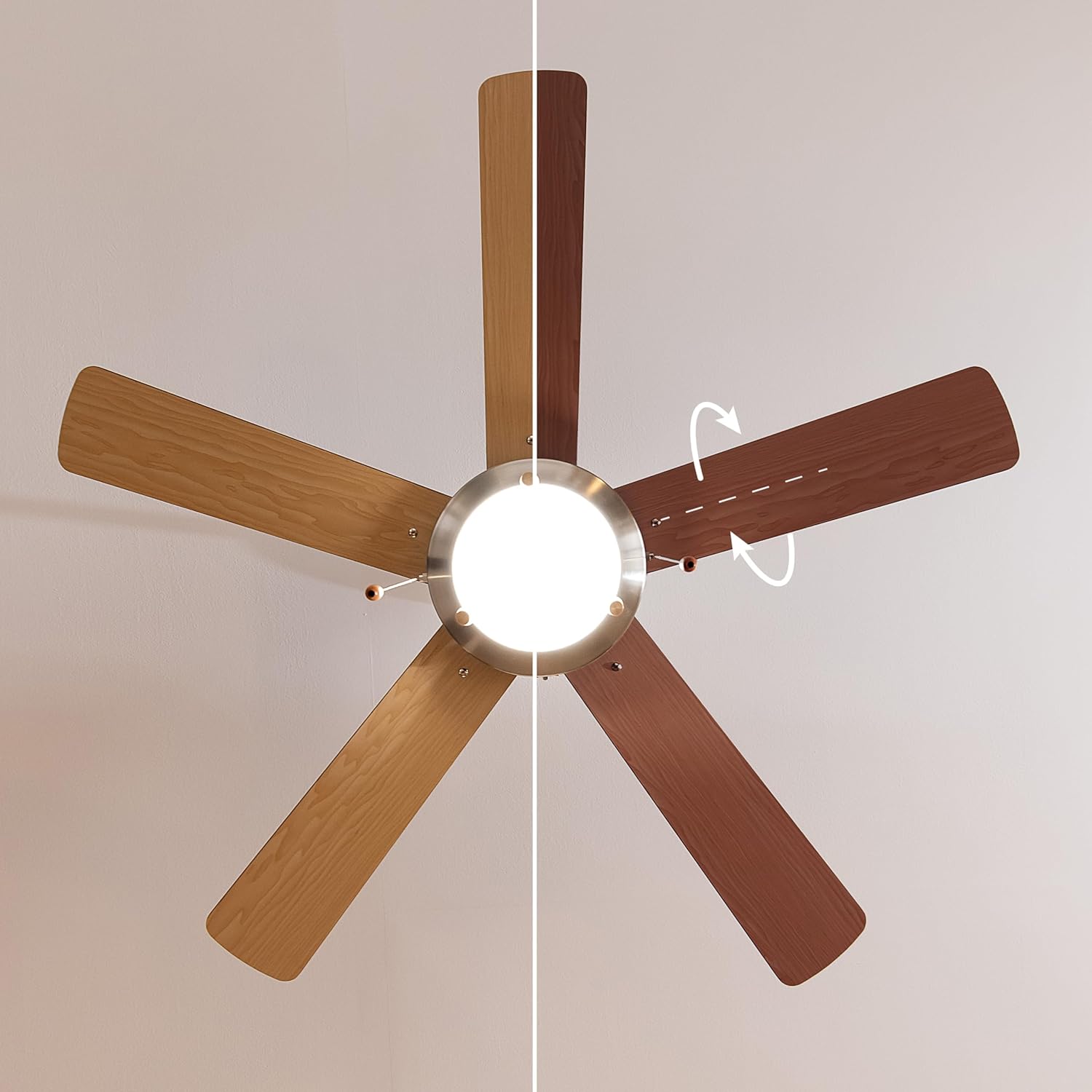

Image: Illustration of the fan's reversible blades, showcasing both the light wood and dark wood finish options, allowing for customization to suit different interior designs.
5. Betjeningsvejledning
Your Cecotec EnergySilence Aero 490 ceiling fan is controlled by two pull chains for fan speed and light functions.
5.1 Blæserhastighedskontrol
The fan features three operating speeds: Low, Medium, and High. To adjust the fan speed, pull the chain designated for fan control (typically the longer chain or the one without a light bulb icon). Each pull will cycle through the speeds:
- 1st Pull: High Speed
- 2nd Pull: Medium Speed
- 3rd Pull: Low Speed
- 4. træk: Af
5.2 LED-lysstyring
The integrated LED light offers three color temperatures: Cool White, Natural White, and Warm White. To cycle through the light settings, pull the chain designated for light control (typically the shorter chain or the one with a light bulb icon). Each pull will change the light color temperature:
- 1st Pull: Cool White
- 2nd Pull: Natural White
- 3rd Pull: Warm White
- 4. træk: Af
Billede: En detaljeret view of the fan's base, highlighting the two pull chains used for controlling fan speed and light settings.
Image: Visual representation of the three adjustable LED light color temperatures available: bright cool white, balanced natural white, and cozy warm white.
5.3 Vendbar funktion (sommer-/vintertilstand)
The fan features a reversible motor, allowing it to be used effectively throughout the year. A switch on the fan's motor housing (usually near the light kit) controls the direction of blade rotation.
- Sommertilstand (rotation mod uret): Pushes air downwards, creating a cooling breeze.
- Vintertilstand (rotation med uret): Draws air upwards, circulating warm air trapped near the ceiling.
Important: Always turn off the fan and wait for the blades to stop completely before changing the direction of rotation.
Image: A visual guide explaining the two operational modes: Summer mode, where the fan pushes cool air down, and Winter mode, where it circulates warm air upwards.
6. Vedligeholdelse og pleje
Regelmæssig vedligeholdelse sikrer din loftsventilators levetid og optimale ydeevne.
- Rensning: Støv ventilatorblade og motorhus regelmæssigt med en blød, tør klud.amp cloth. Do not use abrasive cleaners or solvents. Ensure the fan is turned off and stationary before cleaning.
- Bladinspektion: Kontrollér regelmæssigt, at alle knivskruer er spændte. Løse knive kan forårsage slingren og støj.
- Lysarmatur: The LED light source is designed for long life and typically does not require replacement. If issues arise, consult the troubleshooting section or contact support.
- Elektriske forbindelser: Annually inspect electrical connections for any signs of wear or looseness.
7. Fejlfinding
Se tabellen nedenfor for almindelige problemer og deres mulige løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilator starter ikke | No power supply; Loose wire connections; Incorrect wiring. | Check circuit breaker; Ensure all connections are secure; Verify wiring according to instructions. |
| Lys virker ikke | Loose wire connection to light kit; LED module failure. | Check light kit wiring; If LED module is faulty, contact customer support. |
| Blæseren slingrer | Løse knivskruer; Ubalancerede knive; Løst monteringsbeslag. | Tighten all blade screws; Ensure blades are balanced (use balancing kit if necessary); Check mounting bracket security. |
| Støjende drift | Loose screws; Motor issues; Obstruction. | Check and tighten all screws; Ensure no objects are interfering with blades; If motor noise persists, contact support. |
8. Tekniske specifikationer
Detailed specifications for the Cecotec EnergySilence Aero 490 ceiling fan:
| Feature | Specifikation |
|---|---|
| Mærke | Cecotec |
| Modelnummer | 05941 |
| Produktdimensioner | 34 x 31 x 55 cm (packaged); 34D x 31W x 55H cm (installed) |
| Varens vægt | 7 kilo |
| Elektrisk ventilator design | Loft Fan |
| Diameter | 42 tommer (132 cm) |
| Antal blade | 5 |
| Hastigheder | 3 (Lav, Medium, Høj) |
| Strømkilde | Elektrisk med ledning |
| Wattage | 60 watts (Fan) |
| Speciel funktion | Integrated LED Light (3 color temperatures), Reversible Function |
| Kontrolstil | Træk kæde |
| Finish Type | Poleret |
| Farve | Wood (Reversible Blades) |
| Inkluderede komponenter | 1 x Ceiling Fan, 1 x Instruction Manual |
| Anbefalet brug | Dining Room, General Home Use |
9. Garanti og support
Your Cecotec EnergySilence Aero 490 ceiling fan comes with a manufacturer's warranty. For detailed warranty information, including terms and conditions, please refer to the warranty card included with your product or visit the official Cecotec webwebsted.
For technical support, spare parts, or any inquiries not covered in this manual, please contact Cecotec customer service. Contact details can typically be found on the official webwebstedet eller på produktemballagen.
Gem venligst dit købsbevis for garantikrav.
