Microlife BPB6 Connect automatisk armblodtryksmåler brugermanual

Indledning

The Microlife BPB6 Connect is an advanced automatic arm blood pressure monitor designed for accurate and reliable blood pressure measurement at home. It features clinically validated technology, including MAM (Microlife Average Mode) for multiple measurements and AFIBsens technology for atrial fibrillation detection, aiding in stroke prevention. With Bluetooth connectivity, it allows seamless data synchronization with your smartphone or PC for easy health monitoring and tracking.

Image: The Microlife BPB6 Connect blood pressure monitor with its arm cuff, displaying a digital reading.

Pakkens indhold

Kontroller venligst pakkens indhold for at sikre, at alle varer er til stede:

• Microlife BPB6 Connect blodtryksmåler
• Universal Arm Cuff (22-42 cm)
• 4 x AA batterier
• AC Adapter
• USB kabel
• Opbevaringspose
• Instruktionsmanual (dette dokument)
• Software Download Voucher

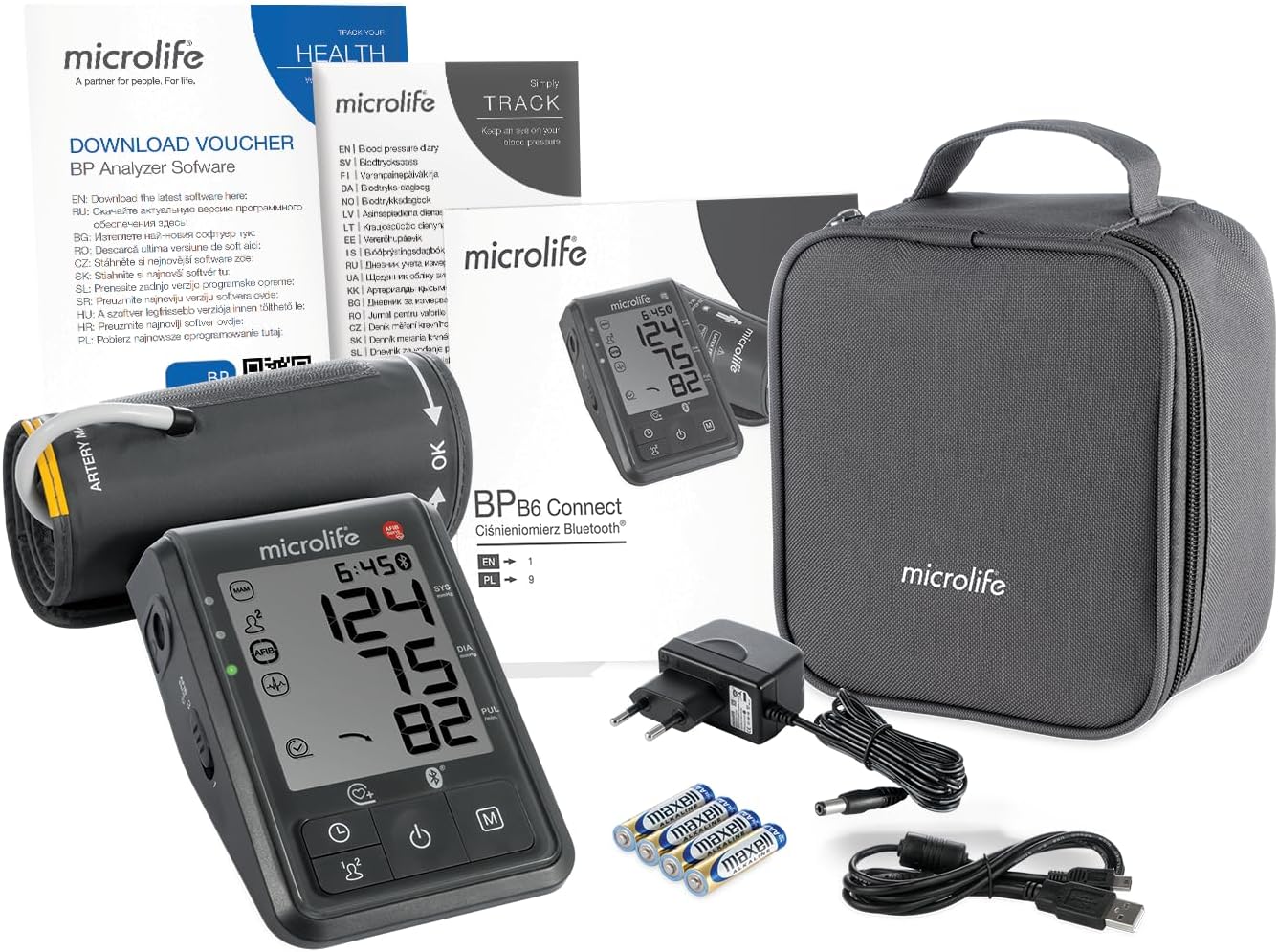

Image: All items included in the Microlife BPB6 Connect package, including the monitor, cuff, batteries, charger, USB cable, storage bag, and software voucher.

Nøglefunktioner

•

  Advanced Measurement Technologies

  The BPB6 Connect incorporates several advanced technologies for accurate and comfortable measurements:

  • MAM (Microlife Average Mode): Automatically takes three successive measurements to provide a more reliable average blood pressure reading.
  • AFIBsens Technology: Detects Atrial Fibrillation (AF), a common heart arrhythmia, during blood pressure measurement, which is crucial for early stroke prevention.
  • IHB (Irregular Heartbeat) Detection: Identifies irregular heartbeats during measurement.
  • Gentle+: Ensures a more comfortable measurement experience by optimizing cuff inflation pressure.
  • Good Positioning Indicator: Guides the user to ensure correct cuff placement for accurate readings.
  • Cardiovascular Risk Indicator: Provides an indication of potential cardiovascular risk based on blood pressure readings.

  Image: A doctor observing a patient, with icons illustrating features like good positioning, cardiovascular risk, Gentle+ comfort, and IHB detection.

• Connectivity and Data Management

  The device offers seamless data management for comprehensive health tracking:

  • Bluetooth-forbindelse: Easily syncs measurement data to the Microlife Connected Health+ app on your smartphone.
  • USB-forbindelse: Allows data transfer to a PC for detailed analysis using the provided software.
  • Secure Cloud Save: Your health data can be securely stored in the cloud, enabling easy access and sharing with healthcare professionals.
  • Two-User Memory: Stores up to 99 measurements for two individual users, with date and time stamps.

  Image: A hand holding a smartphone displaying the Microlife Connected Health+ app, with icons for App Store, Google Play, Bluetooth, secure cloud save, and health tracking.


•

  Professional and Clinically Validated

  Microlife is committed to providing high-quality, reliable medical devices:

  • Clinically Validated: The BPB6 Connect has undergone rigorous clinical validation to ensure its accuracy and reliability, recommended by doctors.
  • Professional Accuracy: Designed to provide precise measurements for effective health monitoring.
  • Exclusive Manufacturer for Health Insurance: Highlights Microlife's trusted position in the healthcare industry.
  • 5-års garanti: Demonstrates confidence in product quality and durability.

  Image: An elderly woman measuring her blood pressure, with icons highlighting professional accuracy, doctor recommendation, and 5-year warranty.

Opsætning

1. Batteriinstallation

1. Åbn batterirummets dæksel på bagsiden af ​​enheden.
2. Insert the four AA batteries (included) according to the polarity indicators (+/-) inside the compartment.
3. Luk batterirummets dæksel forsvarligt.
4. Alternatively, connect the AC adapter to the device and a power outlet for continuous power.

2. Manchettilbehør

1. Ensure the cuff tube is securely plugged into the air jack on the side of the monitor.
2. The universal cuff is designed for arm circumferences from 22 to 42 cm.

3. Første opsætning (dato og klokkeslæt)

Ved første brug eller efter udskiftning af batteriet kan enheden bede dig om at indstille dato og klokkeslæt. Følg instruktionerne på skærmen ved hjælp af enhedens knapper for at justere disse indstillinger for nøjagtig registrering.

Betjeningsvejledning

1. Før måling

• Undgå at spise, ryge eller motionere i mindst 30 minutter før målingen.
• Hvil i 5-10 minutter i rolige omgivelser, inden du tager en måling.
• Sid behageligt med ryggen støttet og fødderne fladt på gulvet.
• Placer din arm på et bord, så manchetten er i hjertehøjde.
• Ensure the cuff is directly on your bare skin, not over clothing.

2. Taking a Measurement (MAM Mode)

1. Wrap the cuff firmly around your upper arm, ensuring it is snug but not too tight. The artery mark on the cuff should align with your brachial artery.
2. Tryk på START/STOP button to turn on the device. The device will automatically enter MAM mode (three consecutive measurements).
3. Remain still and silent during the measurement process. The device will inflate and deflate the cuff three times, with short pauses in between.
4. Efter den tredje måling vises det gennemsnitlige blodtryk (systolisk og diastolisk) og pulsen.
5. If AFIB is detected, the AFIB symbol will appear on the display. Consult your doctor if this symbol appears regularly.
6. Tryk på START/STOP knappen igen for at slukke enheden, eller den slukker automatisk efter en periode med inaktivitet.

3. Viewgemte målinger

Tryk på M (Memory) button to access stored measurements. Use the arrow buttons (if available) to scroll through previous readings for both users.

4. Connecting to App/PC

• Bluetooth: Enable Bluetooth on your smartphone and open the Microlife Connected Health+ app. Follow the app's instructions to pair your device and sync data.
• USB: Connect the device to your PC using the USB cable. Install the Microlife BP Analyzer software (downloadable via voucher) and follow its instructions to transfer and analyze data.

Vedligeholdelse og pleje

• Rensning: Clean the monitor and cuff with a soft, dry cloth. If necessary, use a cloth lightly dampened with water or a mild detergent. Do not use abrasive cleaners or immerse the device in water.
• Opbevaring: Store the device in its storage bag in a cool, dry place, away from direct sunlight, extreme temperatures, and humidity.
• Udskiftning af batteri: When the low battery indicator appears, replace all four AA batteries with new ones. Dispose of old batteries according to local regulations.
• Manchetpleje: The cuff is washable. Refer to the cuff's label for specific washing instructions. Ensure the cuff is completely dry before reattaching it to the monitor.

Fejlfinding

If the problem persists, please refer to the detailed troubleshooting section in the full user manual or contact Microlife customer support.

Specifikationer

Garanti og support

The Microlife BPB6 Connect Blood Pressure Monitor comes with a 5 års garanti fra købsdatoen, dækker fabrikationsfejl og materialefejl. Gem venligst din købsbevis til garantikrav.

For technical support, troubleshooting assistance, or warranty inquiries, please visit the official Microlife website or contact their customer service department. Contact details can typically be found on the Microlife website or in the full user manual provided with your product.

Microlife is a global leader in diagnostic equipment, committed to providing reliable health solutions and excellent customer service.

Image: A man measuring his blood pressure with a Microlife device, illustrating the brand's commitment as a health partner and its global leadership in diagnostic equipment and clinical validations.
