Perixx PERIDUO-606 Trådløst Mini Ergonomisk Tastatur og Vertikal Mus Brugermanual

Indledning

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Perixx PERIDUO-606 Wireless Mini Ergonomic Keyboard and Vertical Mouse combo. Please read this manual thoroughly before use to ensure optimal performance and longevity of your devices.

Pakkens indhold

1 x Perixx PERIDUO-606 Wireless Mini Ergonomic Keyboard
1 x Perixx Wireless Vertical Mouse
1 x Adjustable Palm Rest Stand
1 x Movable Magnet (for height adjustment)
1 x Nano USB Receiver (located in the keyboard's battery compartment)
1 x brugermanual

Contents of the Perixx PERIDUO-606 package — Image: All components included in the Perixx PERIDUO-606 package, including the ergonomic keyboard, vertical mouse, palm rest, magnet, USB receiver, and user manual.

Produkt overview

The Perixx PERIDUO-606 is a compact wireless ergonomic keyboard and vertical mouse combination designed for comfort and efficiency. It features a split-key design and a vertical mouse to promote natural wrist and hand positions.

Tastaturfunktioner:

Split-Key Design: Separates keys into two groups to reduce wrist deviation.
Kompakt størrelse: Measures approximately 13.82 x 8.94 x 2.56 inches, suitable for smaller workspaces.
Adjustable Palm Rest: Integrated palm rest with an adjustable stand for varied wrist positions.
Membrane Low Profile Nøgler: Giver en behagelig skriveoplevelse.
4-Way Scroll Navigation: Integrated scroll wheel for enhanced navigation.

Perixx PERIDUO-606 ergonomic keyboard and vertical mouse — Image: The Perixx PERIDUO-606 wireless ergonomic keyboard and vertical mouse, showcasing the split-key design and compact form factor.

Compact size of Perixx PERIDUO-606 keyboard — Billede: En top-down view illustrating the compact size of the keyboard, measuring 13.8 inches (35.1 cm) in width, with hands positioned for typing.

4-way scroll navigation on Perixx PERIDUO-606 keyboard — Image: Close-up of the keyboard's central area, highlighting the 4-way scroll navigation wheel located between the split key sections.

Adjustable tilt positions of Perixx PERIDUO-606 keyboard — Billede: Side profiles of the keyboard demonstrating three adjustable tilt positions: Positive Tilt, Neutral Wrist Position, and Flat Straight Position, achieved with the magnetic foot attachment.

Mus funktioner:

Vertical Ergonomic Design: Positions the hand in a natural handshake posture to reduce wrist strain.
Lydløst klik: Reducerer driftsstøj.
Justerbar DPI: Offers 800 / 1200 / 1600 DPI settings for customizable cursor speed.
5-knapsdesign: Standard left/right click, scroll wheel, and two thumb buttons.

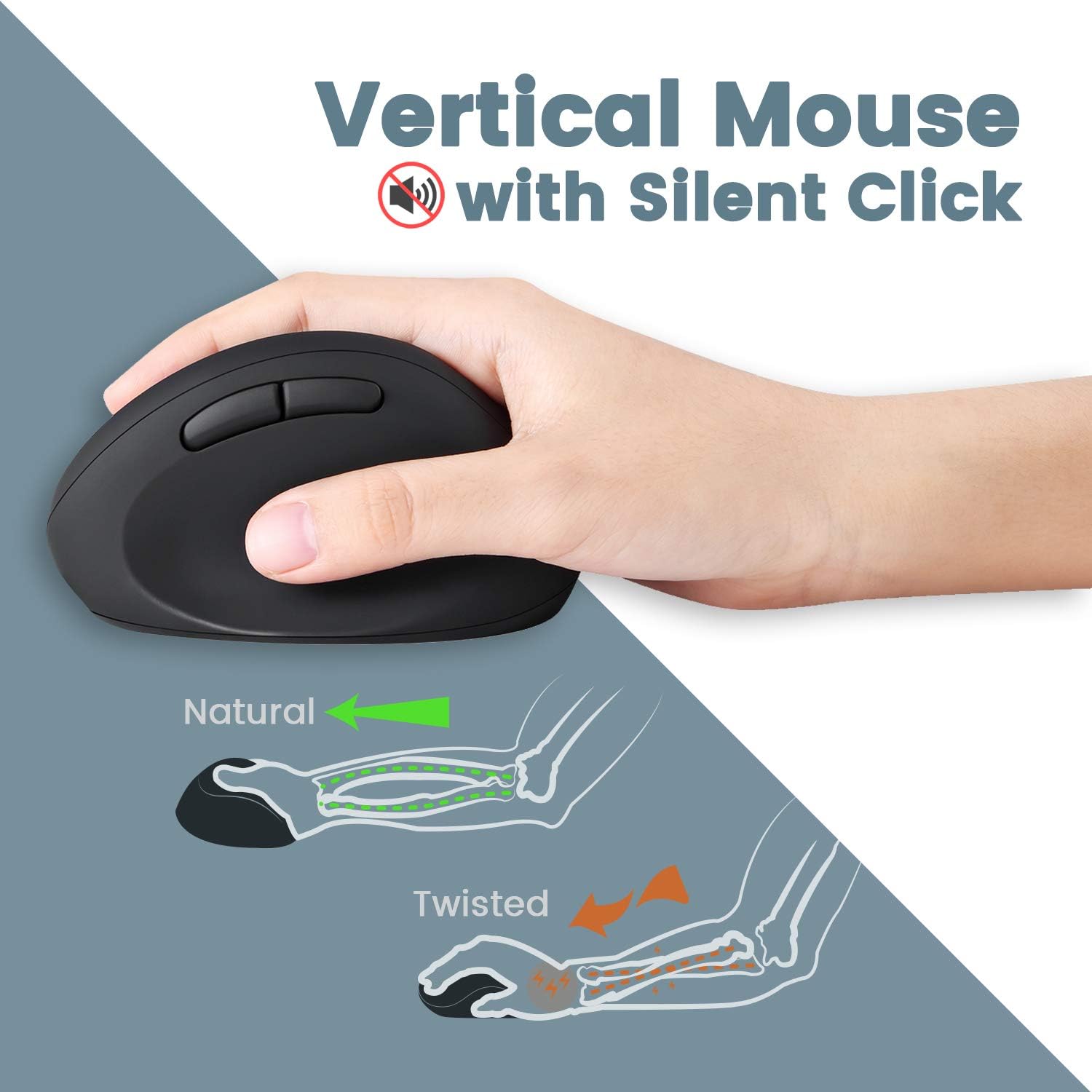

Perixx vertical mouse with silent click — Image: A hand holding the Perixx vertical mouse, illustrating the natural, untwisted wrist posture compared to a traditional mouse.

Trådløs forbindelse:

2.4 GHz Wireless Technology: Provides a stable connection up to 33 feet (10 meters).
Single Nano USB Receiver: One receiver connects both the keyboard and mouse.

Opsætningsinstruktioner

Installer batterier:
- For the keyboard: Open the battery compartment on the underside of the keyboard and insert two AAA batteries (not included).
- For the mouse: Open the battery compartment on the underside of the mouse and insert one AA battery (not included).
Find USB-modtager: The Nano USB receiver is stored in a dedicated compartment on the backside of the keyboard. Carefully remove it.
Tilslut modtager: Sæt Nano USB-modtageren i en ledig USB-port på din computer.
Tænd: Ensure both the keyboard and mouse are powered on (check for an ON/OFF switch, usually on the underside). The devices should connect automatically via Plug and Play.
Fastgør håndledsstøtte (valgfrit): The adjustable palm rest stand attaches magnetically to the front of the keyboard. Use the movable magnet for height adjustment as desired.

Magnetic foot attachment for Perixx PERIDUO-606 keyboard — Image: The underside of the keyboard showing the magnetic foot attachment points and the separate magnetic palm rest stand, illustrating how they connect for adjustable tilt.

Betjeningsvejledning

Tastaturbrug:

Indtastning: Position your hands naturally over the split-key layout. The design is intended to reduce wrist bending.
Funktionstaster: Use the F1-F12 keys for standard functions. Some keys may have secondary functions accessible via the 'Fn' key (refer to keycap legends).
Scrollhjul: Utilize the central scroll wheel for vertical and horizontal scrolling in compatible applications.

Brug af mus:

Greb: Hold the mouse in a natural handshake position.
DPI-justering: Press the DPI button (usually located near the scroll wheel or on the top) to cycle through 800, 1200, and 1600 DPI settings. Select the sensitivity that best suits your preference.
Lydløse klik: The main left and right click buttons are designed for quiet operation.

Opretholdelse

Rensning: Brug en blød, tør klud til at rengøre overfladerne på tastaturet og musen. Ved genstridigt snavs kan du bruge en let tør klud.amp en klud med mild sæbe kan bruges, så det sikres, at der ikke kommer væske ind i enhederne.
Udskiftning af batteri: Replace batteries when performance degrades or devices stop responding. Ensure correct polarity when inserting new batteries.
Opbevaring: When not in use for extended periods, turn off the devices to conserve battery life. Store the USB receiver in the keyboard's compartment to prevent loss.

Fejlfinding

Problem	Løsning
Tastatur/mus reagerer ikke	Sørg for, at batterierne er korrekt installeret og ikke er afladede. Udskift dem om nødvendigt. Verify the ON/OFF switch on both devices is in the 'ON' position. Confirm the Nano USB receiver is securely plugged into a working USB port on your computer. Prøv at tilslutte receiveren til en anden USB-port. Move the devices closer to the receiver to rule out interference or range issues.
Keys are sticky or not registering consistently	Rengør området omkring de berørte taster for at fjerne eventuelt snavs. Sørg for, at tastaturet er på en flad, stabil overflade. Hvis problemet fortsætter, kan du prøve at genstarte din computer.
Mouse cursor freezes or moves erratically	Check the mouse battery and replace if low. Rengør den optiske sensor på undersiden af musen. Ensure the mouse is used on a suitable surface (not highly reflective or transparent). Sæt USB-modtageren i igen.
Trådløs forbindelse falder ofte	Reducer afstanden mellem enhederne og USB-modtageren. Undgå at placere modtageren i nærheden af andre trådløse enheder (f.eks. Wi-Fi-routere, trådløse telefoner), der kan forårsage interferens. Sørg for, at der ikke er store metalgenstande mellem enhederne og modtageren.

Specifikationer

Feature	Detalje
Modelnummer	11660
Forbindelse	2.4 GHz Wireless (Nano USB Receiver)
Driftsafstand	Op til 33 fod (10 meter)
Tastaturmål (LxBxH)	13.82 x 8.94 x 2.56 tommer
Musens dimensioner (LxBxH)	4.5 x 2.64 x 2.28 tommer
Tastaturvægt	Cirka 1.6 pund
Mus DPI-indstillinger	800/1200/1600
Tastatur batteri	2 x AAA (medfølger ikke)
Mus batteri	1 x AA (medfølger ikke)
Kompatible operativsystemer	Windows 7, 8, 10, 11

Garanti og support

Your Perixx PERIDUO-606 comes with a 12 måneders begrænset garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og sikrer, at produktet fungerer som tilsigtet under normal brug.

For technical support, warranty claims, or further assistance, please visit the official Perixx website or contact their customer service department. Contact information can typically be found on the Perixx brand store page or included documentation.

Online ressourcer: Perixx Brand Store on Amazon
