ZOKOP GYJ40-88C1-E Kompakt Bærbar Tørretumbler Brugermanual

1. Vigtige sikkerhedsinstruktioner

Læs alle instruktioner, før du bruger dette apparat, for at mindske risikoen for brand, elektrisk stød eller personskade.

• Elektrisk sikkerhed: Ensure the dryer is connected to a properly grounded 110V, 60Hz electrical outlet. Do not use extension cords or adapters.
• Ventilation: Maintain adequate ventilation around the dryer. Do not block ventilation openings.
• Brandfarlige materialer: Tør ikke genstande, der er blevet tilsmudset med madolie, benzin, renserimidler eller andre brandfarlige eller eksplosive stoffer.
• Børns sikkerhed: Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed. Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
• Dørsikkerhed: The dryer features an auto-stop function when the door is opened during operation. Always ensure the door is securely closed before starting a cycle.
• Installation: Install the dryer according to the manufacturer's instructions. Do not install or store the dryer where it will be exposed to the weather.
• Opretholdelse: Regularly clean the lint filter. Failure to do so can increase the risk of fire.

Billede 1.1: Overview of dryer features, including safety warnings and components.

2. Produktet er slutview

The ZOKOP GYJ40-88C1-E is a compact and portable clothes dryer designed for household use. It features a durable stainless steel drum, an integrated visual window, and an LED display for easy operation. Its design allows for flexible placement in various living spaces.

Nøglefunktioner:

• Universal Front Load Design: Easy access for loading and unloading laundry.
• Bærbar og kompakt: Space-saving design suitable for apartments, dormitories, or RVs.
• LED Control Screen: High-end LED display with touch controls for intuitive operation.
• Effektiv og støjsvag drift: Designed for effective drying with reduced noise.
• High Quality and Large Capacity: Features a 2.6 cubic feet stainless steel drum.
• Superior Drying Performance: Engineered to provide effective drying results.

Billede 2.1: Forside view of the ZOKOP GYJ40-88C1-E dryer.

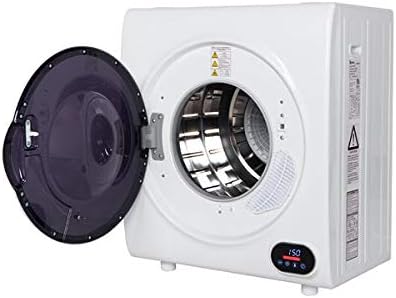

Image 2.2: The dryer with its door open, showing the drum.

3. Installation og opsætning

3.1 Udpakning

Carefully remove the dryer from its packaging. Inspect for any shipping damage. Retain packaging materials for future transport if needed.

3.2 Placering

The dryer can be placed on a solid, horizontal floor, a sturdy rack, or wall-mounted. Ensure the chosen location is level and can support the dryer's weight (approximately 66.1 lbs / 30 kg).

• Ventilation: Ensure adequate space around the dryer for proper air circulation. Do not place it in an enclosed cabinet without proper ventilation.
• Miljø: Avoid placing the dryer in areas with excessive moisture, direct sunlight, or near heat sources.

Billede 3.1: Eks.ample of dryer placement in a room.

3.3 Elektrisk tilslutning

Connect the dryer to a dedicated, grounded 110V, 60Hz electrical outlet. The dryer has a rated input power of 1450W. Do not overload the circuit or use with an ungrounded outlet.

4. Betjening

4.1 Før første brug

Before drying clothes for the first time, wipe the inside of the drum with a damp klud for at fjerne støv eller rester fra fremstillingen.

4.2 Ilægning af tøj

• Sort clothes by fabric type and drying requirements.
• Do not overload the dryer. For optimal performance, fill the drum loosely, allowing clothes to tumble freely. The capacity is 2.6 cubic feet.
• Ensure all zippers are closed and ties are secured to prevent damage to clothes or the dryer.

4.3 Kontrolpanel overview

The dryer features an LED control screen with touch-sensitive buttons. The display shows the remaining drying time and selected settings.

• Power knap: Tænder/slukker tørretumbleren.
• Valg af tilstand: Cycle through four different drying modes (e.g., Air Dry, Cool, Warm, Hot).
• Timerjustering: Set or adjust the drying time for selected modes.
• Start/Pause knap: Starter eller sætter tørrecyklussen på pause.

4.4 Tørrecyklusser

Select the appropriate drying mode and time based on the fabric type and desired dryness level. Refer to clothing care labels for specific drying instructions.

4.5 After Drying

Once the cycle is complete, remove clothes promptly to minimize wrinkling. Clean the lint filter after every load.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din tørretumblers levetid.

5.1 Rengøring af fnugfilteret

The dryer features a multiple filtering system to block floating matter and cotton floss. The lint filter must be cleaned after every load to maintain drying efficiency and prevent fire hazards.

1. Åbn tørretumblerens dør.
2. Locate the lint filter assembly inside the drum.
3. Remove the lint filter. It is detachable and can be wiped with a soft brush or cloth.
4. Clean off all accumulated lint.
5. Reinsert the lint filter securely before closing the door.

Image 5.1: Diagram of the dryer's multi-stage filtering system.

5.2 Rengøring af tromlen

Wipe the interior of the drum with a damp cloth as needed to remove any residue or stains. For stubborn stains, a mild, non-abrasive cleaner can be used, followed by wiping with a clean, damp klæde.

5.3 Udvendig pleje

Clean the exterior surfaces of the dryer with a soft, damp klud. Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler, der kan beskadige overfladen.

6. Fejlfinding

If you encounter issues with your dryer, refer to the following common problems and solutions before contacting customer support.

• Tørretumbleren starter ikke:
  • Sørg for, at netledningen er tilsluttet korrekt til en jordet stikkontakt.
  • Kontroller, om afbryderen er udløst.
  • Verify the dryer door is fully closed.
  • Press the Start/Pause button firmly.
• Tøjet tørrer ikke ordentligt:
  • Clean the lint filter. A clogged filter reduces airflow.
  • Do not overload the dryer. Reduce load size.
  • Select a longer drying time or a hotter setting.
  • Sørg for ordentlig ventilation omkring tørretumbleren.
• Usædvanlige lyde under drift:
  • Check for foreign objects (coins, buttons) in the drum or lint filter area.
  • Ensure the dryer is on a level surface.
• LED-displayet virker ikke:
  • Unplug the dryer for a few minutes, then plug it back in to reset the electronics.

7. Specifikationer

Technical details for the ZOKOP GYJ40-88C1-E Compact Portable Clothes Dryer.

Image 7.1: Dryer dimensions.

8. Garanti og kundesupport

For warranty information, please refer to the warranty card included with your product or contact the retailer where the product was purchased. For technical assistance or customer support, please reach out to the manufacturer's authorized service center or visit their official webwebsted for kontaktoplysninger.
