SBS PowerBank 20K SLIM Brugermanual

1. Introduktion

Thank you for choosing the SBS PowerBank 20K SLIM. This portable charger is designed to provide reliable and fast power to your mobile devices, including smartphones, tablets, and other USB-powered gadgets. With its 20,000mAh capacity and intelligent charging features, you can keep your devices powered throughout the day.

This manual provides important information on how to set up, operate, and maintain your power bank. Please read it carefully before use and keep it for future reference.

2. Sikkerhedsoplysninger

For at sikre sikker drift og forhindre skader, bedes du overholde følgende sikkerhedsforanstaltninger:

• Udsæt ikke powerbanken for ekstreme temperaturer (over 45 °C eller under 0 °C), direkte sollys eller høj luftfugtighed.
• Do not disassemble, modify, or attempt to repair the device yourself. This will void the warranty.
• Hold powerbanken væk fra vand og andre væsker.
• Tab ikke powerbanken, punkter den ikke og brug ikke for meget kraft på den.
• Brug kun certificerede kabler og opladere til at oplade powerbanken og dine enheder.
• Opbevares utilgængeligt for børn.
• Hvis powerbanken hæver, afgiver en lugt eller bliver for varm, skal du straks stoppe brugen.

3. Pakkens indhold

Tjek venligst pakken for følgende varer:

• 1 x SBS PowerBank 20K SLIM (Model: TTBB20000FASTK)
• 1 x Micro-USB ladekabel
• 1 x Brugermanual (dette dokument)

Note: A USB-C charging cable for the power bank is not included and must be purchased separately if you wish to use the USB-C input for recharging.

4. Produktet er slutview

Familiarize yourself with the different parts of your SBS PowerBank.

Figur 4.1: Forside view of the SBS PowerBank 20K SLIM, showing the SBS logo and sleek black design.

Figure 4.2: Close-up of the charging ports. Features include one USB-A 1A output, one USB-C input/output, and one USB-A 2.1A Intelligent Charge output.

Figur 4.3: Side view showing the power button and four LED indicators for battery status.

4.1. Porte og indikatorer

• USB 1A Output: Standard USB-A port for charging devices (5W).
• USB 2.1A Intelligent Charge (IC) Output: Faster USB-A port for charging devices (10W), automatically detects optimal charging speed.
• USB-C input/output: Versatile port for both charging the power bank (10W input) and charging devices (10W output).
• Mikro-USB indgang: Dedicated port for recharging the power bank using the included Micro-USB cable.
• Power knap: Press to check battery status or initiate charging.
• LED-statusindikatorer: Four LEDs indicate the remaining battery charge level. Each LED represents approximately 25% of the battery capacity.

5. Opsætning

5.1. Første opladning af powerbanken

Before first use, it is recommended to fully charge your SBS PowerBank.

1. Connect the included Micro-USB cable to the Micro-USB input port on the power bank.
2. Connect the other end of the Micro-USB cable to a USB wall charger (not included) or a computer's USB port.
3. The LED indicators will light up, showing the charging progress. All four LEDs will be solid when the power bank is fully charged.

Alternatively, you can use a USB-C cable (not included) to charge the power bank via its USB-C input port.

Figure 5.1: The power bank being recharged via its Micro-USB port using the included cable, connected to a laptop.

6. Betjeningsvejledning

6.1. Opladning af dine enheder

The SBS PowerBank allows you to charge up to three devices simultaneously using its USB-A and USB-C output ports.

1. Connect your device's charging cable to one of the power bank's output ports (USB 1A, USB 2.1A IC, or USB-C).
2. Tilslut den anden ende af kablet til din enhed.
3. Powerbanken begynder automatisk at oplade din enhed. Hvis ikke, skal du trykke én gang på tænd/sluk-knappen for at aktivere opladningen.
4. The LED indicators will show the power bank's remaining charge during the charging process.

Figure 6.1: The power bank simultaneously charging a smartphone, a tablet, and wireless earbuds.

Figure 6.2: Illustration showing the power bank's capability to charge smartphones, tablets, earbuds, smartwatches, and e-readers.

The 20,000mAh capacity allows for multiple recharges of your devices. For example, it can recharge a typical smartphone up to 8 times, depending on the phone's battery capacity.

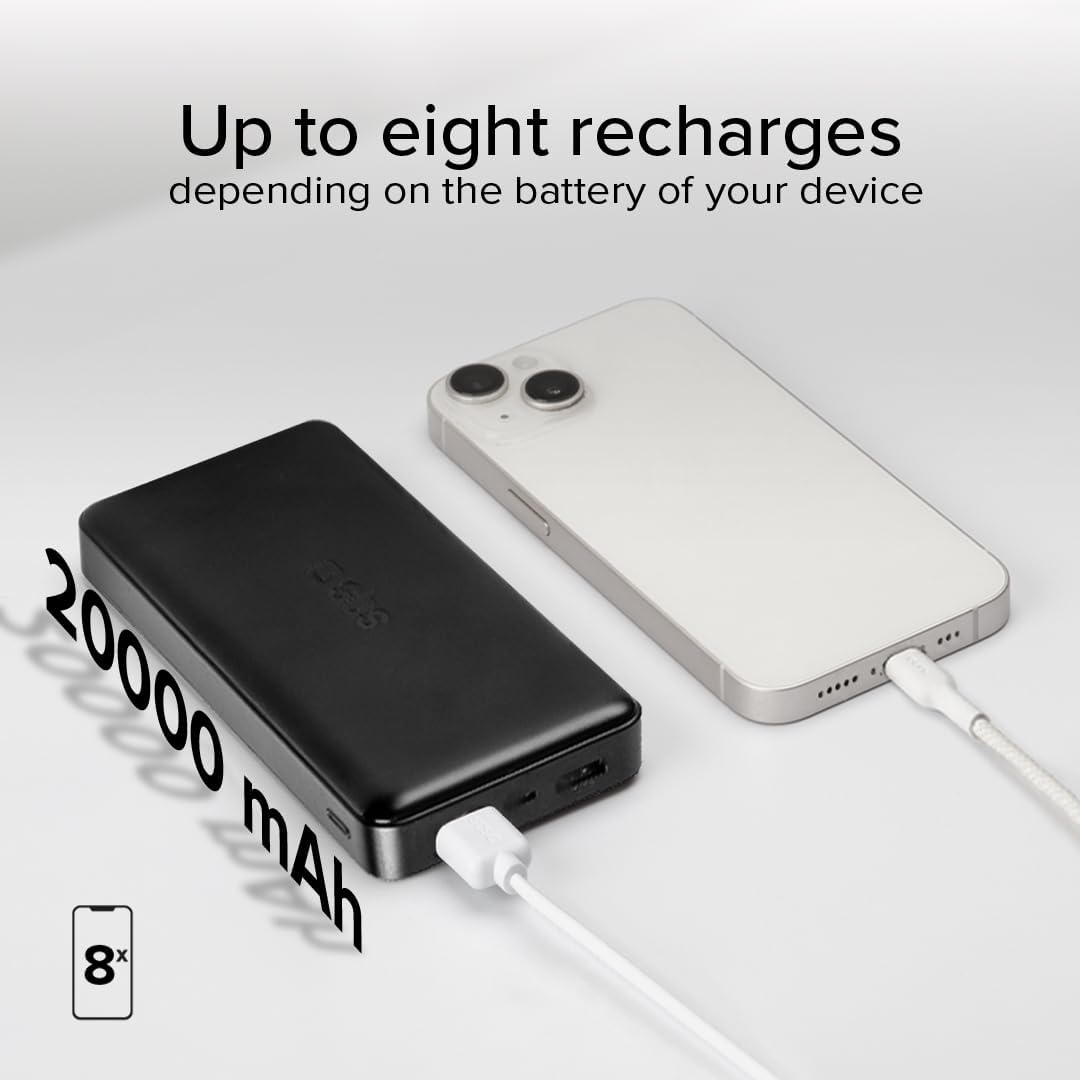

Figure 6.3: Visual representation of the 20,000mAh capacity, indicating up to 8 recharges for a typical smartphone.

6.2. Kontrol af batteristatus

To check the remaining battery level of the power bank, simply press the power button once. The LED indicators will light up to show the current charge:

• 4 LED'er lyser konstant: 75% - 100% opladet
• 3 LED'er lyser konstant: 50% - 75% opladet
• 2 LED'er lyser konstant: 25% - 50% opladet
• 1 LED lyser konstant: 0% - 25% opladet (genoplades snart)

7. Vedligeholdelse

• Rengør powerbanken med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevar powerbanken på et køligt, tørt sted, når den ikke er i brug.
• For optimal battery life, recharge the power bank at least once every three months if it's not used regularly.

8. Fejlfinding

9. Specifikationer

Figure 9.1: Diagram illustrating the power bank's ports and dimensions.

10. Garanti og support

SBS products are designed and manufactured to the highest quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship from the date of purchase.

For warranty claims, technical support, or any questions regarding your SBS PowerBank, please contact SBS customer service through their official website or the retailer where you purchased the product. Please have your proof of purchase and product model number ready.

For more information, visit the official SBS webwebsted: www.sbsmobile.com
