Produkt overview
The Innovair Inverter Ductless Wall Mount Mini Split System is a high-efficiency solution for both cooling and heating. Designed for optimal performance, it features advanced technology to maintain comfortable indoor temperatures while minimizing energy consumption.
- Up to 38 SEER High Efficiency with AHRI and EnergyStar Rating.
- Intelligent Defrost allows operations to operate as low as -22°F.
- 4D Air Flow allows horizontal and vertical air direction.
- Operates in either AC cooling or Heat Pump heating mode with 17 to 19 SEER Efficiency.
- Wifi Ready for easy to control access away from the system.
- Gold-Fin outdoor condenser with High Density indoor filter.
- Perfect solution for off-grid or solar projects.
- Note: Installation kit is NOT included.
Figure 1: Components of the Innovair Mini Split System, including the indoor unit, outdoor unit, remote control, and connection lines.
Opsætning og installation
Proper installation is crucial for the optimal performance and longevity of your Innovair Mini Split System. It is recommended that installation be performed by a qualified HVAC professional.
Udpakning og komponentidentifikation
Carefully unbox all components. Ensure all parts listed in the packing list are present and undamaged. The indoor unit contains the mounting bracket, copper lines, and drain line.

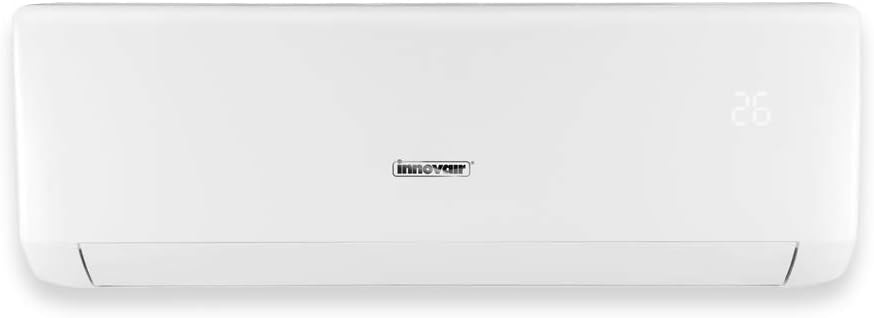

Figur 2: Forside view of the Innovair indoor unit, showcasing dens elegante design.

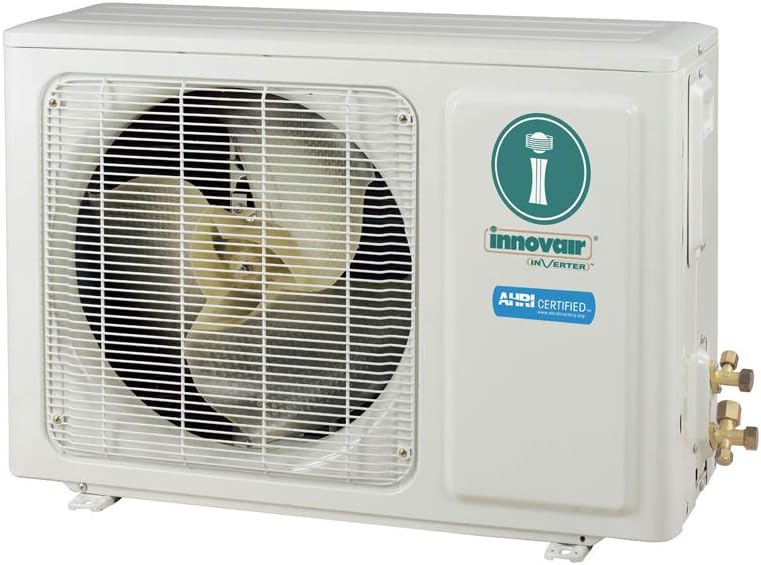

Figure 3: The outdoor condenser unit of the Innovair Mini Split System.
Line Evacuation and Refrigerant Release
Før frigivelseasing refrigerant, the lines must be properly evacuated to remove all air and moisture. This process typically involves using a vacuum pump for at least 15 minutes. After evacuation, seal the vacuum and monitor the pressure for approximately 15 minutes to ensure no leaks are present. Once confirmed, the refrigerant can be safely released into the system.
Figure 4: Illustrates the high efficiency of the Innovair system, contributing to lower electric bills.
Betjeningsvejledning
Your Innovair Mini Split System offers various modes and features for customized comfort.
Grundlæggende betjening
Use the provided remote control to power on the unit and set your desired temperature. The display on the indoor unit will show the current temperature setting.
Figure 5: The Innovair remote control for adjusting settings.
Avancerede funktioner
- Intelligent Defrost: This feature allows the unit to operate efficiently even in temperatures as low as -22°F, preventing ice buildup on the outdoor coil.
- 4D Air Flow: Adjust the horizontal and vertical air direction for optimal air distribution throughout the room.
- Wi-Fi-forbindelse: The unit is Wi-Fi ready, allowing you to control it remotely via a smartphone application. This feature enables convenient temperature adjustments and mode changes from anywhere.
Figure 6: Visual representation of the Intelligent Defrost mode, showing both heating and cooling capabilities.
Figure 7: The Innovair unit demonstrating Wi-Fi connectivity and control via a smartphone app.
Opretholdelse
Regular maintenance ensures the efficiency and longevity of your Innovair Mini Split System.
Filterrensning
The indoor unit is equipped with a high-density filter. For optimal air quality and system performance, clean the air filter regularly. Refer to the detailed instructions in the full user manual for specific cleaning procedures and frequency.
Outdoor Unit Care
Keep the area around the outdoor condenser unit clear of debris, leaves, and other obstructions to ensure proper airflow. The Gold-Fin coating on the outdoor condenser provides enhanced corrosion resistance.
Fejlfinding
This section provides basic troubleshooting tips for common issues. For more complex problems, contact a certified technician.
Enheden tænder ikke
- Check the power supply and ensure the unit is properly plugged in.
- Kontroller, at afbryderen ikke er udløst.
- Sørg for, at fjernbetjeningens batterier ikke er opbrugt.
Insufficient Cooling/Heating
- Kontroller om luftfilteret er rent og ikke tilstoppet.
- Ensure no objects are blocking the indoor or outdoor unit's air vents.
- Kontroller, at temperaturindstillingen på fjernbetjeningen er passende til den ønskede tilstand (køling eller opvarmning).
Specifikationer
| Attribut | Værdi |
|---|---|
| Mærkenavn | Innovair |
| Produktdimensioner | 9 x 38 x 12 tommer |
| Effektivitet (SEER) | 38.0 |
| Kapacitet | 12000 britiske termiske enheder |
| Installationstype | Opdelt system |
| Varenummer | EIN10H2V32 |
| Formfaktor | Mini-Split |
| Særlige funktioner | Defrost, Wifi |
| Farve | Hvid |
| Voltage | 230 volt (AC) |
| Wattage | 2500 watt |
| Kølemiddel | R410A |
Figure 8: Dimensions of the Innovair indoor unit.
Figure 9: EnergyGuide label detailing the cooling (SEER) and heating (HSPF) efficiency ratings.
