1. Introduktion
Thank you for choosing the INSPIRE MANOA LED Dimmable Flat Recessed Spotlight. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
This versatile LED spotlight features a sleek design, dual color temperature options (3000K warm white and 4000K neutral white), and dimming functionality controlled by a standard light switch. Its IP44 rating allows for installation in various indoor environments, including damp areas like bathrooms (excluding direct water spray zones).
Front view of the INSPIRE MANOA LED Dimmable Flat Recessed Spotlight, showcasing dens slanke, runde, hvide design.
2. Sikkerhedsoplysninger
- Elektrisk sikkerhed: Installation must be performed by a qualified electrician or competent person in accordance with local electrical codes and regulations. Always disconnect power at the main circuit breaker before installation, maintenance, or repair.
- Voltage: Sørg for, at forsyningen voltage matches the fixture's specified voltage (220-240V).
- IP44-klassificering: This product is rated IP44, meaning it is protected against solid objects larger than 1mm and splashing water from any direction. It is suitable for damp locations like bathrooms, but ikke for areas where it would be exposed to direct water jets or submersion (e.g., inside a shower cabin or directly above a bathtub without additional protection).
- Varme: Do not cover the fixture with insulating material unless specifically designed for it. Ensure adequate ventilation around the fixture.
- Skade: Do not operate the fixture if it is damaged. Contact customer support for assistance.
- Non-replaceable LED: LED-lyskilden i denne armatur kan ikke udskiftes. Når lyskilden når slutningen af sin levetid, skal hele armaturet udskiftes.
3. Pakkens indhold
Kontroller venligst, at alle komponenter er til stede og ubeskadigede:
- INSPIRE MANOA LED Dimmable Flat Recessed Spotlight
- Mounting hardware (screws, spring clips)
- Instruktionsmanual
4. Specifikationer
| Feature | Specifikation |
|---|---|
| Model | MANOA |
| Strømforbrug | 6.7 W |
| Lysstrøm | 1000 lumen |
| Farvetemperatur | 3000K (varm hvid) / 4000K (neutral hvid) |
| Diameter | 12.3 cm (Ø 123 mm) |
| Tykkelse | 1.8 cm (18 mm) |
| Voltage | 220-240 V |
| Beskyttelsesklasse | IP44 |
| Elektrisk beskyttelse | Class 2 (Double Insulation) |
| Strålevinkel | 118° |
| Anbefalet dækning | 2 m² per unit |
| Materiale | Plast |
| Særlige funktioner | Dimmable (via switch), Dual Color Temperature |
Diagram illustrating key technical specifications: 118° beam angle, 6.7W power, 1000 lumens output, IP44 protection rating, and recommended coverage area of 2m² per unit.
Technical drawing showing the dimensions of the spotlight: 18mm thickness and 123mm diameter, with a recommended 100mm cutout for recessed installation.
5. Opsætning og installation
The INSPIRE MANOA spotlight offers two installation methods: surface mount or recessed mount. Choose the method appropriate for your ceiling type.
5.1. Før du begynder
- Sørg for, at strømmen er afbrudt ved hovedafbryderen.
- Gather necessary tools: screwdriver, wire strippers, drill (for recessed mount), hole saw (for recessed mount).
- Consult a qualified electrician if you are unsure about any steps.
5.2. Surface Mount Installation (Method A)
- Afbryd strømmen.
- Position the spotlight base against the ceiling at the desired location. Mark the screw holes.
- Bor pilothuller om nødvendigt.
- Connect the electrical wires from the ceiling to the spotlight's terminal block, ensuring correct polarity (Live, Neutral). Secure connections.
- Attach the spotlight base to the ceiling using the provided screws.
- Secure the main body of the spotlight to the base.

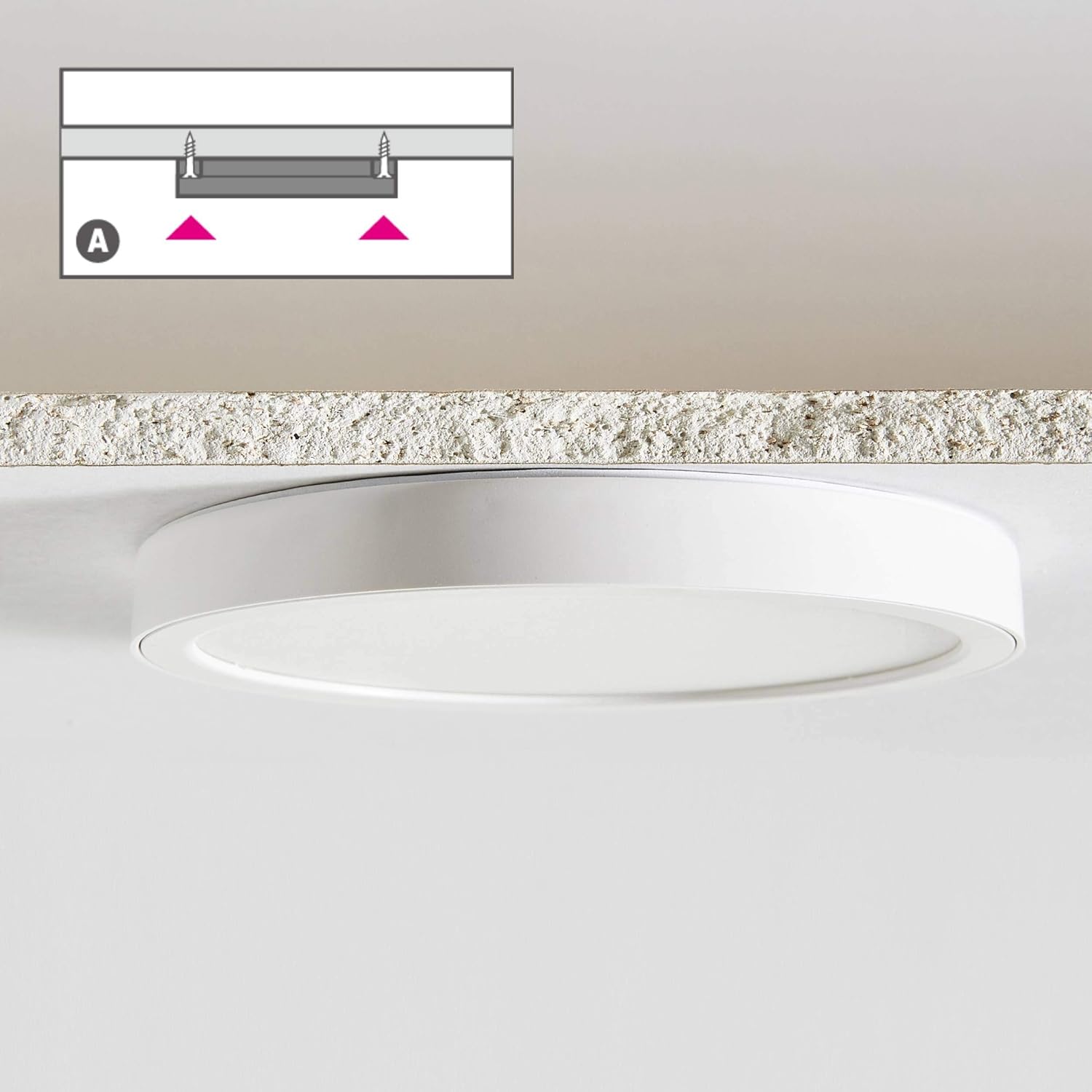

Illustration of surface mount installation (Method A), showing the spotlight attached directly to the ceiling with screws.
5.3. Recessed Mount Installation (Method B)
- Afbryd strømmen.
- Using a 100mm hole saw, cut a circular opening in the ceiling at the desired installation point.
- Connect the electrical wires from the ceiling to the spotlight's terminal block, ensuring correct polarity (Live, Neutral). Secure connections.
- Fold back the spring clips on the sides of the spotlight.
- Carefully insert the spotlight into the cutout. The spring clips will automatically engage and hold the fixture securely in place against the ceiling.
Illustration of recessed mount installation (Method B), showing the spotlight secured within a ceiling cutout using spring clips.
6. Betjeningsvejledning
The INSPIRE MANOA spotlight features integrated dimming and color temperature adjustment via your standard wall light switch. No external dimmer is required.
- Første klik: Turn on the light switch. The spotlight will illuminate with 4000K Neutral White light at 100% intensity. This setting is ideal for tasks requiring bright, clear illumination, such as cooking or working.
- Andet klik: Quickly turn the light switch off and then on again. The spotlight will switch to 3000K Warm White light at 50% intensity. This setting provides a softer, cozier ambiance, suitable for relaxation or social gatherings.
- Subsequent Clicks: Repeating the off-on sequence will cycle between these two modes.
Visual representation of the dual color temperature and dimming function. On the left, 4000K neutral white light at 100% intensity. On the right, 3000K warm white light at 50% intensity, activated by successive switch clicks.
The INSPIRE MANOA LED spotlight installed in a modern room, providing ambient lighting above shelves.
7. Vedligeholdelse
The INSPIRE MANOA LED spotlight requires minimal maintenance.
- Rensning: Sørg for, at strømmen er slukket, inden rengøring. Tør armaturet af med en blød, tør eller let fugtet klud.amp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen eller de elektriske komponenter.
- Ingen dele, der kan serviceres af brugeren: This fixture contains no user-serviceable parts. Do not attempt to open or repair the unit. The LED light source is not replaceable.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tænder ikke | No power supply; Loose wiring; Faulty switch; Faulty fixture. | Check circuit breaker; Verify wiring connections (power off); Test switch; Contact customer support. |
| Lyse flimrer | Loose wiring; Incompatible dimmer (not applicable for this product's internal dimming); Voltage udsving. | Check wiring connections (power off); Ensure stable power supply; Contact customer support. |
| Cannot change color temperature/intensity | Switching sequence not followed correctly; Internal fault. | Ensure quick off-on sequence; Contact customer support if problem persists. |
9. Garanti og support
This INSPIRE MANOA LED Dimmable Flat Recessed Spotlight comes with a 5 års garanti fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.
For warranty claims, technical support, or any questions regarding your product, please contact your retailer or the manufacturer's customer service with your proof of purchase.
