Brydge 10.2 MAX+ Wireless iPad Keyboard Case Instruction Manual

Indledning

This manual provides comprehensive instructions for the Brydge 10.2 MAX+ Wireless iPad Keyboard Case. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device. The Brydge 10.2 MAX+ is designed for iPad 9th, 8th & 7th Generation, offering a multi-touch trackpad, MIL-STD-810G 4-foot drop protection, and a durable polycarbonate/rubber construction.

Hvad er der i æsken

Upon opening your Brydge 10.2 MAX+ package, please verify that all the following components are included:

• 1 x Brydge 10.2 MAX+ Keyboard
• 1 x Protective Case with Apple Pencil holder
• 1 x USB-C opladningskabel
• 1 x Brugermanual (dette dokument)

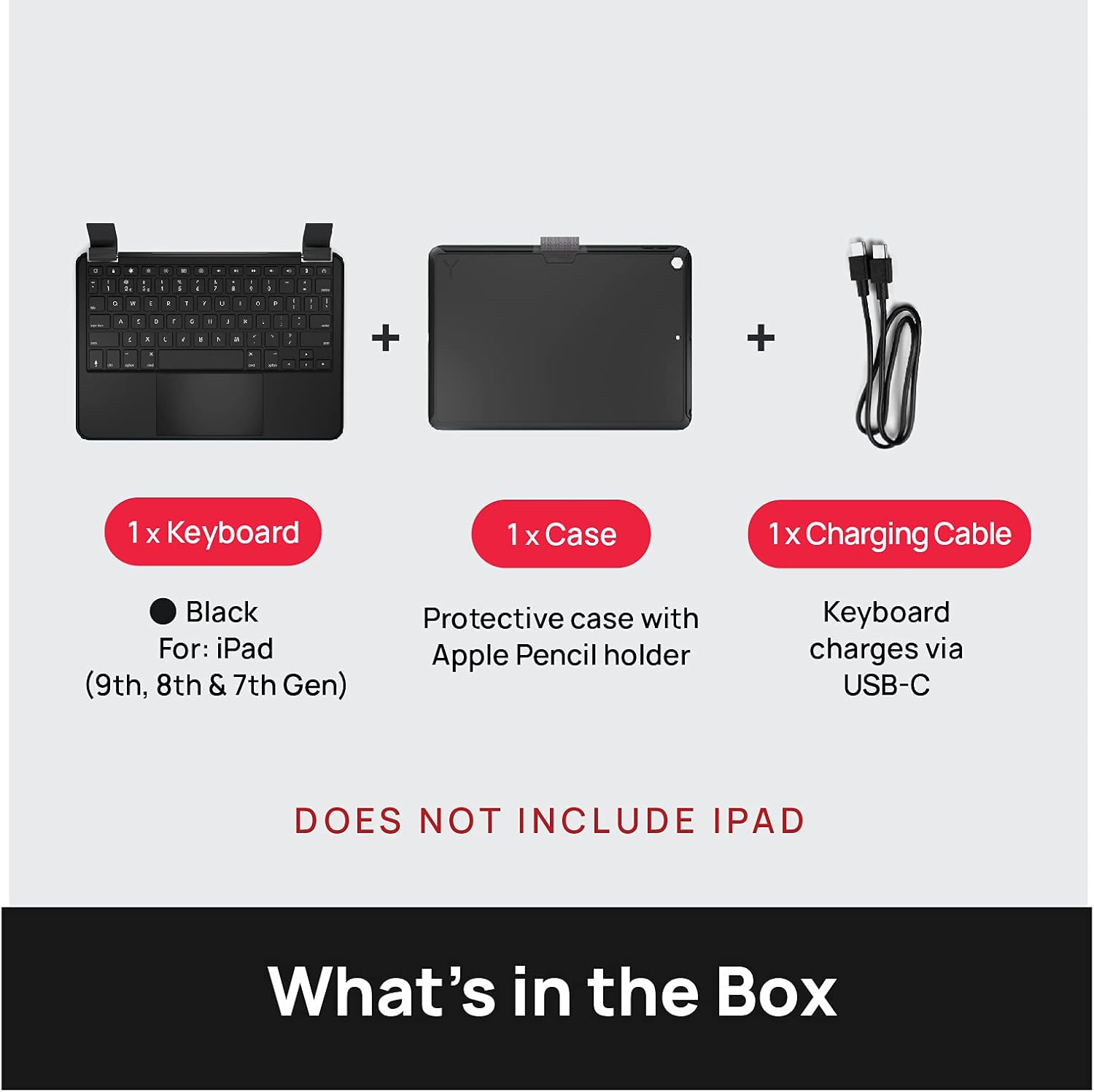

Image: The Brydge 10.2 MAX+ package contents, including the keyboard, protective case with Apple Pencil holder, and a USB-C charging cable. The iPad is not included.

Produktegenskaber

The Brydge 10.2 MAX+ combines a full-featured keyboard with a robust protective case, enhancing your iPad's functionality and durability.

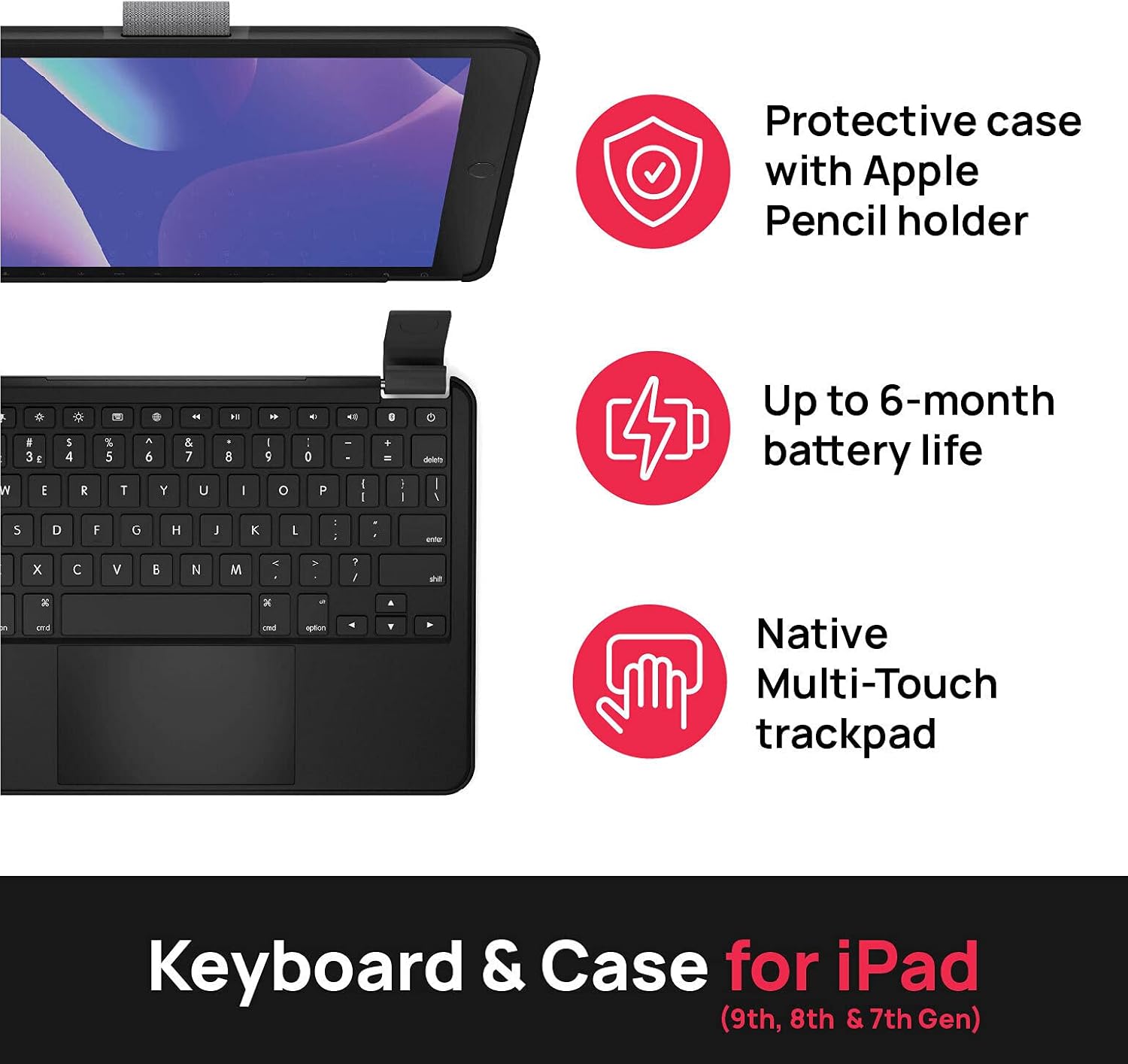

Image: Visual representation of key features: a protective case with Apple Pencil holder, up to 6-month battery life, and a native Multi-Touch trackpad.

• Integreret beskyttelsesetui: Designed to fit iPad 9th, 8th, and 7th Generation 10.2-inch models. Features MIL-STD-810G 4-foot drop protection.
• Stor multi-touch trackpad: Giver ample space and functionality for precise navigation and gesture control.
• Lang batterilevetid: Equipped with a large battery for extended use, reducing the need for frequent charging.
• Magnetic SnapFit Clamps: Securely holds your iPad in place while allowing for easy attachment and detachment.
• Baggrundsbelyst tastatur: Forbedrer synlighed i svagt lys.

Billede: En detaljeret view of the magnetic SnapFit Clamps, highlighting the secure attachment mechanism for the iPad and the overall robust design of the case.

Opsætningsinstruktioner

1. Tilslutning af din iPad

1. Align your iPad with the protective case.
2. Gently press the iPad into the case until it snaps securely into place. Ensure all edges are properly seated.
3. To attach the keyboard, align the iPad (in its case) with the magnetic SnapFit Clamps on the keyboard. The magnets will guide the iPad into the correct position.
4. Ensure the iPad is firmly seated in the clamps før brug.

Billede: Et overheadbillede view showing the Brydge 10.2 MAX+ keyboard and the separate iPad case, illustrating how the iPad is placed into the case and then attached to the keyboard.

2. Opladning af tastaturet

Before first use, fully charge your Brydge keyboard. Use the provided USB-C cable to connect the keyboard to a power source.

• Connect the small end of the USB-C cable to the charging port on the keyboard.
• Connect the large end of the USB-C cable to a USB power adapter (not included) or a computer's USB port.
• Opladningsindikatorlampen viser opladningsstatussen.

3. Bluetooth-parring

1. Sørg for, at dit Brydge-tastatur er opladet.
2. Tænd for tastaturet ved at trykke på tænd/sluk-knappen.
3. På din iPad skal du gå til Indstillinger > Bluetooth.
4. Make sure Bluetooth is turned On.
5. The Brydge keyboard should appear in the "Other Devices" list. Tap on its name to connect.
6. If prompted, enter the pairing code displayed on your iPad using the Brydge keyboard, then press Indtast.
7. Once connected, the keyboard will appear under "My Devices" as "Connected".

4. Firmwareopdatering

For optimal performance and to experience full multi-touch functionality, it is important to update your iPadOS and Brydge firmware.

• Download Brydge Connect App fra App Store på din iPad.
• Follow the in-app instructions to update your keyboard's firmware.
• Ensure your iPad's operating system (iPadOS) is updated to the latest version via Indstillinger > Generel > Softwareopdatering.

Image: A visual reminder emphasizing the importance of updating both iPadOS and Brydge firmware for full multi-touch trackpad functionality.

Betjeningsvejledning

Tastatur funktioner

The Brydge 10.2 MAX+ keyboard features a standard QWERTY layout along with dedicated iPadOS function keys.

Pegefeltbevægelser

The integrated multi-touch trackpad supports various iPadOS gestures for intuitive navigation.

• Tryk med en enkelt finger: Select an item or click.
• To-finger rulning: Rul op eller ned på web sider og dokumenter.
• Two-Finger Pinch: Zoom ind eller ud på indhold.
• Three-Finger Swipe Up: Gå til startskærmen.
• Three-Finger Swipe Left/Right: Skift mellem åbne apps.
• Three-Finger Pinch In: Åbn App Switcher.

Image: The Brydge 10.2 MAX+ with an iPad, illustrating its compatibility with 10.2-inch iPad models (9th, 8th, and 7th Generation).

Opretholdelse

To maintain the performance and appearance of your Brydge keyboard case, follow these guidelines:

• Rensning: Brug en blød, fnugfri klud lidt dampened with water to clean the exterior surfaces. Avoid harsh chemicals or abrasive materials.
• Opbevaring: When not in use for extended periods, store the keyboard in a cool, dry place. Ensure it is fully charged before storing to preserve battery health.
• Håndtering: While the case offers drop protection, avoid unnecessary drops or impacts. Do not force the iPad into or out of the clamps.

Fejlfinding

If you encounter issues with your Brydge 10.2 MAX+ keyboard case, refer to the common solutions below:

Specifikationer

Officiel produktvideo

Se den officielle produktvideo for en oversigtview of the Brydge 10.2 MAX+ features and functionality.

Garanti og support

Brydge products are designed for durability and performance. For warranty information, technical support, or service inquiries, please visit the official Brydge website or contact their customer support directly. Details regarding specific warranty periods and terms are typically provided with your product documentation or on the manufacturer's webwebsted.

For yderligere hjælp kan du henvise til Brydge Store on Amazon.
