MOUNTUP MU0034 Enkeltskærms bordmonteringsvejledning

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your MOUNTUP MU0034 Single Monitor Desk Mount. Please read this manual thoroughly before installation to ensure correct setup and safe operation. This monitor mount is designed to enhance your workspace ergonomics by providing adjustable positioning for a single monitor.

2. Sikkerhedsoplysninger

• Ensure all components are present and undamaged before installation. Do not use if any parts are missing or faulty.
• This product is intended for monitors weighing up to 17.6 lbs (8 kg) and screen sizes from 17 to 32 inches. Do not exceed the maximum weight capacity.
• Compatible VESA patterns are 75x75mm and 100x100mm. Verify your monitor's VESA pattern before proceeding.
• Sørg for, at skrivebordets overflade er stabil og stærk nok til at bære den samlede vægt af beslaget og skærmen.
• Tighten all screws firmly, but do not overtighten to avoid stripping threads or damaging components.
• Hold børn og kæledyr væk under installationen.
• Hvis du er i tvivl om installationsprocessen, bør du kontakte en kvalificeret fagmand.

3. Pakkens indhold

Please verify that all parts are included in your package:

• Skærmarmsamling
• Skrivebord Clamp Grundlag
• Grommet Base Komponenter
• VESA-plade
• Hardware-sæt (skruer, skiver, unbrakonøgler)
• Instruktionsmanual

4. Specifikationer

5. Opsætning og installation

The MOUNTUP MU0034 offers two installation options: C-clamp mounting and Grommet mounting. Choose the method suitable for your desk.

5.1. C-Clamp Montering

This method is for desks without existing grommet holes, or if you prefer clamping to the edge of your desk. Ensure your desk thickness is no more than 3.35 inches.

1. Fastgør C-clamp: Saml C-clamp components to the base of the monitor arm. Position the base on the edge of your desk and tighten the clamp screw until it is secure.
2. Fastgør VESA-plade til monitor: Secure the VESA plate to the back of your monitor using the appropriate screws from the hardware kit. Ensure the screws are tightened securely.
3. Slide Monitor onto Arm: Carefully slide the monitor (with the attached VESA plate) onto the monitor arm's VESA head. Ensure it clicks into place or is secured with the provided locking mechanism.
4. Juster spænding: Refer to Section 6.1 for adjusting the gas spring tension to match your monitor's weight.

Figure 1: Illustration of C-clamp and Grommet mounting options. The C-clamp is shown securing the mount to the desk edge, while the grommet mount uses a desk hole.

Figure 2: The removable VESA plate being attached to the back of a monitor, then sliding onto the monitor arm for easier installation.

5.2. Montering af tylle

This method utilizes an existing hole in your desk. Ensure your desk thickness is no more than 3.35 inches and the grommet hole diameter is between 0.39 and 3.1 inches.

1. Assemble Grommet Base: Insert the grommet base components through the desk hole and secure them from underneath the desk using the provided plate and nut.
2. Fastgør VESA-plade til monitor: Secure the VESA plate to the back of your monitor using the appropriate screws from the hardware kit. Ensure the screws are tightened securely.
3. Slide Monitor onto Arm: Carefully slide the monitor (with the attached VESA plate) onto the monitor arm's VESA head. Ensure it clicks into place or is secured with the provided locking mechanism.
4. Juster spænding: Refer to Section 6.1 for adjusting the gas spring tension to match your monitor's weight.

6. Betjening og justeringer

The MOUNTUP MU0034 monitor arm offers various adjustments for optimal viewkomfort.

6.1. Justering af gasfjederspænding

The gas spring tension needs to be adjusted to match the weight of your monitor. This ensures the monitor stays in position once adjusted.

• If the monitor drifts down, turn the adjustment screw (usually located on the arm joint) clockwise ("+") to increase tension.
• If the monitor floats up, turn the adjustment screw counter-clockwise ("-") to decrease tension.
• Adjust gradually until the monitor remains stable at any height.

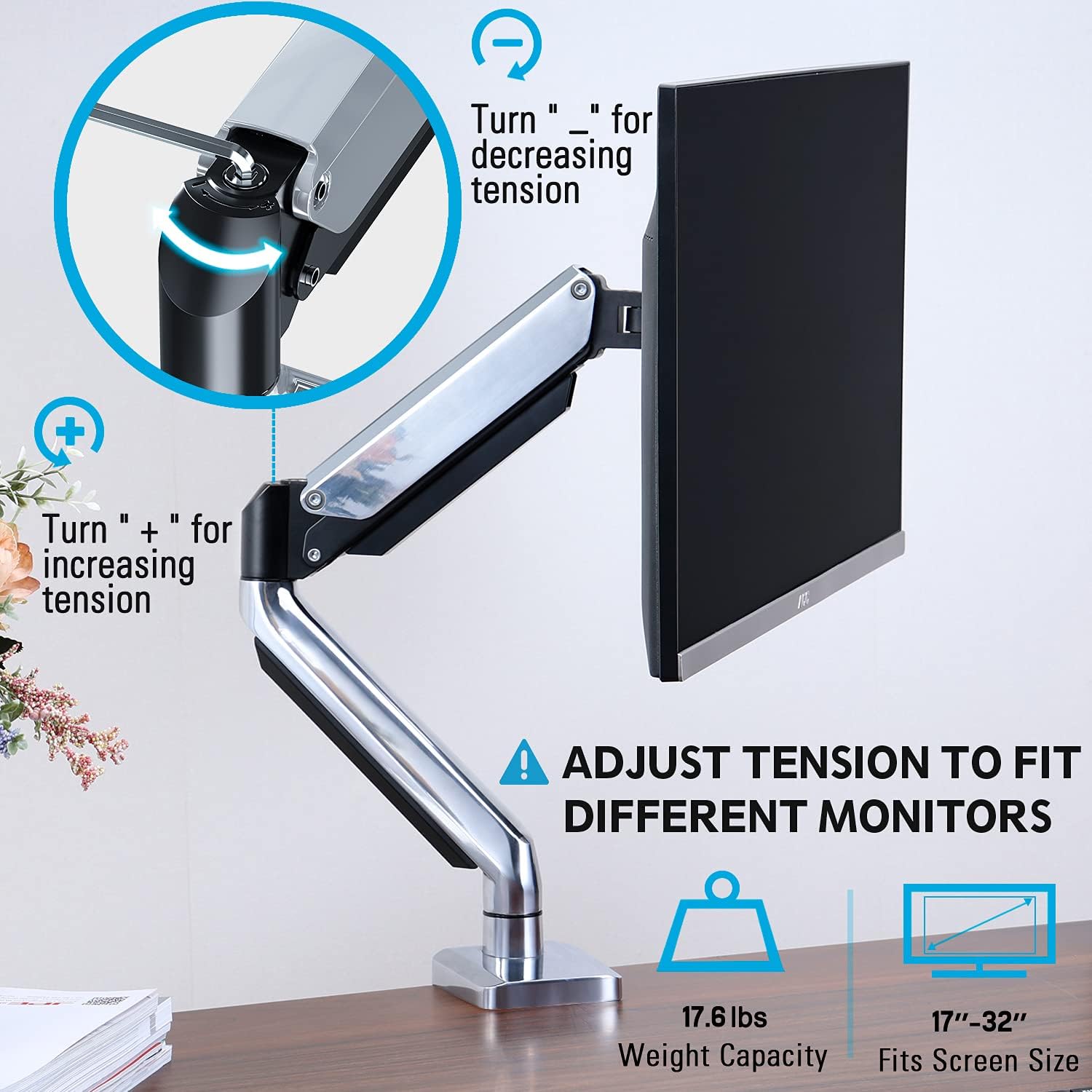

Figure 3: Instructions for adjusting the gas spring tension using an Allen key. Turning clockwise increases tension, counter-clockwise decreases it.

6.2. Højdejustering

Once the gas spring tension is correctly set, you can easily raise or lower your monitor to your desired ergonomic height. The arm allows for up to 11 inches of vertical adjustment.

Figure 4: Diagram illustrating the maximum height adjustment of 11 inches and maximum extension of 17.5 inches.

6.3. Vipning, drejning og rotation

The monitor arm provides full motion capabilities:

• Vip: Adjust the monitor screen +45° to -45° to reduce glare or find a comfortable viewvinkel.
• Drejelig: The arm can swivel 360° at the base and 360° at the middle joint. The monitor plate itself can swivel 180°. This allows for easy screen sharing or repositioning.
• Rotation: Drej skærmen 360° for at skifte mellem liggende og stående retning.

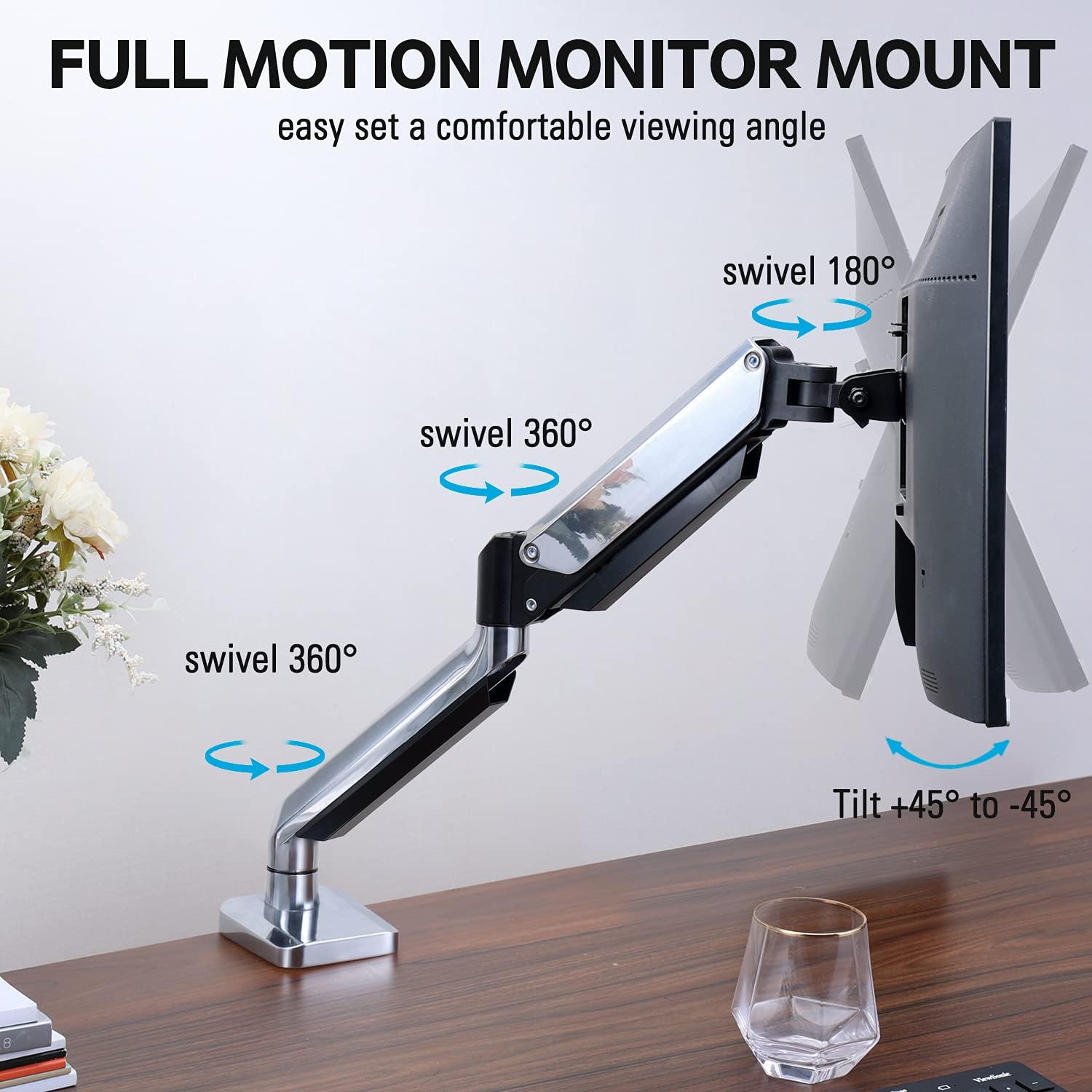

Figure 5: Visual representation of the monitor arm's full motion capabilities, including 360° swivel, 180° swivel at the monitor plate, and +45° to -45° tilt.

Figure 6: An image demonstrating the monitor's ability to rotate 360 degrees, allowing for both landscape and portrait viewing-tilstande.

7. Kabelforvaltning

The MOUNTUP MU0034 features integrated cable management to keep your workspace tidy.

1. Route your monitor cables (power, video, etc.) along the underside of the arm.
2. Use the provided cable clips or covers to secure the cables within the arm channels.
3. Ensure cables have enough slack to allow for full range of motion without tension.

Figure 7: Illustration of how cables are routed and organized through the integrated channels on the monitor arm, keeping the desk clear.

8. Vedligeholdelse

• Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver fastspændte.
• Rengør holderen med en blød kludamp klud. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Smør ikke gasfjedermekanismen.

9. Fejlfinding

10. Garanti og support

The MOUNTUP MU0034 Single Monitor Desk Mount is backed by a 3-year support period. For technical assistance, missing parts, or warranty claims, please contact MOUNTUP customer support through their official channels or the retailer where the product was purchased.

Gem venligst din købsbevis af garantihensyn.
