Indledning
This user manual provides essential information for the safe and efficient operation of your AmazonBasics 564 L Frost Free Side-by-Side Refrigerator with Water Dispenser, model AB2019RF005-cr. Please read these instructions carefully before installation and use, and retain them for future reference.
Sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger ved brug af elektriske apparater for at mindske risikoen for brand, elektrisk stød eller personskade. Dette apparat er kun beregnet til husholdningsbrug.
- Sørg for, at køleskabet er tilsluttet en korrekt jordet stikkontakt.
- Beskadig ikke kølemiddelkredsløbet.
- Hold ventilationsåbninger fri af forhindringer.
- Brug ikke mekaniske anordninger eller andre midler til at fremskynde afrimningsprocessen, ud over dem, der anbefales af producenten.
- Brug ikke elektriske apparater inde i madopbevaringsrummene, medmindre de er af den type, der anbefales af producenten.
- Tag stikket ud af stikkontakten før rengøring eller vedligeholdelse.
Produkt overview
The AmazonBasics 564 L Side-by-Side Refrigerator offers ample storage and convenient features for your food preservation needs.
Figur 1: Forside view of the AmazonBasics 564 L Side-by-Side Refrigerator, showcasing its silver steel finish and integrated water dispenser.
Figure 2: The refrigerator highlighting key features such as Auto Defrost, Water Dispenser, 4-Star Freezer design, and Energy Saving operation.
Kontrolpanel
Figur 3: Detaljeret view of the LED display with touch buttons, indicating settings for Super Freeze, Adjustable Thermostat, Power Cool, and temperature control.
Indvendig layout

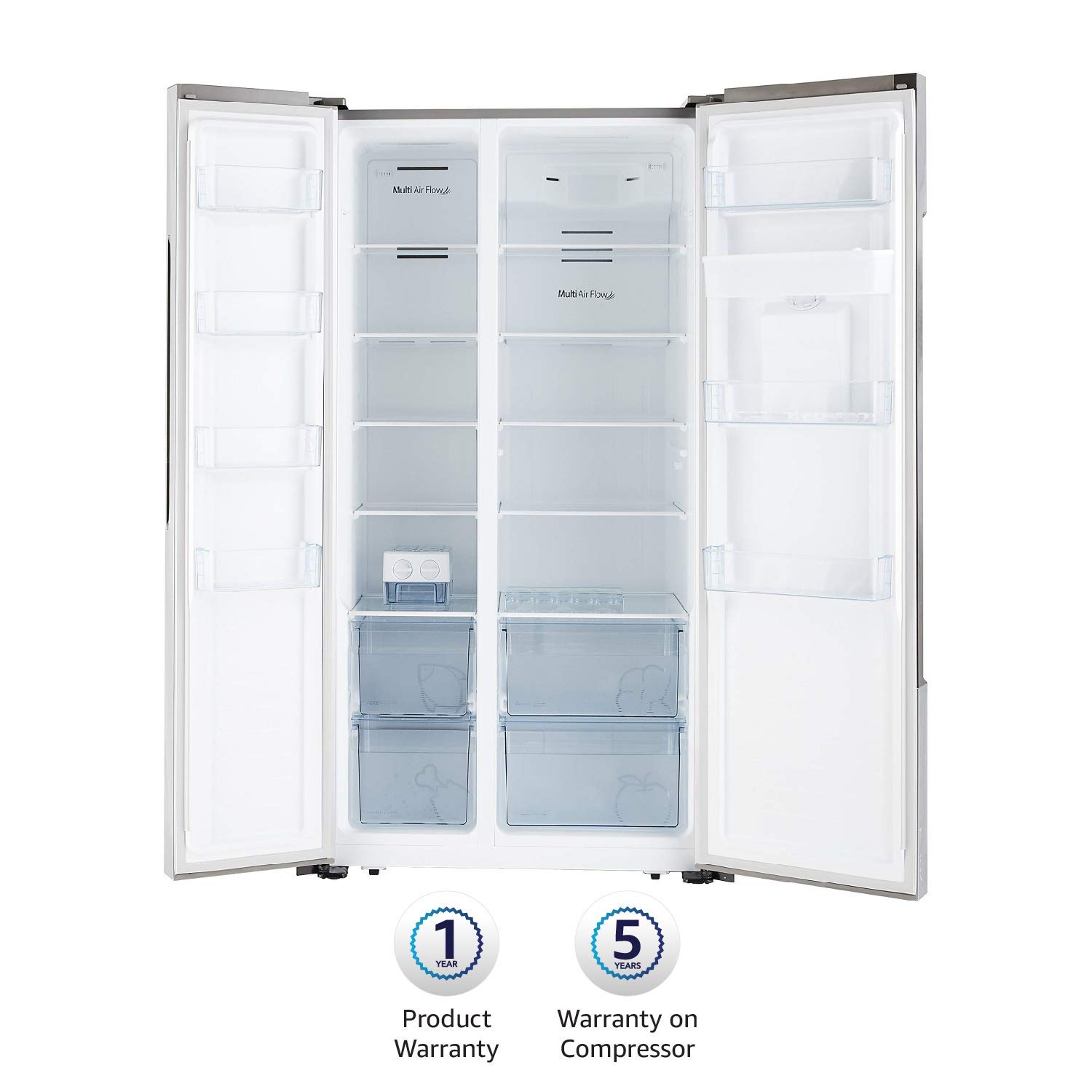

Figure 4: The interior of the refrigerator with both doors open, showing multiple glass shelves, door bins, and crisper drawers in both the fresh food and freezer compartments. The 'Multi Air Flow' system is visible.
Figure 5: The refrigerator interior with various food items, demonstrating the storage capacity and organization possibilities within the fresh food and freezer sections.
Opsætning
Udpakning
Carefully remove all packaging materials. Inspect the refrigerator for any shipping damage. Report any damage to your retailer immediately. Keep packaging materials out of reach of children.
Placering
- Placer køleskabet på et fast, plant gulv.
- Sørg for tilstrækkelig plads omkring apparatet for korrekt ventilation (mindst 10 cm bagpå og i siderne).
- Undgå direkte sollys eller varmekilder.
- Do not install in areas where the temperature is likely to fall below 10°C or rise above 43°C.
Figure 6: Diagram showing the dimensions of the refrigerator: 178 cm height, 91 cm width, and 64 cm depth, crucial for proper placement and installation.
Nivellering
Juster nivelleringsfødderne i bunden af køleskabet for at sikre, at det er stabilt og i vater. Dette forhindrer vibrationer og sikrer korrekt dørtætning.
Elektrisk tilslutning
Connect the power cord to a dedicated 230V, 50Hz, AC power outlet. Do not use extension cords or multi-plugs.
Indledende drift
After placement and connection, wait at least 2-4 hours before plugging in the appliance to allow the refrigerant to settle. Once plugged in, allow the refrigerator to operate for 24 hours empty to reach optimal cooling temperatures before loading with food.
Betjeningsvejledning
Kontrolpanel funktioner
The LED display and touch buttons on the door allow you to control various settings:
- Temperaturjustering: Press the temperature buttons to set desired temperatures for the refrigerator and freezer compartments.
- Super fryse: Activates rapid freezing for new items, preserving freshness.
- Power Cool: Quickly cools the refrigerator compartment.
- Justerbar termostat: Allows precise temperature control.
Vanddispenser
The integrated water dispenser provides chilled water. To use:
- Ensure the water tank inside the refrigerator compartment is filled with potable water.
- Placer et glas eller en beholder under dispenserens dyse.
- Tryk på dispenserhåndtaget for at tømme vandet ud.
Multi luftstrømssystem
This system ensures even cooling throughout both compartments, maintaining consistent temperatures and helping food stay fresh longer.
Opretholdelse
Rengøring af interiøret
Clean the interior regularly with a soft cloth and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly. Remove shelves and drawers for easier cleaning.
Rengøring af ydersiden
Tør de udvendige overflader af med en blød, damp cloth. For the silver steel finish, use a specialized stainless steel cleaner if necessary, following product instructions. Clean door seals with a mild detergent to ensure proper sealing.
Rengøring af vanddispenser
Regularly clean the water tank and dispenser tray to prevent buildup. Refer to the detailed instructions in your included user manual for specific cleaning procedures for the water dispenser components.
Afrimning
Dette køleskab har et automatisk afrimningssystem, hvilket eliminerer behovet for manuel afrimning af fryserummet.
Fejlfinding
Før du kontakter service,view følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køleskabet køler ikke | Power cord unplugged; temperature setting too high; door not closed properly; excessive food load. | Check power connection; adjust temperature; ensure door is sealed; reduce food load temporarily. |
| Usædvanlige lyde | Refrigerator not level; items vibrating inside; compressor operation. | Sæt apparatet i vater; flyt tingene om; kompressorstøj er normal under drift. |
| Vandlækage | Drain hole blocked; water tank not properly seated (for dispenser). | Clear drain hole; re-seat water tank. |
| Vanddispenser virker ikke | Water tank empty; air in the system. | Refill water tank; dispense a few glasses of water to clear air. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | AmazonBasics |
| Model | AB2019RF005-cr |
| Kapacitet | 564 liter |
| Køleskab Friske fødevarer Kapacitet | 282 liter |
| Fryser kapacitet | 282 liter |
| Installationstype | Frit stående |
| Formfaktor | Side-om-side |
| Særlige funktioner | Door Lock, Stabilizer free operation, Water Dispenser |
| Farve | Sølv |
| Voltage | 230 volt |
| Antal skuffer | 4 |
| Optøningssystem | Automatisk |
| Dørorientering | Dobbeltdør |
| Type hylde | Glas |
| Antal hylder | 8 |
| Certificering | Energy Star |
| Materiale | Steel with glass finish |
| Varens vægt | 120 kg |
| Produktmål (LxBxH) | 7.9D x 10.6W x 3.1H Centimeters (Note: These dimensions appear to be for packaging or a component, refer to Figure 6 for appliance dimensions) |
Garanti og support
Your AmazonBasics refrigerator comes with the following warranty:
- Produktgaranti: 1 år
- Kompressor garanti: 5 år
The product package includes the refrigerator, a user manual, and a warranty card. For detailed terms and conditions, or to obtain support, please refer to the warranty card provided with your appliance or contact AmazonBasics customer service.
