1. Introduktion
The TAKSTAR DA10 is a versatile 2-in-1 device designed to function as both a wireless microphone and a portable voice amplifier with an integrated speaker. It is suitable for various applications including karaoke, singing, home parties, meetings, outdoor events, and speeches. This manual provides detailed instructions for the proper setup, operation, and maintenance of your DA10 device.
Note: This device cannot connect to external speakers, amplifiers, or audio receivers like PA systems or karaoke systems.
2. Hvad er der i æsken
- TAKSTAR DA10 Wireless Microphone & Voice Amplivligere
- USB Type-C opladerkabel
- Brugermanual
3. Produktet er slutview & Funktioner

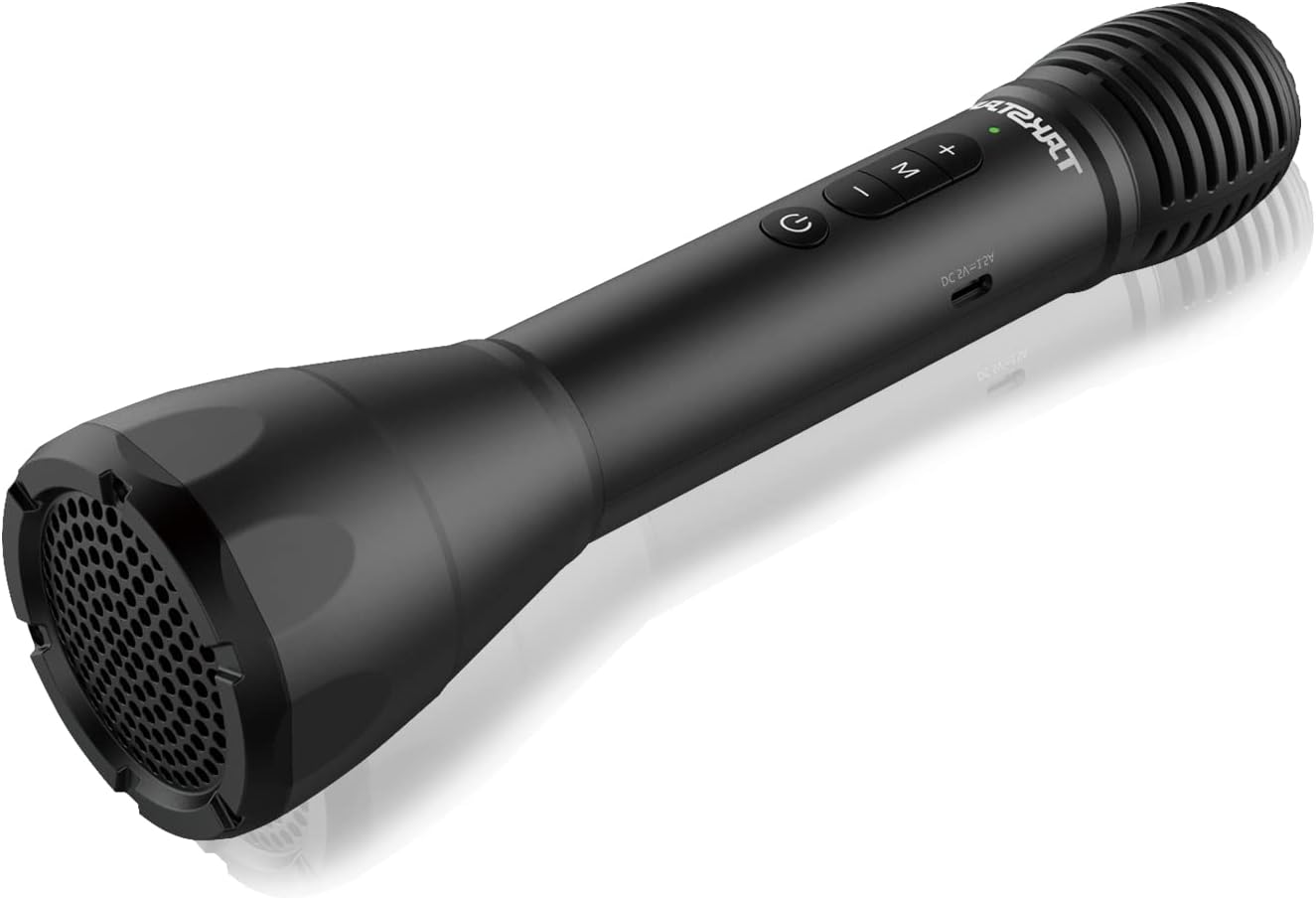

Figure 1: TAKSTAR DA10 Main Unit. A sleek black handheld microphone with integrated speaker at the base and control buttons on the handle.
Figure 2: Cardioid Pickup Pattern. The microphone features a cardioid pickup pattern for focused sound capture and clearer vocals, enhanced by a built-in DSP anti-howling chip.
Nøglefunktioner:
- 2-i-1 funktionalitet: Combines microphone, power ampløfter og højttaler.
- Bluetooth trådløs: Convenient wireless playing and connectivity to mobile phones, computers, and tablets.
- Professionel lydkvalitet: Built-in DSP chip for effective howling reduction and clear, natural sound. Rear earth material speaker for lightweight portability and strong audio.
- Karaoke tilstand: Features reverb effects for an enhanced singing experience.
- Langvarig: Up to 8 hours of working time on a single charge, with ultra-long standby and automatic power-off after 15 minutes of no input.
- Lydstyrkejustering: Adjustable loudspeaker volume to suit different situations.
- Flere tilstande: Switch between Speech Mode, Host Mode, Karaoke Mode, and Bluetooth Mode.
- Bred dækning: Covers an area of approximately 1,000 sq ft (100m²), suitable for about 25 people.
4. Opsætning
4.1 Opladning af enheden
Before first use, fully charge your TAKSTAR DA10. Connect the provided USB Type-C charging cable to the charging port on the microphone and to a suitable USB power source (e.g., computer, USB wall adapter). A full charge takes approximately 3 hours.
4.2 Bluetooth -parring
- Power on the TAKSTAR DA10 by pressing and holding the power button.
- Press the 'M' button to switch to Bluetooth Mode. The device will indicate it is ready for pairing.
- On your mobile phone, computer, or tablet, enable Bluetooth and search for available devices.
- Select 'TAKSTAR DA10' from the list of devices to pair. Once paired, the device will confirm the connection.
Figure 3: Bluetooth Connection. The diagram illustrates how to connect the TAKSTAR DA10 to a smartphone or laptop/PC via Bluetooth 5.0.
5. Betjeningsvejledning
5.1 Tænd/sluk
Tryk og hold tænd/sluk-knappen nede for at tænde eller slukke for enheden.
5.2 Valg af tilstand
Press the 'M' button to cycle through the available modes:
- Taletilstand: Optimized for clear vocal delivery.
- Host Mode: Suitable for presentations and public speaking.
- Karaoke tilstand: Adds reverb effects for singing.
- Bluetooth-tilstand: For wireless audio playback from a paired device.
5.3 Lydstyrkejustering
Use the volume control buttons (+/-) on the device to adjust the loudspeaker volume to your desired level.
5.4 Karaoke Reverb Effects
In Karaoke Mode, the built-in reverb effects are automatically applied to enhance your singing experience.
Figure 4: Voice Amplifier Coverage. The TAKSTAR DA10 provides 8W output power, covering up to 1000+ sq.ft (100+ m²) for effective voice amplifikation.
Figure 5: Versatile Usage. The image displays various applications for the TAKSTAR DA10, including karaoke, lectures/seminars, weddings, and teaching.
6. Vedligeholdelse
- Hold enheden tør og ren.
- Undgå at udsætte enheden for ekstreme temperaturer eller direkte sollys.
- Do not disassemble the device. Contact customer support for repairs.
- Oplad enheden regelmæssigt for at opretholde batteriets sundhed, selvom den ikke bruges ofte.
7. Fejlfinding
| Problem | Mulig løsning |
|---|---|
| Ingen lyd fra højttaleren | Ensure device is powered on and volume is adjusted. Check Bluetooth connection. |
| Kan ikke parres via Bluetooth | Ensure device is in Bluetooth Mode. Turn off and on Bluetooth on your external device. Restart the TAKSTAR DA10. |
| Howling/Feedback noise | Reduce microphone volume. Avoid pointing the microphone directly at the speaker. |
| Kort batterilevetid | Ensure device is fully charged before use. Reduce usage time at maximum volume. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | TAKSTAR |
| Modelnavn | DA10 |
| Forbindelsesteknologi | Bluetooth |
| Mikrofon formfaktor | Håndholdt |
| Strømkilde | Batteridrevet (lithium-ion) |
| Arbejdstid | Op til 8 timer |
| Opladningstid | Cirka 3 timer |
| Udgangseffekt | 8W |
| Dækningsområde | Approx. 1,000 sq ft (100m²) |
| Audio Følsomhed | 47.5 decibel |
| Signal-støjforhold | 66 dB |
| Frekvensrespons | 8 KHz |
| Connector Type | USB Type-C |
| Varens vægt | 0.035 ounces (1 gram) |
| Pakkedimensioner | 11.26 x 4.09 x 3.31 tommer |
9. Officiel produktvideo
Video 1: TAKSTAR DA10S Bluetooth Wireless Microphone. This video provides an overview of the TAKSTAR DA10S, highlighting its features and functionality as a Bluetooth wireless microphone. Note: The DA10S is a variant of the DA10 model.
10. Garanti og support
For warranty information or technical support, please refer to the contact card included in your product packaging or visit the official TAKSTAR website. You may also contact the seller, Takstar Official Store, directly through the Amazon platform for assistance.
