1. Introduktion

Thank you for choosing the Seville Classics UltraHD Heavy Duty Rolling Cabinet Workbench. This manual provides essential information for the assembly, operation, and maintenance of your new workbench. Designed for durability and functionality, this unit is an ideal addition to garages, workshops, offices, and warehouses.

The workbench features a robust steel construction, a solid wood top, and ample storage with multiple drawers and a lockable cabinet. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.

Figure 1.1: Seville Classics UltraHD Heavy Duty Rolling Cabinet Workbench (Granite, 11-Drawer)

2. Nøglefunktioner

• Dimensioner: 77 inches (W) x 20 inches (D) x 37.5 inches (H). Overall dimensions with push bars: 77" W x 20" D x 37.5" H (72" W without push bars).
• Arbejdsflade: Solid polyurethane-coated wood top, 1.5 inches thick, providing a durable and smooth workspace.
• Konstruktion: All-steel construction ensures industrial-strength storage and longevity.
• Opbevaring: 11 gliding ball-bearing drawers (9 small, 1 medium, 1 large) and a two-door cabinet with a height-adjustable shelf.
• Mobilitet: Four 5-inch heavy-duty wheels, with two locking mechanisms for stability.
• Belastningskapacitet: Supports up to 30 lbs per drawer and a total of 500 lbs evenly distributed throughout the unit.
• Sikkerhed: Lockable cabinet for secure storage of valuable items.

Figure 2.1: Workbench dimensions and key features.

3. Opsætning og montering

Assembly of the Seville Classics UltraHD Workbench is required. It is recommended to have a second person assist with assembly due to the size and weight of components, though it can be assembled by one person with careful planning.

3.1. Udpakning og inspektion

1. Carefully unpack all components from the packaging. The unit typically arrives in two large, heavy boxes.
2. Verify that all parts listed in the assembly instructions are present and undamaged. Refer to the parts list provided in your packaging.
3. Keep all packaging materials until assembly is complete in case any parts need to be returned or replaced.

3.2. Nødvendigt værktøj

A magnetic screwdriver is typically supplied with the unit. For easier assembly, a socket set and a battery-powered screw gun (with caution to avoid over-tightening) may be beneficial.

3.3. Assembly Steps (General Guidelines)

Follow the detailed step-by-step instructions provided in your product's specific assembly manual. The following are general guidelines:

1. Rammeenhed: Begin by assembling the main frame components. Ensure all bolts are loosely fitted until the entire frame is aligned, then tighten securely.
2. Montering af hjul: Attach the four 5-inch heavy-duty wheels to the base of the workbench. Ensure the two locking casters are positioned as per instructions for optimal stability.
3. Skuffesamling: Each drawer typically arrives flat. Fold the sides into position, attach the front panel, and secure with screws. Install the ball-bearing slides onto the drawers and the workbench frame.
4. Skabssamling: Assemble the cabinet doors and hinges, then attach them to the main frame. Install the adjustable shelf inside the cabinet.
5. Wood Top Installation: Carefully place the solid wood top onto the assembled frame. Secure it using the provided hardware. Do not overtighten.
6. Drawer and Door Alignment: After assembly, adjust drawer and cabinet door alignment as needed to ensure smooth operation and a flush appearance.

Figure 3.1: Detail of the side handle and lock mechanism, which are part of the assembly process.

Figure 3.2: Detail of the heavy-duty casters, essential for mobility.

4. Betjening

4.1. Using the Workbench Surface

The 1.5-inch thick solid wood top provides a sturdy and spacious work area. It is suitable for various tasks, including crafting, repairs, and general workshop activities. Avoid placing extremely hot items directly on the wood surface without protection.

4.2. Brug af skuffe

The 11 drawers feature smooth ball-bearing slides for easy opening and closing. Distribute weight evenly within each drawer, not exceeding 30 lbs per drawer, to ensure optimal performance and longevity of the slides.

4.3. Cabinet Usage

The two-door cabinet offers a large storage compartment. The internal shelf is height-adjustable to accommodate items of various sizes. Use the provided key to lock the cabinet doors for secure storage of tools or sensitive materials.

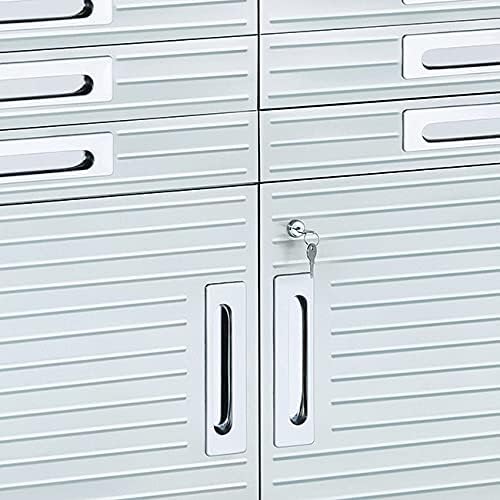

Figure 4.1: Detail of the lockable cabinet doors for secure storage.

4.4. Mobilitet og stabilitet

The workbench is equipped with four heavy-duty casters for easy movement. When the workbench is in its desired location, engage the locking mechanisms on the two designated casters to prevent unintended movement and ensure stability during use.

5. Vedligeholdelse

Regular maintenance will extend the life and performance of your Seville Classics UltraHD Workbench.

• Træplade: Rengør træoverfladen med enamp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals that could damage the polyurethane coating. For stubborn stains, consult wood care guidelines for sealed surfaces.
• Steel Frame and Drawers: Wipe down steel surfaces with a soft, damp cloth. For deeper cleaning, use a non-abrasive cleaner suitable for metal. Ensure surfaces are dry after cleaning to prevent rust.
• Ball-Bearing Slides: Periodically inspect drawer slides for debris. If drawers become stiff, apply a small amount of silicone lubricant to the ball bearings.
• Hjul: Check casters regularly for accumulated dirt or debris that might hinder movement. Clean as necessary. Ensure the locking mechanisms function correctly.
• Hardware: Periodically check all bolts and screws for tightness and re-tighten if necessary to maintain structural integrity.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

8.1. Garantioplysninger

For specific warranty details regarding your Seville Classics UltraHD Workbench, please refer to the warranty card included with your product or visit the official Seville Classics webGarantibetingelserne dækker typisk fabrikationsfejl.

8.2. Kundesupport

Should you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact Seville Classics customer support.

• Mærke: Sevilla Classics
• Webwebsted: Visit the Seville Classics Store on Amazon
• For direct support contact information, please refer to your product packaging or the official brand webwebsted.
