1. Introduktion
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Lumel RE70 00E0 PID Temperature Controller. Designed for precise temperature management in industrial applications, this controller offers robust performance and versatile functionality.
2. Sikkerhedsoplysninger
Always adhere to local electrical codes and safety regulations during installation and operation. Ensure the device is installed in a sealed unit to protect the IP20 rated body from water and excessive dust, even though the front panel is IP65 rated. Disconnect power before performing any installation or maintenance.
3. Produktet er slutview & Funktioner
The Lumel RE70 00E0 is a digital PID temperature controller engineered for demanding industrial environments. It is particularly suited for controlling temperature parameters in furnaces, dryers, and injection molding machines, but its versatility extends to other applications requiring precise temperature regulation.

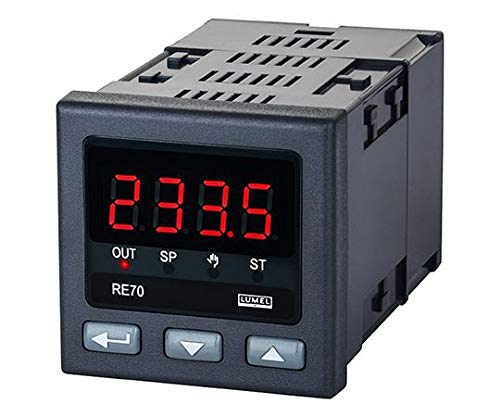

This image displays the front panel of the Lumel RE70 00E0 PID Temperature Controller. It features a bright red LED display, indicating a temperature reading of '233.5'. Below the display, indicators for 'OUT', 'SP', and 'ST' are visible, along with the 'RE70' model designation and 'LUMEL' brand logo. Three grey control buttons are located at the bottom for navigation and setting adjustments.
Nøglefunktioner:
- Universal input: Supports both RTD (Resistance Temperature Detector) and TC (Thermocouple) sensors, allowing compatibility with a wide range of temperature measurement systems.
- Single Relay Output: Provides a single relay output for control.
- Kontroltilstande: Offers both On/Off control functionality for basic temperature regulation and advanced PID control.
- Auto-tuning: Features an auto-tuning function for quick and reliable commissioning, automatically calculating optimal PID parameters.
- Manual Operation Mode: Allows for flexible manual control over the output.
- Parameterkonfiguration: Supports manual setting or automatic adaptation of PID parameters.
- Strømforsyning: Designed to operate with a 230 V AC supply voltage.
- Kompakt design: Unit dimensions are 48 x 48 x 93 mm.
- IP beskyttelse: Front panel rated IP65 for protection against dust and water splashes; the main body is IP20.
4. Installation og opsætning
The RE70 00E0 is designed for panel mounting with a standard 48 x 48 mm cutout.
- Montering: Cut a 48 x 48 mm opening in the control panel. Insert the controller into the opening and secure it using the provided mounting clips. Ensure the panel is sealed around the controller to maintain the IP65 rating of the front panel.
- Ledningsføring: Connect the power supply (230 V AC) to the designated terminals. Refer to the wiring diagram provided with the product for specific terminal assignments.
- Sensortilslutning: Connect your chosen RTD or TC sensor to the universal input terminals. Ensure correct polarity for thermocouples.
- Udgangsforbindelse: Connect the controlled device (e.g., heater, fan) to the single relay output terminals.
- Indledende opstart: Once all connections are secure, apply power to the unit. The LED display will illuminate.
5. Betjeningsvejledning
The RE70 00E0 offers both On/Off and PID control modes.
- Setting the Setpoint (SP): Use the navigation buttons (typically left arrow, up arrow, down arrow) on the front panel to adjust the desired temperature setpoint.
- Control Mode Selection: The controller supports On/Off and PID control. Consult the detailed product manual for specific instructions on switching between these modes and configuring PID parameters (Proportional, Integral, Derivative values).
- Auto-tuning: For optimal PID performance, utilize the auto-tuning function. This feature automatically calculates and sets the most appropriate PID parameters for your specific system, ensuring stable and accurate temperature control. Initiate auto-tuning via the control panel interface as per the full manual.
- Manuel betjening: The controller also supports a manual operation mode, allowing direct control over the output without relying on automatic PID calculations.
- Overvågning: The LED display continuously shows the current process value (PV) and can typically be toggled to display the setpoint (SP) or other operational parameters.
6. Vedligeholdelse
The Lumel RE70 00E0 is designed for reliable operation with minimal maintenance.
- Rensning: Periodically clean the front panel with a soft, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Inspektion: Regularly inspect wiring connections for looseness or signs of damage.
- Miljøforhold: Ensure the operating environment remains within the specified temperature range (0°C to +50°C) and that the controller body is protected from excessive dust and moisture (IP20 rating).
7. Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på.
Almindelige problemer og løsninger:
- Ingen skærm/strøm:
- Check the 230 V AC power supply connection.
- Verify the fuse (if applicable) in the power circuit.
- Forkert temperaturaflæsning:
- Ensure the sensor is correctly connected and is the appropriate type (RTD/TC) for the controller's configuration.
- Check for damaged sensor wiring.
- Verify the sensor is properly installed in the process.
- Udgang aktiveres/deaktiveres ikke:
- Check the setpoint (SP) relative to the current temperature (PV).
- Verify the control mode (On/Off or PID) and its parameters.
- Inspect the relay output wiring.
- Ustabil temperaturkontrol:
- Perform PID auto-tuning to optimize control parameters for your system.
- Check for external disturbances affecting the process temperature.
8. Tekniske specifikationer
Refer to the table below for detailed technical specifications of the Lumel RE70 00E0 PID Temperature Controller.
| Feature | Specifikation |
|---|---|
| Model | RE70 00E0 |
| Mærke | Lumel |
| Input type | Universal (RTD, TC) |
| Udgangstype | Enkelt relæ |
| Forsyning Voltage | 230 V AC |
| Enhedsmål (B x H x D) | 48 x 48 x 93 mm |
| Panel udskæring | 48 x 48 mm |
| Driftstemperaturområde | 0°C til +50°C |
| Display Type | LED |
| Frontpanel IP-klassificering | IP65 |
| Body IP Rating | IP20 |
| RoHS-overholdelse | Ikke kompatibel |
| Kodenummer | 894-6991 |
| Antal indgange | 1 |
| Antal udgange | 1 |
| Controllable Temperature Range | -200 °C to 1767 °C (sensor dependent) |
9. Garanti og support
Information regarding product warranty and customer support is not provided in the available product details. Please refer to the official Lumel website or contact your distributor for warranty terms and technical assistance.
