1. Introduktion
This manual provides essential information for the safe and efficient operation of your SOBO Slim Bright AL COB Plant Lamp, model AL-580 COB. Please read this manual thoroughly before installation and use, and retain it for future reference.
1.1 Produkt overview
The SOBO AL-580 COB Plant Lamp is a high-performance LED lighting solution designed for various aquarium environments. Its slim and flat design, coupled with quality LED beams, provides optimal illumination for planted tanks, marine tanks, and tropical fish tanks. The lamp features a durable aluminum casing and is equipped with extendable bracket stands for versatile mounting.
1.2 Pakkens indhold
- SOBO Slim Bright AL COB Plant Lamp (AL-580 COB)
- Strømkabel
2. Sikkerhedsinstruktioner
Observe the following safety precautions to prevent injury or damage to the product.
- Elektrisk sikkerhed: Sørg for, at strømforsyningen voltage matcher lamp's requirements. Do not operate with damaged cords or plugs. Keep electrical connections dry.
- Vandnærhed: Denne lamp is waterproof, but the power adapter and connections are not. Always handle the lamp with dry hands and ensure it is securely mounted above the water level to prevent accidental immersion of non-waterproof components.
- Installation: Installer lamp securely to prevent it from falling into the aquarium.
- Opretholdelse: Afbryd strømmen, før du udfører vedligeholdelse eller rengøring.
- Børn og kæledyr: Opbevares utilgængeligt for børn og kæledyr.
- Tiltænkt brug: Brug kun dette produkt til dets tilsigtede formål som akvarielys.
3. Opsætning og installation
3.1 Udpakning
Fjern forsigtigt alle komponenter fra emballagen. Undersøg lamp and accessories for any signs of damage. If any damage is found, do not proceed with installation and contact customer support.
3.2 Montering af Lamp
The SOBO AL-580 COB Plant Lamp is designed with extendable bracket stands for easy installation on the rim of your aquarium.
- Attach the extendable brackets to both ends of the lamp legeme.
- Adjust the brackets to fit the width of your aquarium.
- Placer forsigtigt lamp on the aquarium rim, ensuring it is stable and level. The lamp should be positioned to provide even light distribution over the tank.

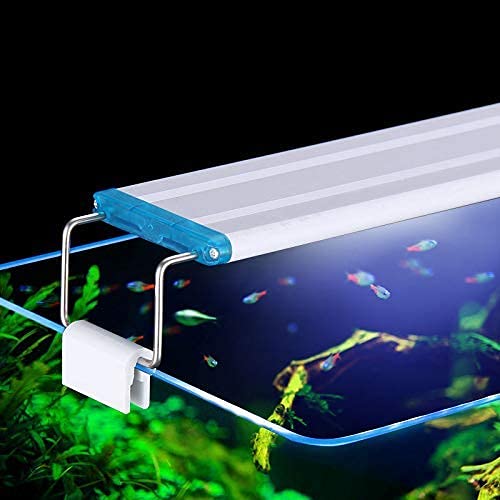

Figure 1: SOBO AL-580 COB Plant Lamp installed on an aquarium with extendable brackets, showing its placement over the water surface.
3.3 Tilslutning af strøm
- Når den lamp is securely mounted, connect the power cable to the lamp's power input.
- Plug the power adapter into a suitable electrical outlet. Ensure the outlet is dry and protected from splashes.
4. Betjeningsvejledning
The SOBO AL-580 COB Plant Lamp features a touch-sensitive switch for easy operation.
Figur 2: Øverst view of the SOBO AL-580 COB Plant Lamp, illustrating the arrangement of its Red, Blue, and White LED lights.
4.1 Tænd/sluk
Gently touch the designated switch area on the lamp body to turn the light on or off.
4.2 Lysjustering
Lamp features Red, Blue, and White LED lights. Depending on the model variant, repeated touches on the switch may cycle through different lighting modes or allow for intensity adjustment. Refer to the specific functionality of your lamp for detailed light adjustment options.
5. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your SOBO AL-580 COB Plant Lamp.
5.1 Rengøring
- Afbryd strømmen: Tag altid stikket ud af lamp fra stikkontakten før rengøring.
- Lamp Legeme: Tør aluminiumsbeholderen afasing and LED cover with a soft, damp cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish or LED components.
- Beslag: Clean the extendable brackets as needed to prevent mineral buildup.
- Tørring: Ensure all parts are completely dry before reconnecting power.
5.2 Opbevaring
Hvis du opbevarer lamp for an extended period, clean it thoroughly, disconnect the power cable, and store it in a dry, cool place away from direct sunlight.
6. Fejlfinding
If you encounter issues with your SOBO AL-580 COB Plant Lamp, refer to the following common problems and solutions.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lamp tændes ikke. | Ingen strømforsyning. Faulty power cable/adapter. Berøringskontakt reagerer ikke. | Check if the power cable is securely plugged into both the lamp og stikkontakten. Test stikkontakten med en anden enhed. Sørg for, at strømadapteren fungerer korrekt. Gently touch the switch area. |
| Lyset er svagt eller flimrende. | Problem med strømforsyning. Dirt or debris on LED cover. | Kontroller en stabil strømforsyning. Disconnect power and gently clean the LED cover with a soft cloth. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.
7. Specifikationer
| Model | AL-580 COB |
| Mærke | SOBO |
| Fabrikant | Sobo |
| Produktdimensioner | 400D x 40B x 30H Millimeter |
| Varens vægt | 495 gram |
| Wattage | 50 watt |
| Lyskildetype | LED |
| Materiale | Aluminium |
| Speciel funktion | Vandtæt |
| Shade Colour (LEDs) | Rød, blå, hvid |
| Switch Type | Røre |
| Monteringstype | Aquarium Rim (with extendable brackets) |
| Anbefalet brug | Aquarium Lighting (Planted, Marine, Tropical Fish Tanks) |
8. Garanti og support
For warranty information and customer support, please contact the seller or distributor.
Distributør: CENTRAL FISH AQUARIUM
Kontaktnummer: 9383347593
Gem venligst din købsbevis i tilfælde af garantikrav.
