DEXTER 710W gipsvægssliber brugermanual

1. Introduktion

Thank you for choosing the DEXTER 710W Drywall Sander. This powerful and versatile tool is designed for efficient and comfortable sanding of drywall, walls, and ceilings. Please read this manual carefully before operating the sander to ensure safe and effective use. Keep this manual for future reference.

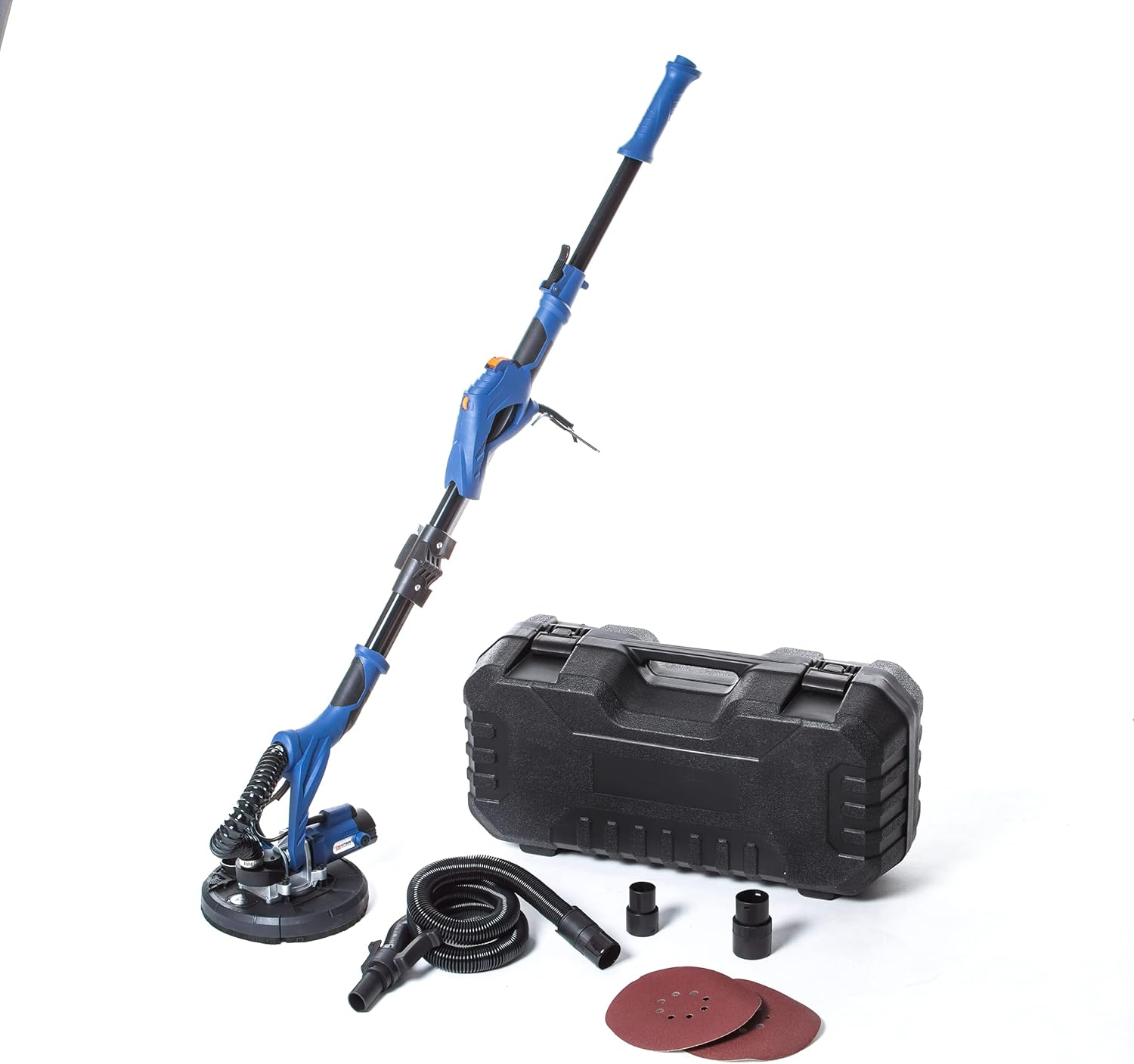

Figure 1: DEXTER 710W Drywall Sander with included accessories and carrying case.

2. Sikkerhedsinstruktioner

Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektrisk værktøj, for at reducere risikoen for brand, elektrisk stød og personskade.

• Sikkerhed på arbejdsområdet: Hold dit arbejdsområde rent og godt oplyst. Brug ikke elværktøj i eksplosive atmosfærer, f.eks. i nærheden af ​​brandfarlige væsker, gasser eller støv.
• Elektrisk sikkerhed: Undgå kropskontakt med jordforbundne overflader. Udsæt ikke elværktøj for regn eller våde forhold. Misbrug ikke ledningen.
• Personlig sikkerhed: Always wear eye protection, dust mask, non-skid safety shoes, and hearing protection when operating the sander. Dress properly; avoid loose clothing or jewelry.
• Brug og pleje af værktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din anvendelse. Tag stikket ud af strømkilden, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøj.
• Støvhåndtering: This sander features an integrated dust collection system. Always ensure the dust bag is properly attached and emptied regularly to minimize airborne dust.

3. Pakkens indhold

Carefully unpack the box and ensure all items are present and undamaged. If any items are missing or damaged, please contact your retailer.

• DEXTER 710W Drywall Sander (Model RM710)
• Bæretaske
• Støvopsamlingsslange
• Støvpose
• Assorted Sandpaper Discs (225 mm diameter)
• Hex-nøgle
• Kulbørster (reservesæt)
• Brugermanual

Figure 2: Included accessories for the DEXTER Drywall Sander.

4. Opsætning

Follow these steps to prepare your drywall sander for operation:

1. Assemble the Sander: The sander is designed to be foldable for easy storage. Unfold the main shaft and secure the locking mechanisms until they click into place.
2. Attach Sandpaper: The sanding pad uses a hook-and-loop system. Align a 225 mm sandpaper disc with the sanding pad and press firmly to secure it.
3. Connect Dust Collection: Attach the dust collection hose to the dust port on the sander head. Connect the other end of the hose to the provided dust bag or an external vacuum cleaner for optimal dust extraction.
4. Strømtilslutning: Ensure the power switch is in the 'OFF' position. Plug the 4-meter power cord into a suitable electrical outlet (230V AC).

Figure 3: Key features of the DEXTER Drywall Sander, including its foldable design and dust reduction system.

5. Betjeningsvejledning

The DEXTER 710W Drywall Sander is designed for ease of use and efficiency.

1. Tænd: Hold the sander firmly with both hands using the ergonomic handle. Press the power switch to turn on the tool. The progressive start feature ensures a smooth power-up.
2. Juster hastighed: Use the variable speed dial to select the appropriate sanding speed for your material and desired finish. Start with a lower speed and increase as needed.
3. Slibeteknik: Apply light, even pressure to the surface. Move the sander in smooth, overlapping motions. The 120° inclinable abrasive head allows for easy access to various angles and surfaces, including ceilings and corners.
4. Antivibrationssystem: The integrated anti-vibration system reduces user fatigue, allowing for longer periods of comfortable operation.
5. Støvhåndtering: Regularly check and empty the dust bag to maintain optimal dust collection efficiency.
6. Sluk: When finished, release the power switch and unplug the tool from the power source.

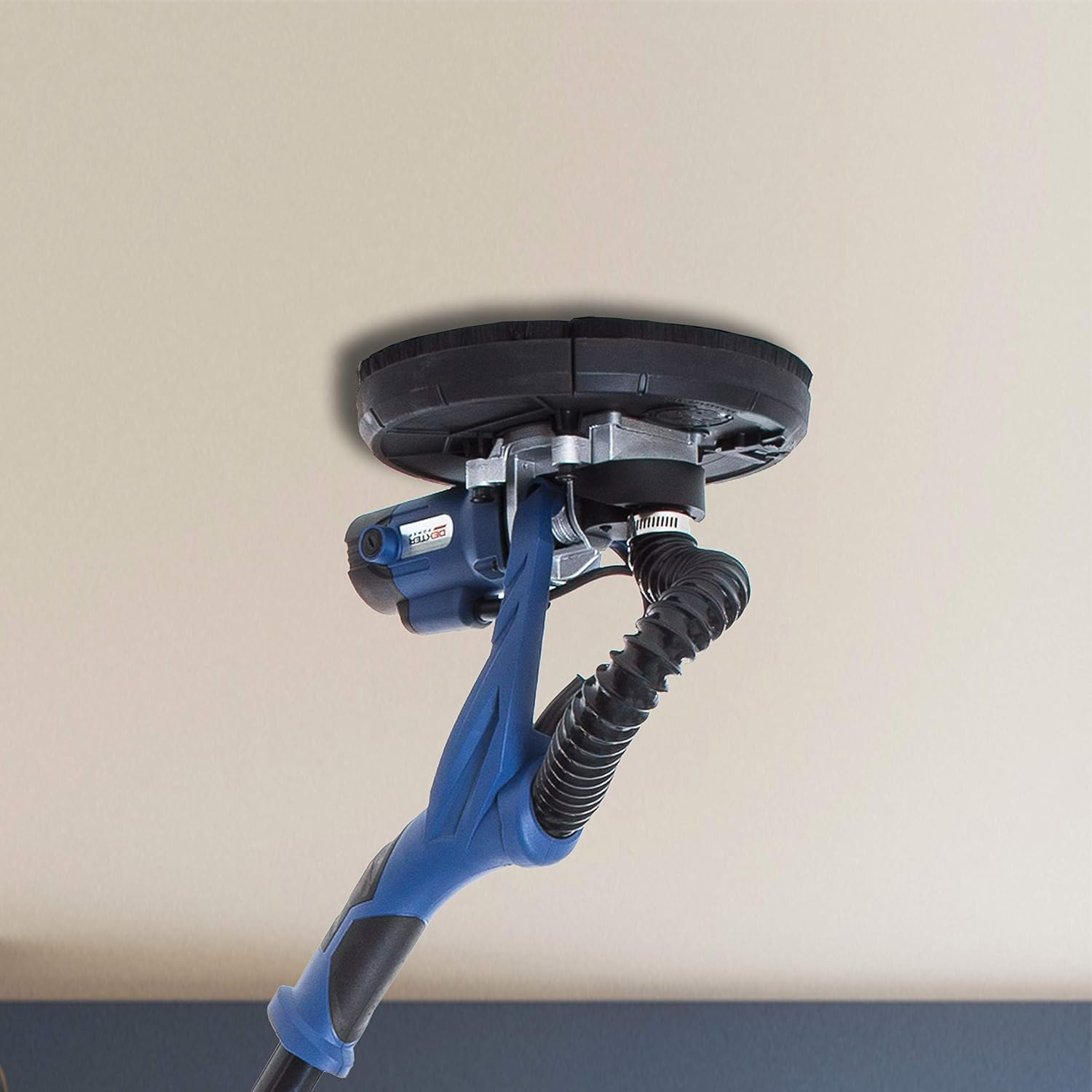

Figure 4: Sander being used to smooth a ceiling surface.

Figure 5: Sander being used to smooth a wall surface.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your DEXTER Drywall Sander.

• Rensning: After each use, wipe down the sander with a clean, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ventilation openings are clear of dust and debris.
• Støvpose/-system: Empty the dust bag frequently. If using an external vacuum, clean its filter regularly. A clogged dust system reduces efficiency and can lead to overheating.
• Udskiftning af sandpapir: Replace sandpaper discs when they become worn or lose their abrasive quality. Ensure the sanding pad is clean before attaching a new disc.
• Kulbørster: Periodically check the carbon brushes for wear. Replace them when they are significantly worn down to maintain motor performance. Refer to the detailed instructions in the product guide for replacement.
• Opbevaring: Store the sander in its carrying case in a dry, secure place, out of reach of children. The foldable design allows for easy storage.

7. Fejlfinding

If you encounter any issues with your sander, refer to the table below for common problems and solutions.

8. Tekniske specifikationer

Key specifications for the DEXTER 710W Drywall Sander (Model RM710):

9. Garanti og support

This DEXTER 710W Drywall Sander is covered by a 2 års garanti fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.

For warranty claims, technical support, or further assistance, please refer to the detailed product guide provided with your purchase or contact your retailer. Additional information and support resources may also be available on the official Dexter brand webwebsted.
