ZIPRO Flame VM Magnetic Fitness Bike

1. Introduktion

Thank you for choosing the ZIPRO Flame VM Magnetic Fitness Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before first use and keep it for future reference.

The ZIPRO Flame VM is designed to provide an effective and enjoyable indoor cycling experience, helping you achieve your fitness goals from the comfort of your home. Its magnetic resistance system ensures smooth and quiet operation, while the integrated computer and app compatibility offer advanced tracking and training options.

2. Sikkerhedsretningslinjer

WARNING: Before starting any exercise program, consult your physician. This is especially important for individuals over the age of 35 or those with pre-existing health problems.

• Always place the fitness bike on a flat, stable surface. Ensure adequate space around the bike for safe operation.
• Hold børn og kæledyr væk fra udstyret under brug.
• Inspect the bike before each use for any loose parts, wear, or damage. Do not use if damaged.
• Brug passende træningstøj og fodtøj. Undgå løstsiddende tøj, der kan sætte sig fast i bevægelige dele.
• Do not exceed the maximum user weight capacity of 150 kg (330 lbs).
• Adjust the seat and handlebars to a comfortable and safe position before beginning your workout.
• Hvis du oplever smerter, svimmelhed eller åndenød, skal du straks stoppe med at træne og kontakte en læge.
• Ensure the power adapter is correctly connected to the bike and a suitable power outlet.

3. Monteringsvejledning

The assembly of the ZIPRO Flame VM fitness bike is designed to be straightforward. Please follow these steps carefully. It is recommended to have two people for certain assembly steps.

3.1 Unpacking and Parts Identification

Carefully remove all components from the packaging. Lay them out and compare them with the parts list provided in the separate assembly diagram. Ensure all parts are present and undamaged.

The user manual and power adapter included with your fitness bike.

3.2 Samling af hovedramme

Attach the front and rear stabilizers to the main frame using the provided bolts and washers. Ensure they are securely tightened to provide a stable base for the bike.

3.3 Pedalinstallation

Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Ensure they are threaded correctly and tightened firmly to prevent loosening during use.

Detail of the non-slip pedals with adjustable straps for secure foot placement.

3.4 Seat and Handlebar Post Installation

Insert the seat post into the main frame and secure it with the adjustment knob. Similarly, insert the handlebar post and attach the handlebars. Ensure all connections are firm.

3.5 Console and Wiring Connection

Connect the console wires to the corresponding cables from the handlebar post. Carefully mount the console onto the handlebar post. Ensure all wires are properly routed and not pinched.

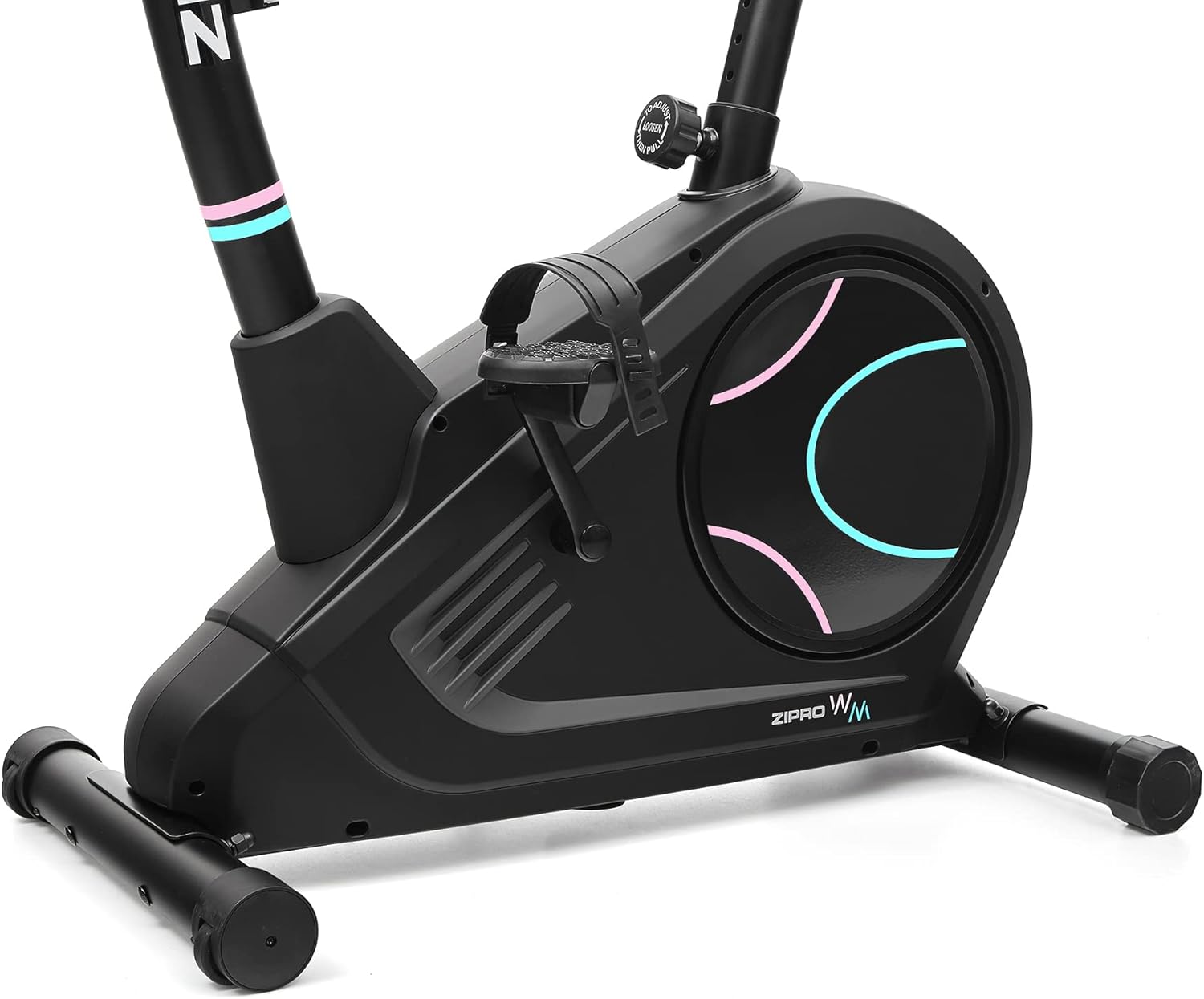

The power connection port, located at the bottom rear of the bike, for connecting the electrical cable.

4. Komponentidentifikation

Familiarize yourself with the main components of your ZIPRO Flame VM fitness bike:

• Konsol: Displays workout data, allows program selection, and connects to apps.
• styr: Provide grip and include pulse sensors.
• Sæde: Adjustable for height and horizontal position.
• Pedaler: Non-slip with adjustable straps for secure foot placement.
• Modstandsknap: Adjusts the magnetic resistance level.
• Stabilisatorer: Front and rear bases for stability, with transport wheels on the front.
• Vandflaskeholder: Praktisk placeret til hydrering under træning.

Side view illustrating the main components of the fitness bike.

Forsiden view highlighting the console, handlebars, and main body.

5. Betjeningsvejledning

5.1 Powering On and Console Functions

Connect the power adapter to the bike and a wall outlet. The console will power on automatically. The easy-to-use computer with its clear screen allows you to select programs and monitor your workout progress.

The advanced computer display showing various workout metrics like time, calories, speed, and pulse.

A hand pressing a button on the console, demonstrating user interaction.

A user making adjustments on the fitness bike's console, highlighting its user-friendly interface.

5.2 Justering af modstand

The Flame VM features 32 levels of electric-magnetic resistance. Use the UP/DOWN buttons on the console to increase or decrease the resistance level according to your workout intensity needs.

5.3 Pulse Measurement

Grasp the pulse sensors on the handlebars with both hands. Your pulse will be displayed on the console. Maintaining the correct pulse rate can make your workout more effective.

5.4 Using iConsole+ Training and Kinomap Apps

The Bluetooth connectivity allows you to use popular fitness applications like iConsole+ Training and Kinomap. Place your mobile device on the integrated stand and connect via Bluetooth to enhance your training experience with virtual routes and additional programs.

The integrated stand for mobile devices, allowing you to enjoy digital content during your workout.

A smartphone securely placed on the console's media tray, ready for app integration.

A tablet positioned on the console's stand, demonstrating compatibility with larger mobile devices for an immersive workout.

A user actively exercising on the bike, with a virtual route from the Kinomap app displayed, enhancing the training experience.

5.5 Seat and Handlebar Adjustments

The adjustable seat and handlebar inclination allow you to find the safest and most comfortable position during your ride. Adjust the seat height and horizontal position using the knobs below the seat. The handlebar angle can also be adjusted for optimal comfort.

A user on the fitness bike, illustrating proper foot placement on pedals and interaction with the console.

5.6 Hydration

Stay hydrated during your workout. The included water bottle and holder allow you to quench your thirst without interrupting your exercise session.

6. Vedligeholdelse og pleje

Regular maintenance will ensure the longevity and optimal performance of your ZIPRO Flame VM fitness bike.

• Rensning: Tør cyklen af ​​med annonceamp en klud efter hver brug for at fjerne sved og støv. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Smøring: The magnetic resistance system is generally maintenance-free. However, occasionally check for any squeaks or unusual noises from moving parts and apply a silicone-based lubricant if necessary.
• Tæthedskontrol: Kontrollér regelmæssigt alle bolte, møtrikker og forbindelser for at sikre, at de er fastgjort. Spænd eventuelle løse fastgørelseselementer.
• Opbevaring: Opbevar cyklen et tørt, køligt sted væk fra direkte sollys og ekstreme temperaturer.

7. Fejlfinding

If you encounter any issues with your fitness bike, refer to the following common problems and solutions:

8. Tekniske specifikationer

Detailed dimensions of the ZIPRO Flame VM fitness bike: 118 cm length, 49 cm width, 140 cm height.

9. Garanti og support

Your ZIPRO Flame VM Magnetic Fitness Bike is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical support, spare parts, or any questions not covered in this manual, please contact ZIPRO customer service. When contacting support, please have your product model number (6299209) and purchase information ready.

Thank you for choosing ZIPRO. We wish you many effective and enjoyable workouts!
