Taurus HS-2900 Cordless Stick Vacuum Cleaner User Manual

1. Vigtige sikkerhedsinstruktioner

Læs alle instruktioner omhyggeligt, inden apparatet tages i brug, og gem dem til senere brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

• Dette apparat er kun til husholdningsbrug. Må ikke anvendes udendørs eller på våde overflader.
• Lad ikke børn bruge støvsugeren. Nøje opsyn er nødvendigt, når den bruges i nærheden af ​​børn.
• Saml ikke brændbare eller brændbare væsker, såsom benzin, og brug ikke i områder, hvor de kan være til stede.
• Tag ikke noget op, der brænder eller ryger, såsom cigaretter, tændstikker eller varm aske.
• Må ikke bruges uden støvskål og/eller filtre på plads.
• Sluk apparatet, før du tilslutter eller frakobler den motoriserede børste, tilbehør eller opladning.
• Use only the charger supplied by the manufacturer to recharge the appliance.
• Store the vacuum cleaner indoors in a dry place.

2. Produktet er slutview og komponenter

The Taurus HS-2900 is a versatile 3-in-1 cordless vacuum cleaner designed for various cleaning tasks. It can be used as a stick vacuum, a handheld vacuum, or with an extended lance for high-reach areas.

Hovedkomponenter:

• Main Motor Unit (Handheld)
• Forlængerrør
• Motoriseret gulvbørste med LED-lys
• Dust Tank (650 ml capacity)
• EPA Filter System
• Li-ion batteri (29.6V)
• Vægmonteret oplader

Inkluderet tilbehør:

• Fuzzy Brush (for hard floors like parquet)
• Multi-purpose Brush (for carpets and general use)
• 2-in-1 Accessory: Furniture Brush and Upholstery Nozzle
• Crevice Tool (for tight spaces)
• Vægmonteringsbeslag

Image 2.1: The Taurus HS-2900 vacuum cleaner shown with its various components and accessories, illustrating its 3-in-1 versatility.

Image 2.2: A comprehensive display of all included accessories, including the main unit, extension tube, floor brush, two brush rolls, 2-in-1 tool, crevice tool, and wall mount.

3. Montering

The Taurus HS-2900 can be assembled in different configurations to suit your cleaning needs.

3.1. Stick Vacuum Assembly:

1. Insert the extension tube into the main motor unit until it clicks securely.
2. Attach the motorized floor brush to the other end of the extension tube, ensuring it clicks into place.
3. Select and insert the desired brush roll (Fuzzy or Multi-purpose) into the motorized floor brush.

3.2. Handheld Vacuum Assembly:

1. Directly attach the 2-in-1 accessory or crevice tool to the main motor unit.

3.3. Long Lance Assembly:

1. Insert the extension tube into the main motor unit.
2. Attach the crevice tool or 2-in-1 accessory to the end of the extension tube.

4. Opladning af batteriet

The Taurus HS-2900 features a convenient 'Simple Charge' system for easy recharging.

4.1. Initial Charge:

Before first use, fully charge the battery for approximately 4 hours. The battery status indicator lights will show the charging progress.

4.2. Simple Charge System:

1. Install the wall mount bracket in a suitable location near a power outlet.
2. Connect the charger to the wall mount bracket and plug it into a power outlet.
3. After use, simply place the vacuum cleaner onto the wall mount. The charging process will begin automatically without needing to manually plug in a cable to the vacuum.

A full charge provides up to 50 minutes of autonomy in ECO mode.

Image 4.1: The vacuum in operation, highlighting its 29.6V Li-ion battery, fast charge capability, and 50 minutes of autonomy.

5. Betjening

The Taurus HS-2900 offers flexible cleaning with adjustable power settings and specialized brushes.

5.1. Tænd/sluk og valg af tilstand:

1. Tryk på tænd/sluk-knappen på hovedmotorenheden for at tænde støvsugeren.
2. Toggle between ECO and TURBO modes using the mode selection button. ECO mode provides longer battery life for general cleaning, while TURBO mode offers maximum suction for stubborn dirt.
3. Tryk på tænd/sluk-knappen igen for at slukke støvsugeren.

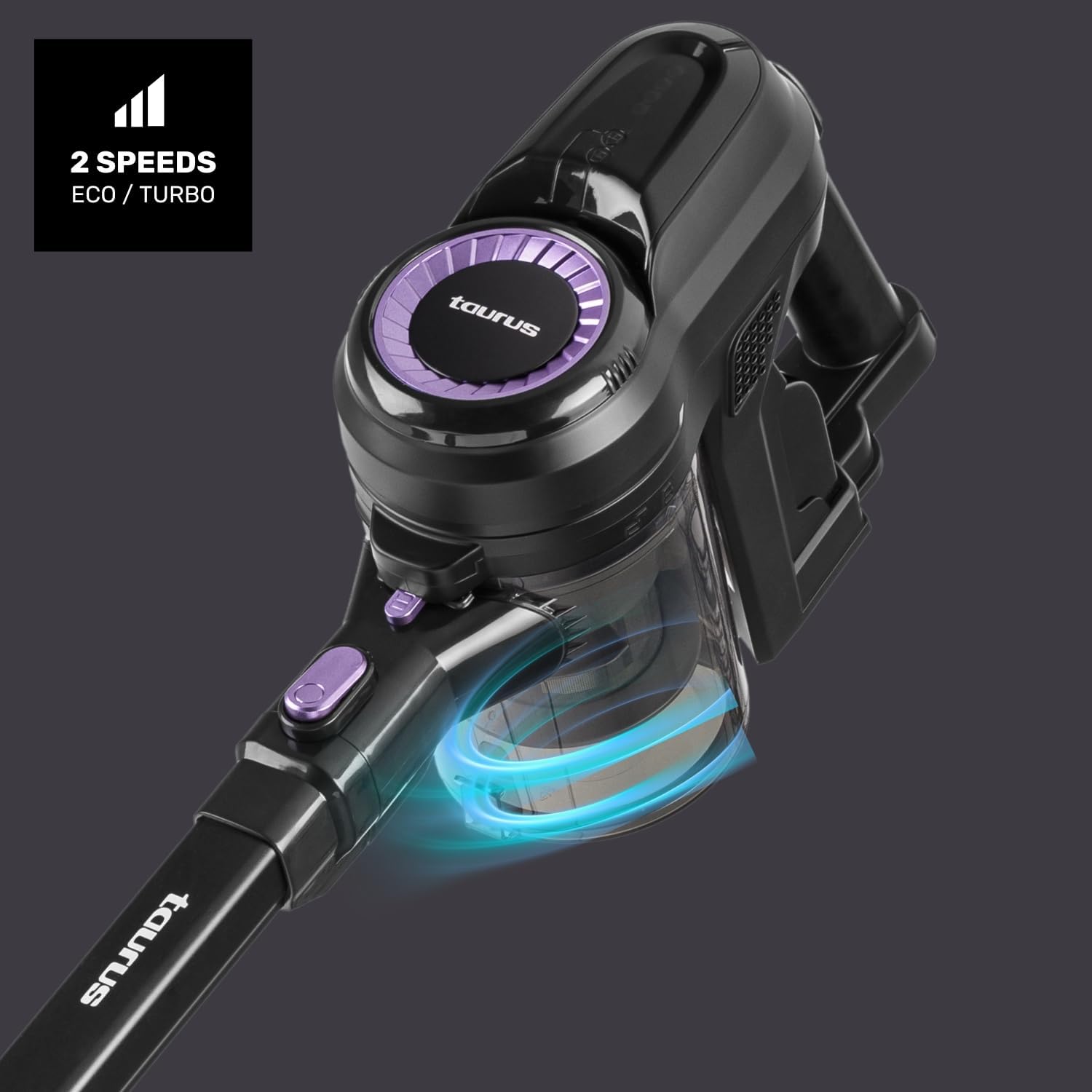

Image 5.1: Close-up of the main unit, indicating the two available speed settings: ECO for extended use and TURBO for maximum power.

5.2. Using the Motorized Floor Brush:

• The motorized floor brush is equipped with LED lights to illuminate dark areas, making hidden dust visible.
• The 180° articulated head allows for easy maneuverability around furniture and into tight corners.
• Brug Fuzzy Brush for delicate hard floors like parquet and tiles.
• Brug Multi-purpose børste for carpets, rugs, and general floor cleaning.

Image 5.2: The motorized floor brush featuring Optic LED illumination and a comparison of the Helix (Multi-purpose) and Fuzzy brush rolls.

5.3. Cyclonic System:

The vacuum utilizes a Cyclone System for efficient separation of dust and debris from the airflow, maintaining strong suction power.

Image 5.3: Visual representation of the cyclonic system within the dust tank, illustrating how air and dust are separated.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din støvsugers levetid.

6.1. Emptying the Dust Tank:

The 650 ml dust tank features a 'Touch & Clean' system for hygienic emptying.

1. Sørg for, at støvsugeren er slukket.
2. Hold the main motor unit over a waste bin.
3. Press the 'Touch & Clean' release button to open the bottom flap of the dust tank and empty its contents.
4. Luk flappen forsvarligt, indtil den klikker.

Image 6.1: A user demonstrating the 'Touch & Clean' system for easily emptying the 650 ml dust tank.

6.2. Cleaning the EPA Filter:

The EPA filter retains up to 99.9% of dust particles and is washable for easy maintenance.

1. Ensure the vacuum cleaner is turned off and the dust tank is empty.
2. Remove the dust tank from the main motor unit.
3. Carefully remove the EPA filter and its components from the dust tank.
4. Rinse the filter components under running water until clean. Do not use detergents.
5. Allow all filter components to air dry completely for at least 24 hours before reassembling. Do not use the vacuum with wet filters.
6. Reassemble the filter components and place them back into the dust tank, then reattach the dust tank to the main unit.

Billede 6.2: En eksploderet view showing the washable filter components being cleaned with water, emphasizing their easy maintenance.

6.3. Cleaning the Brush Rolls:

1. Turn off the vacuum cleaner and detach the motorized floor brush.
2. Locate the brush roll release mechanism on the side of the floor brush and open it.
3. Fjern børsterullen.
4. Brug en saks eller en børste til at fjerne sammenfiltrede hår, tråde eller snavs fra børsterullen.
5. Reinsert the clean brush roll and secure the release mechanism.

7. Fejlfinding

If you encounter any issues with your Taurus HS-2900, refer to the following table for common problems and solutions.

8. Tekniske specifikationer

9. Garanti og support

The Taurus HS-2900 vacuum cleaner comes with a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

9.1. Garantiundtagelser:

• Skader forårsaget af forkert brug, uagtsomhed eller ulykke.
• Normal wear and tear, including filters and brush rolls.
• Skader som følge af uautoriserede reparationer eller ændringer.

9.2. Kundesupport:

For warranty claims, technical assistance, or spare parts, please contact Taurus customer support through their official website or the retailer where the product was purchased. Please have your proof of purchase and product model number ready.
