Indledning
This manual provides comprehensive instructions for the safe and proper assembly, operation, maintenance, and troubleshooting of your Ingenuity AnyWay Sway OM-9M Baby Swing. Please read all instructions before assembly and use. Keep this manual for future reference.
Sikkerhedsoplysninger
Always ensure the safety of your child by following these guidelines:
- Efterlad aldrig barnet uden opsyn.
- Brug ikke dette produkt, hvis det er beskadiget eller ødelagt.
- Brug altid fastholdelsessystemet.
- Flyt eller løft ikke produktet, mens barnet sidder i det.
- Maksimal vægtkapacitet: 20 lbs (9 kg).
- Recommended age range: 0-9 months.
Opsætning og montering
The Ingenuity AnyWay Sway OM-9M requires assembly. Follow these steps carefully:
- Unpack all components and verify against the parts list (not provided in data, so generalize).
- Assemble the frame components securely. Ensure all connections click into place or are tightened as per instructions.
- Attach the seat unit to the assembled frame.
- Install batteries (if applicable) into the control unit. The product requires batteries.
Image: The Ingenuity AnyWay Sway OM-9M Baby Swing fully assembled, showing its grey and white design with a plush seat and toy bar.
Betjeningsvejledning
Your AnyWay Sway swing offers multiple features for your baby's comfort and entertainment.
Swing and Seat Functionality
The unique design allows the seat to rotate 180 degrees and swing in three different directions, providing versatile motion options for your baby.

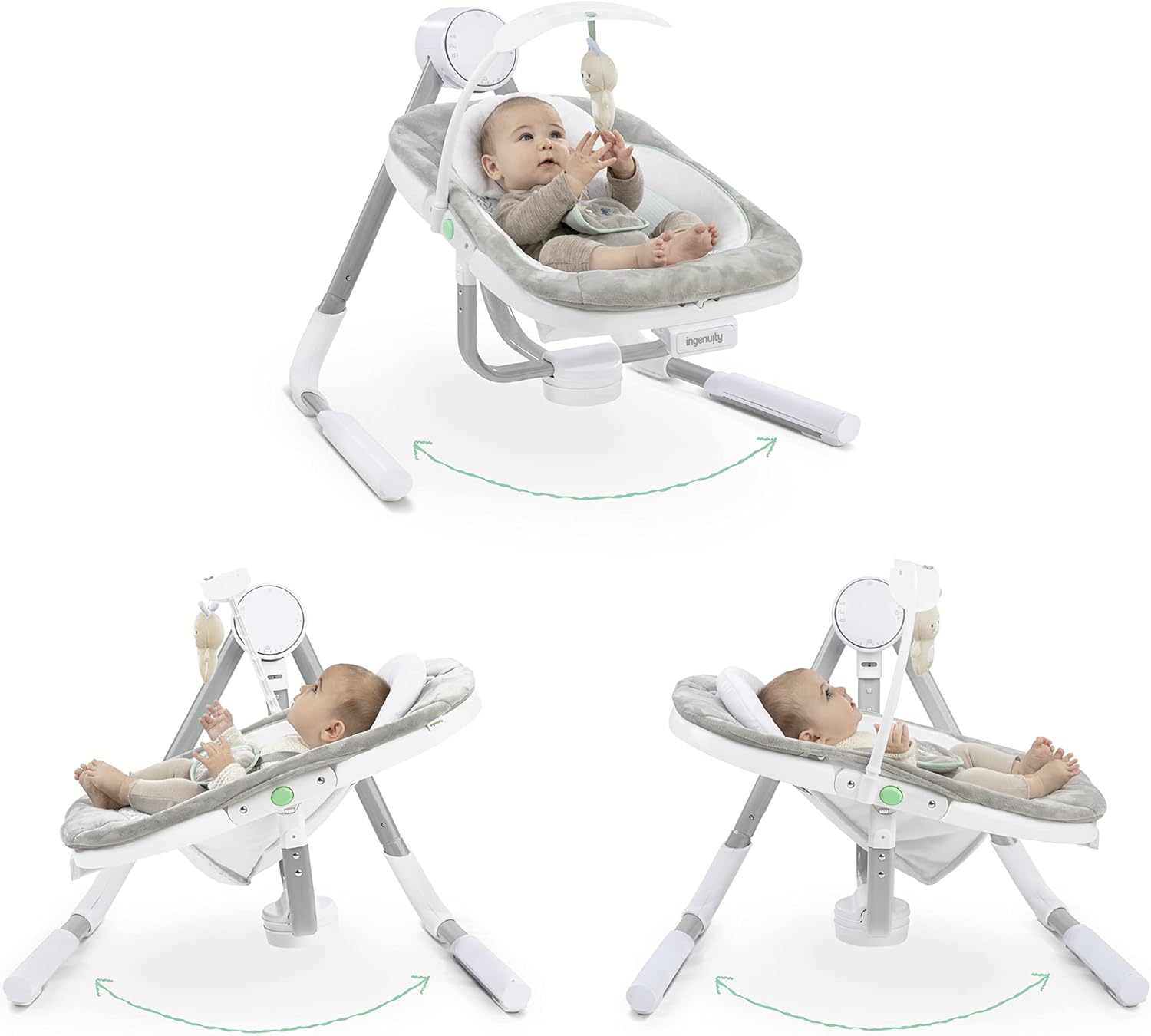

Image: A baby comfortably seated in the Ingenuity AnyWay Sway swing, illustrating the swing's ability to rotate 180 degrees and swing in three directions for varied motion.
Image: A parent gently adjusting the seat of the Ingenuity AnyWay Sway swing, highlighting its 180-degree rotation capability.
Control Panel and Sounds
The integrated control panel allows you to select swing speeds, activate soothing sounds, and set timers. Refer to the icons on the panel for specific functions.

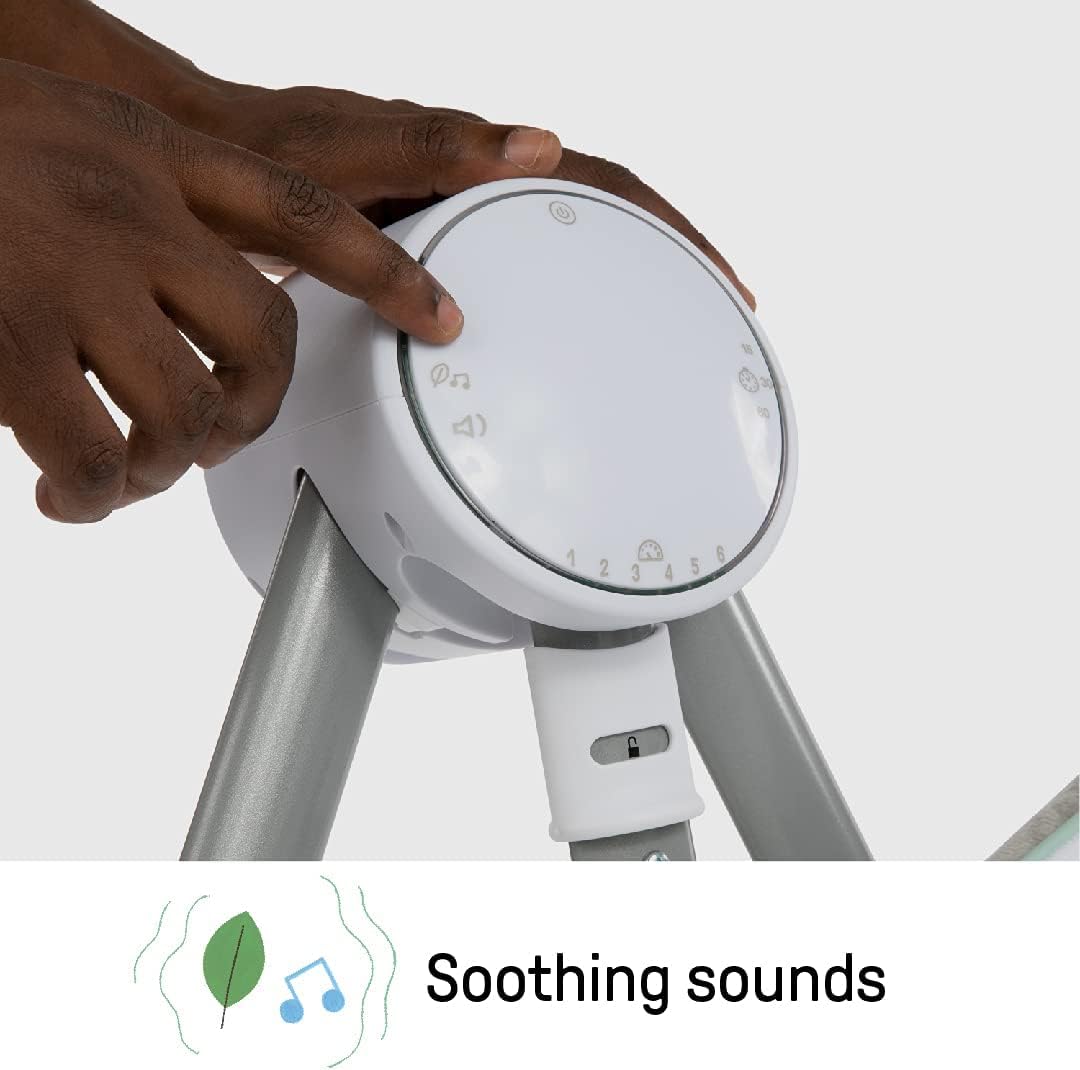

Billede: Et nærbillede view of the swing's control panel, showing the buttons for power, music, volume, and swing speed, with an emphasis on the soothing sounds feature.
Image: The control panel of the Ingenuity AnyWay Sway swing, featuring a lock icon, indicating a safety or setting lock function.
Toy Bar Interaction
The removable toy bar with a plush toy provides engaging entertainment for your baby.
Image: A baby reaching up to interact with the plush toy suspended from the toy bar of the Ingenuity AnyWay Sway swing.
Vedligeholdelse og pleje
Proper care ensures the longevity and hygiene of your Ingenuity AnyWay Sway swing.
- Legetøjsbar og legetøj: Rengør med annonceamp klud og mild sæbe. Lufttør. Må ikke nedsænkes i vand.
- Ramme: Tør metalrammen af med en blød, ren klud og mild sæbe.
- Sædepude: Remove from frame. Fasten buckles and all hook-and-loop patches. Machine wash with cold water, gentle cycle. Do not bleach. Tumble dry low.
- Nakkestøtte: Fasten all hook-and-loop patches. Machine wash with cold water, gentle cycle. Do not bleach. Air dry flat.
Image: A laundry basket filled with clothes resting on a washing machine, visually representing the cleaning and care instructions for the swing's fabric components.
Opbevaring
When storing the swing, always keep it in a dry place, away from any heat sources and out of direct sunlight.
Image: A person carrying the Ingenuity AnyWay Sway swing in its folded position, demonstrating its portability and ease of storage.
Fejlfinding
If you encounter issues with your Ingenuity AnyWay Sway swing, refer to the common problems and solutions below:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Gyngen tænder eller fungerer ikke. | Batterierne er lave eller forkert installeret. | Check battery orientation and replace with fresh batteries. Ensure power button is pressed firmly. |
| Swing makes squeaking noises. | Friktion i bevægelige dele. | Ensure all assembly points are secure. Apply a small amount of silicone lubricant to pivot points if necessary (avoid contact with child). |
| Sound/music not working or distorted. | Speaker issue or low battery. | Udskift batterierne. Kontakt kundesupport, hvis problemet fortsætter. |
| Touchscreen buttons unresponsive. | Elektronisk funktionsfejl. | Ensure batteries are fresh. Try resetting the unit by removing and reinserting batteries. If problem continues, contact customer support. |
Specifikationer
| Attribut | Detalje |
|---|---|
| Mærke | Opfindsomhed |
| Model | OM-9M (Also known as 12058) |
| Produktdimensioner | 92.99 x 72.01 x 67.01 cm (36.61 x 28.35 x 26.38 tommer) |
| Varens vægt | 7.58 kg (16.72 lbs) |
| Maksimal anbefalet belastning | 9 kg (20 lbs) |
| Anbefalet aldersgruppe | 0-9 måneder |
| Materiale Type | 52% metal, 38% plastic, 10% fabric (Seat: 50% metal, 35% plastic, 10% fabric, 5% polyester filling) |
| Montering påkrævet | Ja |
| Batterier påkrævet | Ja |
| Farve | Spruce (Grey) |
| Transportabel | Ja |
| UPC | 074451130944, 074451120587 |
Image: A diagram illustrating the key dimensions (height, width, depth) and maximum weight/age limits for the Ingenuity AnyWay Sway baby swing.
Garanti og support
For garantioplysninger og kundesupport henvises til producentens officielle website or contact their customer service directly. Extended warranty options may be available through third-party providers.
Visit the official Ingenuity store for more products and support: Ingenuity Store
