1. Introduktion
This manual provides essential information for the safe and effective operation, setup, and maintenance of your JAMARA 404980 JCB Loader. Please read these instructions carefully before using the product to ensure proper function and longevity.
Image 1.1: The JAMARA 404980 JCB Loader and its remote control.
2. Sikkerhedsoplysninger
- Advarsel: Anvendes under direkte opsyn af en voksen.
- Advarsel: Not suitable for children under 36 months. Contains small parts that can be swallowed. Choking hazard. Keep away from small children.
- Always operate the vehicle in a safe environment, away from obstacles, people, and pets.
- Må ikke anvendes i nærheden af vand eller i våde forhold for at undgå elektrisk skade.
- Sørg for, at batterierne er isat med den korrekte polaritet.
- Bland ikke gamle og nye batterier eller forskellige typer batterier.
- Remove batteries from the vehicle and remote control when not in use for extended periods.
3. Hvad er der i æsken
- Model (JCB Loader)
- Remote control 2.4 GHz
- Instruktionsmanual
4. Opsætning
4.1 Batteriinstallation
- Køretøj: Locate the battery compartment on the underside of the JCB Loader. Open the cover, insert the required batteries (not included) ensuring correct polarity (+/-), and close the cover securely.
- Fjernbetjening: Locate the battery compartment on the back of the remote control. Open the cover, insert the required batteries (not included) ensuring correct polarity (+/-), and close the cover securely.
4.2 Parring af fjernbetjeningen
The 2.4 GHz remote control typically pairs automatically with the vehicle upon power-up. Ensure both the vehicle and the remote control have fresh batteries installed and are switched ON. If pairing does not occur, switch both devices OFF, then ON again, keeping them close to each other.

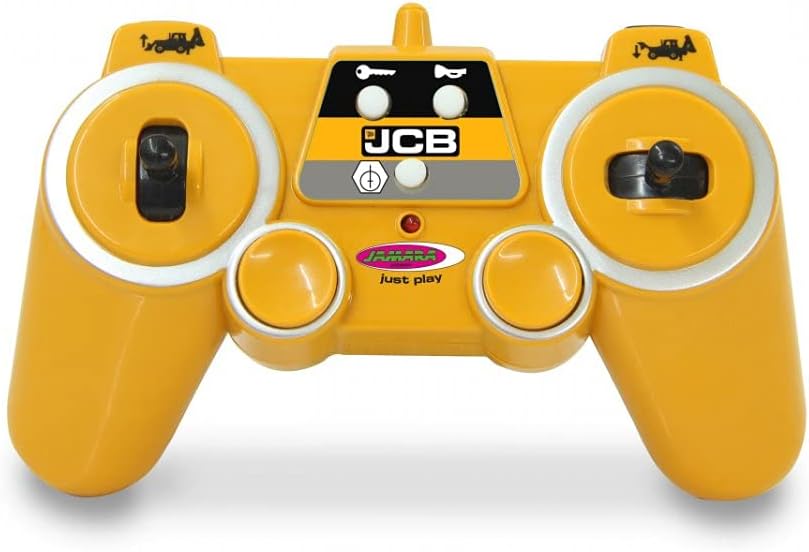

Image 4.1: The 2.4 GHz Remote Control.
5. Betjeningsvejledning
The JAMARA 404980 JCB Loader offers realistic functions controlled via the 2.4 GHz remote control.
5.1 Kørekontroller
- Use the left joystick to control forward/backward movement.
- Use the right joystick to control left/right steering.
- The vehicle features 2-wheel drive for maneuverability.
5.2 Loader and Excavator Functions
- Front Shovel: Use designated buttons on the remote control to lift, lower, and tilt the front shovel.
- Rear Shovel: The rear shovel can be manually lifted, lowered, and tilted.
- Rear Excavator: The rear excavator arm can be manually moved left and right.
- Retractable Boom: The boom of the excavator is manually retractable.
Image 5.1: JCB Loader with front shovel raised.
Image 5.2: JCB Loader with rear excavator extended.
5.3 Sound and Light Features
- Motorlyd: The model features a realistic engine sound, which can be switched off via the remote control.
- Horn: Activate the horn sound using the designated button.
- Reversing Warning Sound: A warning sound will activate when the vehicle is driven in reverse.
- Indikator: The vehicle is equipped with an indicator light.
5.4 Avancerede funktioner
- Programmerbare funktioner: The remote control allows for programmable functions with a repeat function. Refer to the remote control diagram for specific button assignments.
- Automatisk standbytilstand: The vehicle may enter an auto standby mode after a period of inactivity to conserve battery life.
- Demotilstand: A demo mode may be available to showcase the vehicle's functions.
6. Vedligeholdelse
- Rensning: Wipe the vehicle and remote control with a soft, dry cloth. Do not use water or chemical cleaners.
- Opbevaring: Opbevar produktet på et køligt, tørt sted væk fra direkte sollys, når det ikke er i brug.
- Batteripleje: Fjern batterierne, hvis produktet ikke skal bruges i længere tid, for at forhindre lækage.
- Kontroller regelmæssigt for løse skruer eller beskadigede dele.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køretøjet reagerer ikke | Low batteries in vehicle or remote; Not paired; Power switch OFF | Replace batteries; Re-pair vehicle and remote; Ensure power switches are ON |
| Kort kontrolområde | Low batteries; Interference | Replace batteries; Move to an area with less electronic interference |
| Functions (shovel/excavator) not working | Low batteries; Mechanical obstruction | Replace batteries; Check for any physical obstructions and clear them carefully |
| Engine sound not working | Sound function switched off; Low batteries | Activate sound via remote; Replace batteries |
8. Specifikationer
- Modelnummer: 404980
- Mærke: Jamara
- Skala: 1:20
- Kontrolfrekvens: 2.4 GHz
- Produktdimensioner: 24.02 x 5.51 x 6.5 tommer
- Varens vægt: 2.95 pund
- Anbefalet alder: 6 år og opefter
- Køre: 2-hjulstræk
- Funktioner: Lift/Lower/Tilt Shovel, Manual Rear Shovel/Excavator, Realistic Engine Sound (switchable), Horn, Reversing Warning Sound, Indicator, Programmable Functions, Auto Standby Mode, Demo Mode.
9. Garanti og support
For warranty information and customer support, please refer to the official Jamara webwebstedet eller kontakt din forhandler. Gem din købskvittering som købsbevis.
For more information, visit the official product page: JAMARA 404980 Product Page
