1. Introduktion
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Hannspree HO275PTB LED-Monitor. Please read this manual thoroughly before using the product to ensure proper and safe operation.

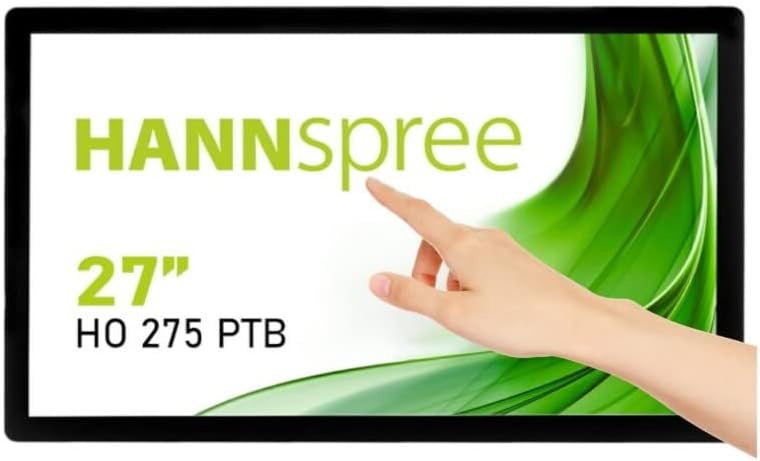

Figur 1.1: Forside view of the Hannspree HO275PTB LED-Monitor, showcasing its 27-inch display and touch functionality.
2. Opsætning
2.1 Udpakning
Fjern forsigtigt alle komponenter fra emballagen. Sørg for, at alle nedenstående dele er til stede:
- Hannspree HO275PTB LED-Monitor
- Strømkabel
- HDMI-kabel (kan variere afhængigt af region)
- USB-kabel (til berøringsfunktionalitet)
- Brugervejledning (dette dokument)
2.2 Fysisk installation
The monitor can be placed on a flat surface or mounted using a VESA-compatible mount (not included).
Figur 2.1: Sideprofile of the monitor, illustrating its slim design.
Figur 2.2: Bagside view of the monitor, highlighting the VESA mounting holes for wall or arm installation.
2.3 Tilslutningskabler
Connect the necessary cables to the corresponding ports on the back of the monitor. Ensure all connections are secure.
- Strømtilslutning: Tilslut strømkablet til skærmens strømindgang og derefter til en stikkontakt.
- Videoforbindelse: Connect an HDMI or DisplayPort cable from your computer's video output to the corresponding input on the monitor.
- USB Connection (for Touch): Connect the USB cable from your computer to the USB upstream port on the monitor to enable touch functionality.
- Lydforbindelse: If using external speakers or headphones, connect them to the audio output port.
Figur 2.3: Detaljeret view of the monitor's connectivity ports, including power, USB, HDMI, and DisplayPort.
3. Betjening af monitoren
3.1 Tænd/sluk
Tryk på tænd/sluk-knappen på skærmen for at tænde eller slukke den. Strømindikatorlampen lyser, når skærmen er tændt.
3.2 Indgangsvalg
The monitor automatically detects the active video input. If multiple sources are connected, you may need to manually select the input using the monitor's on-screen display (OSD) menu.
3.3 On-Screen Display (OSD) menu
Access the OSD menu to adjust various display settings such as brightness, contrast, color temperature, and aspect ratio. Refer to the quick start guide for specific button functions.
3.4 Berøringsfunktionalitet
The Hannspree HO275PTB features multi-touch capability. Ensure the USB cable is connected to your computer for this feature to work. Drivers may be required for certain operating systems.
4. Vedligeholdelse
4.1 Rengøring af monitoren
For at rengøre skærmen skal du forsigtigt tørre den af med en blød, fnugfri klud. Ved genstridige mærker, dampTør kluden let med vand eller et ikke-slibende skærmrensemiddel. Sprøjt ikke væske direkte på skærmen.
Til skærmen casing, use a soft, dry cloth. Avoid using strong detergents or abrasive cleaners.
4.2 Opbevaring
When storing the monitor for an extended period, disconnect all cables and place it in its original packaging or a protective cover to prevent dust accumulation and damage.
5. Fejlfinding
Hvis du støder på problemer med din skærm, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Strømkablet er ikke tilsluttet, eller der er et problem med stikkontakten. | Ensure power cable is securely connected to both the monitor and a working power outlet. |
| Intet signal | Videokabel ikke tilsluttet, eller forkert indgang valgt. | Check video cable connections (HDMI/DisplayPort). Select the correct input source via the OSD menu. |
| Display is Blurry/Distorted | Forkert opløsning eller opdateringshastighed. | Indstil din computers skærmopløsning til 1920x1080 og opdateringshastigheden til 60Hz. |
| Touch-funktionen virker ikke | USB cable not connected or driver issue. | Ensure the USB upstream cable is connected. Install or update touch screen drivers for your operating system. |
6. Specifikationer
Below are the technical specifications for the Hannspree HO275PTB LED-Monitor:
- Model: HO275PTB
- Skærmstørrelse: 27 tommer
- Opløsning: FHD 1080p (1920 x 1080 pixels)
- Aspektforhold: 16:9
- Skærmoverflade: Flad
- Fabrikant: HANNSPREE
- Produktdimensioner: 1.85 x 21.61 x 15.24 tommer (4.7 x 54.9 x 38.7 cm)
- Varens vægt: 19.36 pund (8.78 kg)
- Voltage: 220V
- Opdateringshastighed: 60 Hz
- Energieffektivitetsklasse (SDR): D
- Strømforbrug (SDR): 16.8 W
Figure 6.1: Energy label for the Hannspree HO275PTB, indicating its energy efficiency class and consumption.
For detailed product information and energy efficiency data, please refer to the official EPREL database:
7. Garanti og support
7.1 Garantioplysninger
The Hannspree HO275PTB LED-Monitor comes with a minimum guaranteed product support period of 8 år and a general warranty period of 3 år leveret af leverandøren.
7.2 Kundesupport
For technical assistance, warranty claims, or general inquiries, please contact Hannspree customer support:
- Webwebsted: www.hannspree.com
- E-mail: service@eu.hannspree.com
- Telefon: +49 (0) 21 59 / 81 45 7 - 0
