VOLTCRAFT SDM-2125 Lagtykkelsesmåler Brugermanual

1. Introduktion

This user manual provides detailed instructions for the operation and maintenance of the VOLTCRAFT SDM-2125 Coating Thickness Gauge. This device is designed for high-precision and non-destructive measurements of coating thickness on both ferrous and non-ferrous metal substrates. It automatically detects the substrate material and determines the coating thickness using magnetic flux or eddy current principles.

The SDM-2125 weighs approximately 180 g and can store up to 500 data groups. It features a clear display that indicates whether measured values are within set limits (green for within limits, red for below limit, yellow for exceeding limit). For energy efficiency, the device automatically switches off after five minutes of inactivity. It supports both single-point and multi-point measurements, and its advanced algorithm for calculating measurement averages ensures quick and accurate results.

Figur 1: Forside view af VOLTCRAFT SDM-2125 lagtykkelsesmåler, der viser displayet og betjeningsknapperne.

2. Nøglefunktioner

• Dual-Purpose Measurement: Suitable for both ferrous and non-ferrous metals.
• Måleprincipper: Utilizes both magnetic flux and eddy current measurement methods.
• Automatic Substrate Detection: Automatically identifies the underlying material (ferrous or non-ferrous).
• Datalagring: Capable of storing up to 500 data groups for comprehensive analysis.
• Flexible Measurement Modes: Offers two measurement options: single-point measurement or continuous multi-point measurement.
• Limit Value Indication: Visual feedback (green, red, yellow) to indicate if measurements are within, below, or above set limits.
• Automatisk slukning: Conserves battery life by automatically powering down after five minutes of inactivity.

Figure 2: The SDM-2125 displaying a measurement reading, highlighting its clear digital interface.

3. Opsætning

3.1 Udpakning og inspektion

1. Carefully remove the SDM-2125 device and all accessories from the packaging.
2. Inspect the device for any signs of damage during transit. If damage is found, do not proceed with setup and contact customer support.
3. Verify that all components listed in the packing list are present. This typically includes the main unit, calibration foils, and a zero-calibration plate.

3.2 Batteriinstallation

The SDM-2125 requires batteries for operation. (Note: Batteries are not included with the device.)

1. Find batterirummet på bagsiden af ​​enheden.
2. Åbn batterirummets dæksel.
3. Isæt de nødvendige batterier, og sørg for at polariteten vender korrekt som angivet i batterirummet.
4. Luk batterirummets dæksel forsvarligt.

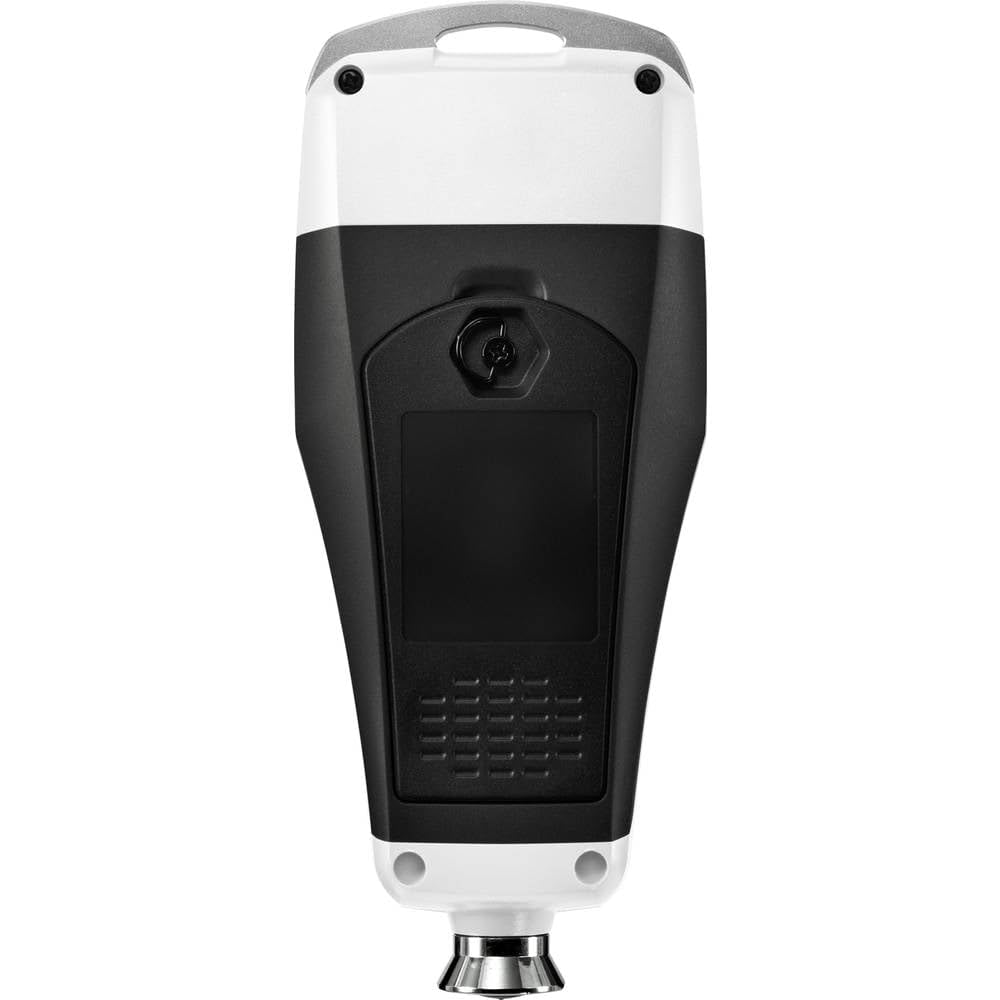

Figur 3: Bagside view of the SDM-2125, illustrating the battery compartment location.

3.3 Første opstart og kalibrering

1. Tryk på tænd/sluk-knappen for at tænde enheden.
2. Perform a zero-point calibration on a bare, uncoated metal substrate (ferrous and non-ferrous, if applicable) provided with the device. Follow the on-screen instructions or refer to the quick start guide for specific calibration steps.
3. Calibrate with the included calibration foils of known thickness to ensure accuracy across the measurement range.

4. Betjening

4.1 Grundlæggende måling

1. Ensure the device is powered on and calibrated.
2. Place the probe of the gauge firmly and perpendicularly onto the coated surface to be measured.
3. The device will automatically detect the substrate material (Fe for ferrous, NFe for non-ferrous) and display the coating thickness reading.
4. Observe the color indicator on the display for limit value status (green, red, or yellow).

4.2 Måletilstande

The SDM-2125 supports different measurement modes:

• Enkelt måletilstand: For individual readings at specific points. Press the probe, read the value, then lift the probe.
• Continuous Measurement Mode: For scanning a surface and obtaining multiple readings rapidly. Keep the probe in contact and slide it across the surface. The device will continuously update the reading.

4.3 Datalagring og -genkaldelse

The device can store up to 500 data groups.

• To save a measurement, refer to the device's specific button functions (e.g., a 'Save' or 'Memory' button).
• To recall stored data, navigate through the memory function using the designated buttons. The device typically displays statistics like average, minimum, and maximum values for stored groups.

Figure 4: The SDM-2125 showing a measurement value, demonstrating its capability to display various data points including number of readings, average, min, and max.

5. Vedligeholdelse

5.1 Rengøring

• Regularly clean the device's exterior with a soft, dry cloth.
• Til genstridigt snavs, en let damp cloth with mild detergent can be used, but ensure no liquid enters the device.
• Pay special attention to keeping the measurement probe clean and free of debris, as this can affect accuracy.
• Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier.

5.2 Opbevaring

• When not in use for extended periods, remove the batteries to prevent leakage and damage to the device.
• Store the device in its original case or a protective pouch to prevent scratches and impacts.
• Store in a cool, dry place, away from direct sunlight, extreme temperatures, and high humidity.

5.3 Kalibreringstjek

• Periodically check the calibration of the device using the provided calibration foils and zero-calibration plate.
• Recalibrate if readings are inconsistent or if the device has been subjected to significant temperature changes or impacts.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

For warranty information, technical support, or service inquiries regarding your VOLTCRAFT SDM-2125 Coating Thickness Gauge, please refer to the warranty card included with your product or visit the official VOLTCRAFT webwebsted.

You can also contact the seller, Conrad Electronic SE, for assistance with your purchase.

Online ressourcer:

• VOLTCRAFT Official Webwebsted: www.voltcraft.com (General link, specific link not provided in input)
• Conrad Electronic SE Seller Page: Sælgeroplysninger
