SelfieShow 61-inch Extendable Selfie Stick Tripod

Indledning

This manual provides comprehensive instructions for the safe and effective use of your SelfieShow 61-inch Extendable Selfie Stick Tripod, Model LDP-L05. Please read this manual thoroughly before operating the device and retain it for future reference.

Hvad er inkluderet

Pakken indeholder følgende varer:

• 1x Tripod Selfie Stick
• 1x Universal Phone Holder
• 1x GoPro Adapter
• 1x Wireless Remote Shutter

SelfieShow provides a 1-year hassle-free warranty and 24-hour friendly customer service for this product.

Produkt overview

The SelfieShow LDP-L05 is a versatile accessory designed for capturing photos and videos with enhanced stability and flexibility. It functions as both an extendable selfie stick and a stable tripod.

Figure 1: SelfieShow 61-inch Selfie Stick Tripod in various configurations.

Nøglekomponenter og funktioner:

• Selfie Stick Tripod Combo: The device integrates a phone holder and a camera quick release plate. The phone clip is adjustable to accommodate devices between 6.5-10cm. A standard 1/4-inch screw allows for camera mounting.

Figur 2: Detaljeret view of the tripod's components and features.
• Udvidbar længde: The stick extends from 13.2 inches to 61.4 inches, offering a longer reach than standard models for wider shots and group photos.


Figure 3: The tripod's adjustable height settings.

• Justerbar rotation: Features a 225° neck rotation and a 360° head rotation, allowing for flexible angle adjustments for optimal shooting.


Figure 4: Illustrates the 360° panoramic shooting feature.


Figure 5: Demonstrates the swivel panning head's range of motion.
• Trådløs fjernudløser: A pocket-sized wireless remote control enables easy photo and video capture from up to 30 feet away. It offers fast response and stable connection, compatible with most smartphones without requiring app downloads.


Figure 6: The wireless remote control in use.

• Bred kompatibilitet: The universal phone holder fits most smartphones (with or without a case) and is compatible with various iPhone and Android models. The 1/4-inch screw allows mounting of digital cameras, DSLRs, SLRs, action cameras (like GoPro), webcams, and camcorders.

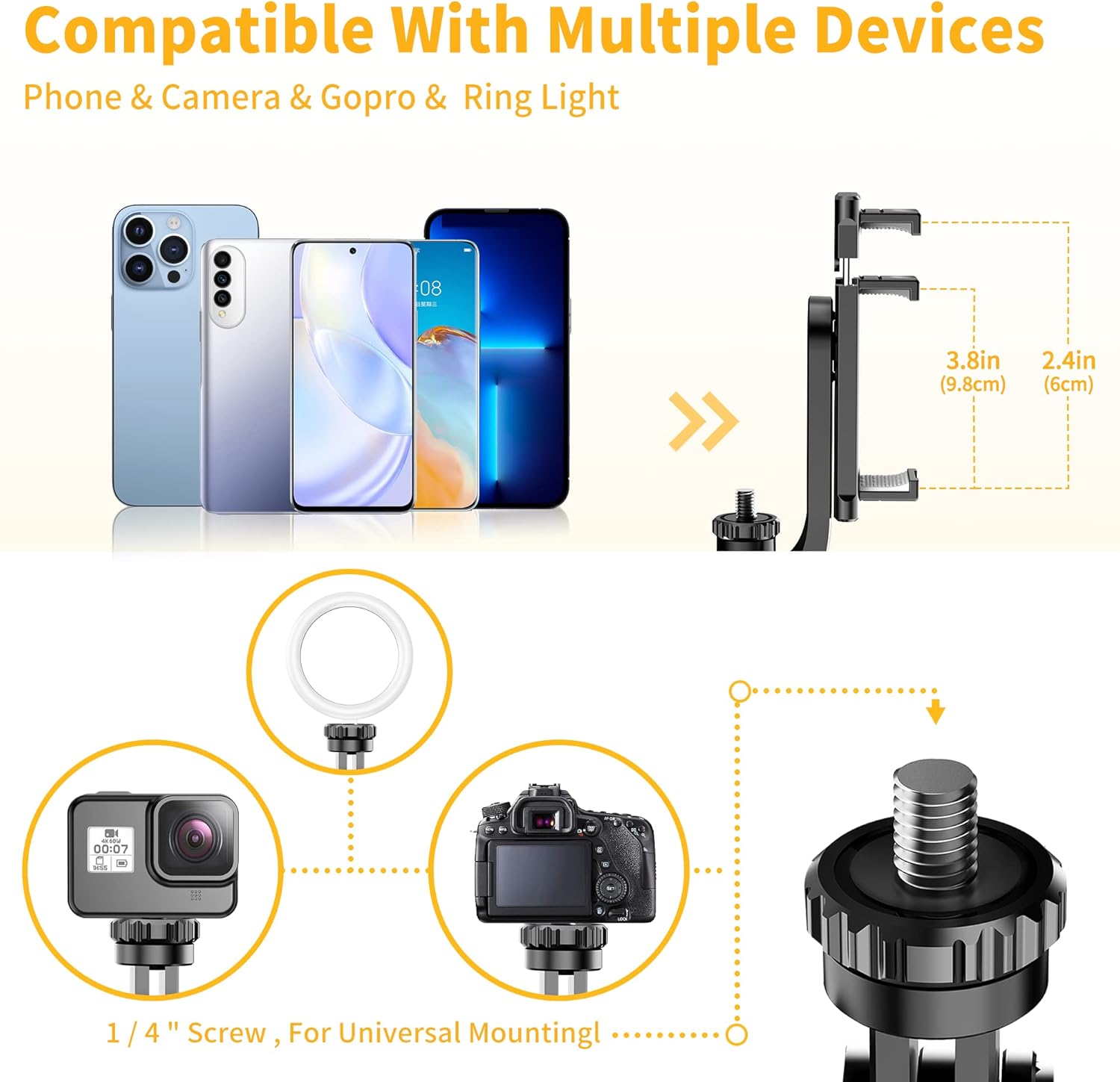

Figure 7: Compatibility with multiple devices.

Opsætningsinstruktioner

1. Unfolding the Tripod:

1. Hold godt fast i håndtaget.
2. Gently pull the bottom part of the handle downwards to release the tripod legs.
3. Spread the three legs outwards until they form a stable base.

2. Attaching Your Device:

1. Til smartphones: Extend the universal phone holder to fit your smartphone securely. Ensure the phone is centered and stable within the holder.
2. For Cameras/GoPro: If using a camera or GoPro, remove the phone holder (if attached) and screw your device onto the 1/4-inch screw mount. Ensure it is tightened securely.

3. Pairing the Wireless Remote Shutter:

1. Locate the wireless remote shutter, typically integrated into the handle. Slide it out to detach.
2. Turn on the remote by pressing and holding the power button until an indicator light (usually blue) flashes.
3. Gå til Bluetooth-indstillinger på din smartphone, og søg efter tilgængelige enheder.
4. Select the device named "Selfie" or similar (refer to remote for exact name) to pair. The indicator light will stop flashing once successfully paired.
5. The remote is now ready to use for capturing photos and videos.

Betjeningsvejledning

1. Using as a Selfie Stick:

1. Ensure the tripod legs are folded and secured within the handle.
2. Forlæng aluminiumsstangen til den ønskede længde.
3. Adjust the phone holder or camera to the desired angle using the 225° neck rotation and 360° head rotation.
4. Use the wireless remote shutter to capture photos or start/stop video recording.

2. Using as a Tripod:

1. Unfold the tripod legs as described in the Setup section, ensuring a stable base on a flat surface.
2. Extend the rod to the required height.
3. Position your device using the adjustable head for optimal framing.
4. Utilize the wireless remote shutter for hands-free operation.

Figure 8: Various usage scenarios for the tripod.

Opretholdelse

• Rengør enheden med en blød, tør klud. Undgå at bruge skrappe kemikalier eller slibende materialer.
• Opbevar stativet et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Ensure all screws and connections are tightened before each use to maintain stability.
• If the remote control battery needs replacement, refer to the remote's specific instructions for battery type and replacement procedure.

Fejlfinding

Fjernbetjeningen forbinder ikke:

• Sørg for, at fjernbetjeningen er opladet eller har et nyt batteri.
• Bekræft, at Bluetooth er aktiveret på din smartphone.
• Make sure the remote is within the 30-foot operating range.
• Try unpairing and re-pairing the remote in your phone's Bluetooth settings.

Stativustabilitet:

• Sørg for, at stativbenene er helt udstrakte og låst på plads på en plan, stabil overflade.
• Check that your device is securely mounted and balanced on the holder.
• Avoid extending the rod to its maximum length in windy conditions or on uneven terrain.

Phone Holder Not Gripping Securely:

• Ensure your phone's dimensions are within the specified range (6.5-10cm).
• Check for any obstructions or debris in the phone holder's grip pads.

Specifikationer

Garanti og support

Your SelfieShow 61-inch Extendable Selfie Stick Tripod is covered by a 1-year hassle-free warranty. For any inquiries, technical assistance, or warranty claims, please contact SelfieShow customer service. Our team is available 24 hours to provide friendly support.
