Enthuze 4 cykelstativ brugermanual

Produkt overview

The Enthuze 4-Bike Rack is a robust and practical solution designed for transporting up to four bicycles. It features a durable steel frame compatible with both 1.25-inch and 2-inch receiver tubes. Its narrow arm design accommodates most bicycle types, and the arms can be folded down when not in use for compact storage. The rack also includes a tilt function, allowing convenient access to your vehicle's trunk without removing the bikes. An anti-rattle hitch pin is included to ensure a secure and stable connection. The rack has a maximum weight capacity of 120 lbs (54.4 kg).

Opsætning og installation

Proper installation is crucial for the safe and secure transport of your bicycles. Follow these steps carefully:

1. Forbered dit køretøj: Ensure your vehicle is equipped with either a 1.25-inch or 2-inch hitch receiver. Clean the inside of the receiver tube if necessary.
2. Insert the Rack into the Receiver: Slide the main mast of the bike rack into your vehicle's hitch receiver. Align the hitch pin hole on the rack with the hole on your receiver.
3. Sikre med anhængertræksstift: Insert the provided anti-rattle hitch pin through the aligned holes. Secure it with the cotter pin or clip to prevent it from coming loose. Ensure the connection is tight to minimize movement and rattling during transit.
4. Bekræft stabilitet: Once installed, gently shake the rack to confirm it is securely fastened and does not wobble excessively.

Betjeningsvejledning

Læsning af cykler

The rack is designed to carry up to four bicycles with a combined weight not exceeding 120 lbs (54.4 kg). The narrow arm design accommodates most bike frames.

1. Udfold armene: If the carrying arms are folded, release the locking mechanism and extend them horizontally until they click into place.
2. Position Bikes: Lift each bicycle and place its top tube onto the rack's carrying arms. Ensure the bikes are evenly distributed and do not obstruct vehicle lights or license plates.
3. Secure Bikes: Use the integrated straps or cradles on the rack arms to firmly secure each bicycle. Ensure all straps are tightened to prevent bikes from swaying or coming loose during travel.
4. Tjek klarering: Before driving, verify that the lowest point of the bikes (e.g., front wheel) has sufficient ground clearance, especially over speed bumps or uneven terrain.

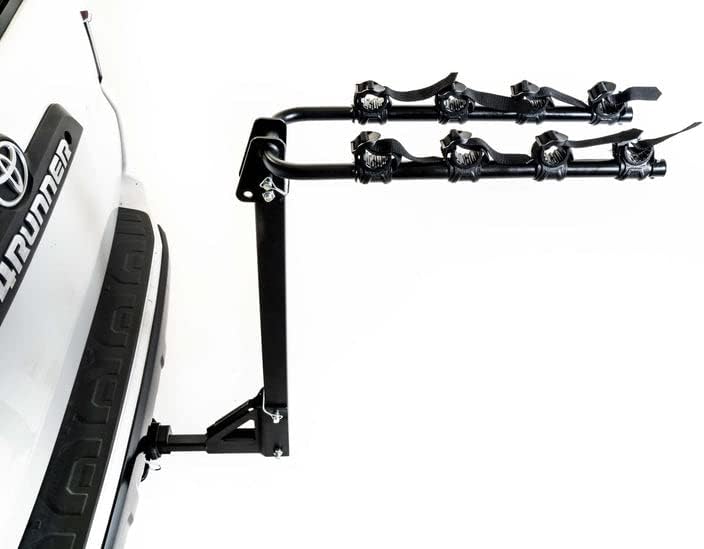

Folding Arms for Storage

When not transporting bikes, the carrying arms can be folded down to reduce the rack's profile and for easier parking or storage.

• Locate the arm folding mechanism (usually a pin or lever) at the base of the carrying arms.
• Release the mechanism and carefully fold the arms downwards until they are parallel with the main mast.
• Ensure the arms are securely locked in the folded position.

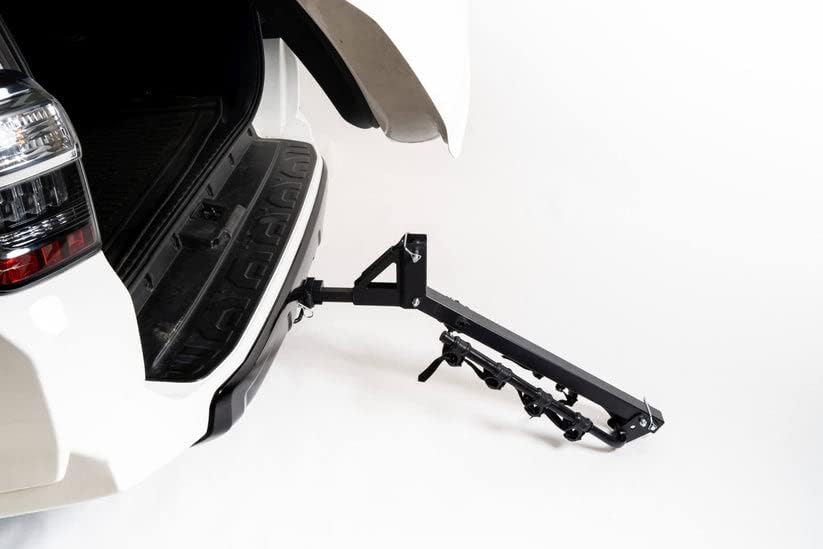

Tilting for Trunk Access

The rack features a tilt function, allowing you to access your vehicle's trunk or tailgate without removing the entire rack or the bikes.

• Ensure bikes are securely fastened or removed if necessary for easier tilting.
• Locate the tilt release mechanism (typically a pin or lever near the base of the main mast).
• Release the mechanism and carefully tilt the rack downwards, away from the vehicle.
• After accessing the trunk, lift the rack back into its upright position until it locks securely.

Opretholdelse

Regular maintenance will extend the life of your Enthuze 4 Bike Rack and ensure its safe operation.

• Rengør regelmæssigt: Tør stativet af med adamp cloth to remove dirt, road grime, and salt, especially after use in adverse weather conditions.
• Inspicer fastgørelseselementer: Periodically check all bolts, nuts, and pins to ensure they are tight and secure. Re-tighten any loose fasteners.
• Smør bevægelige dele: Apply a small amount of lubricant to hinges, pivot points, and the hitch pin mechanism to ensure smooth operation and prevent rust.
• Check Straps/Cradles: Inspect the bike securing straps and cradles for signs of wear, cracks, or damage. Replace any worn components to ensure bikes remain secure.
• Opbevar korrekt: When not in use, store the bike rack in a dry place, away from direct sunlight and extreme temperatures.

Fejlfinding

Here are solutions to common issues you might encounter with your bike rack:

• Rack-slingrer i anhængertræk:

  Ensure the anti-rattle hitch pin is fully inserted and tightened. Some movement is normal, but excessive wobbling indicates a loose connection. Verify the hitch receiver size matches the rack's compatibility (1.25" or 2").

• Difficulty Fitting 4 Bikes:

  While designed for four bikes, modern bike geometries (e.g., full suspension, large frames, or bikes with non-horizontal top tubes) can make fitting four bikes challenging due to limited space between fasteners. Try alternating bike directions, removing front wheels, or using frame adapters for bikes with unique frame shapes. Consider carrying fewer bikes if space is too tight.
• Bike Front Wheel Too Close to Ground:

  This can occur with certain vehicle types (e.g., lower SUVs) or bikes with aggressive geometry. Solutions include removing the front wheel of the bike, adjusting the bike's position on the rack, or considering a rack with a higher vertical mast if this is a persistent issue.

• Rack Twists at Support Level:

  Ensure the hitch pin is fully secured and the rack is properly seated in the receiver. Avoid exceeding the 120 lbs (54.4 kg) weight capacity. Distribute bike weight as evenly as possible.

Specifikationer

Garantioplysninger

The Enthuze 4 Bike Rack is covered by a 1 års garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, abuse, accidents, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

Support og kontakt

For technical assistance, parts, or warranty inquiries, please contact Enthuze Automotive Products customer support. Refer to the contact information provided with your product packaging or visit the official Enthuze webwebstedet for de mest opdaterede supportoplysninger.

Du kan også besøge Enthuze Store on Amazon for mere produktinformation og ressourcer.
