1. Introduktion
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Progress Lighting Everlume 24-Inch LED Linear Panel Light. Please read this manual thoroughly before installation and keep it for future reference.
2. Vigtige sikkerhedsoplysninger
Always follow basic safety precautions when installing, operating, or maintaining this product to reduce the risk of fire, electric shock, or injury to persons.
- ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen før installation eller service.
- Ensure all electrical connections are in accordance with local codes, ordinances, and the National Electric Code (NEC).
- Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
- Do not install near heat sources or in excessively damp steder.
- Dette produkt er kun designet til indendørs brug.
- ADVARSEL: Dette produkt kan udsætte dig for kemikalier, herunder bly, som er kendt af staten Californien for at forårsage kræft og fødselsdefekter eller anden reproduktionsskade. For mere information gå til www.P65Warnings.ca.gov.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede, før installationen påbegyndes.
Figur 3.1: Package Contents and Hardware. This image displays a diagram of the fixture and base plate, along with illustrations of the included hardware: wire nuts, plastic anchors, and wall mounting screws, indicating quantities for each.
| Del | Beskrivelse | Mængde |
|---|---|---|
| A | Armatur | 1 |
| B | Base (Back Plate) | 1 |
Hardware Contents (Refer to Figure 3.1 for visual reference)
- Wire Nuts: Used for securing electrical connections. (Quantity: 3)
- Plastic Anchors: For securing the fixture to drywall if a stud is not available. (Quantity: 4)
- Wall Mounting Screws: Used with plastic anchors or directly into studs for mounting. (Quantity: 4)
Note: The hardware images in Figure 3.1 are illustrative and not to scale.
4. Produktspecifikationer
| Attribut | Detalje |
|---|---|
| Modelnummer | P810032-028-30 |
| Mærke | Fremskridtsbelysning |
| Dimensioner (L x B x H) | 23.75 cm x 11.93 cm x 1.25 cm |
| Lyskilde | Integreret LED |
| Wattage | 21W (Integrated LED) |
| Farvetemperatur | 3000K |
| CRI | 90 |
| Lumen output | 1587 delivered lumens |
| Voltage | 120 volt |
| Dæmpbar | Ja |
| Materiale | Aluminum, Glass (Shade) |
| Slutte | Satin hvid |
| Installationstype | Flush Mount |
| Indendørs/Udendørs brug | Indendørs |
Figur 4.1: Product Dimensions. This image illustrates the length (23.75 inches) and height (1.242 inches) of the linear panel light.
5. Opsætning og installation
Before you begin, ensure the power is turned off at the circuit breaker. It is recommended to have two people for installation.
Nødvendige værktøjer (ikke inkluderet):
- Phillips skruetrækker
- Afisoleringstænger
- Elektrisk tape
- Sikkerhedsbriller
- Stige
Installationstrin:
- Sluk for strømmen: Locate the circuit breaker controlling the light fixture's location and turn it OFF. Verify power is off using a voltage tester.
- Forbered monteringsoverfladen: Hvis du udskifter en eksisterende armatur, skal du forsigtigt fjerne den. Sørg for, at samledåsen er sikkert monteret og kan bære armaturets vægt.
- Fastgør monteringsplade: Secure the fixture's base (Part B) to the junction box using the provided screws. Ensure it is flush and stable.
- Foretag elektriske forbindelser:
- Tilslut sort ledningen fra armaturet til sort (varm) ledning fra samledåsen ved hjælp af en trådmøtrik.
- Tilslut hvid ledningen fra armaturet til hvid (neutral) ledningen fra samledåsen ved hjælp af en trådmøtrik.
- Tilslut jord ledningen fra armaturet til jord wire from the junction box (or to the bare copper wire from the junction box) using a wire nut.
- Stik forsigtigt alle ledninger ind i samledåsen.
- Sikker armatur: Align the fixture (Part A) with the base plate (Part B) and secure it using the provided screws. Ensure the fixture is flush against the ceiling/wall and no gaps are visible.
- Gendan strøm: Turn the power back ON at the circuit breaker. Test the light fixture to ensure it functions correctly.

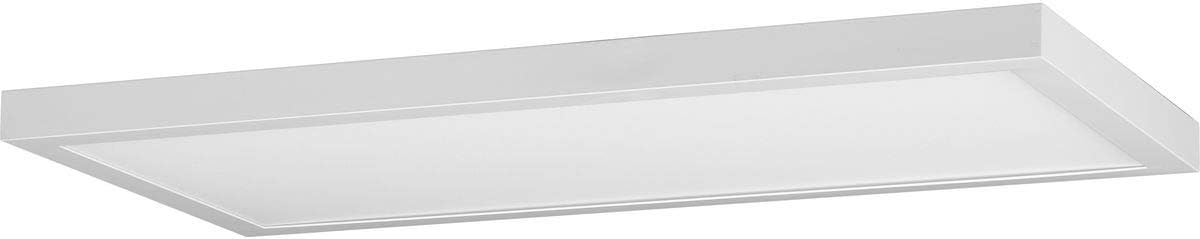

Figur 5.1: Installed Linear Panel Light. This image shows the sleek, low-profile appearance of the light fixture once installed.
6. Betjeningsvejledning
The Everlume Collection LED Linear Panel Light is designed for simple operation.
Tænd/sluk:
Operate the light fixture using a standard wall switch connected to the circuit. Flip the switch to the 'ON' position to illuminate the light and to the 'OFF' position to turn it off.
Dæmpningsfunktion:
This fixture is dimmable. To utilize the dimming feature, ensure you have installed a compatible LED dimmer switch (sold separately) in place of a standard wall switch. Follow the dimmer switch manufacturer's instructions for operation.
Note: Not all dimmer switches are compatible with LED fixtures. Refer to the dimmer switch manufacturer's specifications for compatibility.
7. Vedligeholdelse
Regelmæssig vedligeholdelse vil bidrage til at bevare din lampes udseende og funktionalitet.
- Rensning: Before cleaning, ensure the power to the fixture is turned off. Use a soft, dry, or slightly damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
- LED lyskilde: The LED light source is integrated and not user-replaceable. If the LED fails, the entire fixture may need to be replaced. Refer to the warranty information for details.
- Inspektion: Periodically inspect the fixture for any signs of damage, loose wiring, or wear. If any issues are found, disconnect power and consult a qualified electrician or contact customer support.
8. Fejlfinding
Hvis du oplever problemer med din lampe, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. |
|
|
| Lyset flimrer eller dæmpes ujævnt. |
|
|
| Summende lyd fra armaturet. |
|
|
Hvis problemet fortsætter efter at have prøvet disse løsninger, bedes du kontakte kundesupport.
9. Garanti og kundesupport
Garantioplysninger:
Dette Progress Lighting-produkt er dækket af en 5 års begrænset garanti. This warranty guarantees your complete satisfaction with your purchase and covers defects in materials and workmanship under normal use. It does not cover damage due to improper installation, misuse, abuse, or acts of nature.
For full warranty terms and conditions, please refer to the official Progress Lighting webwebsted eller kontakt kundesupport.
Kundesupport:
If you have any questions, require technical assistance, or need to report a missing part, please contact Progress Lighting Customer Service:
- Telefon: 1-800-447-0573
- E-mail: kundeservice@progresslighting.com
- Timer: 8am - 8pm (Eastern), Monday - Friday
Please have your model number (P810032-028-30) and date of purchase ready when contacting support.
