Xiaomi Mi Powerbank 3 Ultra Compact (PB1022ZM) 10000 mAh Brugermanual

Indledning

This manual provides essential instructions for the safe and efficient use of your Xiaomi Mi Power Bank 3 Ultra Compact (Model PB1022ZM). Please read this manual thoroughly before use and retain it for future reference.

Produkt overview

The Xiaomi Mi Power Bank 3 Ultra Compact is a portable charging device designed to provide power to your electronic devices on the go. It features a 10000 mAh capacity and multiple charging ports.

Enhedslayout

This image displays the front of the power bank, highlighting its compact design and textured finish for improved grip. The Mi logo is centrally located.

Denne view shows the top edge of the power bank, detailing all available ports and indicators. From left to right, there are two standard USB-A output ports, a versatile USB-C port that functions for both input and output, a Micro USB input port, four small LED lights indicating battery level, and a power button.

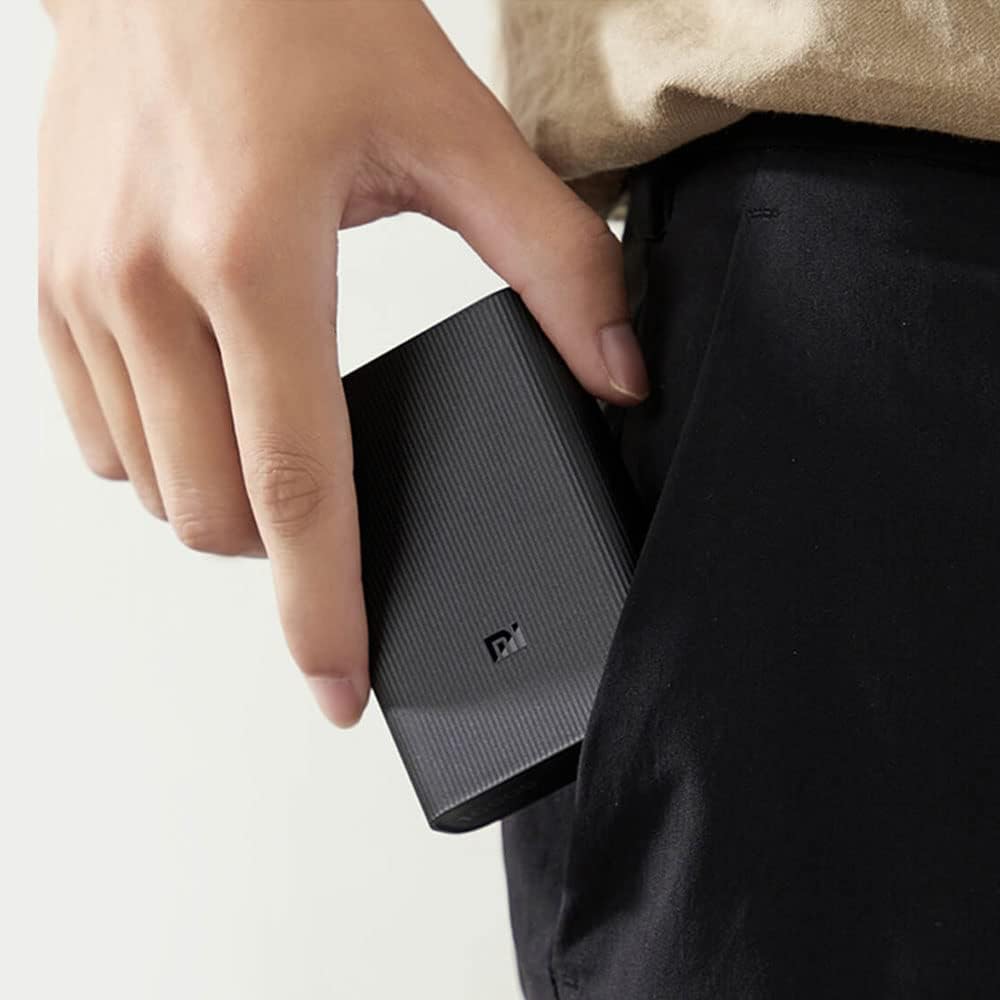

This image illustrates the compact dimensions of the power bank as it is held in a hand, emphasizing its portability and ease of carrying.

Opsætning

Indledende opladning

Oplad din powerbank helt inden første brug.

1. Connect the power bank to a power adapter (not included) using either a USB-C cable or a Micro USB cable.
2. The LED indicator lights will illuminate to show the charging progress. All four lights will be solid when fully charged.

Betjeningsvejledning

Opladning af Power Bank

Sådan genoplades powerbanken:

1. Use a compatible USB-C or Micro USB cable.
2. Connect the cable to the corresponding input port on the power bank and to a power source (e.g., wall adapter, computer USB port).
3. The LED indicators will flash during charging and remain solid when fully charged. Each light represents approximately 25% of the battery capacity.

Opladning af eksterne enheder

To charge your mobile devices:

1. Connect your device to one of the USB-A output ports or the USB-C port on the power bank using a suitable charging cable.
2. Powerbanken begynder automatisk at oplade din enhed. Hvis den ikke gør det, skal du trykke én gang på tænd/sluk-knappen.
3. The LED indicators will show the remaining battery level of the power bank during discharge.

Lavstrøms opladningstilstand

For charging low-current devices such as Bluetooth headphones or smartwatches:

1. Double-press the power button to enter low-current charging mode.
2. The LED indicators will flash sequentially to confirm activation.
3. Connect your low-current device. The power bank will provide a stable, low-current output for safe charging.
4. To exit low-current mode, double-press the power button again, or it will automatically exit after two hours.

The power bank is capable of charging multiple devices at once using its various output ports.

Opretholdelse

• Hold powerbanken tør og væk fra fugt.
• Må ikke udsættes for ekstreme temperaturer (varm eller kold).
• Clean the exterior with a soft, dry cloth. Avoid using harsh chemicals.
• Opbevares på et køligt, tørt sted, når det ikke er i brug i længere perioder.
• Recharge the power bank at least once every three months to prolong battery life.

Fejlfinding

• Powerbanken oplader ikke: Ensure the charging cable and adapter are working correctly and securely connected. Try a different cable or adapter.
• Enheden oplader ikke: Ensure the power bank has sufficient charge. Press the power button once to activate charging. Try a different USB port or cable.
• Langsom opladning: Verify that your cable and adapter support fast charging if applicable. Some devices may charge slower due to their specifications or the cable used.
• LED-indikatorer virker ikke: If the power bank is completely depleted, the indicators may not light up immediately. Charge for a few minutes and check again.

Specifikationer

Sikkerhedsoplysninger

• Do not disassemble, impact, or puncture the power bank.
• Do not expose to fire, high temperatures, or direct sunlight.
• Opbevares utilgængeligt for børn.
• Dispose of the power bank according to local regulations. Do not dispose of with household waste.
• Avoid using the power bank in environments with extreme humidity or dust.

Garanti og support

For garantioplysninger og kundesupport henvises til den officielle Xiaomi webwebstedet eller kontakt din lokale forhandler. Gem din købskvittering som købsbevis.
